If you have no idea about how to install/uninstall the outdoor security mount for the camera Argus Eco Series, please follow the instruction below step by step.

This article will include two parts:

Mount the camera to the Wall

Argus Eco

Step 1. Drill holes and screw the security mount into the wall.

Note: If you are mounting the camera on any hard surface, insert plastic anchors into the holes first.


Step 2. Screw the antenna to the camera and install the camera to the mount.


Step 3. Loosen the adjusting knob and adjust the camera in the proper direction.


Step 4. Tighten the knob to fix the camera.




Argus Eco Ultra, Argus Eco Pro

Step 1. Rotate to separate the base from the bracket.

mount camera 1.png

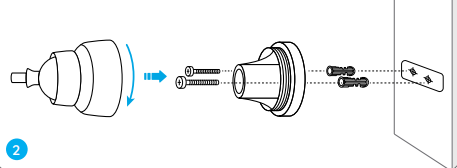

Step 2. Drill holes in accordance with the mounting template and screw the base of the bracket to the wall. Next, attach the other part of the bracket to the base.

Note: Use the drywall anchors included in the package if needed.

mount camera 2.png

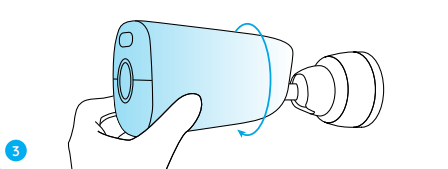

Step 3. Screw the camera to the bracket. Adjust the camera angle to get the best field of view.

mount camera 3.png

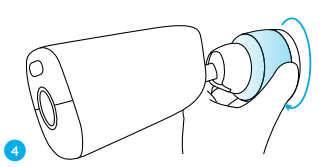

Step 4. Secure the camera by turning the part on the bracket identified in the chart clockwise.

mount camera 4.png

Note: To adjust the camera angle later, please loosen the bracket by turning the upper part anticlockwise.



Attach the Camera to a Tree

Argus Eco

Step 1. Thread the strap through the slots of the mounting plate.


Step 2. Fix the plate to the mount with screws.


Step 3. Fasten the strap onto the tree firmly.


Step 4. Attach the camera to the mount in the same way as in mounting it to the wall.




Argus Eco Ultra, Argus Eco Pro

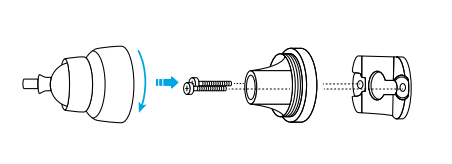

Step 1. Secure the bracket’s mounting plate to the base with screws.

loop strap 1.png

Step 2. Thread the provided strap to the plate and fasten it to a tree. Next, attach the camera to the plate and you are good to go.

loop strap 2.pngloop strap 3.png
