Reolink camera installation is an essential step of embarking on the journey to set up your Reolink camera system. In this guide, we'll walk you through essential installation tips to ensure a seamless setup process and optimal performance of your Reolink cameras.

Applies to: All Reolink Cameras

  • Reolink Battery-Powered Camera Installation

    To install Reolink battery-powered cameras properly, consider the camera’s viewing field and the PIR motion sensor’s detection field. Refer to the instructions below for accurate placement.

    • Install Cameras by Viewing Field

      • Please make sure that the monitoring area is well within the camera's field of view.
        3.

      • The ideal viewing distance is 2-10 meters (7ft — 33ft), within which people will be recognized. To achieve a better viewing experience, it's advised not to place the camera too far away or too high (suggested mounting height: 2-3 meters) from the designated monitoring area.

        Ideal Viewing Distance

      • As for the Reolink Video Doorbell cameras, you are recommended to install the camera 1.2m (48'') high off the ground to get an ideal camera view.

        2._find_a_place_2_

    • Install Cameras by Detection Field of the PIR Motion Sensor

      • The detecting distance of PIR motion sensors is 10 meters, and the detecting angle is 120˚ horizontally. Motions out of this range can’t be detected. (Note: The maximum detection range varies slightly by model. For example, the TrackMix LTE Plus 2 supports up to 15 meters, referring to Introduction to PIR Detection Distance)
      • Our PIR motion sensor is more sensitive to side-to-side movement than movement heading straight toward the camera.

      • For example, when a person moves straight toward the camera (shown below), the PIR motion sensor will be less sensitive to the movement.

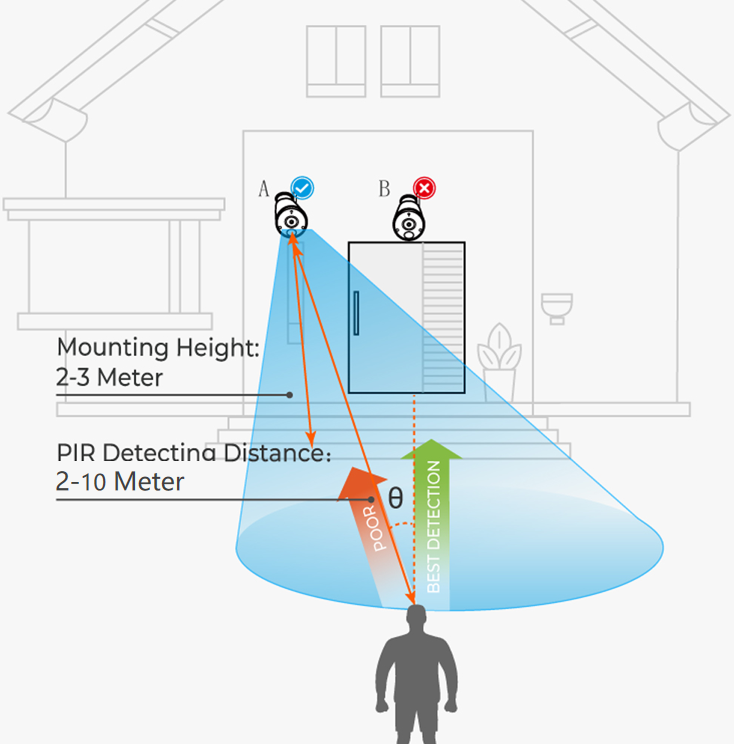

        Camera_ViewDetection height

      • Note: To make the camera work better, mount it well within the coverage of your wireless network.

    • Camera Installation Dos & Don’ts

      For reducing false alarms, please note that:

      • Do not install the camera facing any objects with bright lights, including sunshine, bright lamp lights, etc.
      • Do not place the camera too close to a place where many vehicles move frequently; 15 meters (55ft) away from the vehicle is the recommended distance based on our numerous tests.
      • Stay away from the outlets, including the air conditioner vents, humidifier outlets, the heat transfer vent of projectors, etc.
      • Do not install the camera facing the mirror or the glass.
      • Keep the camera at least 1 meter away from any wireless devices, including Wi-Fi routers and phones to avoid wireless interference.

  • Reolink PoE/Wi-Fi Camera Installation

    There are no specific restrictions on height or installation scenarios; the priority is to ensure that the camera has good recognition and detection capabilities.

    For cameras supporting smart detection, please pay attention to the following points:

    • Try not to let the camera look vertically to the ground.
    • Avoid complex environments, such as places that are heavily blocked by trees.

How to install a Reolink camera? Should the camera be mounted on the ceiling or the wall?

Various cameras have distinct installation methods. If your camera supports both wall mounting and ceiling installation, both approaches are viable. However, if it only supports one installation method, it's advisable to adhere to the camera's original method to avoid compromising the field of view and other functionalities. In the case of inverted cameras, like E1 Outdoor Series, they should be installed upside down to maintain their waterproofing capabilities. Refer to How to Install Reolink Cameras for installation guidance on different models.
