How to Arrange the Display Order of Cameras on Reolink NVR

When viewing your cameras on a monitor/TV plugged into your NVR, you probably need to reorder the sequence of those cameras. This article will show you how to re-arrange the display order for the cameras.

Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06) and WiFi NVRs

Note: Make sure that you have connected a monitor and a mouse to the NVR before the following steps.

Here is a video for your reference:

PoE NVR

Method 1

In Live view (multiple screens), left-click a camera and long press to drag the camera to the channel that you want.

Method 2

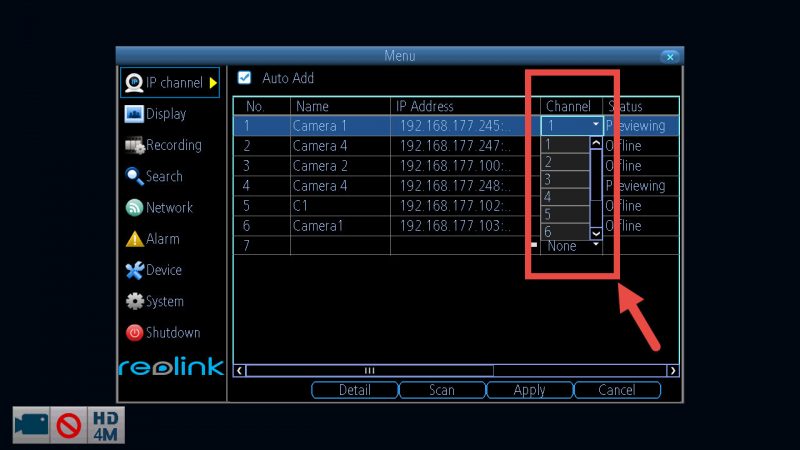

Step 1. Go to Menu > IP Channel interface, and make sure all the cameras have entered the Previewing status.

Step 2. Expand the selection bar to assign a channel for each camera. After that, click Apply to save the settings.

WiFi NVR

If you want to re-arrange the display order for cameras that are connected to a Reolink WiFi NVR, please go to the Device List page and expand the selection bar to assign a channel for each camera. After that, click Apply to save the settings.
