Follow the steps below to configure the different kinds of alarms including buzzer, push, and email on the Action page for your cameras via Reolink PoE NVR on the monitor.

Applies to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

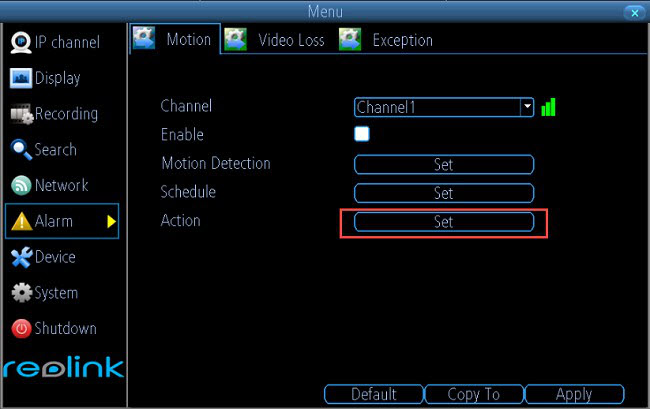

Step 1. Go to MenuAlarm > Motion page, select the channel (camera) you want to set up, then check Enable box and click on Action Set.


Motion Page

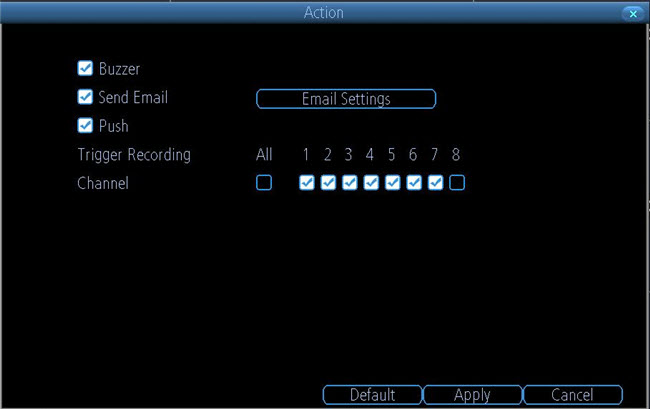

Step 2. Check Channel boxes for the cameras you would like to enable Trigger Recording for (at least including the channel you have selected in Step 1), then click Apply to save the settings for Action.Action Page
