The Reolink RLA-BKW4 Wall Mount Bracket is designed to offer a durable and adjustable solution for securely mounting your Reolink cameras. It provides user-friendly installation and flexible mounting for optimal coverage. In this article, we’ll take a closer look at the features of this versatile bracket and guide you through the setup.

Table of Contents

1. Why Choose RLA-BKW4 Wall Mount Bracket

2. Compatible Reolink Cameras for the RLA-BKW4 Wall Mount Bracket

3. Detailed Features and Usage Tips for the Reolink RLA-BKW4 Wall Mount Bracket

4. Install Your Camera with the Reolink RLA-BKW4 Wall Mount Bracket

1. Why Choose RLA-BKW4 Wall Mount Bracket

Optimal Camera Installation

The RLA-BKW4 cctv Wall Mount Bracket is designed for those who prefer not to mount cameras directly on the wall or need better camera angles. It allows for suspended camera installation, perfect for locations without a ceiling or where the ceiling can’t support the camera.

Integrated Cable Management

This bracket also features a built-in cable management system, which neatly stores and hides wires, ensures tidy installation and aesthetic setup, and protects the cables from damage.

2. Compatible Reolink Cameras for the RLA-BKW4 Wall Mount Bracket

The table below lists the Reolink cameras compatible with the RLA-BKW4 cctv Wall Mount Bracket. Some cameras can be installed without the included Adapter Plate. See below for details.

Without Adapter Plate

With Adapter Plate
D1200 V1200
D500 V500
D800 V800
RLC-1224A V800W
RLC-520A RLC-1240A
RLC-820A RLC-840A
RLC-822A RLC-540A
RLC-833A RLC-843A
  RLC-840WA
  RLC-843WA
  Reolink Duo 3V PoE
  Reolink Duo 2V PoE

3. Introduction and Usage Tips for the Reolink RLA-BKW4 Wall Mount Bracket

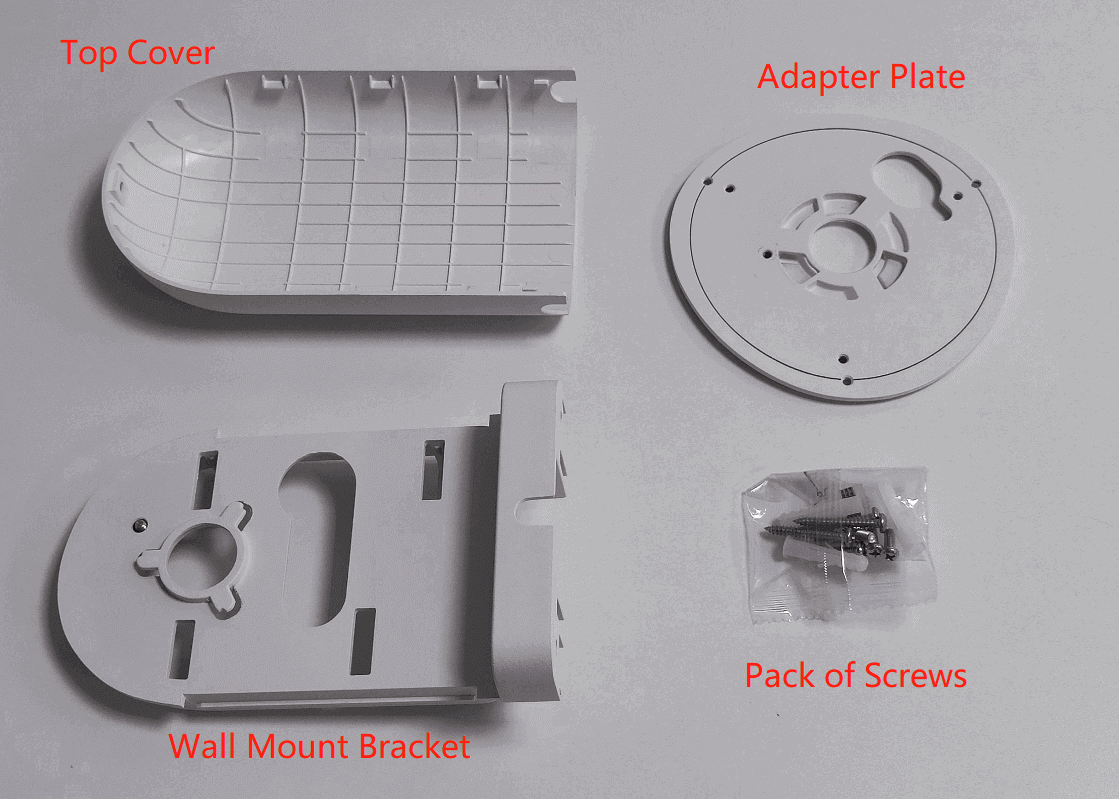

Here is what's included:

  • Wall mount bracket
  • Top cover
  • Adapter plate
  • A pack of screws
  • Mounting template

what you get

Wall Mount Bracket

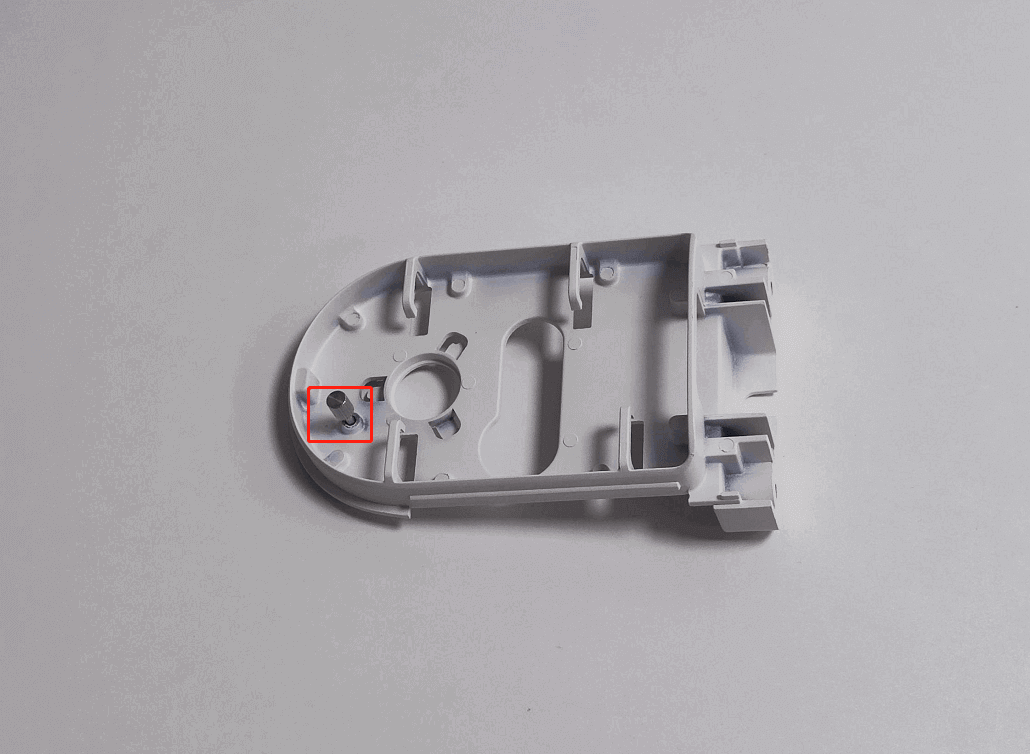

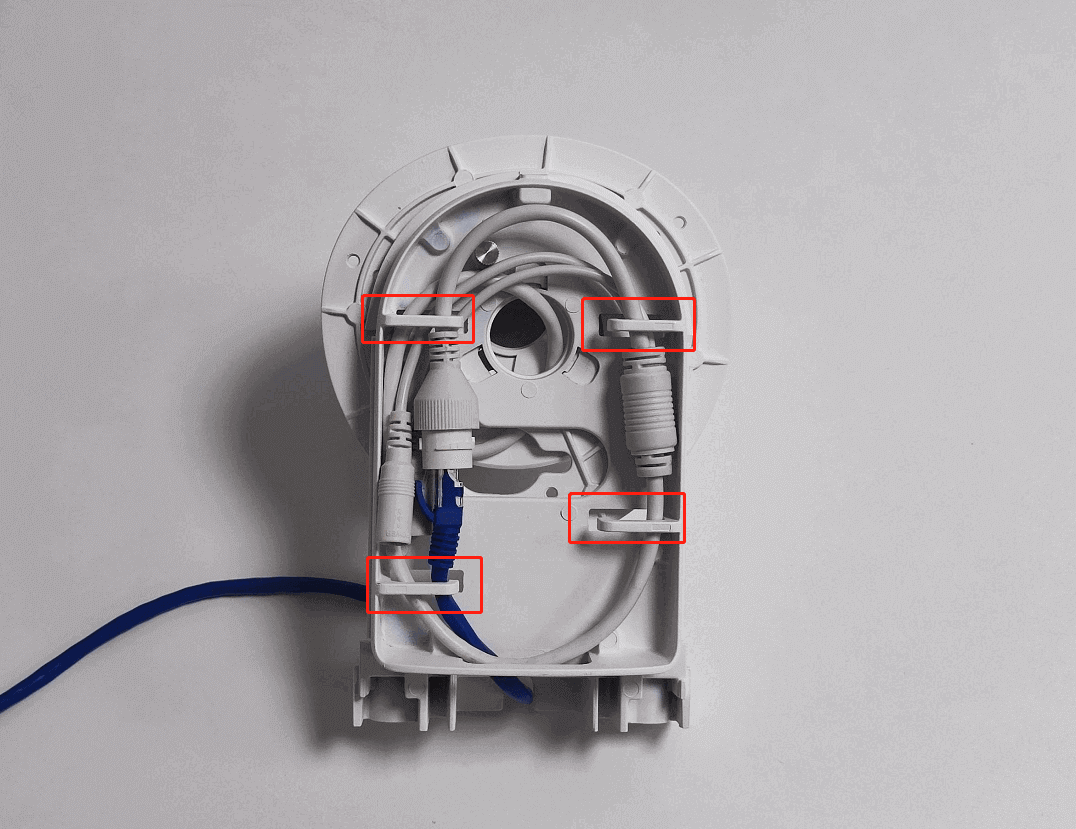

The RLA-BKW4 cctv Wall Mount Bracket features built-in hooks for easy cable management, ensuring your installation is tidy and organized.

Built-in Hooks

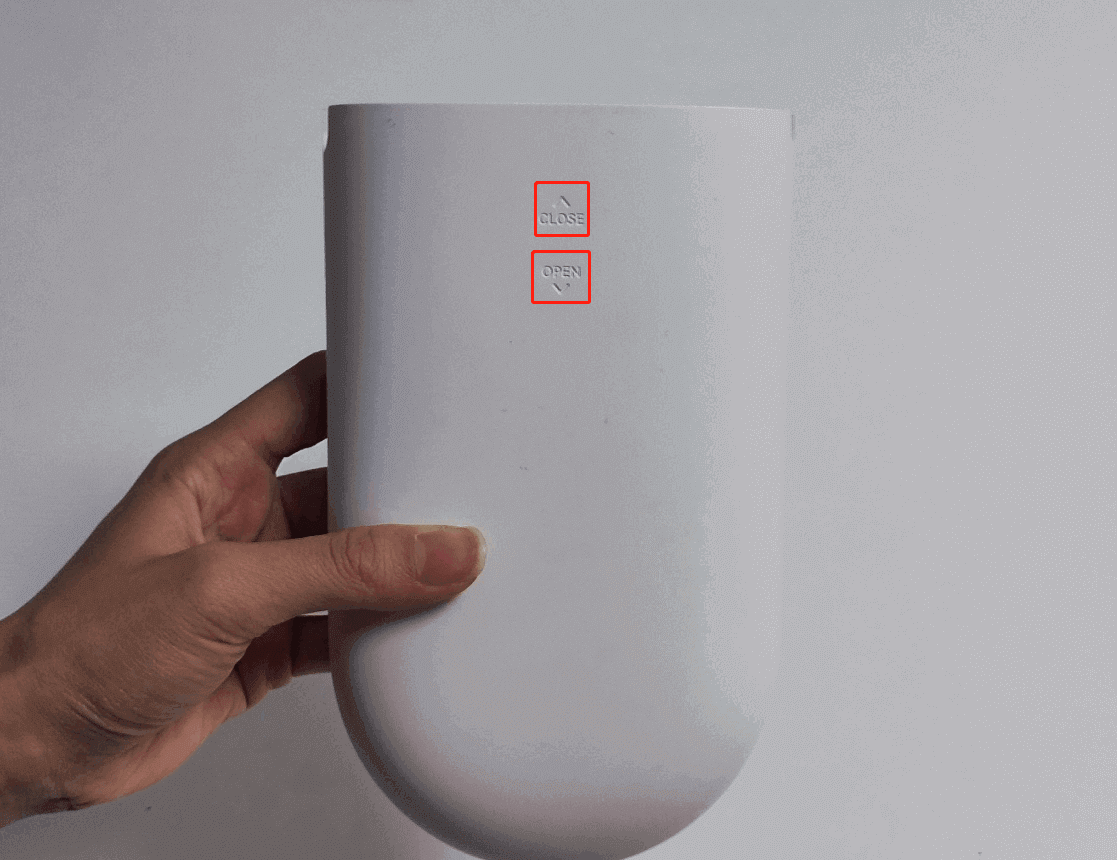

Top Cover

The top cover of the bracket slides open for easy installation and maintenance with clear directional markings on the cover for user-friendly setup.

Top Cover

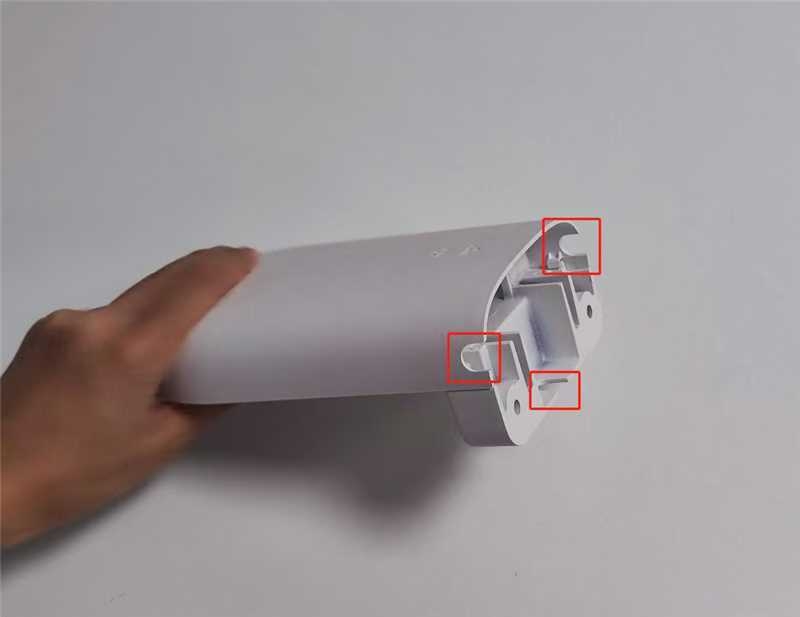

Wire Notch

The bracket features three wire notches, which allow for flexible cable routing in different directions, ensuring that you can easily manage cables according to your setup's requirements.

Wire Notch

Adapter Plate

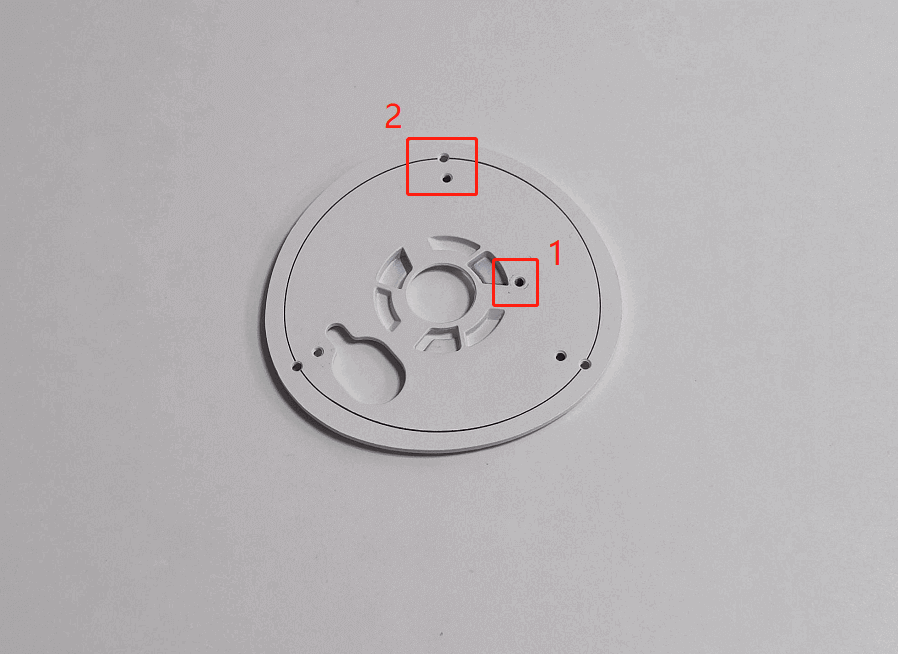

Screw Holes on the Adapter Plate:

1. Hole 1: Designed to secure the adapter plate to the bracket.

2. Hole 2: Designed to secure the camera to the adapter plate.

Adapter Plate

Attach the Adapter Plate:

To attach the adapter plate, align the screw holes on the adapter plate with the holes on the bracket.

You may position the plate as shown in the image, with the marked screw hole facing forward.

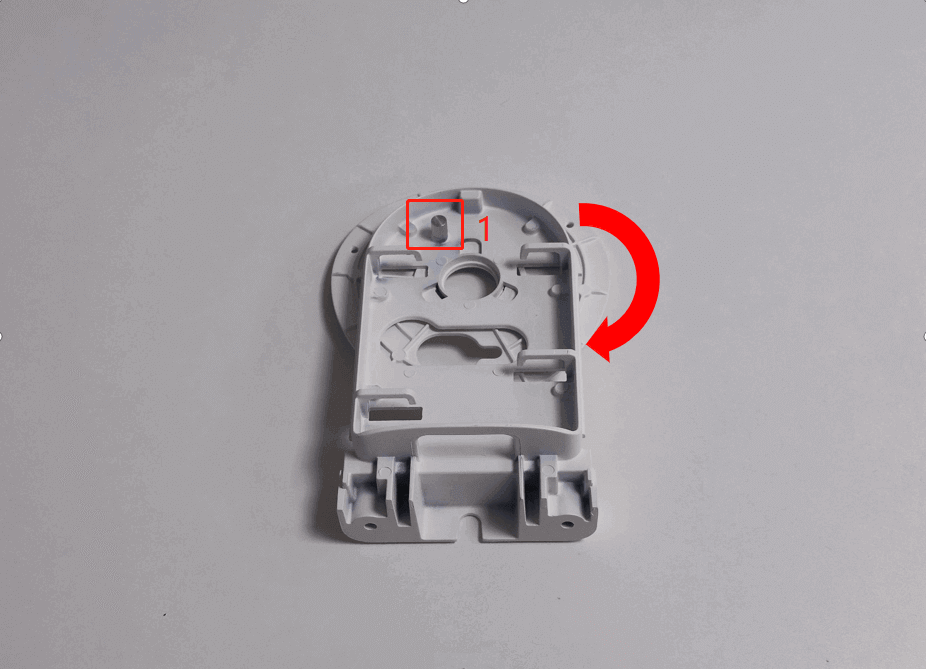

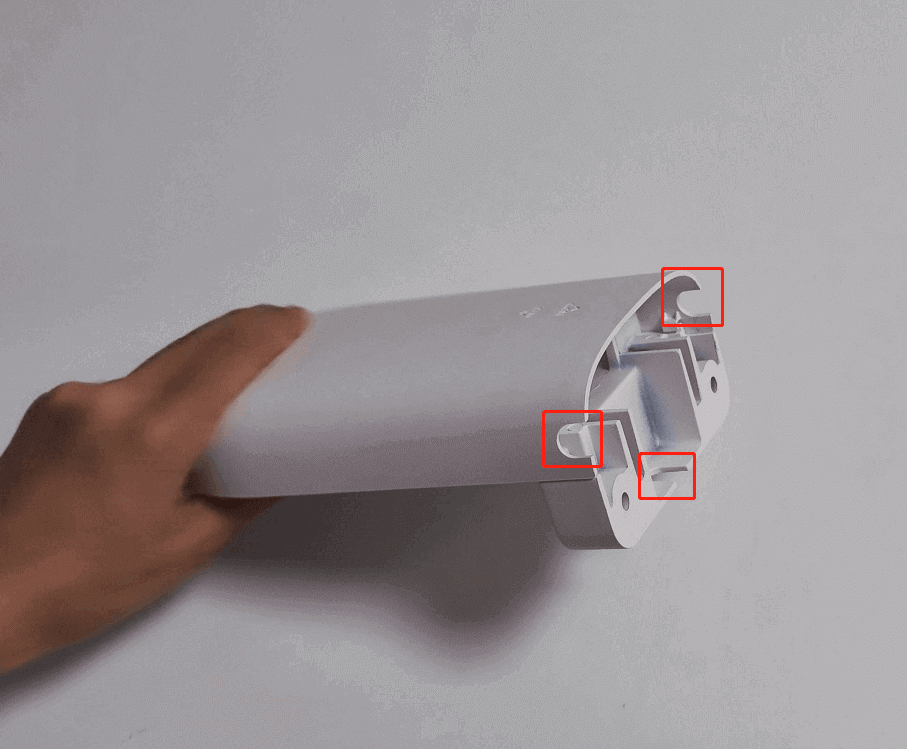

Align the adapter plate grooves with the wall bracket protrusions, then rotate the plate clockwise. Ensure the screw hole on the plate align with the hole on the bracket, and tighten the screw at the back to secure the plate.

Attach the Adapter Plate

screw hole on the plate

Remove Adapter Plate:

To remove the adapter plate, loosen the screw (position 1) counterclockwise to remove it. Then rotate the plate clockwise to remove it. Keep the screws and adapter plate for future use if not needed.

Remove Adapter Plate

4. Install Your Camera with the Reolink RLA-BKW4 Wall Mount Bracket

Installation Preparation

1. Ensure the bracket is installed on a flat wall surface.
2. Ensure the wall can support the combined weight of the camera and the wall bracket.
3. Before you begin, please ensure you have the necessary tools on hand (not included with the product). Here are the tools you may need during the installation:

  • Drill Bit: To drill holes in the wall for the bracket mounting screws.
  • Hammer: To tap the drywall anchors into the drilled holes, ensuring a secure fit for the screws.
  • Screwdriver: For securing the screws into the bracket and the wall.
  • Install the Camera Without Adapter Plate

    Step 1. Prepare and Install the Bracket

    1. Prepare the Bracket:

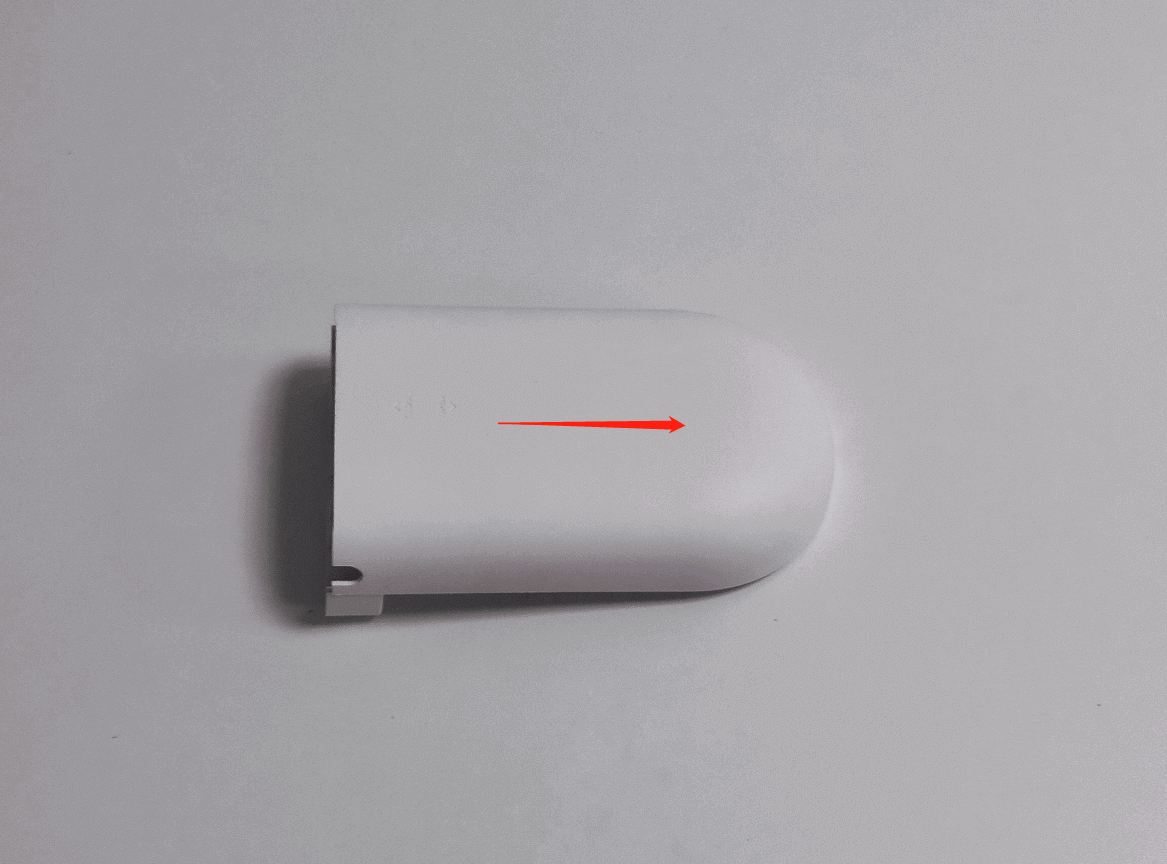

    Slide the top cover off the bracket as shown below.

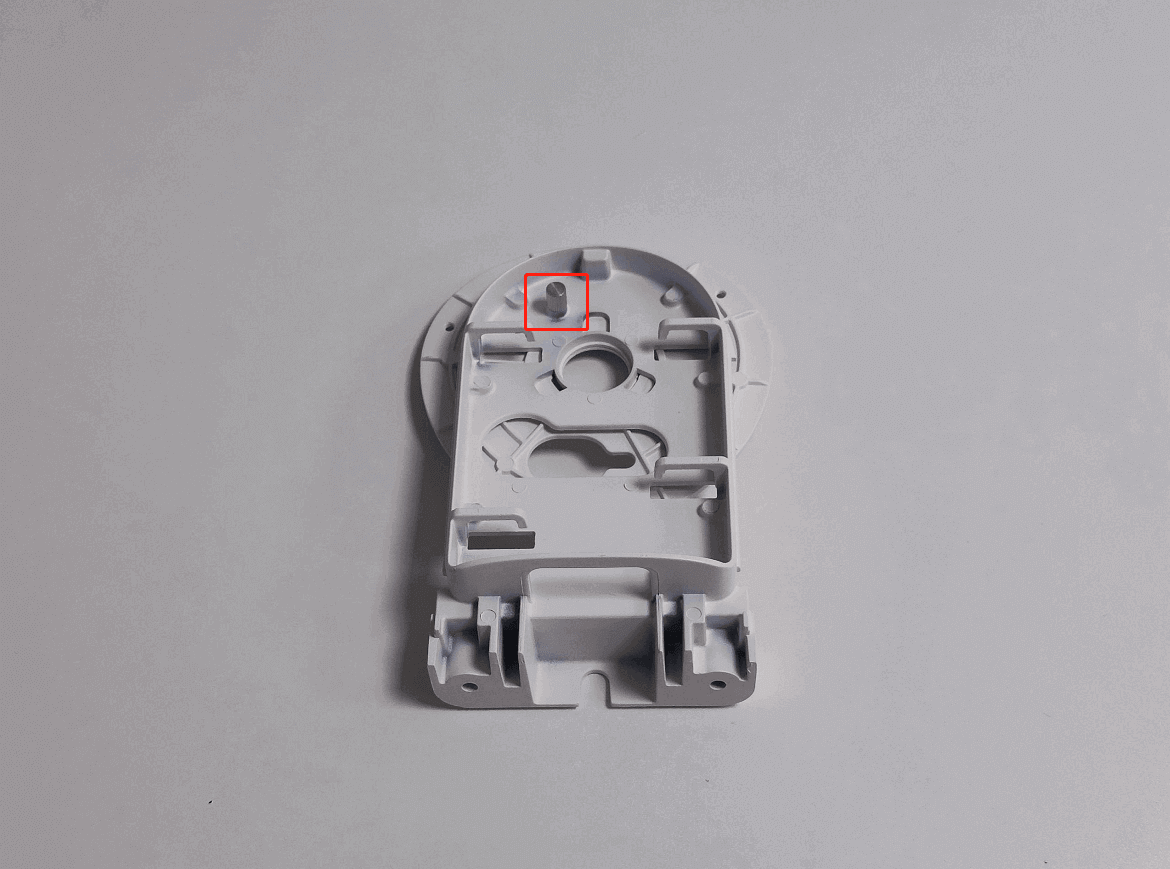

    Loosen and remove the screws securing the adapter plate to the bracket. Keep the screws and adapter plate for future use if not needed.

    Prepare the Bracket loosen the screws

    2. Choose a Wire Notch:

    Select one of the three wire notches based on your wiring needs.

    Choose a Wire notch

    3. Secure the Cable:

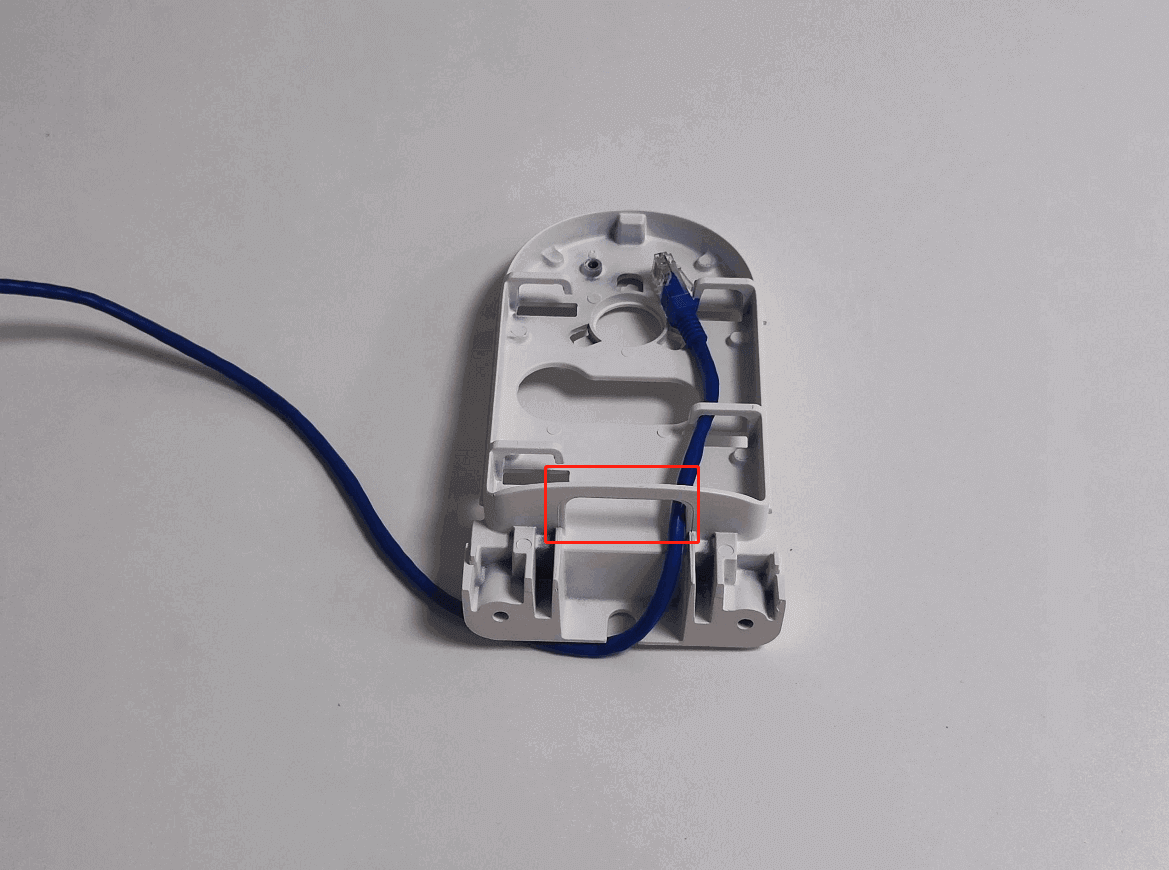

    Pass the cable (Ethernet or power cable) through the hole as shown below. Then temporarily secure the cable with built-in hooks to prevent it from falling.

    Secure the Cable

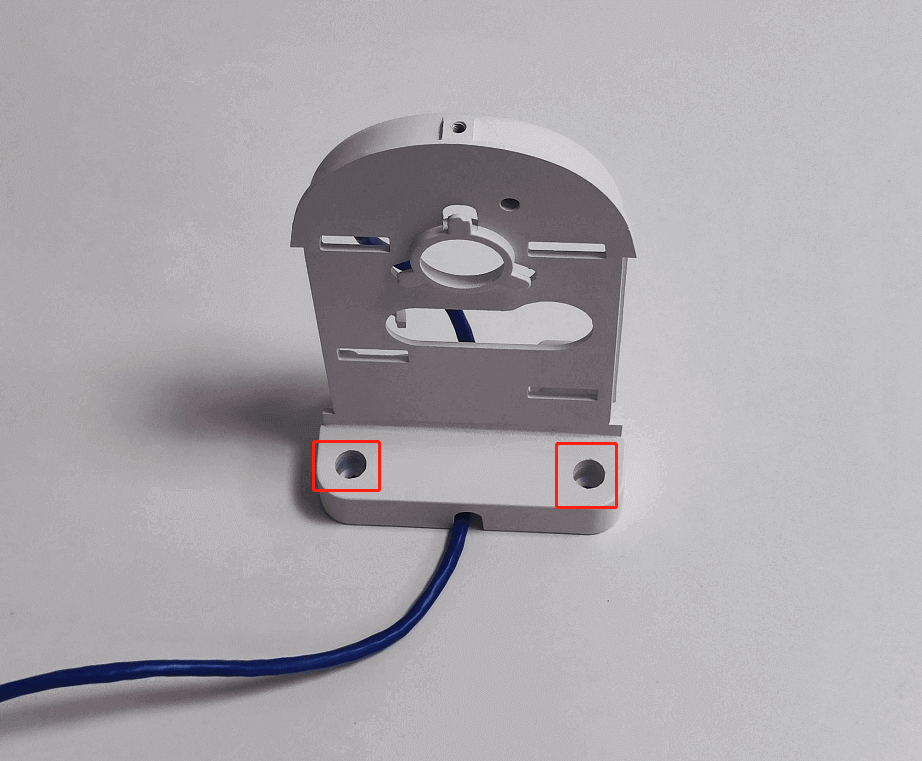

    4. Secure the Bracket:

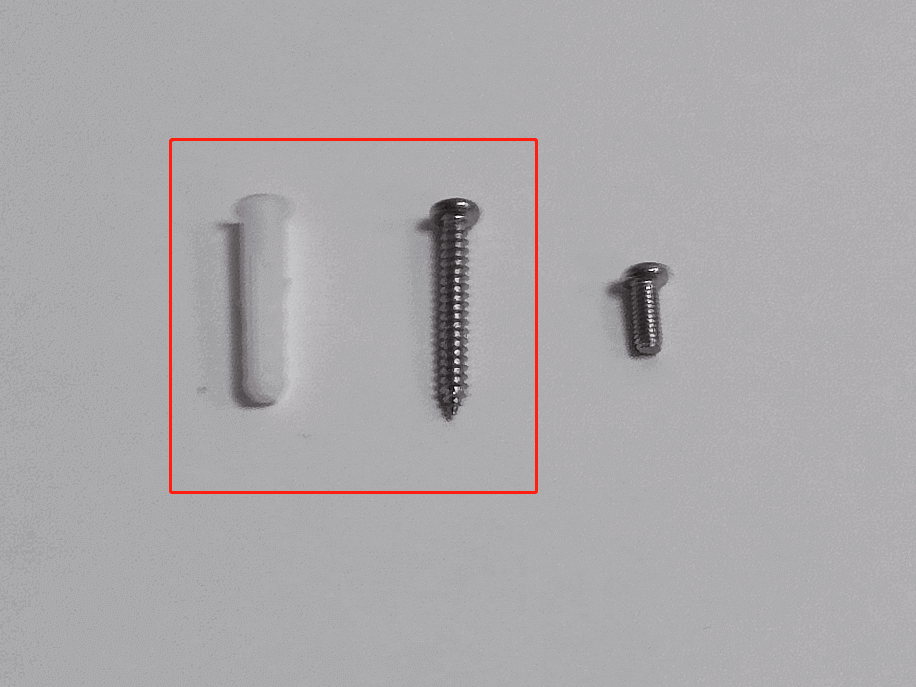

    Attach the mounting template to the wall and drill holes according to the mounting template (drill not included). Align the bracket with the prepared hole and secure it using the included long screws.

    Use expansion drywall anchors for additional support if needed.

    secure the bracket drywall anchors

    Step 2. Install the Camera

    1. Remove the Mounting Plate:

    Rotate the camera’s mounting plate counterclockwise to remove it gently.

    Take the Mounting Plate down

    2. Pass the Cable Through the Bracket:

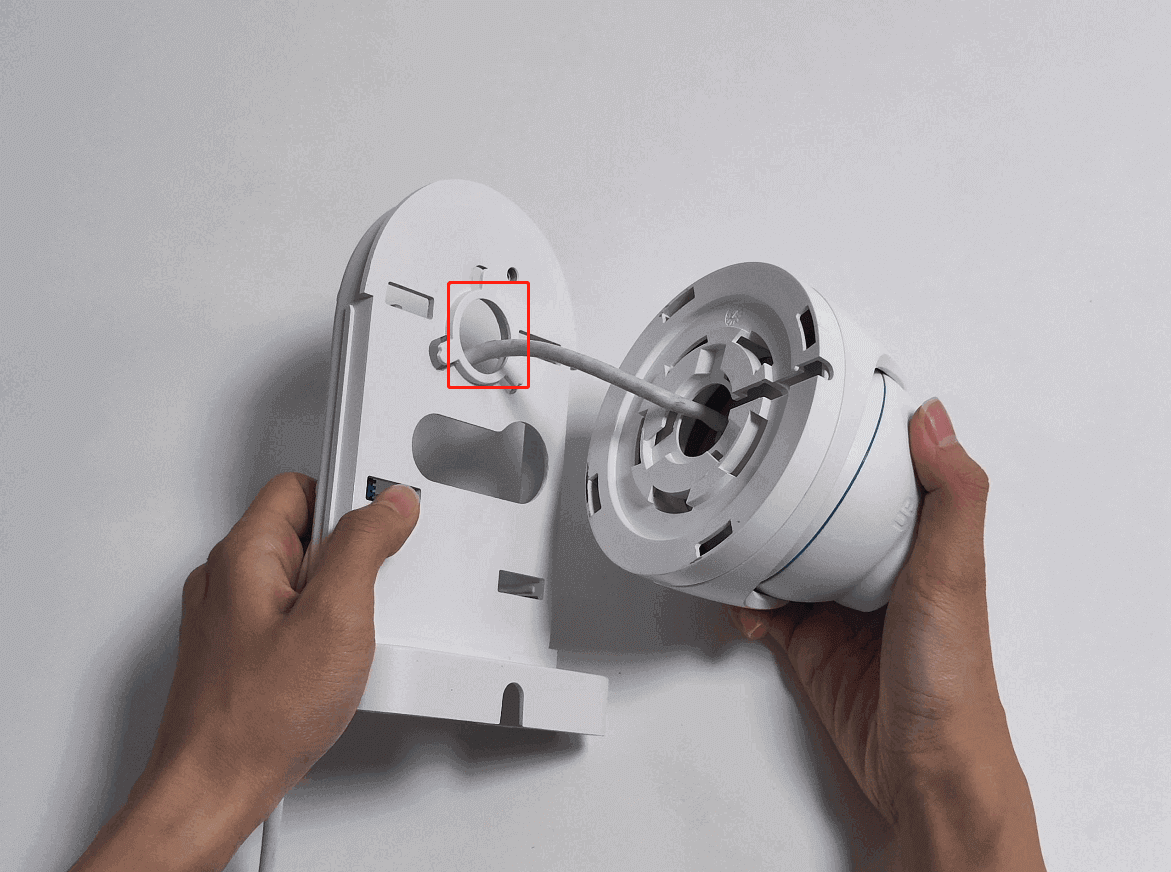

    Pass the camera's tail cable through the round hole on the bracket.

    Feed the Cable Through the Bracket

    3. Attach the Camera to the Bracket:

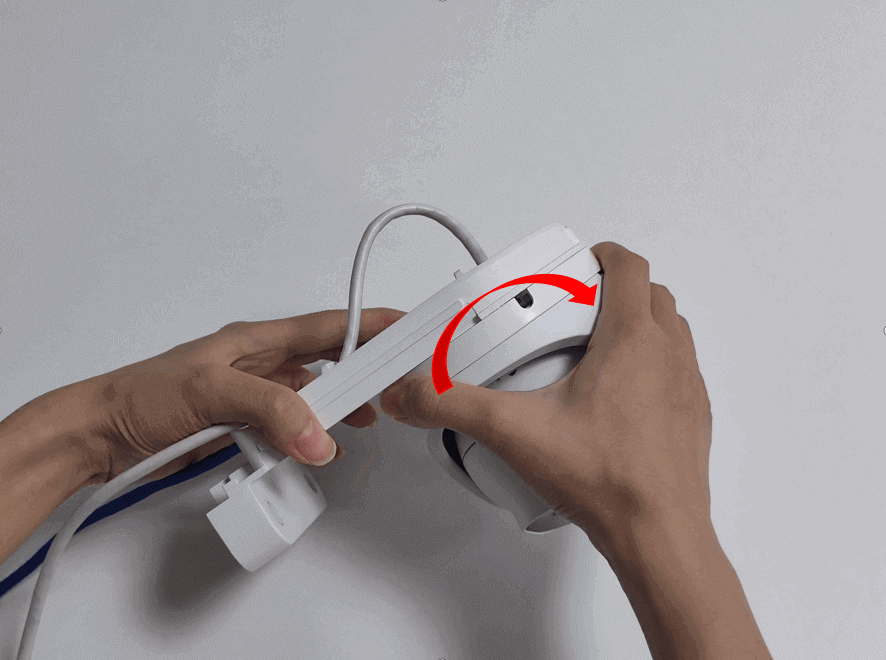

    Align the groove on the bottom of the camera with the protrusion on the bracket, then rotate the camera clockwise to secure it.

    Attach the Camera to the Bracket

    secure it on the bracket

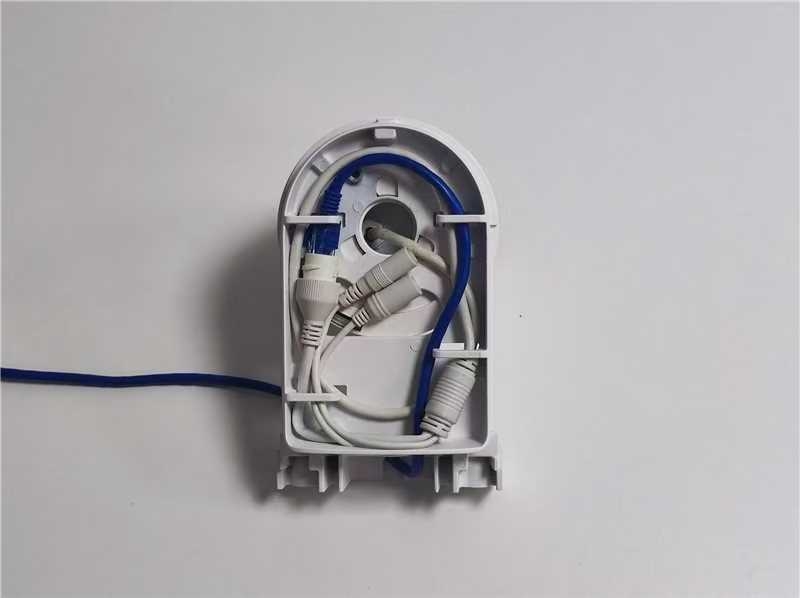

    4. Connect and Organize the Cables:

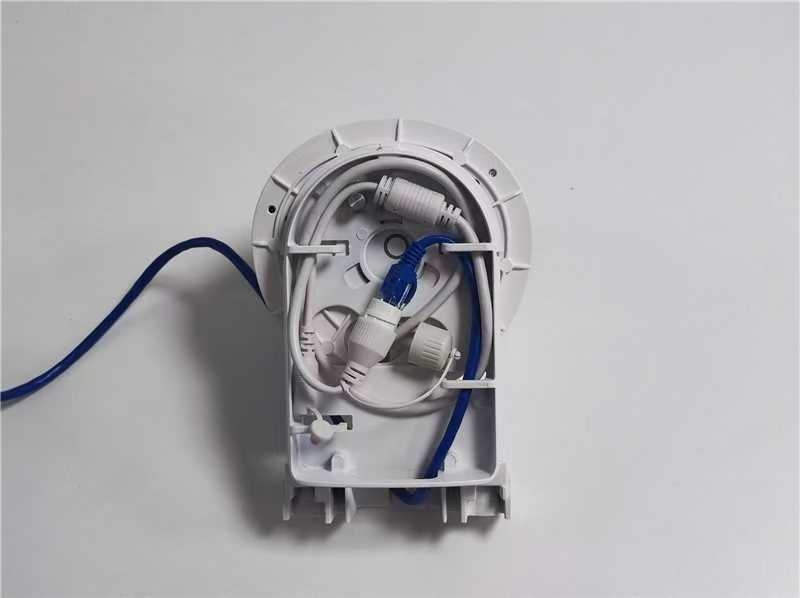

    Connect the Ethernet or power cables to the camera. Then use the bracket hooks to organize the cables neatly.

    Connect the Cables and Organize

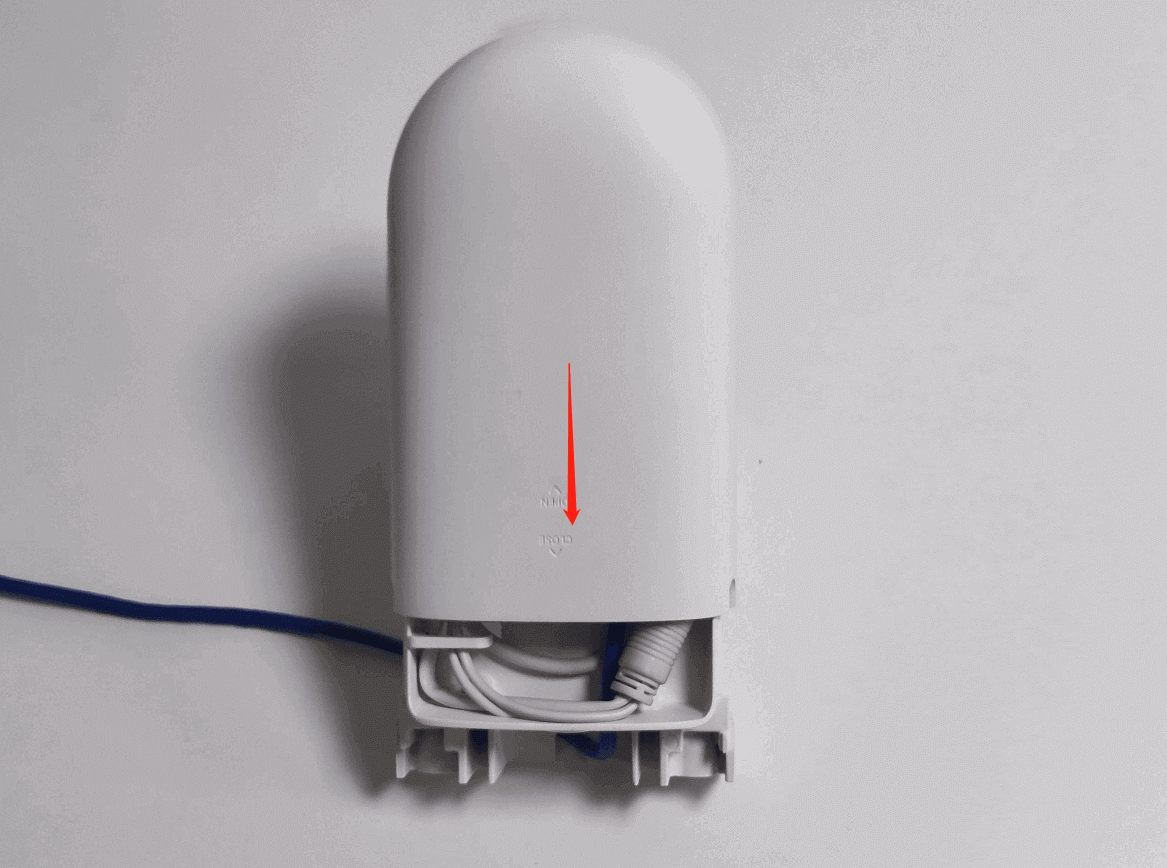

    5. Put Back the Top Cover:

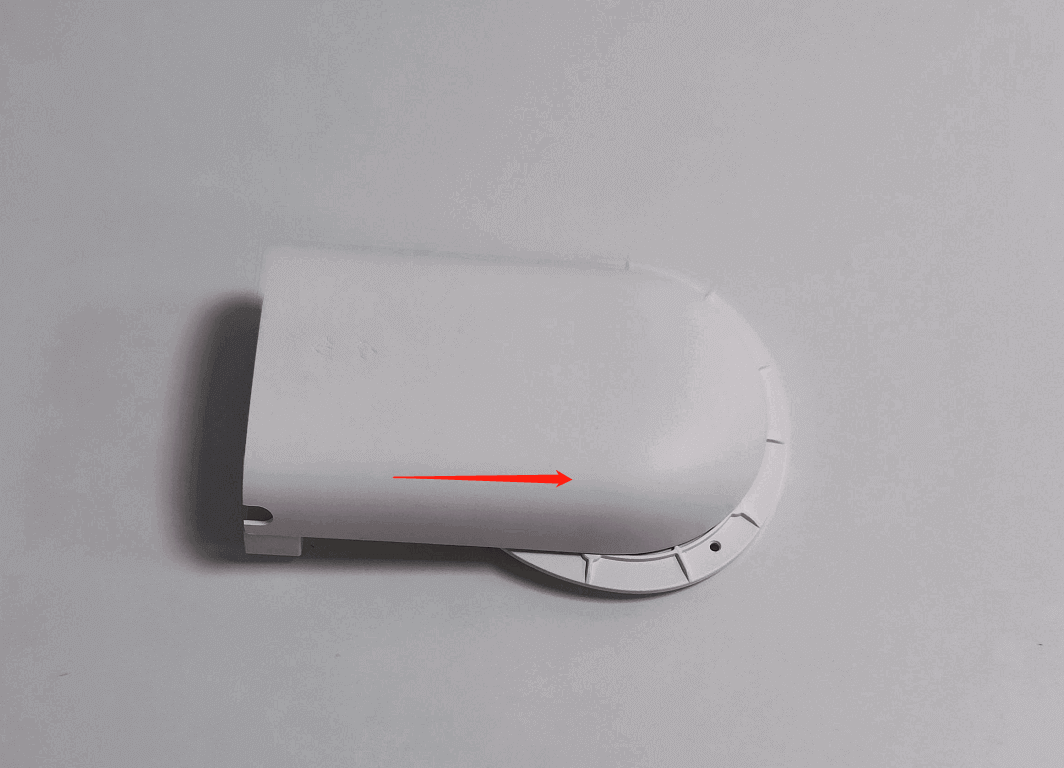

    Slide the top cover back onto the bracket as shown.

    Reattach Top Cover

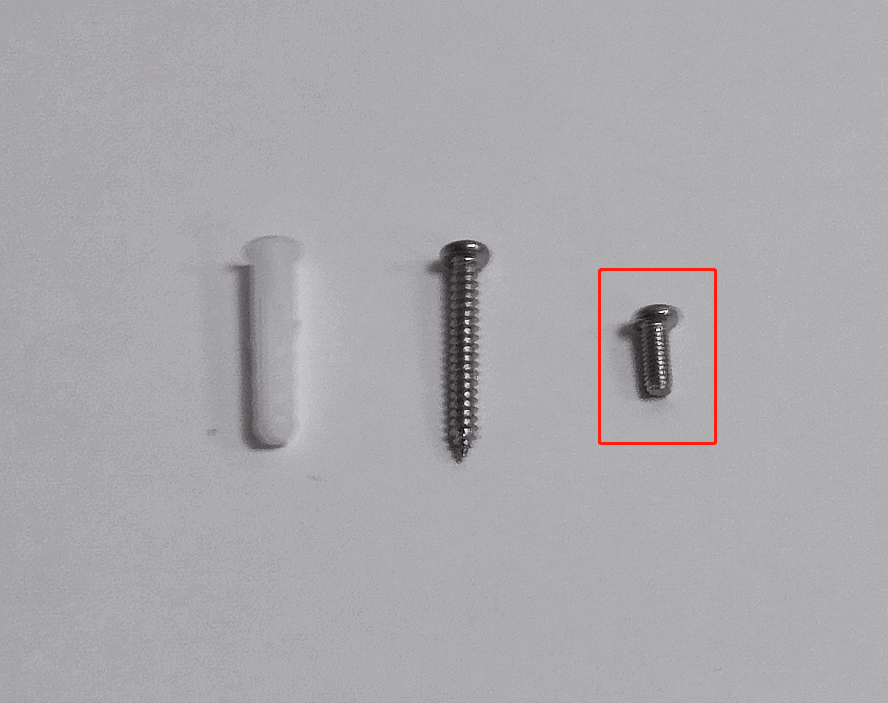

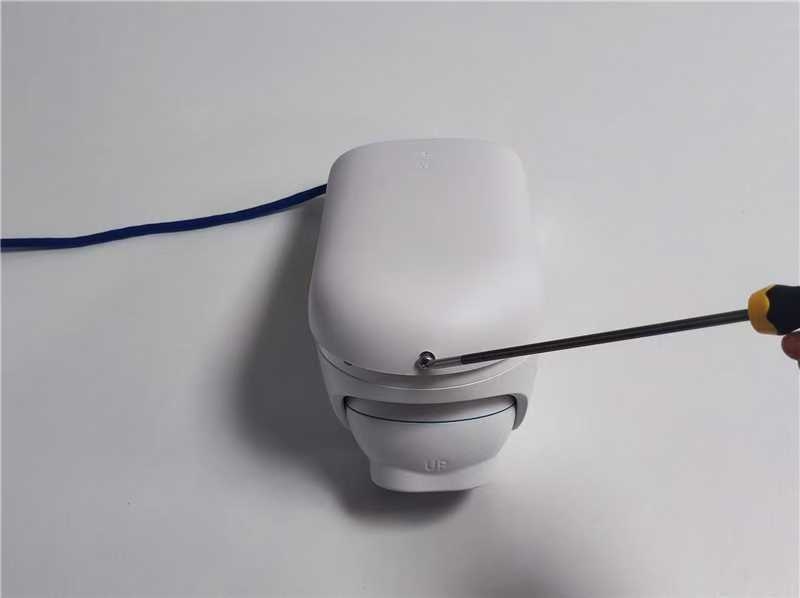

    Then secure the top cover with the short screw. Done!

    Secure short screw

    Step 3. Adjust the Camera

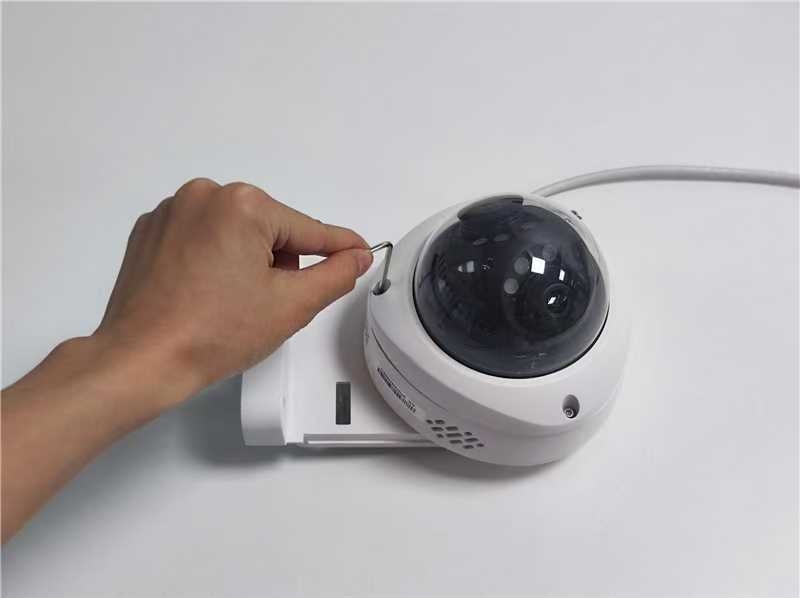

    Rotate the camera case and the body manually to adjust the camera angle.

  • Install the Camera with the Adapter Plate of the Bracket

    Step 1. Prepare and Install the Bracket

    1. Remove the Top Cover:

    Slide the top cover off the bracket as shown.

    Slid the top cover

    2. Install the Adapter Plate:

    Position the plate as shown below, with the screw hole facing forward.

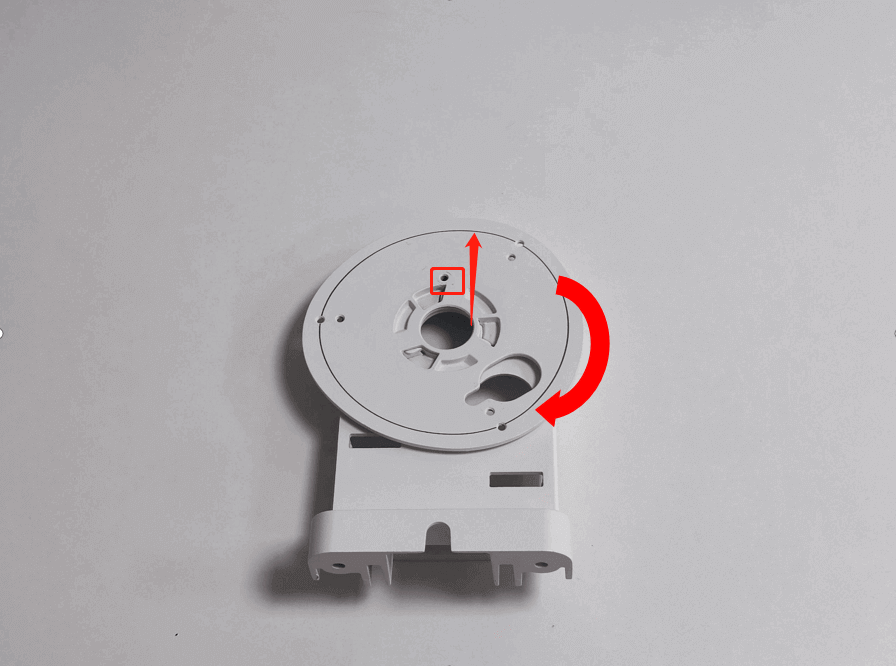

    Align the adapter plate grooves with the wall bracket protrusions, and rotate the plate clockwise until the screw holes match.

    Tighten the screw at the back to secure the plate.

    Install the adapter plate

    tighten the screw at the back

    3. Choose a Wire Notch:

    Choose one of the three wire notches on the bracket based on your wiring needs.

    Choose a Wire notch

    4. Secure the Cable:

    Pass the cable (Ethernet or power cable) through the hole as shown. Then temporarily secure the cable and prevent it from falling using the built-in hooks.

    power cable

    5. Secure the Bracket:

    Attach the mounting template to the wall and drill holes according to the mounting template sticker (drill not included).

    Align the bracket with the prepared hole and secure it in place using the included long screws.

    Use expansion drywall anchors for additional support if needed.

    secure the bracket drywall anchors

    Step 2. Install the Camera

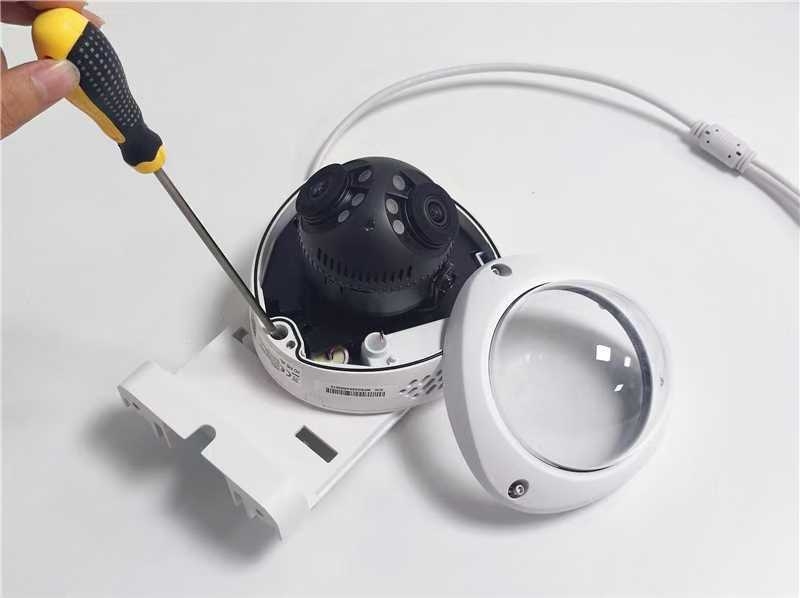

    1. Remove the Glass Cover:

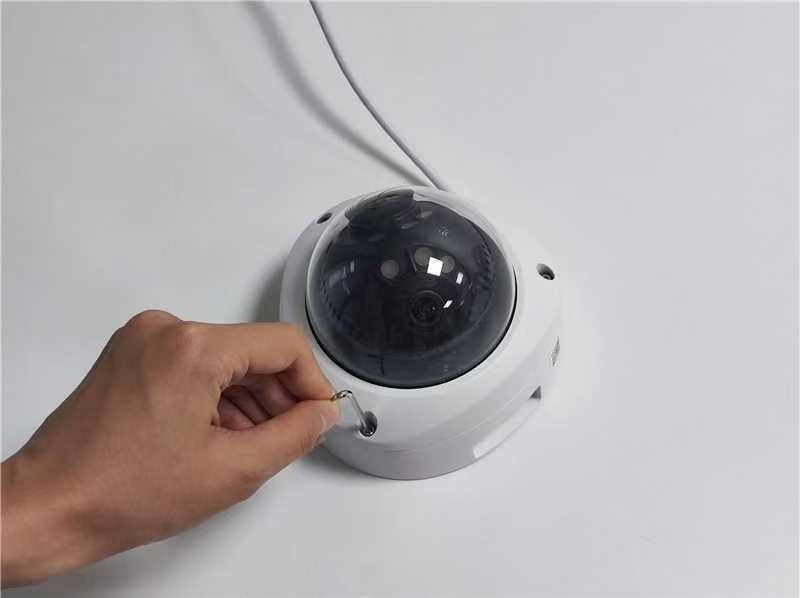

    Remove the screws securing the camera glass cover with a hexagonal screwdriver.

    Remove Glass Cover

    2. Pass the Cable Through the Bracket:

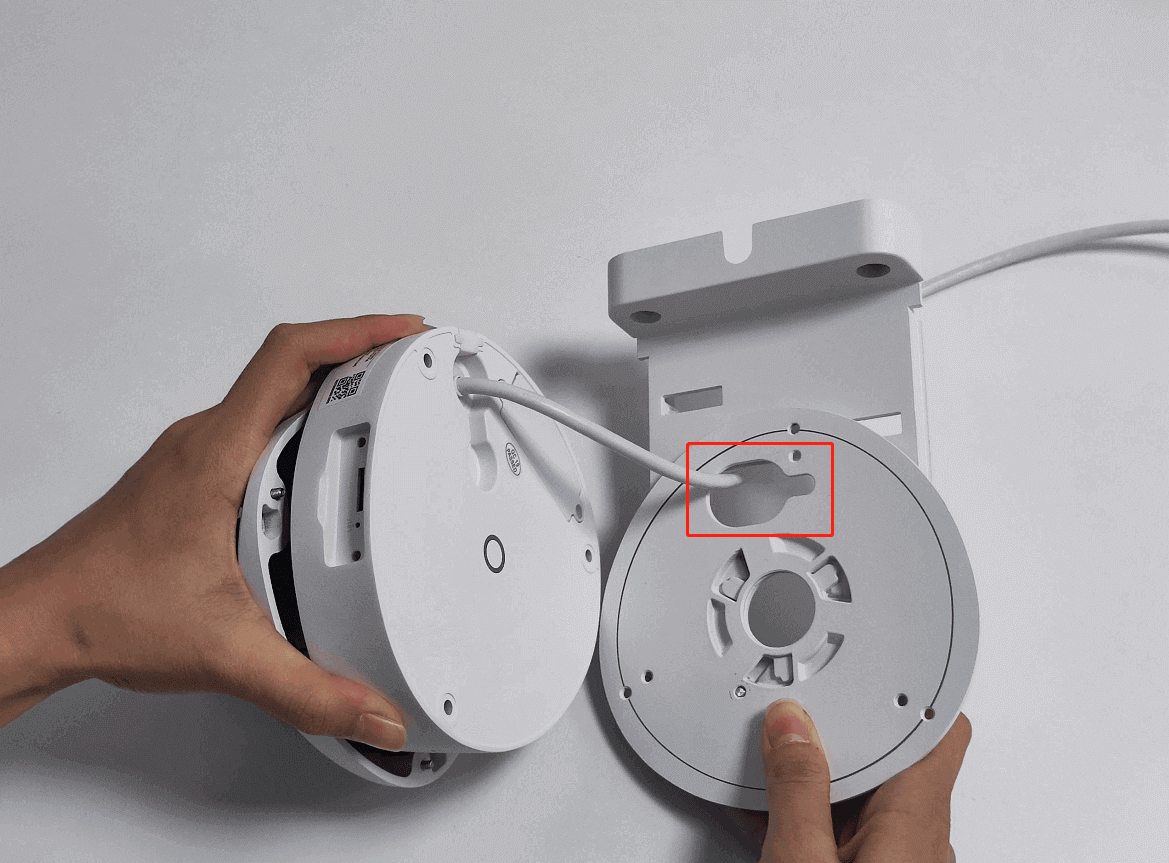

    Pass the camera's tail cable through the mount bracket as shown.

    Feed Cable Through the Bracket

    3. Secure the Camera:

    Make sure the cable entry on the adapter plate and the cable outlet on the camera are aligned.

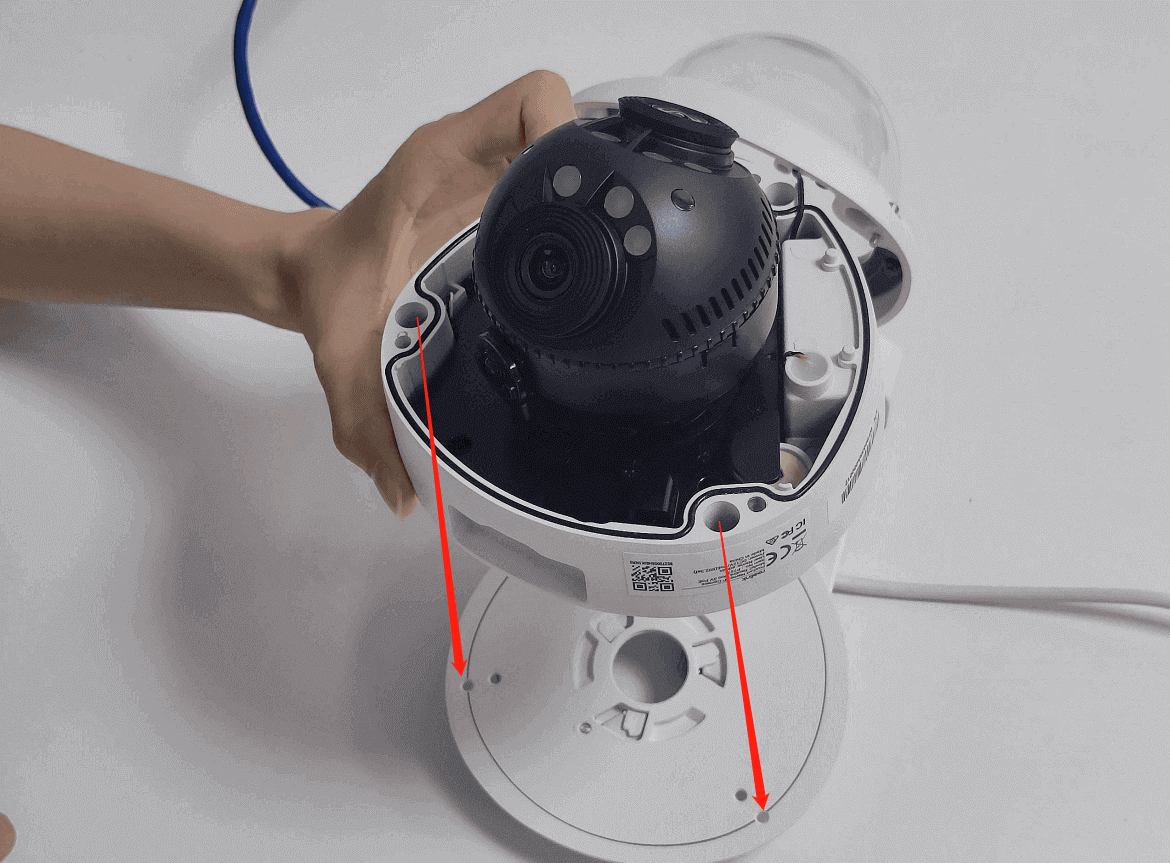

    Align the screw holes on the camera with the holes on the adapter plate and secure the camera with the short screws.

    the cable outlet align the screw holes

    screwdriver short screw

    Tips:

    For small-sized cameras like the RLC-1240A, align the camera body with the adapter plate according to the gray circle, as the mounting holes are closer to the center.

    For large-sized cameras like the Duo 3V PoE, align the edge of the camera body with the edge of the adapter plate, as the mounting holes are placed slightly further out.

    4. Install the Glass Cover:

    Install the glass cover back to the camera.

    To adjust the angle of the camera before installing the cover, please refer to How to Install Reolink Vandal-Proof Camera

    Install the Glass Cover

    5. Connect and Organize the Cables:

    Connect the Ethernet or power cables to the camera. Then use the bracket hooks to organize the cables neatly.

    Organize

    6. Put Back the Top Cover:

    Slide the top cover back to the bracket as shown.

    Reattach Top Cover

    Then secure the top cover with the short screw. Done!

    Secure short screw

In conclusion, this article offers a comprehensive guide on the RLA-BKW4 Wall Mount Bracket, including its benefits, compatibility with various Reolink cameras, and detailed installation steps. By following this guide, you'll be equipped to install your camera securely, achieve optimal viewing angles, and maintain a clean, organized setup.
