Learn how to easily install or remove a Reolink Home Hub SD card for local storage of footage and data. Follow our step-by-step guide and ensure secure Reolink home hub storage for your devices.

Applies to: Reolink Home Hub Pro, Reolink Home Hub.

Note: Before proceeding, ensure you have a microSD card for Reolink Home Hub with a capacity of 512GB or less. Using a card larger than this may result in compatibility issues.

Installing Reolink Home Hub SD Card:

1. Power Off: Begin by disconnecting the power supply to your Reolink Home Hub to avoid any potential data corruption or hardware damage during the insertion process.

insert SD card.png

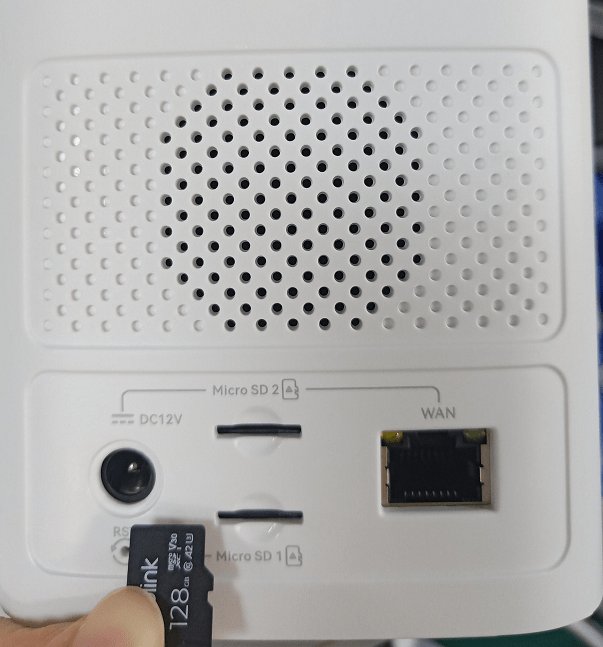

2. Insertion: Locate the microSD card slot on your device. Carefully align the card with the slot, noting the correct orientation as depicted in the user manual or on the device itself. Gently push the card in using the tip of your fingernail or the provided reset pin until you feel a distinct click, indicating the card is locked into place.

push SD card.png

Removing Reolink Home Hub SD Card:

When it's time to remove the Reolink SD card from the home hub for data transfer, backup, or replacement, follow these steps:

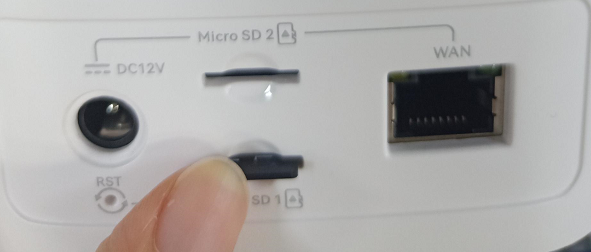

1. Press on the microSD card: To safely eject the card and prevent damage, use a thin object like a paperclip or the edge of your fingernail to gently press on the microSD card. This will cause the Reolink memory card to slightly pop out from its slot.
2. Pulling It Out: Once the card is partially ejected, grasp it gently but firmly and pull it straight out of the slot.



Proper handling of your microSD card is crucial for maintaining the integrity of your recorded data and ensuring the longevity of your Reolink Home Hub. By following this straightforward guide, you can confidently manage your Reolink home hub storage, whether it's installing a new card or removing an existing one for maintenance purposes.

Should you encounter any difficulties during the process, consult the Reolink support team for further assistance.
