Learn how to pair your Reolink Video Doorbell (PoE/WiFi) with Chime in our step-by-step guide. Follow our detailed instructions to ensure a successful connection between your doorbell and chime, allowing you to receive instant alerts and seamless communication between your devices.
Applies to: Reolink Video Doorbell PoE, and Reolink Video Doorbell WiFi.
Table of Contents
1. Important Notice about Reolink Doorbell and Chime
2. How to Identify Your Reolink Doorbell Version
3. How to Pair Reolink Doorbell with Chime V1
4. How to Pair Reolink Doorbell with Chime V2
Important Notice about Reolink Doorbell and Chime
Reolink Chime is available in two versions (V1 and V2), each with distinct functionalities. Please note the following crucial points regarding compatibility between Reolink Doorbells and Chimes:
1. Version Compatibility: The V1 doorbell is compatible only with the V1 Chime, whereas V2 and V3 Doorbells are compatible with V2 Chime. These combinations are not interchangeable.
2. Doorbell Connection Restriction: V1 Doorbells support connection to a single Chime, whereas V2 and V3 models can pair with multiple Chimes, up to a maximum of five.
3. Chime Connection Restriction: Each Chime can only be paired with one doorbell at a time, meaning multiple doorbells cannot share the same chime.
4. Exclusive Compatibility: Reolink Chimes can only be used with Reolink Video Doorbell cameras, and vice versa.
5. Pre-Paired Sets: Doorbells that come with a Chime are pre-paired at the factory. If you purchase a Reolink Chime separately, you will need to perform the pairing process yourself by following the instructions provided.
How to Identify Your Reolink Doorbell Version

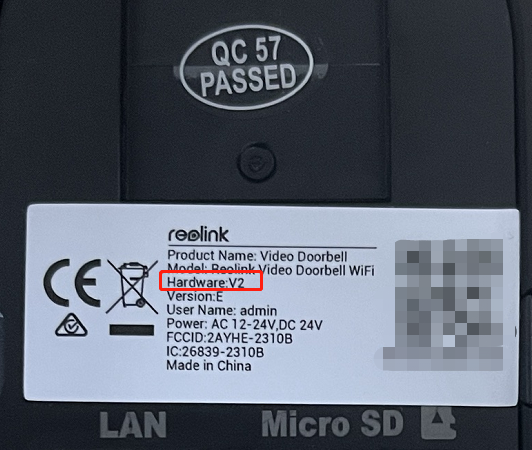

Before connecting doorbell to chime, identify your doorbell camera's version by checking the "Hardware" label located on the back of the device. This will indicate whether your device is V1, V2, or V3. If there is no "Hardware" information available, it indicates that it is a V1 version.
How to Pair Reolink Doorbell with Chime V1
To pair a Reolink doorbell with a V1 Chime, follow these steps:
1. Plug the chime into a power socket.
2. Press and hold the Settings button on the chime for 5 seconds until you hear a brief beep and observe the blue status light turning on. Release the button – your devices are now in pairing mode.
3. Press the doorbell. If the Chime's blue light flashes twice followed by two beeps, the pairing has been successful. You've connected doorbell to chime.
4. Test the setup by pressing the doorbell again; the Chime should sound.
Here is a video for your reference.
How to Pair Reolink Doorbell with Chime V2 (via Different Platforms)
-
Via Reolink App
To pair a Reolink Doorbell with a V2 Chime via Reolink App, follow these steps:

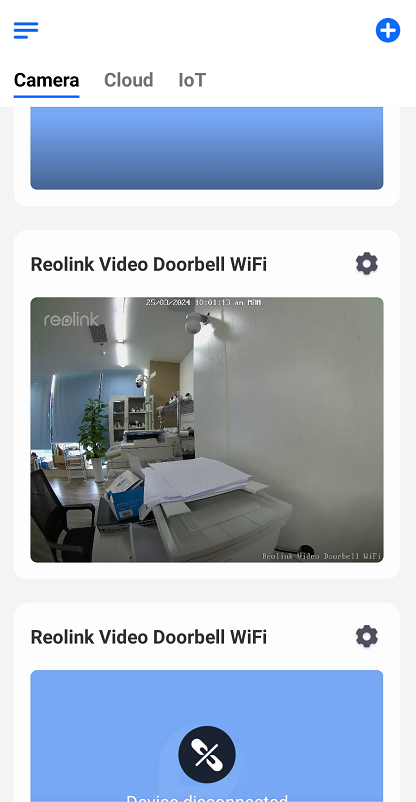

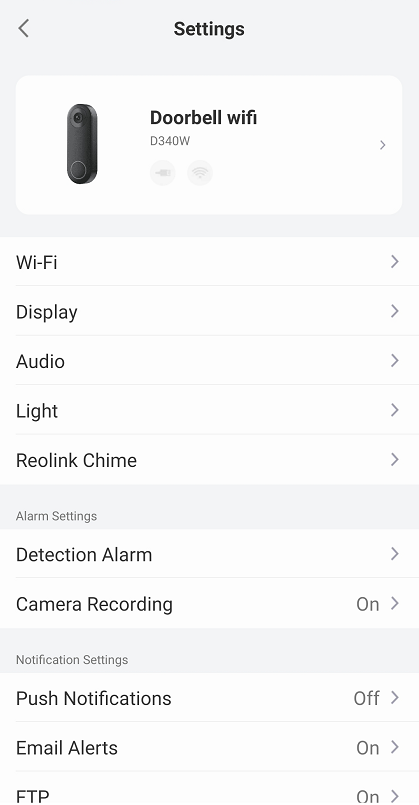

Step 1. Tap
, and navigate to Settings > Reolink Chime.

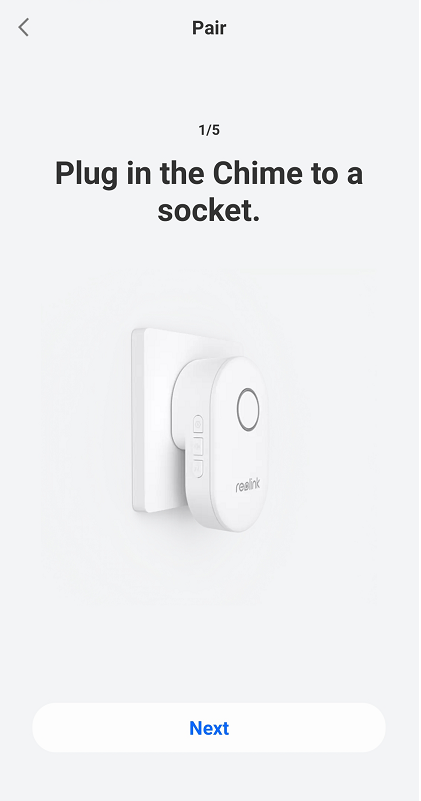

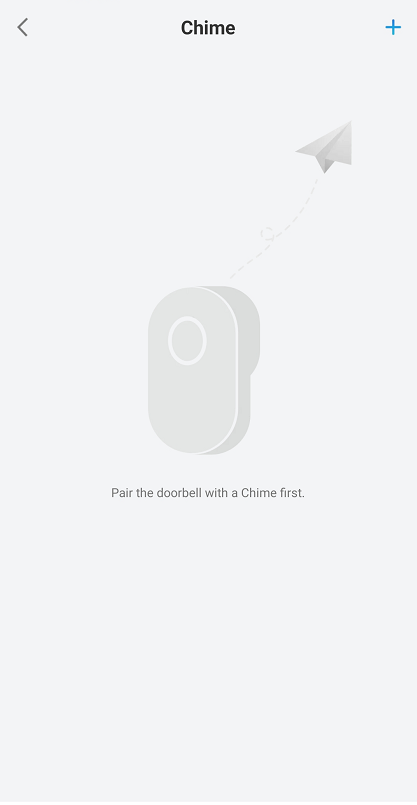

Step 2. Tap the "+" icon in the upper right corner. As instructed, plug the chime into a socket to power it on.

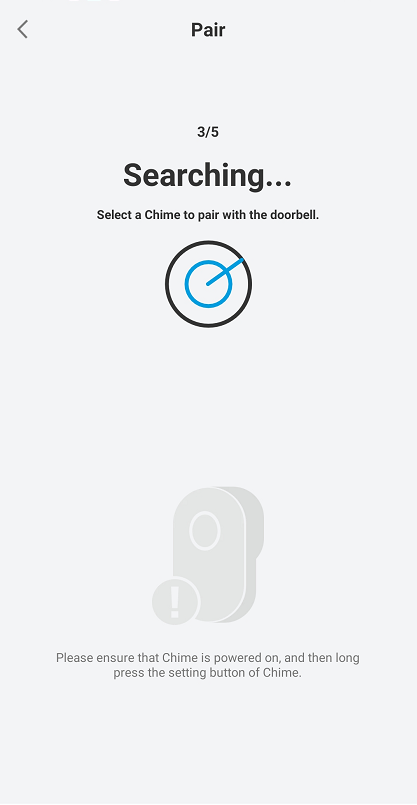

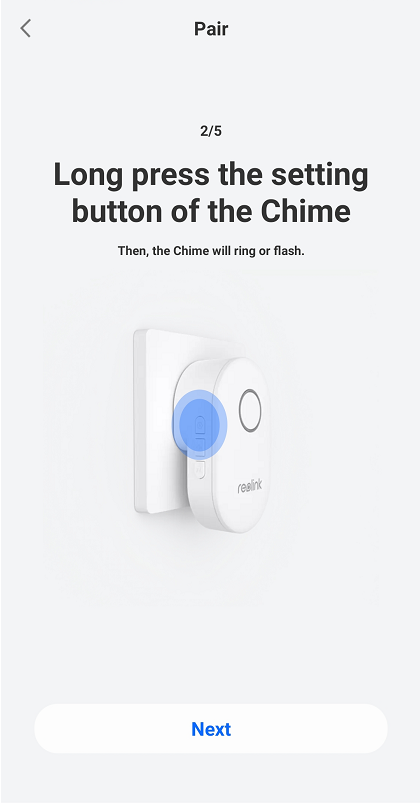

Step 3. Long press the setting button on the chime until it beeps twice and the light turns blue. The doorbell is now searching for the chime.

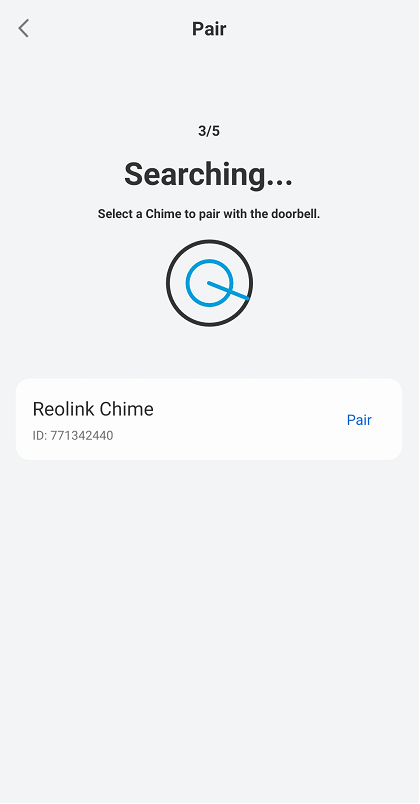

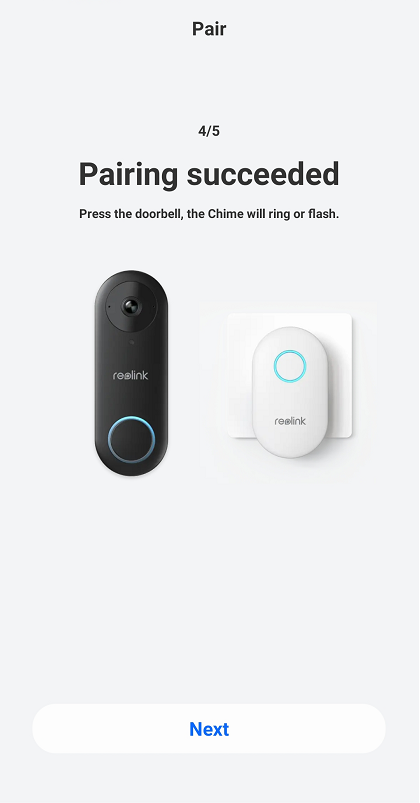

Step 4. Select from the detected chimes the one you want to pair and tap Pair. Once you receive the "pairing succeeded" message, tap Next.

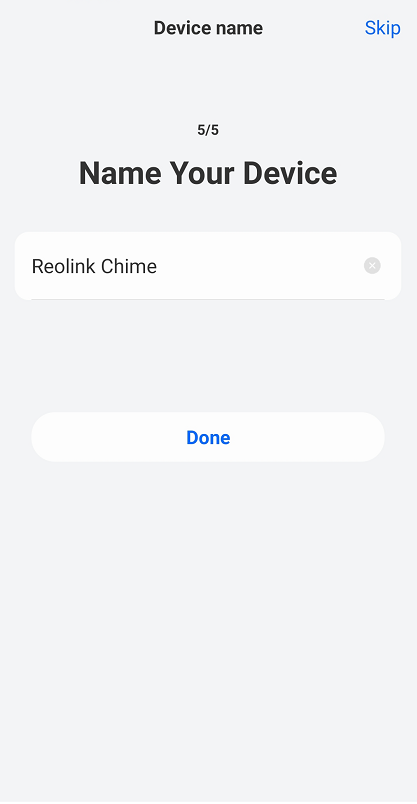

Step 5. Proceed to name your chime for easy identification, then tap Done. Test if you've successfully connected doorbell to chime by pressing the doorbell and confirming the Chime reacts accordingly.
-
Via Reolink Client
To pair a Reolink Doorbell with a V2 Chime via Reolink Client, follow these steps:

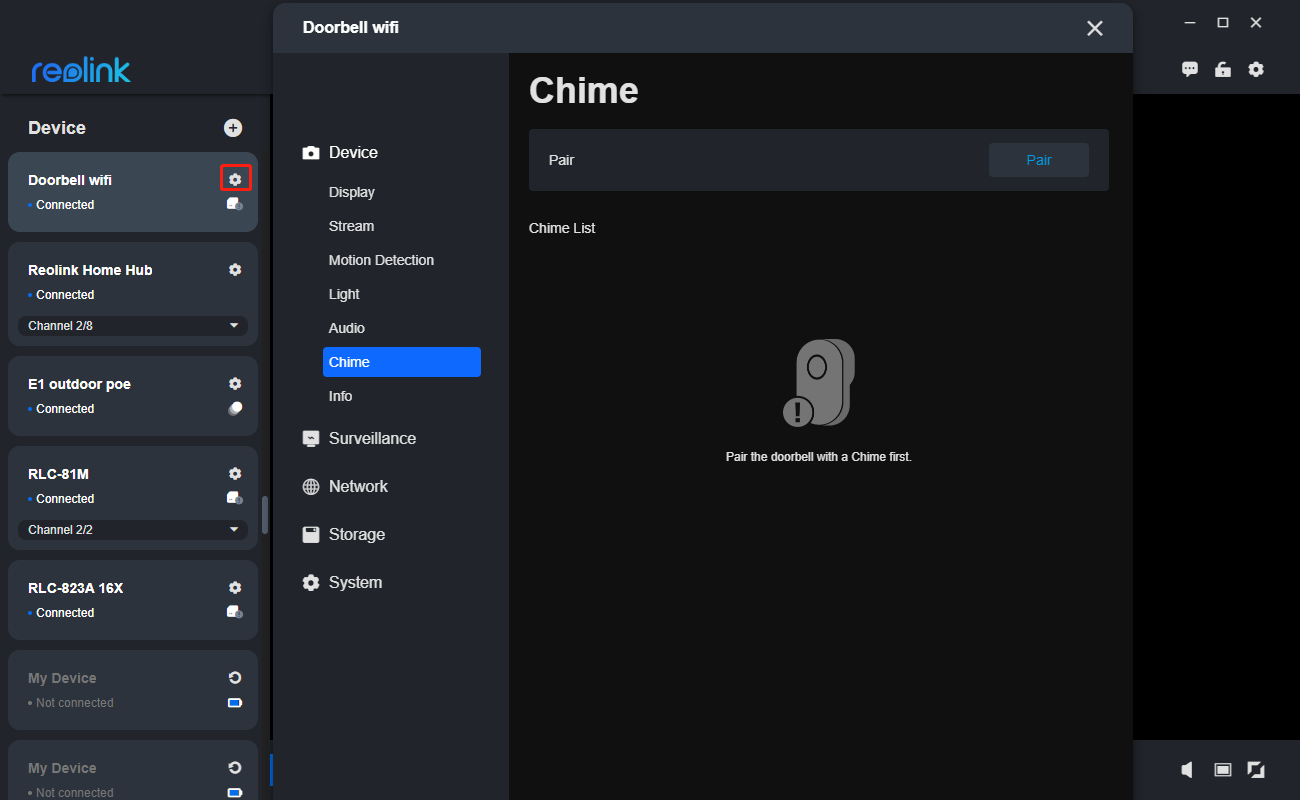

Step 1. Click

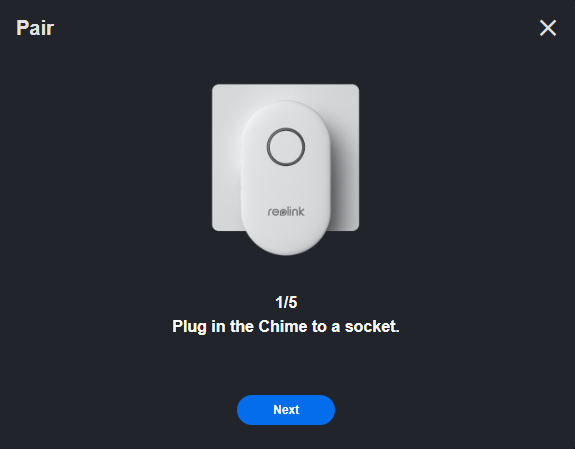

Step 2. Plug the chime into a socket to power it on.

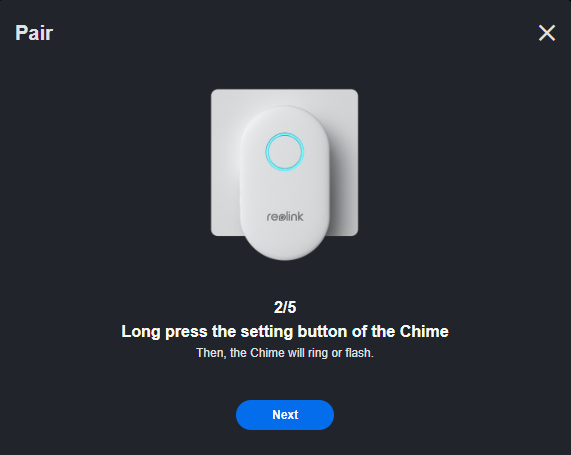

Step 3. Long press the Settings button (first button) on the chime until it beeps twice and the light turns blue.

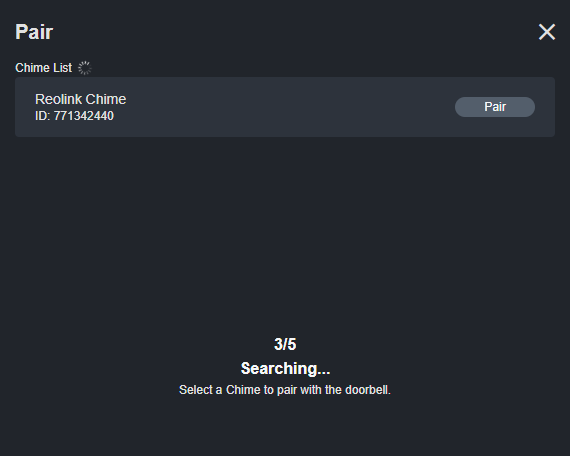

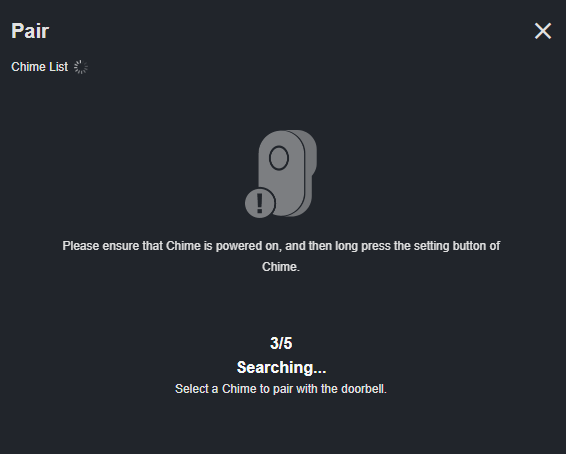

Step 4. The doorbell is now searching for the chime. Select from the detected chimes the one you want to pair and click Pair.

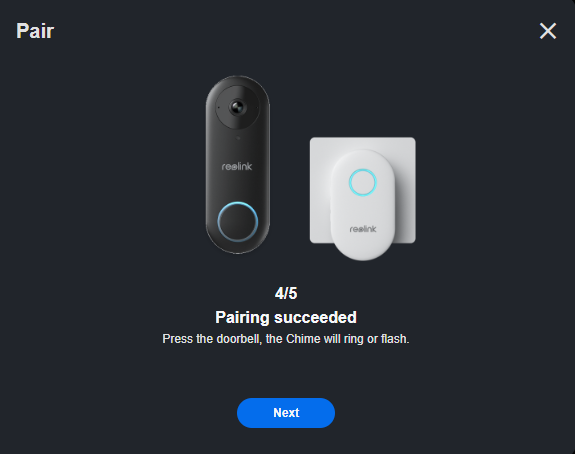

Step 5. Once you receive the "pairing succeeded" message, click Next. Proceed to name your chime and click Done. Test if you've successfully connected doorbell to chime by pressing the doorbell and confirming the chime reacts accordingly.
-
Via Reolink Web Browser
To pair a Reolink Doorbell with a V2 Chime via Web Browser, follow these steps:
Step 1. Log in and access your camera via a web browser. (Refer to Reolink's guide on accessing cameras/NVRs locally).

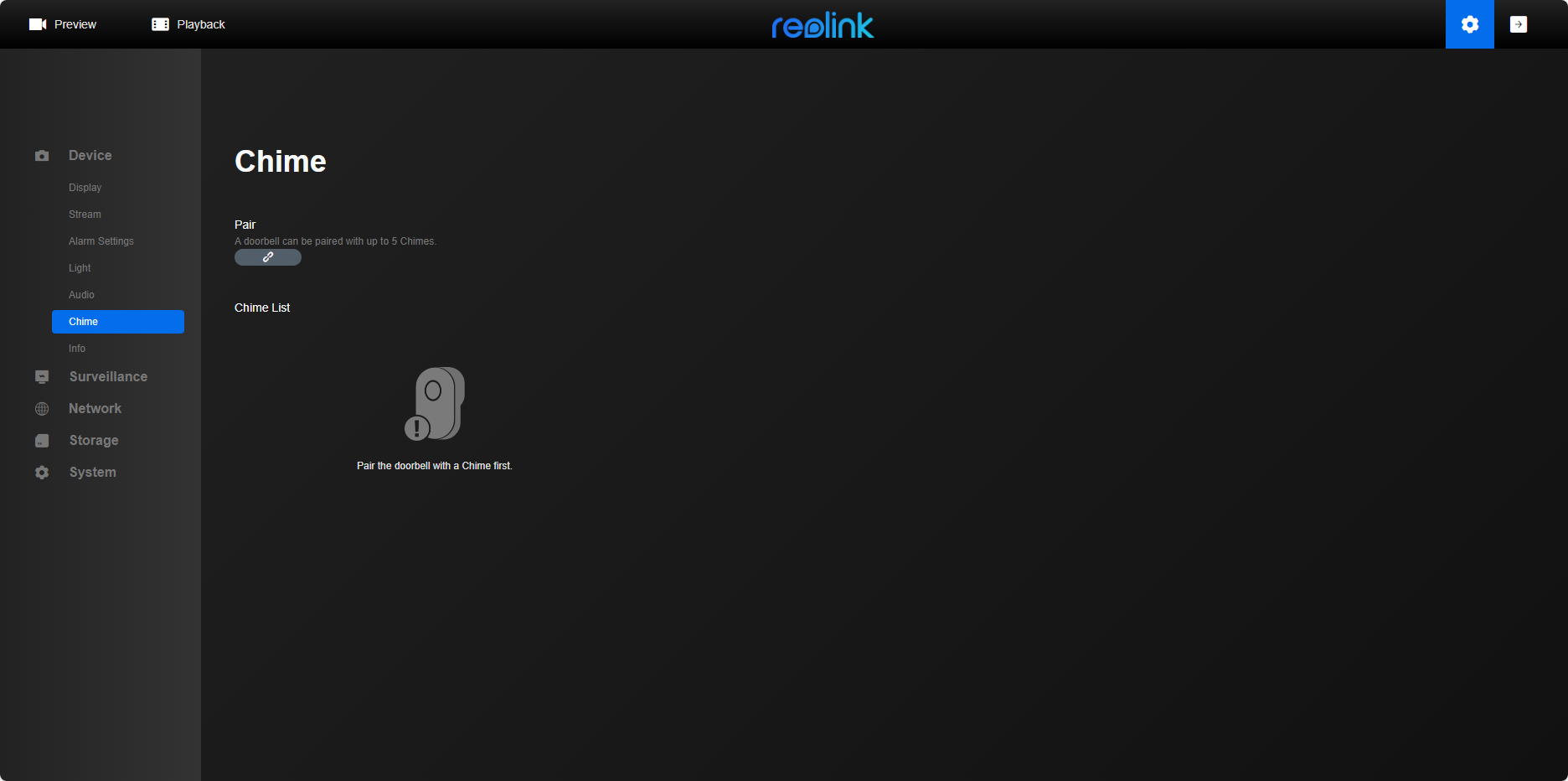

Step 2. Click
under Pair.
Step 3. Plug the chime into a socket to power it on.
Step 4. Long press the setting button on the chime until it beeps twice and the light turns blue.
Step 5. The doorbell is now searching for the chime. Select from the detected chimes the one you want to pair and click Pair.
Step 6. Once you receive the "pairing succeeded" message, click Next. Proceed to name your chime and click Done. Test if you've successfully connected doorbell to chime by pressing the doorbell and confirming the chime reacts accordingly.
-
Via Reolink NVR
To pair a Reolink Doorbell with a V2 Chime via NVR, follow these steps:

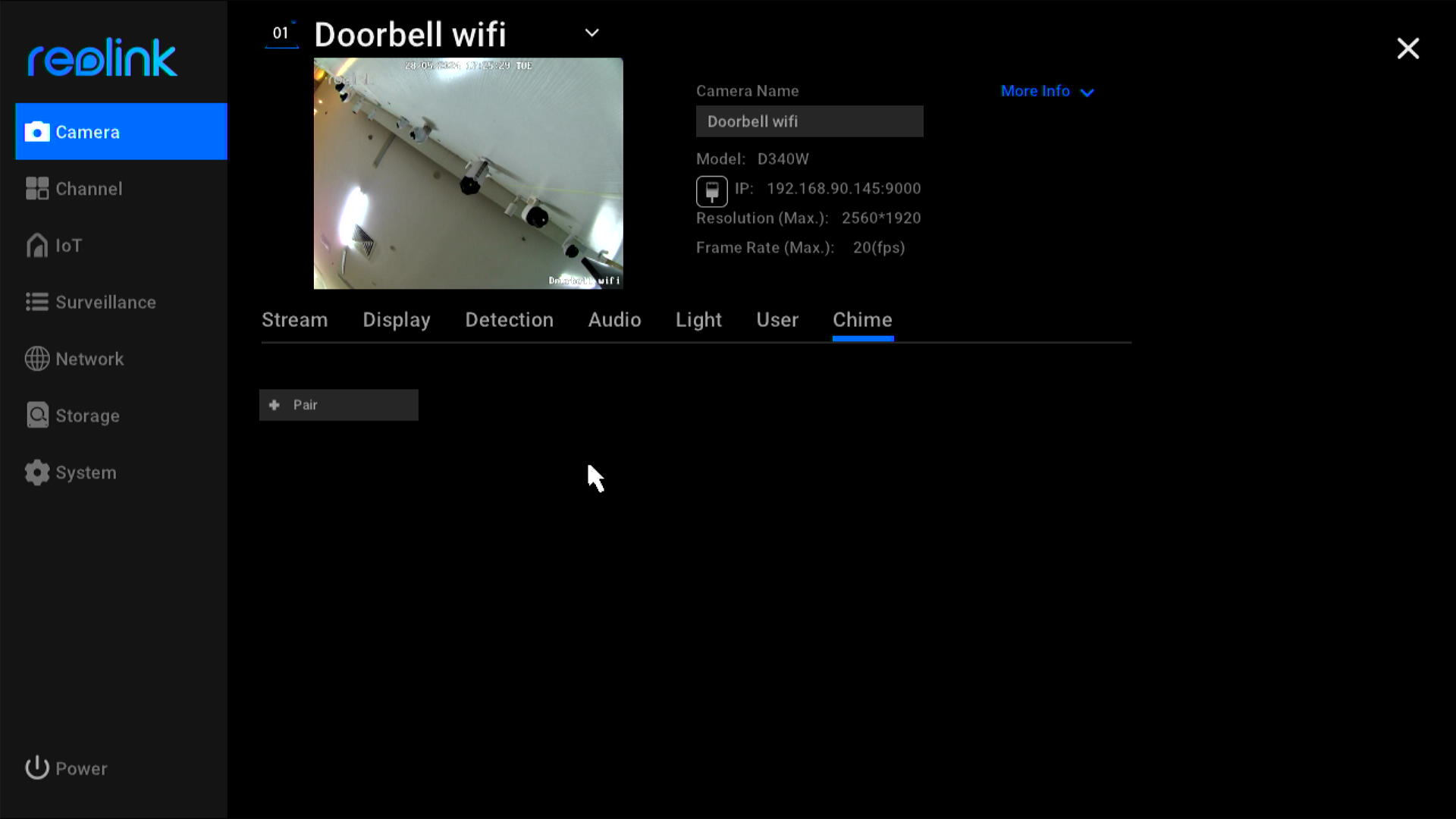

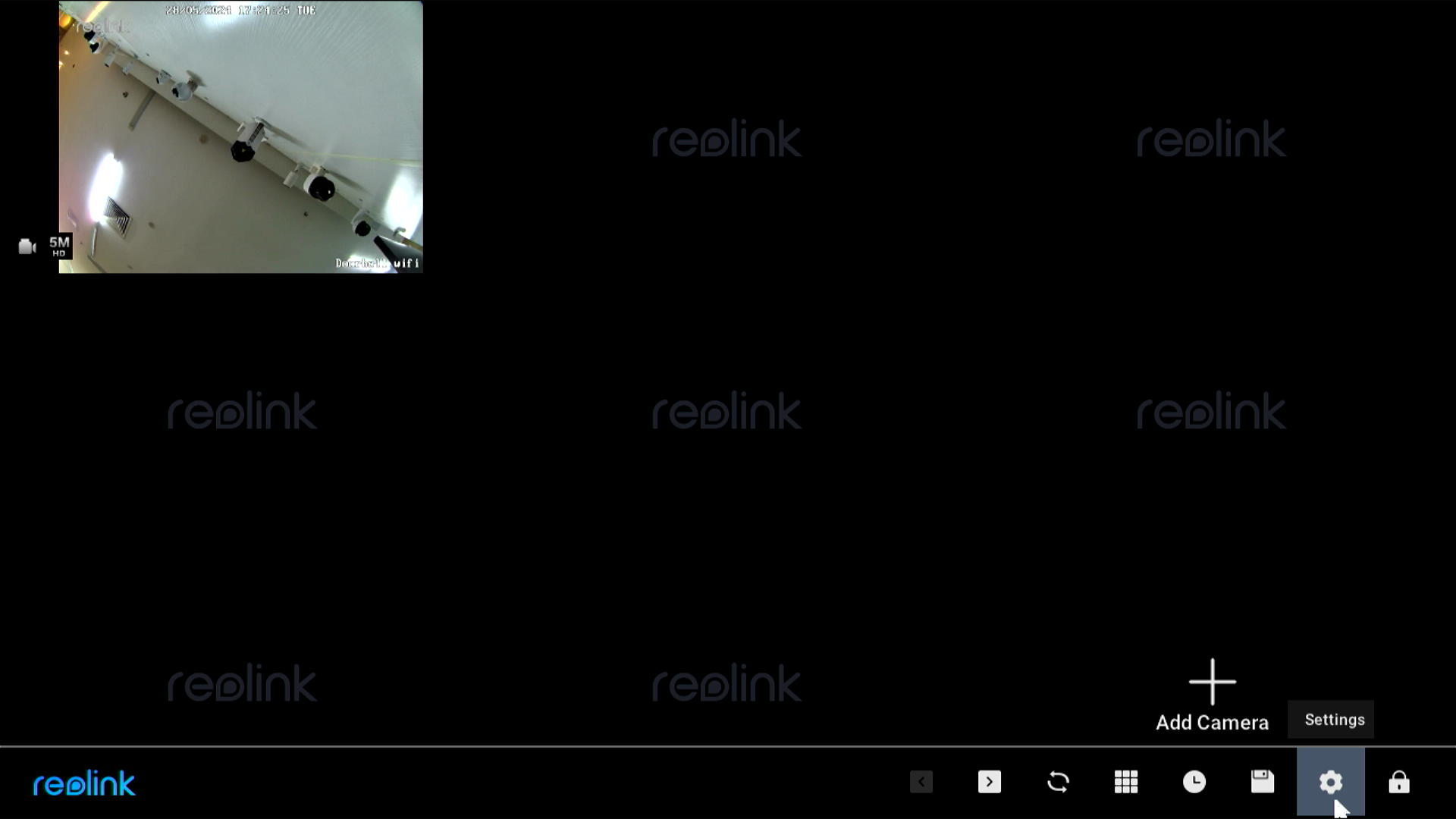

Step 1. Click Settings in the bottom right corner, then navigate to Camera > Chime > Pair.
Step 2. Plug the chime into a socket to power it on.
Step 3. Long press the setting button on the chime until it beeps twice and the light turns blue.

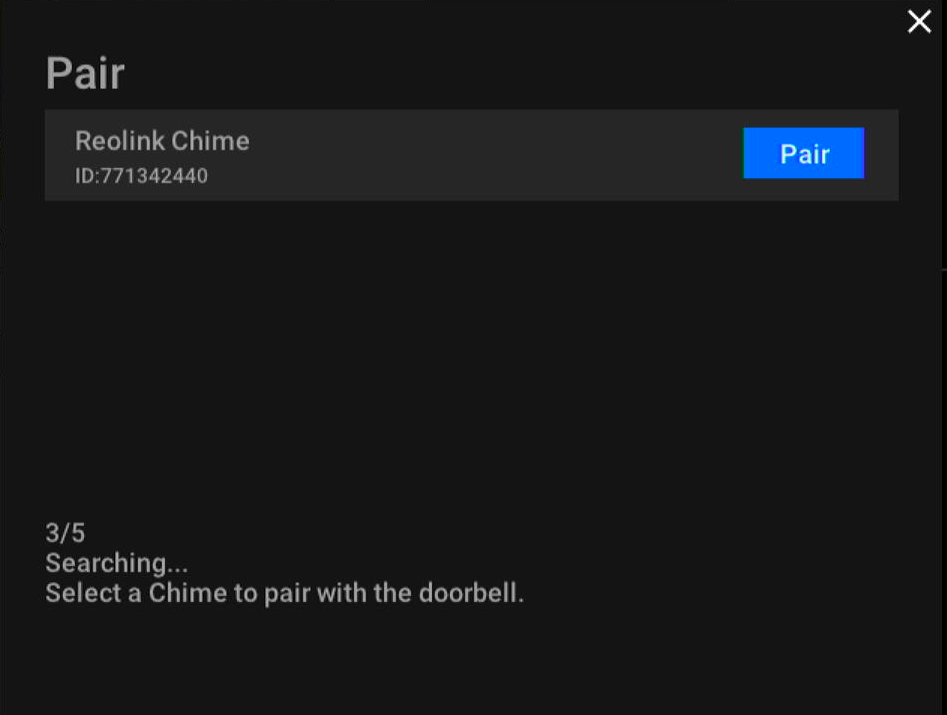

Step 4. The doorbell is now searching for the chime. Select from the detected chimes the one you want to pair and click Pair.
Step 5. Once you receive the "pairing succeeded" message, click Next. Proceed to name your chime and click Done. Test if you've successfully connected doorbell to chime by pressing the doorbell and confirming the chime reacts accordingly.
With these detailed steps for each interface, you can effectively pair your doorbell with a chime, ensuring you receive timely alerts and enhanced home security.
For further assistance, please contact our support team.
