Introduction to Smart Surveillance Analytics

Manage security more intelligently with Reolink's Smart Surveillance Analytics, designed to help users efficiently play, analyze, and download video history from Reolink cameras. This guide will walk you through the key features of Smart Surveillance Analytics, its applications, and how to make the most of Reolink's 24/7 video history.

Applies to: Reolink Home Hub, Reolink Home Hub Pro, RLN8-410 (New UI), RLN16-410 (New UI), RLN36 and RLN12W.

Notes:

1. You can use Smart Surveillance Analytics via the Reolink App or Reolink Client for the Reolink Home Hub series, but for Reolink NVRs, the function is only available through monitors connected to the NVR.

2. The camera must be configured with the correct recording schedule and type, and the recording function in scene mode should be enabled. Only then will Smart Surveillance Analytics display recordings (as shown in the second file below). Otherwise, it will only show the triggered events without allowing access to the recordings (as shown in the first file below).

Table of Contents:

1. What Is Reolink Smart Surveillance Analytics?

2. How to Use Reolink Smart Surveillance Analytics?

3. How to View and Download Reolink Camera Video History?

What Is Reolink Smart Surveillance Analytics?

Reolink's Smart Surveillance Analytics is a tool that integrates Reolink recording history from all your connected cameras, making it easier to review footage. You can filter the recordings by time, device, or event type for quick access to important clips. Additionally, it analyzes the integrated data to provide daily, weekly, or monthly reports on your security trends and activities. Key features include:

• Integrated Recordings: Combines videos from all your cameras into one platform for easier monitoring.
• Customizable Filters and Quick Playback: Allows you to filter by time, device, or event type to quickly find and view specific footage.
• Trend Analysis and Reports: Analyzes the combined data to deliver reports on security trends and activities on a daily, weekly, or monthly basis.

How to Use Smart Surveillance Analytics?

• Reolink Home Hub Series via Reolink App

  Step 1: Accessing the Feature

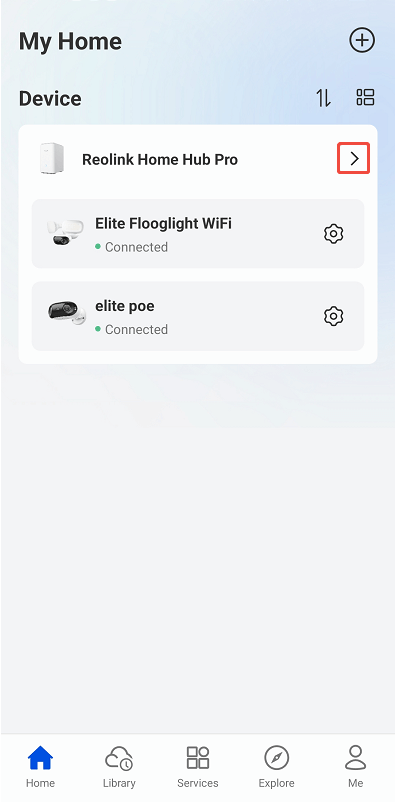

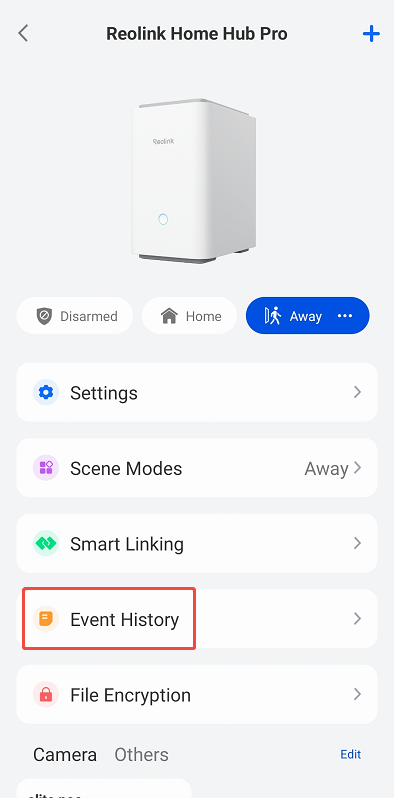

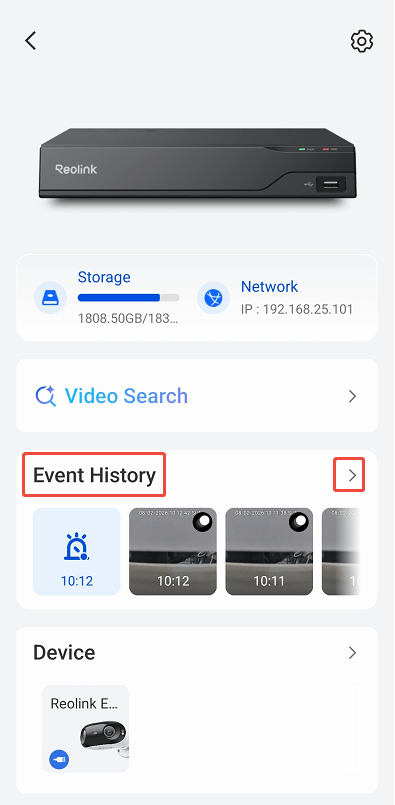

  Tap to navigate to the Home Hub settings and select “Event History.” This simple step starts your journey into organized surveillance data.



  Step 2: Exploring the Interface

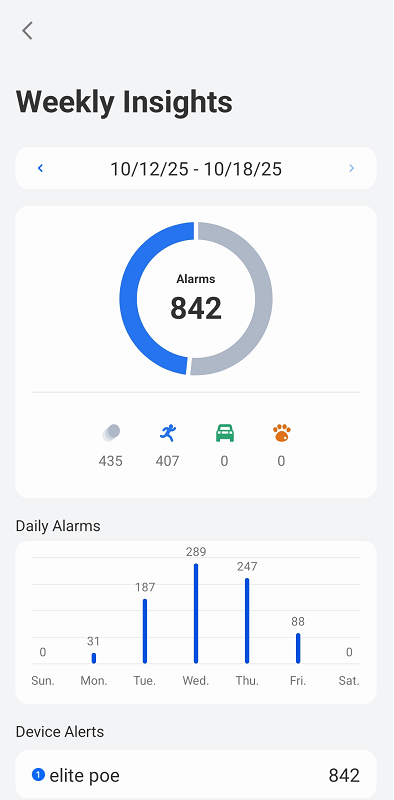

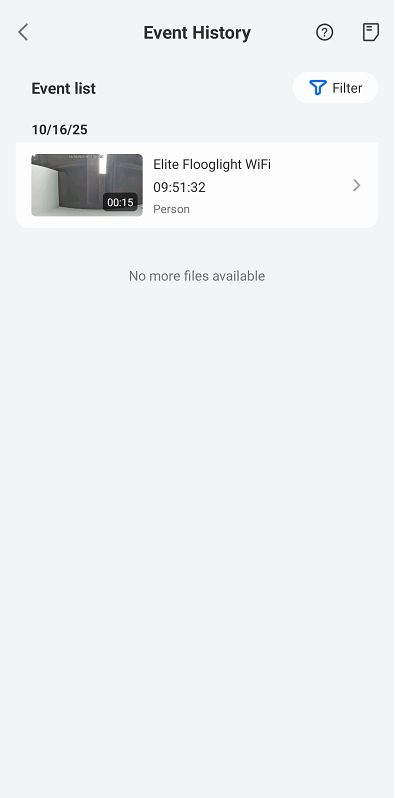

  You'll see a detailed list of events with motion types, timestamps, and durations. Tap   for "Weekly Summary", a concise breakdown of weekly and daily alarm frequencies by type and camera. Select time periods to navigate between different weeks for more detailed analysis.



  Step 3: Filtering Alarm Events
  To narrow your search, use the filter function. Tap and you can set Start and End Dates, select specific Devices, or choose Event Categories. Note, the date range cannot exceed seven days.



• Reolink Home Hub Series via Reolink Client

  Step 1: Accessing the Feature

  Tap to navigate to the Home Hub settings and click Event History. This simple step starts your journey into organized surveillance data.



  Step 2: Filtering Alarm Events
  Select the Date, Device, Event Type to navigate the events recordings for more detailed analysis.

  Reset: Restore the event history filter configuration.

  Search: Search for event recordings that match your filter criteria.



  Step 3: Exploring the Interface

  Click weekly Summary for a concise breakdown of weekly and daily alarm frequencies by type and camera.



• Reolink NVRs via a Monitor (New UI)

  Step 1: Accessing the Feature

  Launch your Reolink NVR and access it via a monitor. Right-click on the live view page and click the Event History icon.



  Step 2: Filtering Alarm Events

  You can filter event recordings based on Time, Type, and Camera as needed.



  Step 3: Exploring the Interface

  Click the icon to view events in a details view, where you can see a pie chart displaying the percentage distribution of event types.



How to View and Download Reolink Camera Video History

• Reolink Home Hub Series via Reolink App

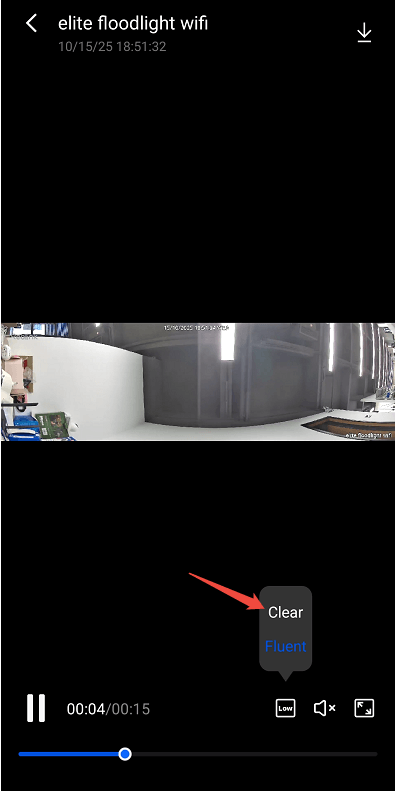

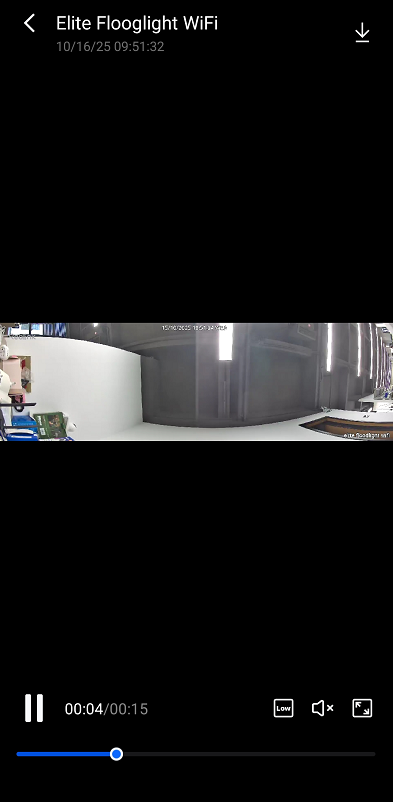

  Viewing Playback: Simply tap on an event record to start playing the recorded incident right away.

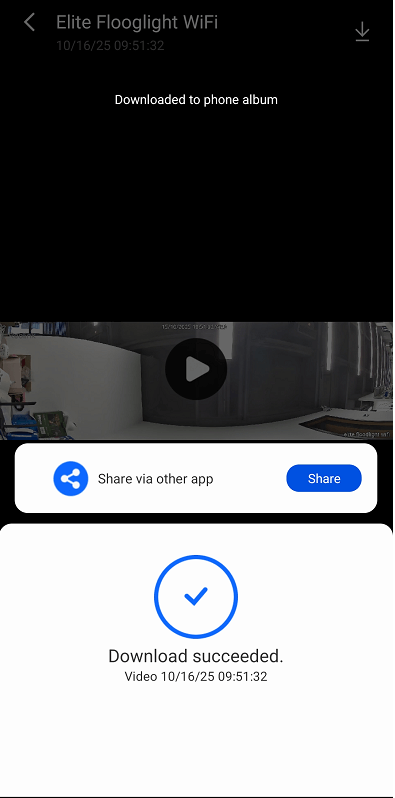

  Downloading Footage: To download Reolink camera history, tap the download button in the upper right corner. The footage will be automatically saved to your phone album.



• Reolink Home Hub Series via Reolink Client

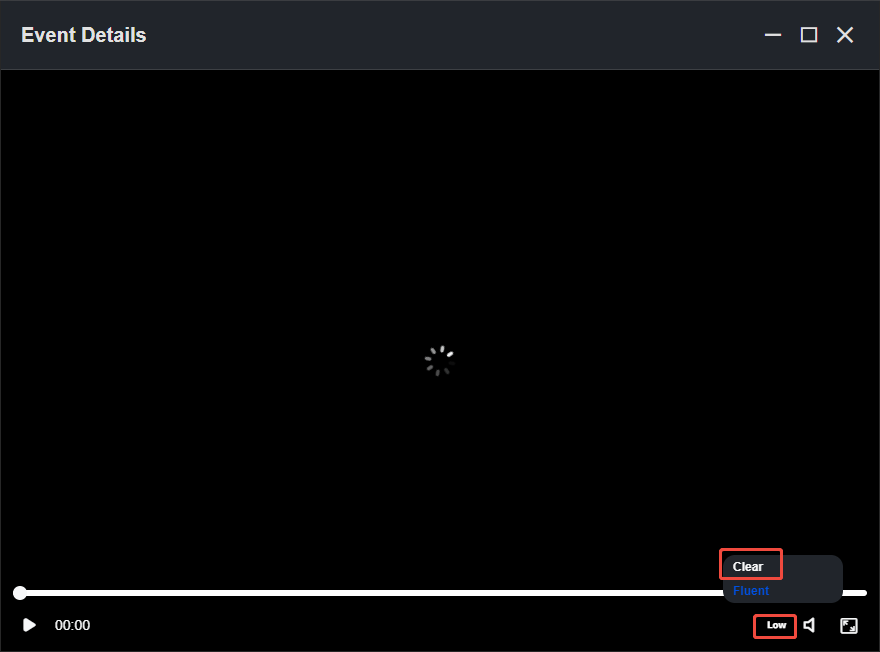

  Viewing Playback: Simply tap on an event record to start playing the recorded incident right away.



  Full screen: Expand to full screen.

  Volume: Turn on/off, turn up/down volume.

  Downloading Footage: To download Reolink camera history, tap the download button in the right corner. The footage will be automatically saved to the event-log folder on your download path: How to Find the Record Path of Local Recordings on the Computer





• Reolink NVRs via a Monitor (New UI)

  Viewing Playback: Simply tap on an event record to start playing the recorded incident right away.





  Downloading footage: On the event play page, you can click the  icon to download the event video.



  To download multiple event recordings at once, you can also click Select on the top right of the page. Then, select recordings you want and click Export to download.



  You need to insert a USB to the NVR before downloading the recordings.



Reolink's Smart Surveillance Analytics is a crucial enhancement for your security strategy. By streamlining event organization, analysis, and retrieval, it enhances your ability to monitor, react, and protect your premises effectively. Embrace this powerful tool to elevate your security management. For further assistance or inquiries, our dedicated support team is ready to assist you.
