How to connect chime to doorbell? The Reolink Video Doorbell (Battery) is a versatile device that supports multiple chime options to ensure you're always notified promptly. We'll guide you through how to connect Reolink Video Doorbell (Battery) to existing chimes, Reolink chimes or chime-like notification systems.
Supported Chime Types
Before we dive into the setup process, here's a quick overview of the chime types supported by the Reolink Video Doorbell (Battery) (Note that wireless chimes other than Reolink Chime are not supported.):
1. Existing Wired Mechanical or Digital Chime
3. Reolink Home Hub (Notification System)
4. Amazon Alexa & Google Assistant (Notification System)
Let's go through each of these options step-by-step.
1. Existing Wired Mechanical or Digital Chime
If you already have a wired chime system in place, you can connect your Reolink doorbell with the existing chime.
Power Supply Requirements:
- Transformer output: 8 to 24 VAC, 50/60Hz, 5VA to 40VA.
- Voltage outside this range may result in abnormal chime operation.
Wiring to Existing Chime:
- Step 1: Remove the existing doorbell
- Step 2: Install the wedge (if needed)
- Step 3: Install Reolink Video Doorbell (Battery)
- Step 4: Complete pairing on the Reolink App
- Step 5: Confirm Reolink Video Doorbell (Battery) with Existing Chime
For detailed instructions to connect Reolink doorbell to existing chimes, refer to our comprehensive guide: How to Install Reolink Video Doorbell (Battery) to the Existing Wired Mechanical or Digital Chime System.
2. Reolink Chime
-
Standalone Camera via Reolink App
Step 1: Access Chime Settings
- Open the Reolink App on your smartphone.

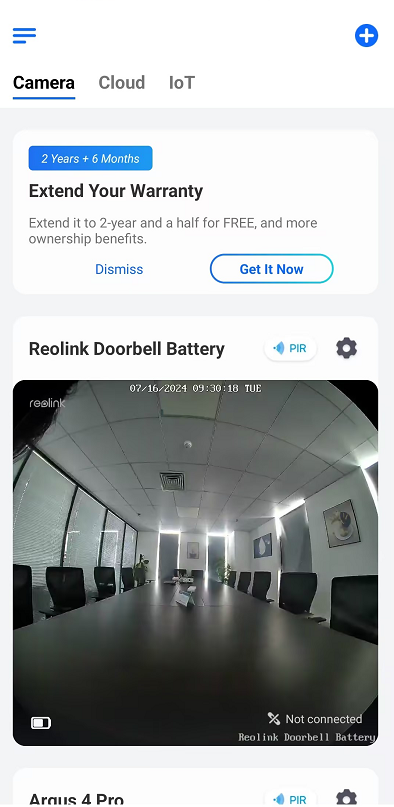

- Tap the gear icon
to access settings.

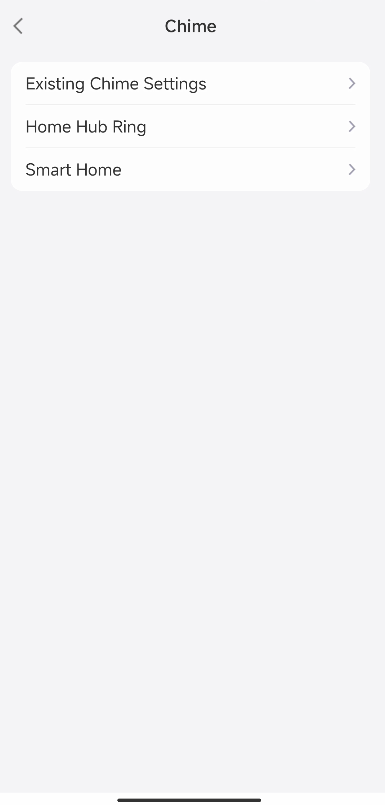

- Navigate to Chime > Reolink Chime.
Step 2: Add Chime

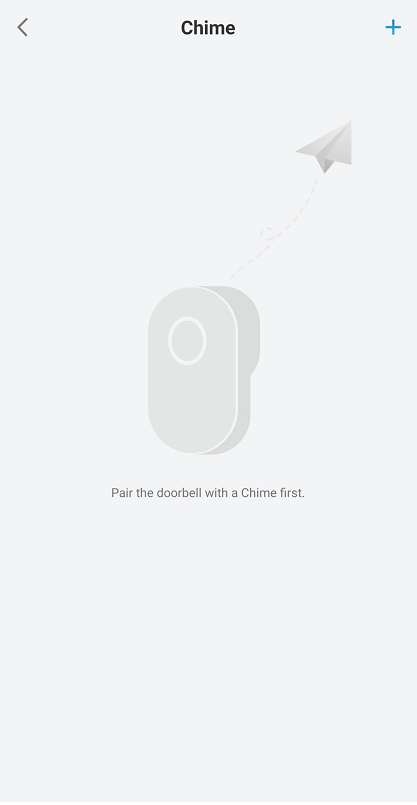

- Tap the "+" icon in the upper-right corner.
- As instructed, plug the Reolink Chime into a power outlet.
Step 3: Prepare Chime for Pairing
- Long press the setting button on the Reolink Chime until it beeps twice and the light turns blue.
- This indicates that the doorbell is searching for the chime.
Step 4: Pair Chime
- Select the chime from the list of detected devices and tap Pair.
- Once you receive the "pairing succeeded" message, tap Next.
Step 5: Name and Test Chime
- Give your chime a name for easy identification.
- Tap Next to complete the setup.
- Test the connection by pressing the doorbell button and confirm that the chime reacts accordingly.
-
Standalone Camera via Reolink Client
Step 1: Access Chime Settings
- Open the Reolink Client on your PC.
- Tap the gear icon
to access settings.
- Navigate to Device > Chime > Pair.
Step 2: Add Chime
- As instructed, plug the Reolink Chime into a power outlet.
Step 3: Prepare Chime for Pairing
- Long press the setting button on the Reolink Chime until it beeps twice and the light turns blue.
- This indicates that the doorbell is searching for the chime.
Step 4: Pair Chime
- Select the chime from the list of detected devices and tap Pair.
- Once you receive the "pairing succeeded" message, tap Next.
Step 5: Name and Test Chime
- Give your chime a name for easy identification.
- Tap Done to complete the setup.
- Test the connection by pressing the doorbell button and confirm that the chime reacts accordingly.
-
Connected to Reolink NVR (New UI) via Monitor
Applies to: RLN8-410 (N7MB01), RLN16-410 (N6MB01), RLN36 and RLN12W.
Step 1: Access Chime Settings
- Right click to pop up the menu bar.
- Click Settings in the bottom right corner, then navigate to Camera. Select the doorbell battery camera, go to Chime > Pair.
Step 2: Add Chime
- As instructed, plug the Reolink Chime into a power outlet.
Step 3: Prepare Chime for Pairing
- Long press the setting button on the Reolink Chime until it beeps twice and the light turns blue.
- This indicates that the doorbell is searching for the chime.
Step 4: Pair Chime
- Select the chime from the list of detected devices and tap Pair.
- Once you receive the "pairing succeeded" message, tap Next.
Step 5: Name and Test Chime
- Give your chime a name for easy identification.
- Tap Next to complete the setup.
- Test the connection by pressing the doorbell button and confirm that the chime reacts accordingly.
-
Connected to Reolink Home Hub via Reolink App
Applies to: Reolink Home Hub.
To pair Reolink Chime with Doorbell, you will need to add the Chime as a separate device to the Home Hub. Then, use the Smart Linking feature to link the Chime to Doorbell battery.
Step 1: Add Reolink Chime to Home Hub- Tap + sign > Add Device.
- Tap Reolink Chime in the bottom, then start paring the chime with Home Hub.
Step 2: Pair Chime with Home Hub
- Plug Chime into the socket.
- Long press the setting button (The topmost button on the side of the chime) on the Chime.
- Start searching for the Chime. When the Chime is detected, tap Pair.
- When seeing “Pairing succeeded”, tap Next to name the Chime and you will see chime under the "Others" of the Home Hub.
Step 3: Link the Chime to the Doorbell
- Tap Smart Linking.
- Customize the automation name, trigger condition, action, and active period.
- Trigger Condition: Defines the specific event or situation that initiates the automation. If you want the doorbell press to trigger the chime to ring, select Ring.
- Action: Specifies what the camera should do when the trigger condition is met. Select the sound effect for the chime to play.

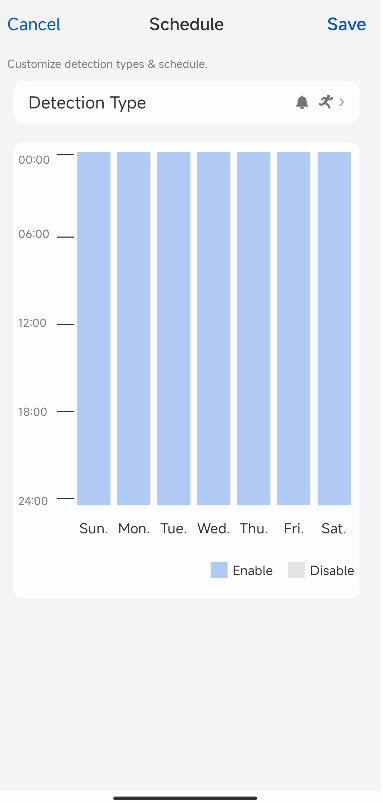

- Active Period: Determines the time range during which the automation is enabled. You can customize a time period based on your needs or set specific days of the week for the chime to ring.
Step 4: Complete the Linking
- Tap Create to finish linking the Chime and Doorbell.
- You can enable or disable the toggle to turn this automation on or off.
3. Reolink Home Hub

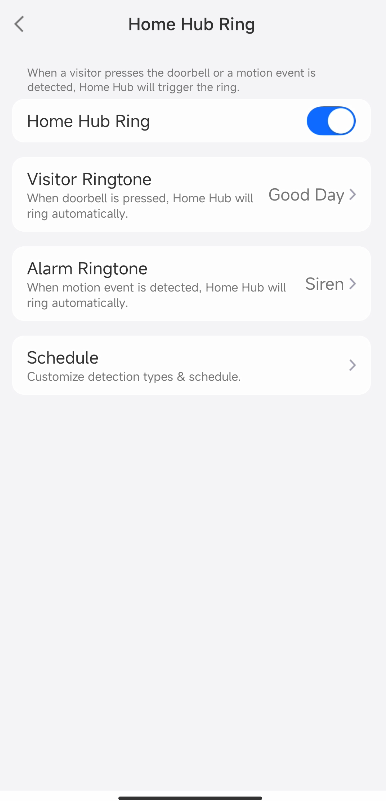

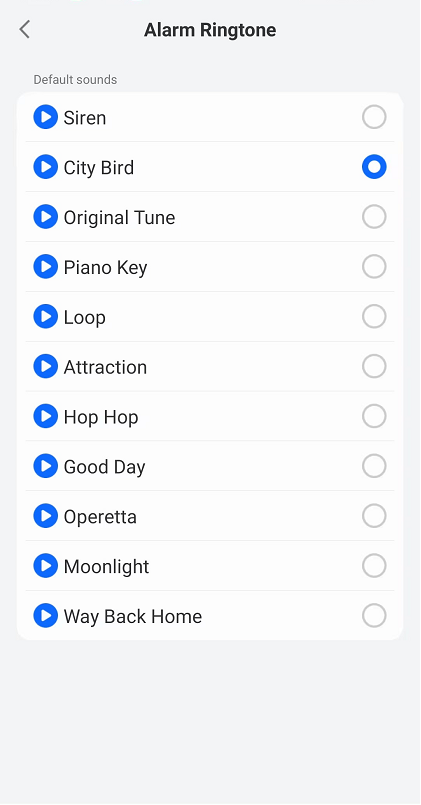

The Reolink Home Hub can also function as a chime, allowing you to configure different ringtones for various alerts.
-
To add existing Reolink doorbells to the Home Hub via the Reolink App or Client:
- Access Home Hub settings.
- Add via Device List or LAN.
- Confirm connection.
- Name and finalize integration.
-
To add new or reset Reolink doorbells to the Home Hub via the Reolink App or Client:
- Add via main interface or Home Hub management area.
- Scan QR code or input UID to pair.
For more detailed instructions, please refer to How to Add Reolink Camera to Home Hub Series.
Learn more about the Reolink Siren Alarm of Home Hub/Home Hub Pro for additional customization options.
4. Amazon Alexa & Google Assistant
If you prefer to use Amazon Alexa or Google Assistant as your "chime", you can integrate your Reolink Video Doorbell (Battery) with these smart assistants. When someone presses the doorbell button, your Alexa or Google Home devices (like Echo Show or Google Home Hub) will play corresponding alert tones. Here’s how:
For Alexa, refer to our guide: How to Receive Notification from Reolink Cameras on Amazon Alexa.
For Google Assistant, follow the instructions in: How to Receive Notification from Reolink Cameras on Google Home.
With these detailed steps, you should now know how to connect doorbell chimes. Whether you opt for a traditional wired chime, a Reolink Chime, a Reolink Home Hub, or a smart assistant like Alexa or Google Assistant, you’ll enjoy prompt and reliable notifications whenever your doorbell is pressed.
If you encounter any issues during setup or need further assistance, don’t hesitate to contact our support team. We’re here to help!
