Reolink introduces the Antenna Extension Cable to resolve Wi-Fi coverage issues for security cameras installed beyond network reach or requiring stronger Wi-Fi signals. This article will introduce the extension cable and guide you to install it.
Applies to: Argus PT (5/2.4GHz), Argus PT Ultra, Argus Eco, Argus Eco Ultra, RLC-410W, RLC-510WA, RLC-511WA, RLC-523WA, RLC-810WA, RLC-811WA, Reolink Duo 2 (battery), Reolink Duo 2 WiFi, Reolink Duo Floodlight WiFi, RLK12-800WB4, RLN12W, B800W.
Reolink Wi-Fi Antenna Extension Cable is a perfect solution to enhance connectivity and extend the range for Wi-Fi cameras with external antennas. It ensures reliable, stable Wi-Fi signals for seamless video streaming performance.
- Featuring an RP-SMA male to RP-SMA female connector, this cable extends the antennas of various Reolink Wi-Fi cameras.
- With a 3m/10ft cable length, you have the flexibility to position your cameras in optimal locations while maintaining strong Wi-Fi connections.
- The magnetic stand base enables easy attachment to metal surfaces for quick installation and adjustment. Whether you need to extend the Wi-Fi range in your home, office, or outdoor environment, this extension cable is engineered to meet your needs.

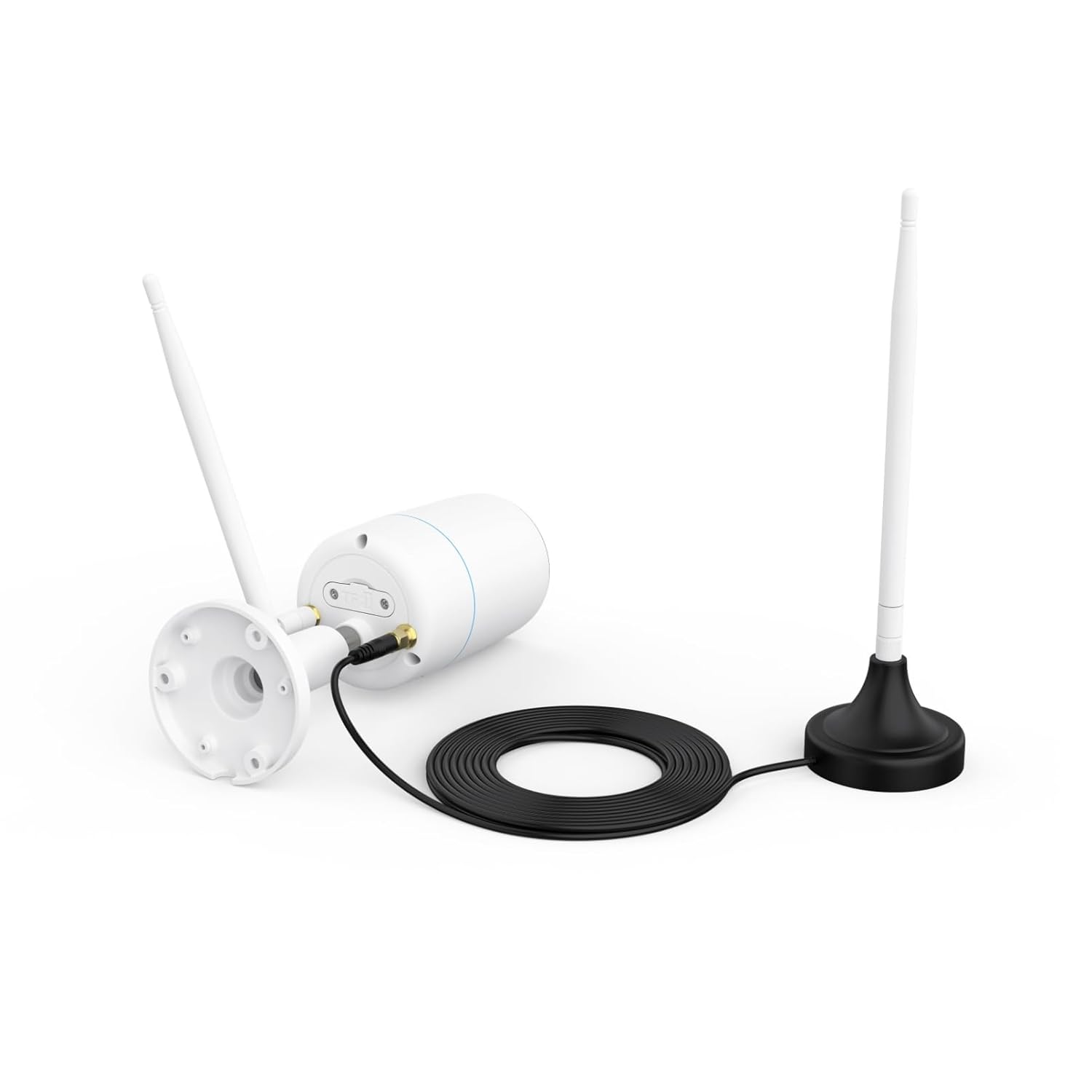

To install the antenna extension cable, you may connect the male connector (with a hole in the center) to the camera and the female connector to the antenna (as shown in the picture below). Then place the antenna extension cable at an ideal location with a strong Wi-Fi signal.
Tip: When passing the antenna through walls, utilize pre-drilled holes used for camera installation.
If you are interested in the antenna extension cable, find more details at:
