The Reolink FE camera series enables you to view the camera image in the Fisheye and the Expansion mode. Here is the guide on how to choose the image layout of FE cameras on the Reolink App.
Applies to: Reolink FE-W, Reolink FE-P

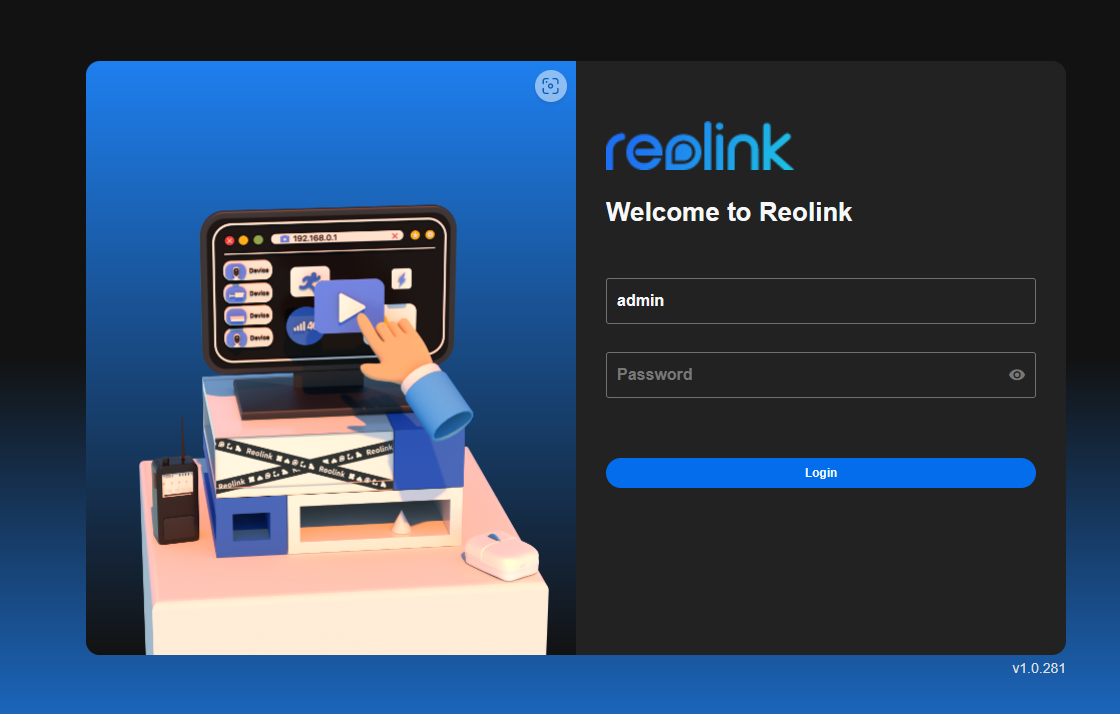

Step 1. Log in to your FE camera on a web browser. To do this, you can have a look at refer to: How to Access Reolink Product via Web Browsers

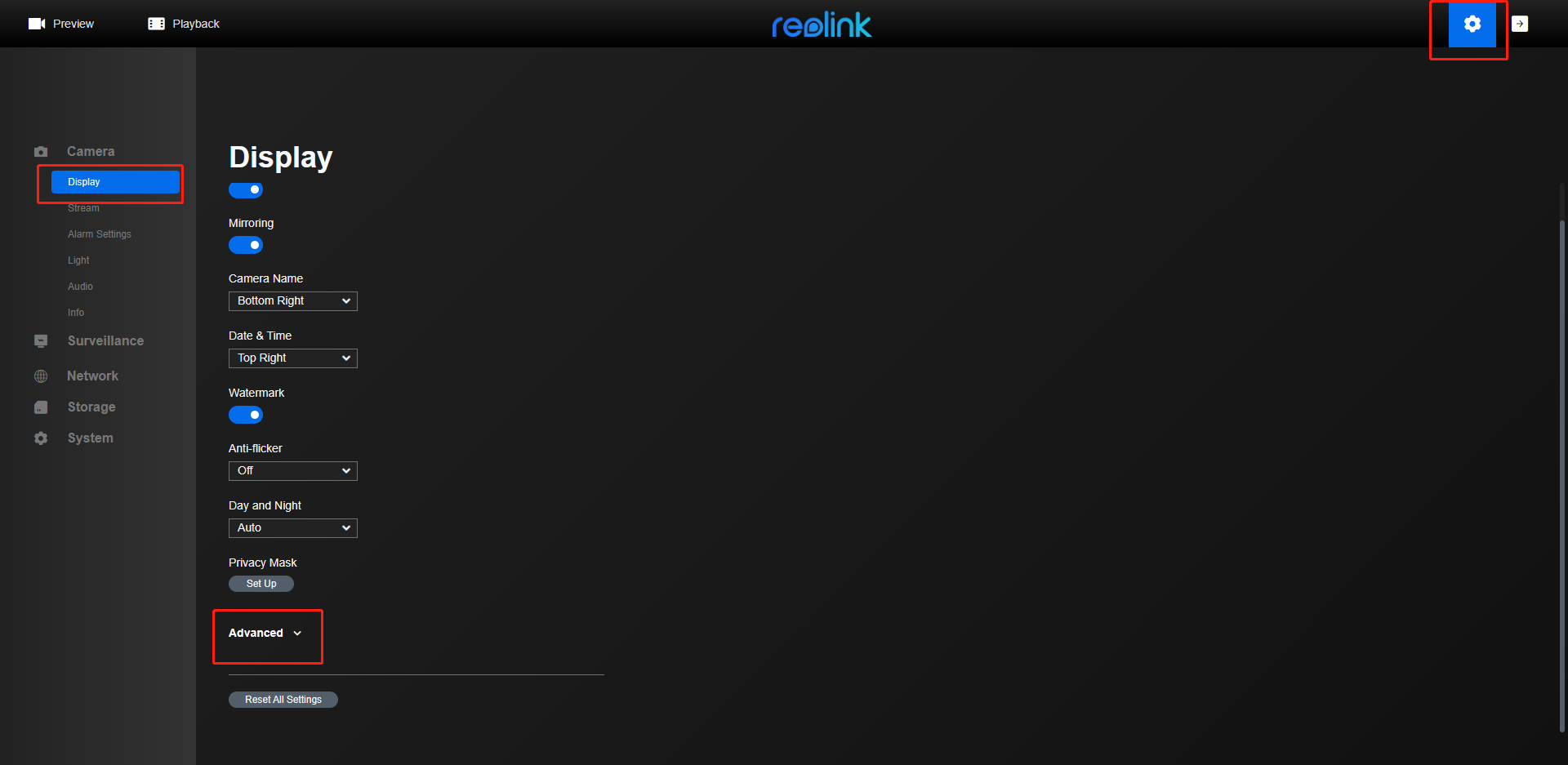

Step 2. Click the Settings icon on the top right corner and go to Camera > Display > Advanced.

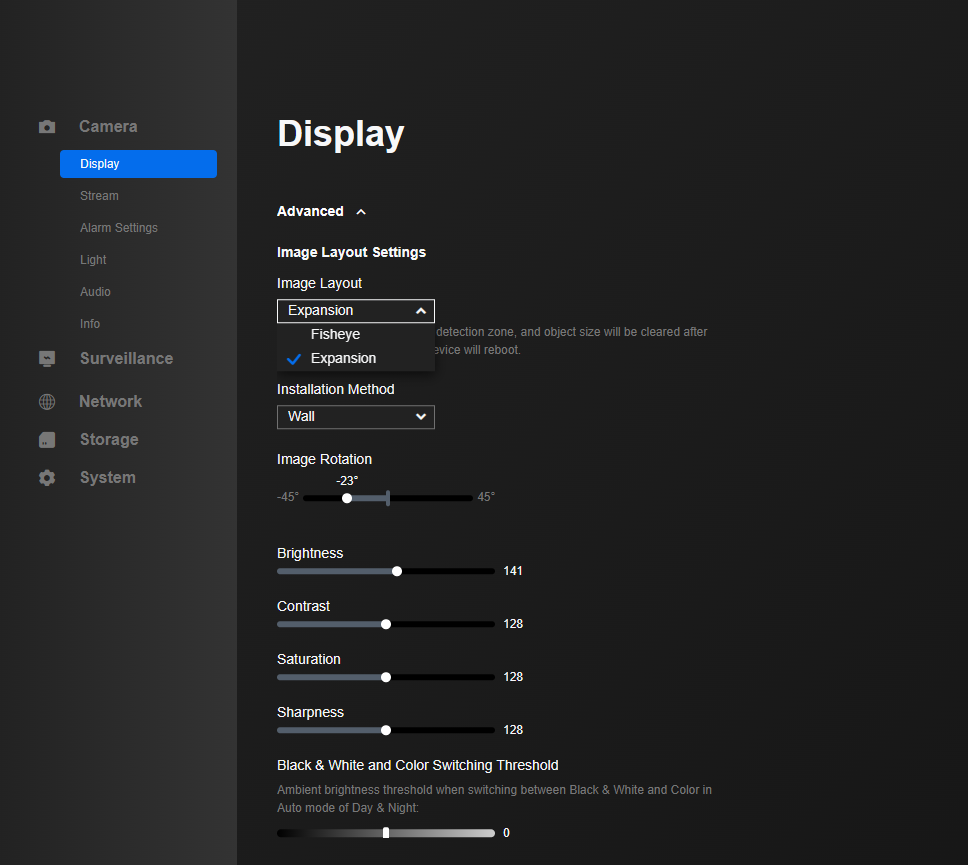

Step 3. Click the drop-down icon to choose between Fisheye (fisheye image) or Expansion (expanded image).
Note: If the image layout is changed, your configuration of Privacy Mask, Detection Zone, and Object Size will be cleared and the device will reboot itself.
Notes:
1. Fisheye mode selected: for a better view, you can go to the Live View page and choose a display mode according to the installation position of your camera.

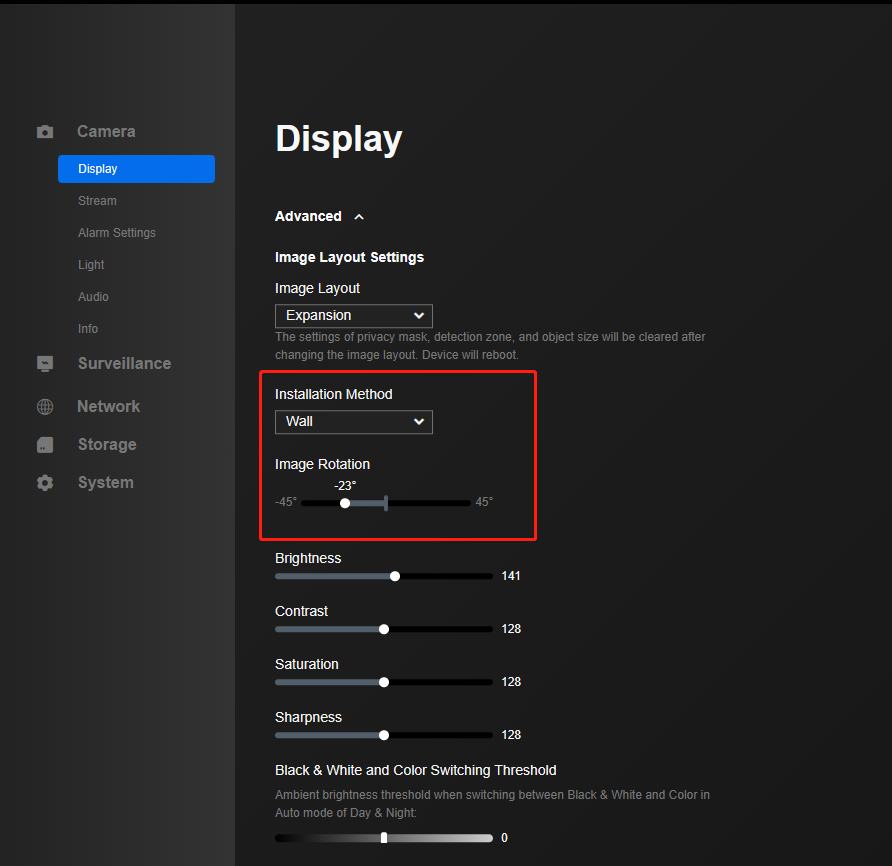

2. Expansion mode selected: you can proceed to choose an installation position. And you can also rotate the image to adjust its directions as needed.
