The Reolink FE camera series allows you to view the camera feed in either Fisheye or Expansion mode. Below are guides on how to select the image layout for your FE cameras using the Reolink App, Reolink Client, Web Browser, or Reolink NVR (new UI) to meet your needs.
Applies to: FE-W, Fisheye Series W520, FE-P, Fisheye Series P520.
Introduction to Reolink Image Layout
The Reolink FE (fisheye) camera series has two image layout options: Fisheye mode and 5-in-1 view/Expansion mode.
- Fisheye mode

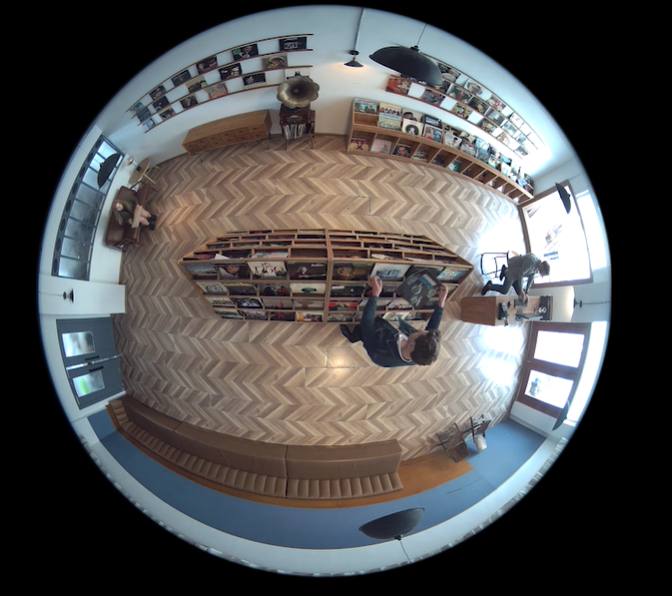

The camera image layout of FE cameras is in Fisheye mode by default, which delivers a 360° panoramic view. The image is warped like a fish eye. (The left picture below)
With Fisheye mode, you can go to the Live View page on the Reolink APP or Reolink Client and choose a display mode according to the installation position of your camera. How to Change the Display Mode of FE-W/FE-P
- 5-in-1 view/Expansion mode

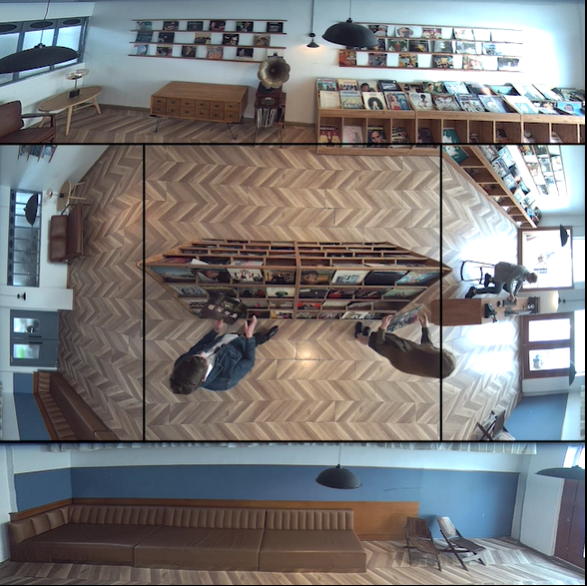

If you want to dewarp and stretch the circular fisheye image, you can change the image layout to 5-in-1 view/Expansion mode, and you'll get an expanded image in 5-in-1 view mode. (The right picture below)
There are three Installation Methods options under Expansion: Ceiling, Wall, and Desktop. You can set up the Image Rotation according to the installation angle and your needs.
As you can see, when the camera is installed on the ceiling, the default fisheye view is panoramic but warped, while in the 5-in-1/Expansion view, the image is divided into 5 parts (might be overlapped) with each part being stretched. Please note that the bottom part will be reversed if you have set the installation position to the Ceiling.
Important Notes:
1. Switching the image layout will cause the camera to restart once. The settings of privacy mask, detection zone, and object size will be cleared after changing the image layout.
2. SD card/NVR recordings and third-party software follow the actual camera image layout settings. For example, if you set it to a 5-picture view, then the recordings on the SD card or the display in third-party software will be in a 5-picture format.
How to Change Image Layout for Reolink FE-W/FE-P
-
Via Reolink App

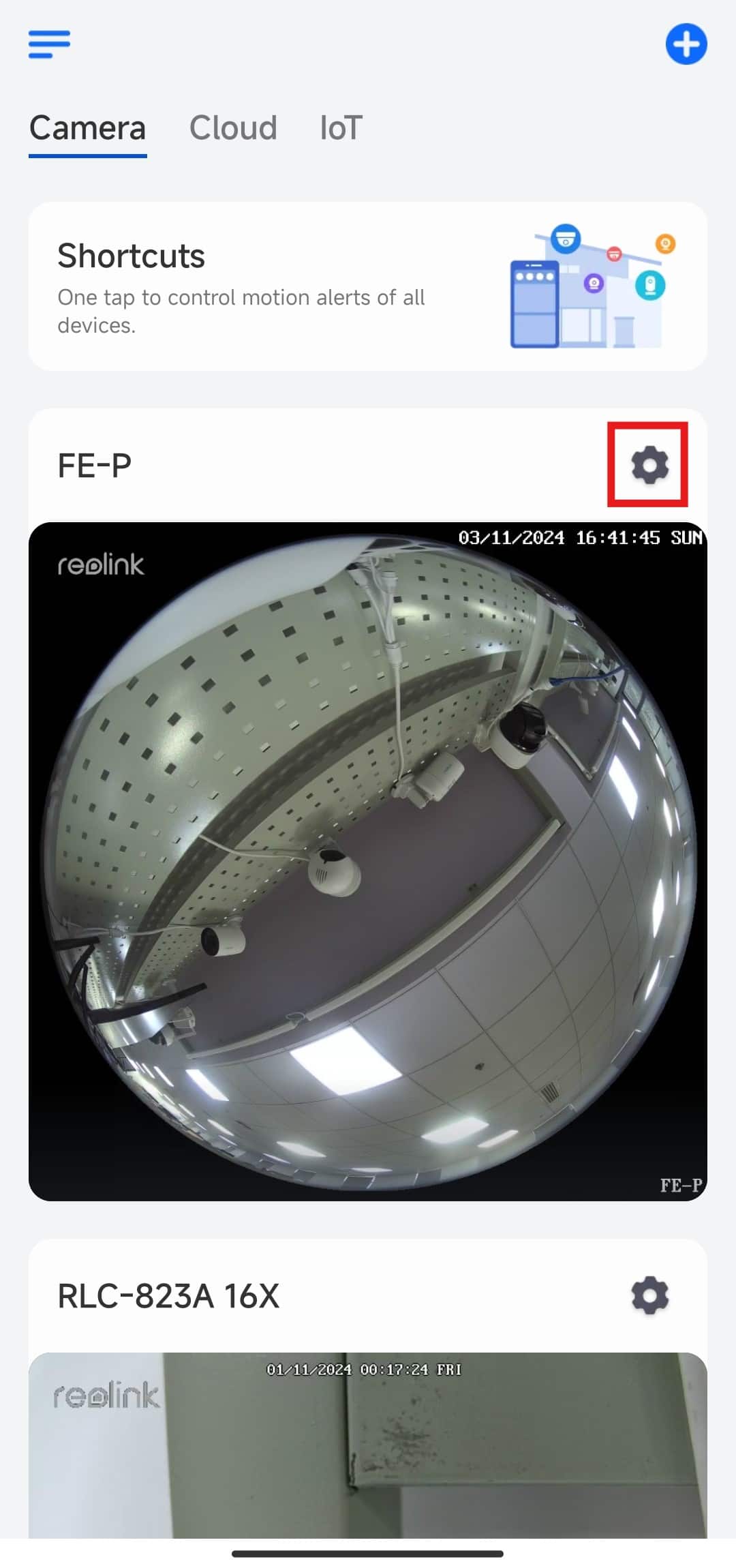

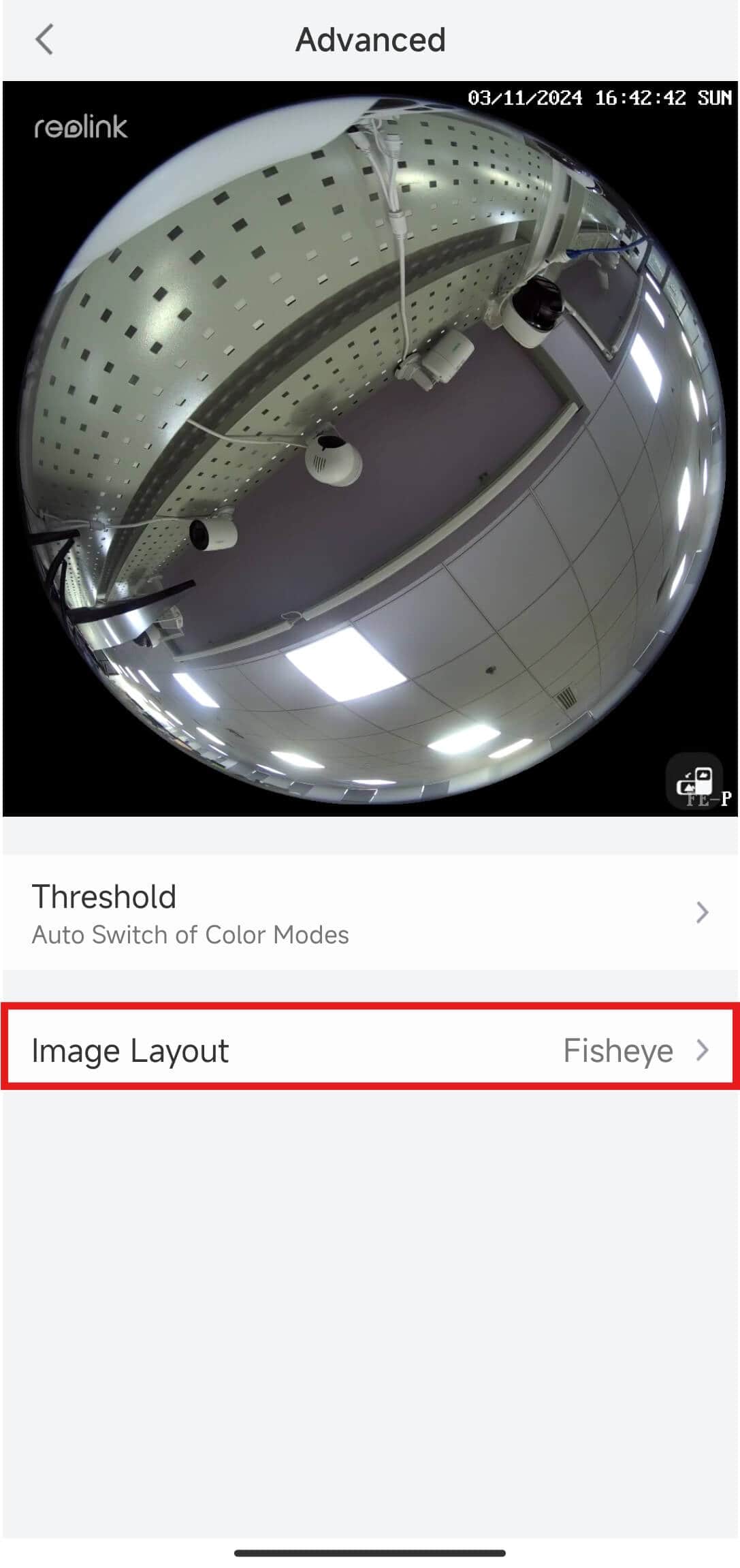

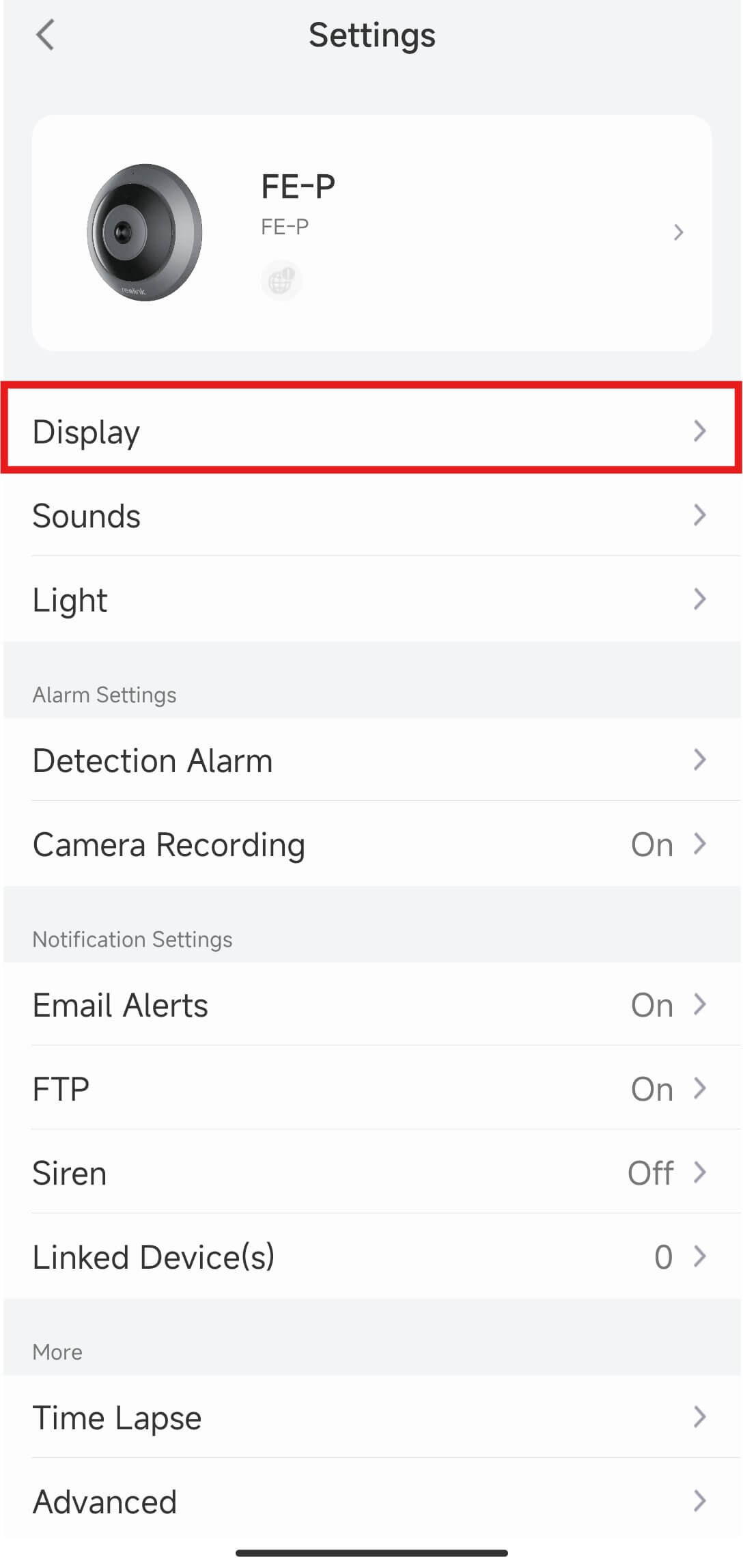

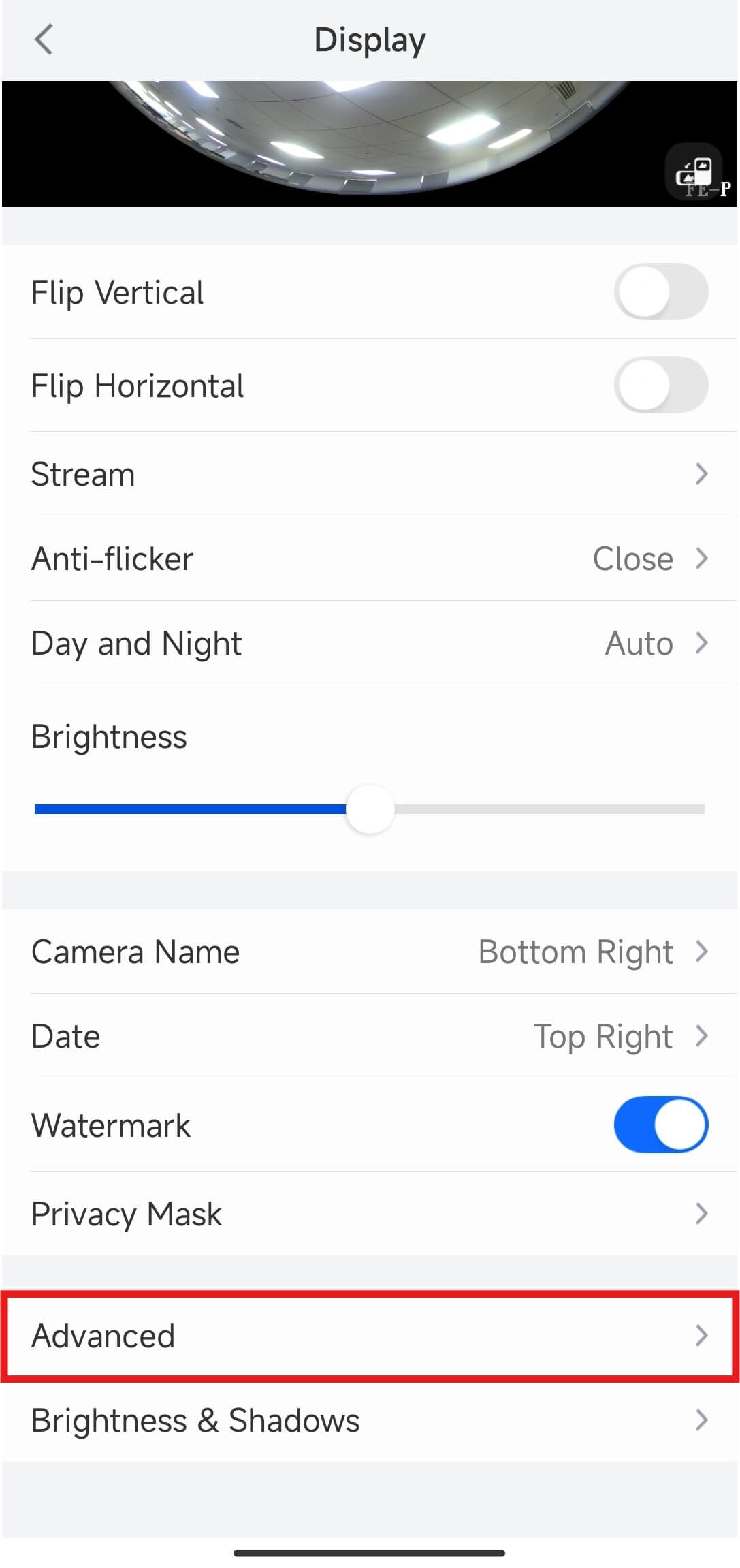

Step 1. Launch the Reolink App and log in to your camera. Then go to Device Settings > Display > Advanced.

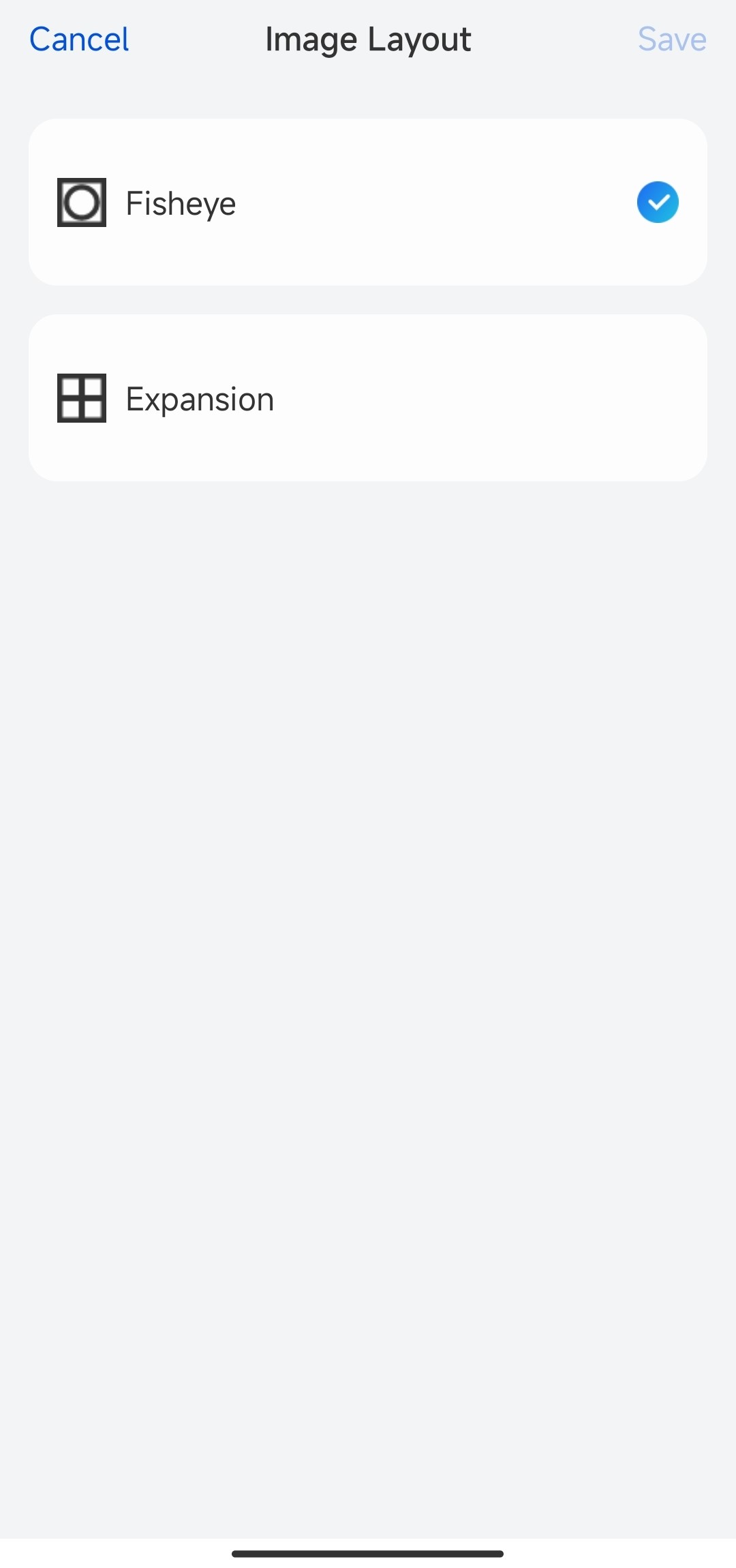

Step 2. Tap Image Layout to choose a mode. You can choose between Fisheye (fisheye image) and Expansion (expanded image) based on your viewing needs.

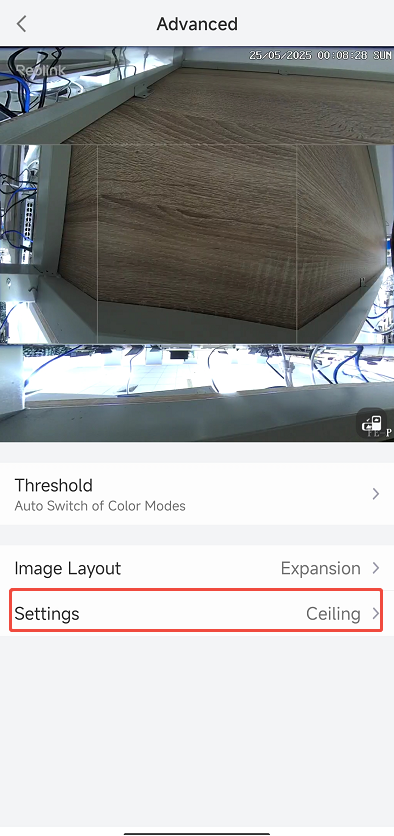

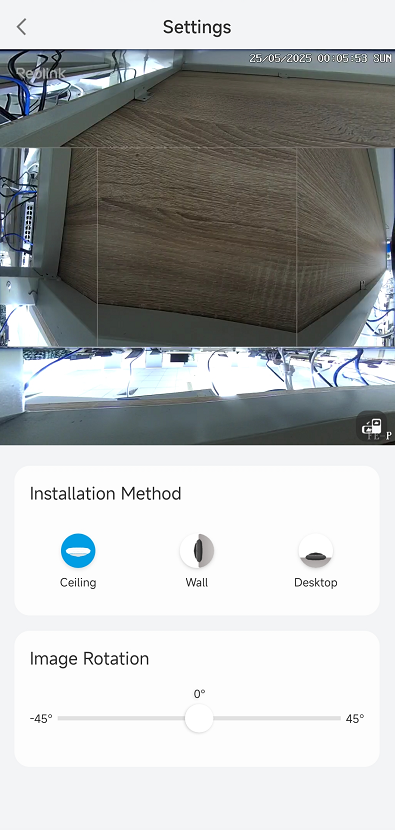

If the image layout is set to Expansion mode, tap Settings to set up the Installation Method and Image Rotation.
-
Via Reolink Client

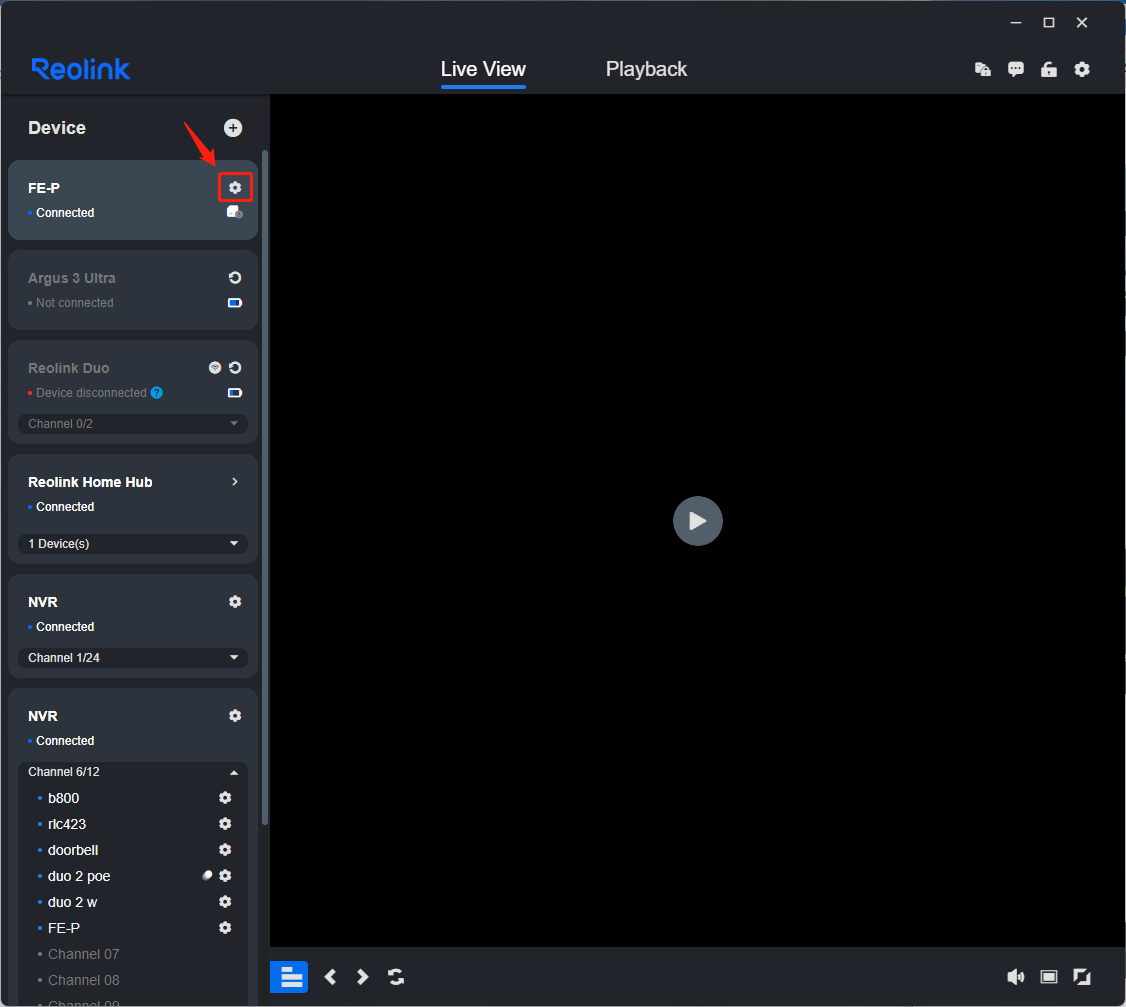

Step 1. Launch Reolink Client and log in to your camera.

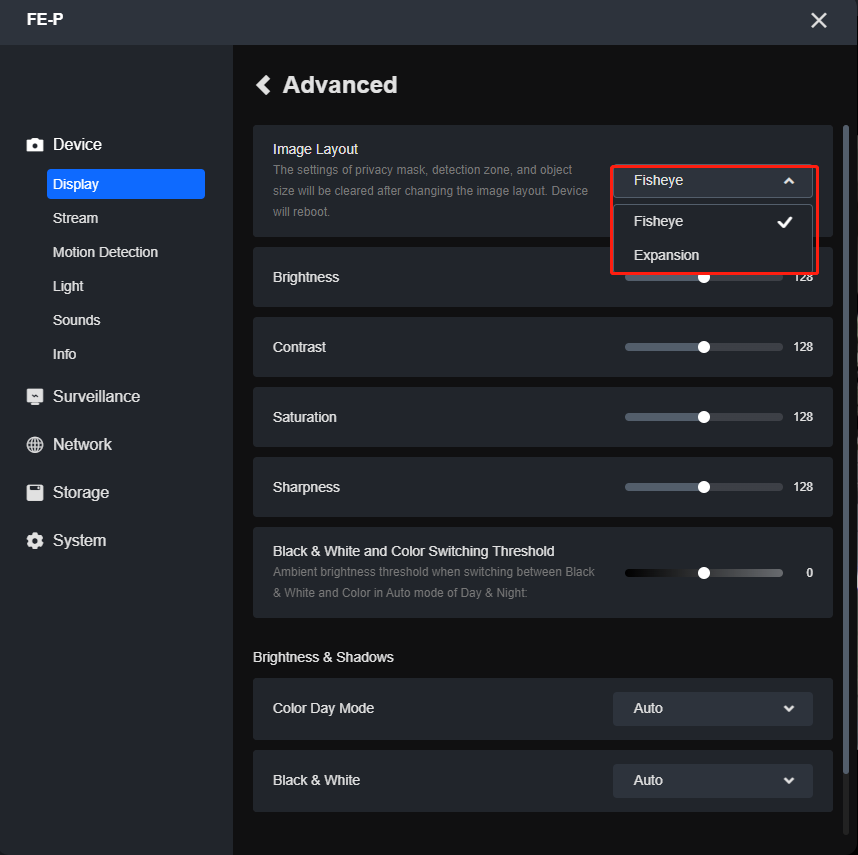

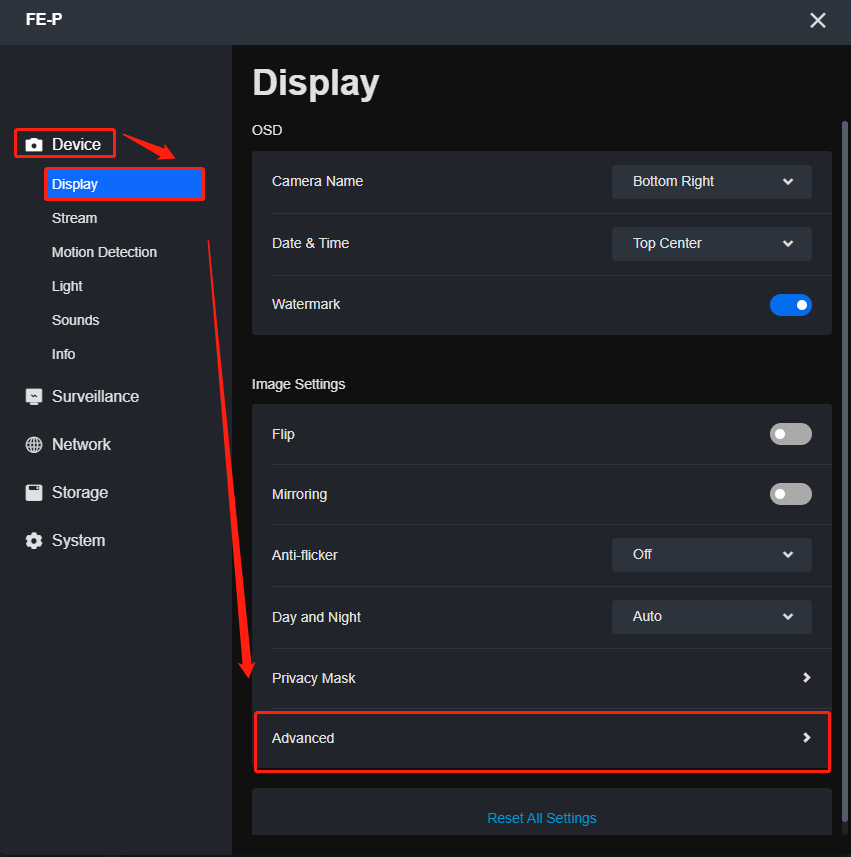

Step 2. Go to Device> Display > Advanced > Image Layout.
Click the drop-down to choose Fisheye (fisheye image) or Expansion (expanded image) based on your needs for the camera image.
With the Expansion mode, you can proceed to choose an installation position. You can also rotate the image to adjust its direction as needed.
-
Via Web browser

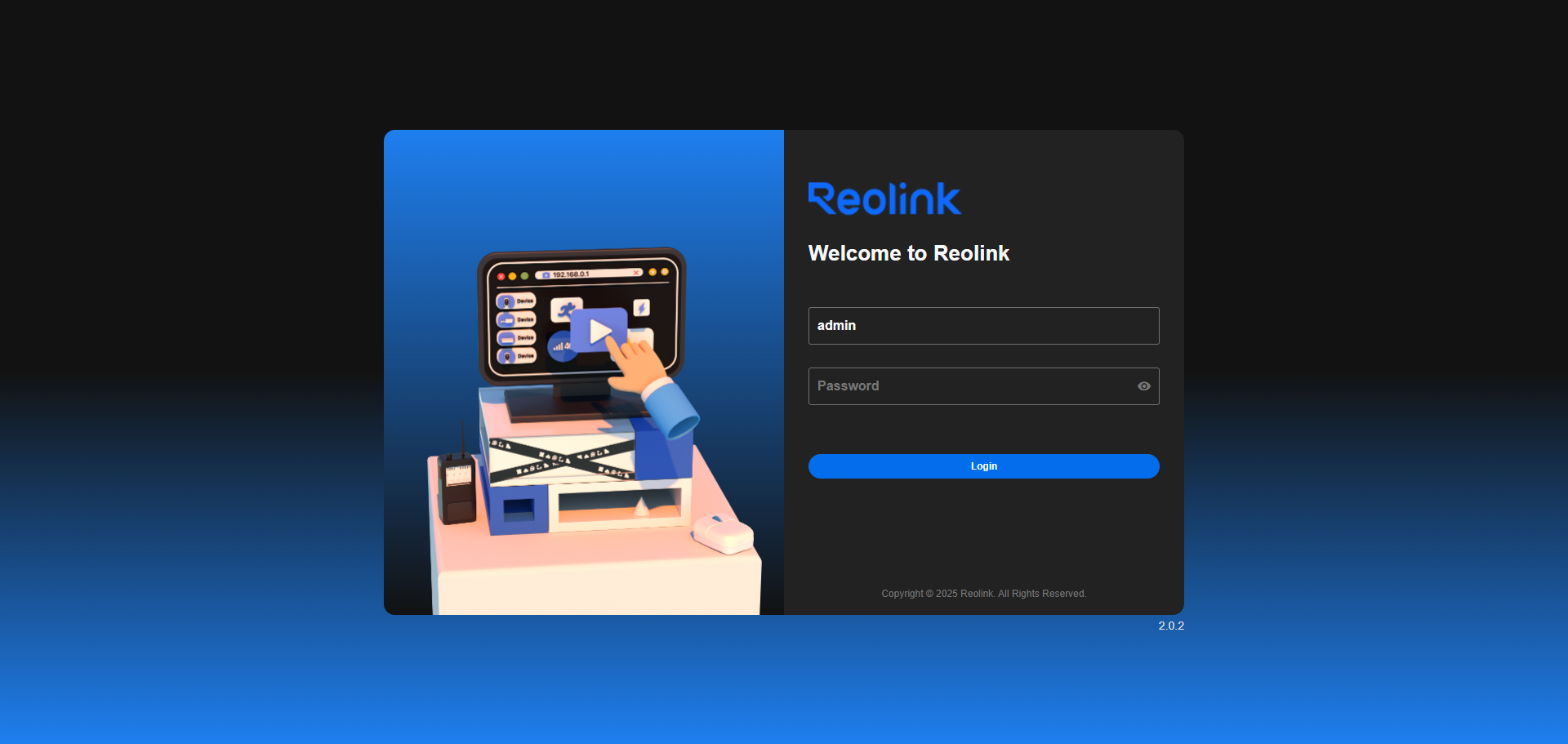

Step 1. Log in to your FE camera on a web browser. How to Access Reolink Products via Web Browsers.

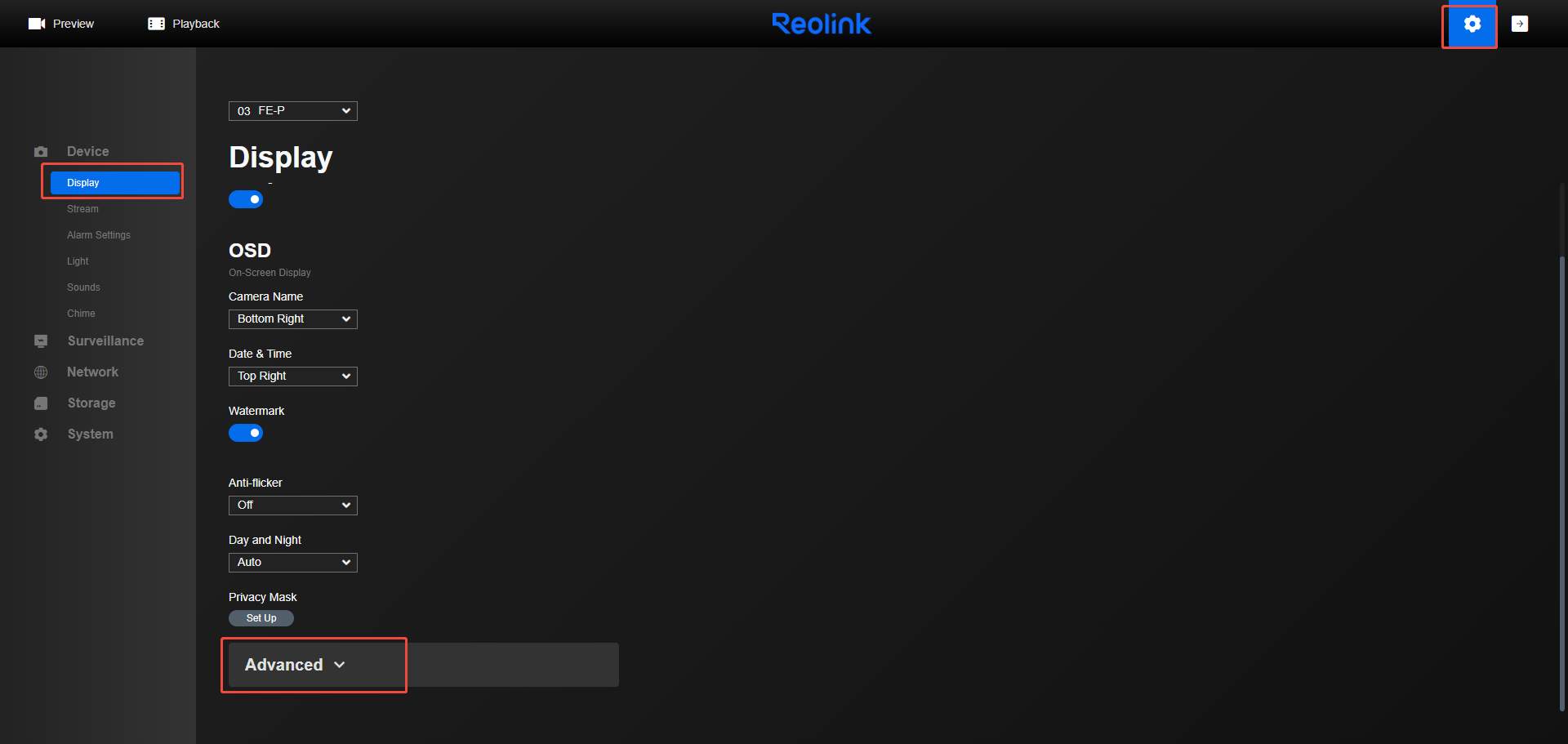

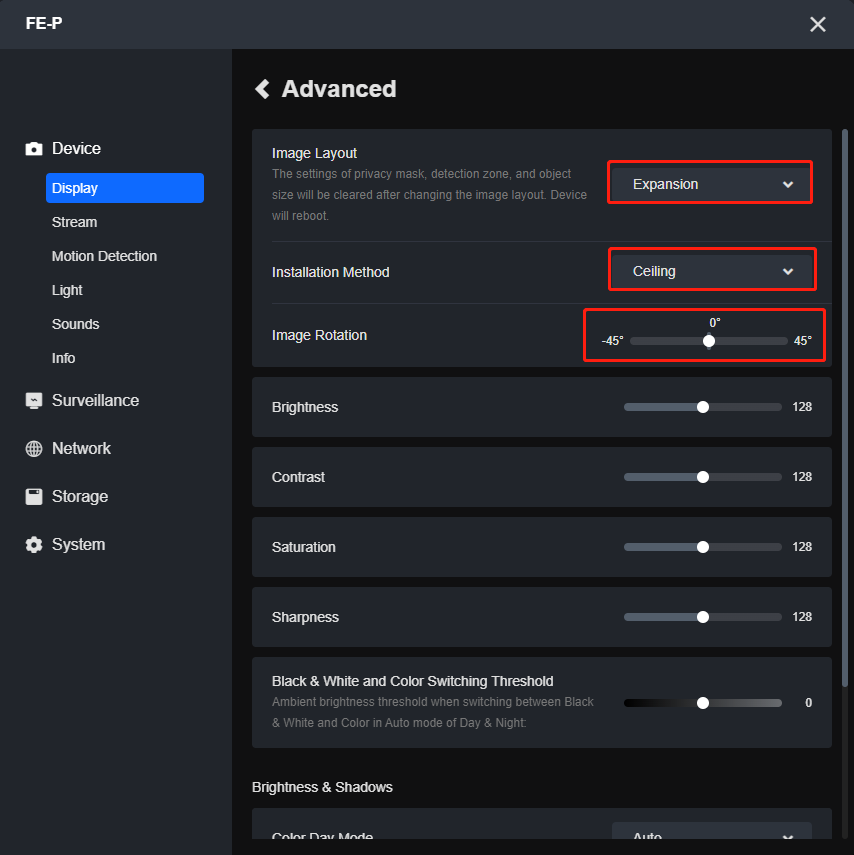

Step 2. Click the Settings icon in the top right corner and go to Camera > Display > Advanced.

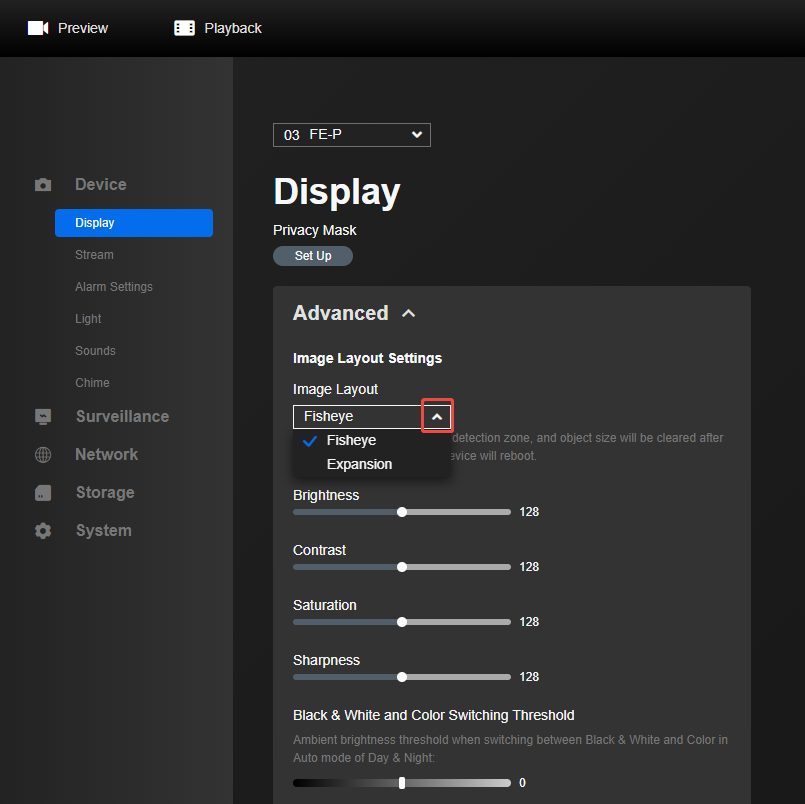

Step 3. Click the drop-down icon to choose between Fisheye (fisheye image) or Expansion (expanded image).

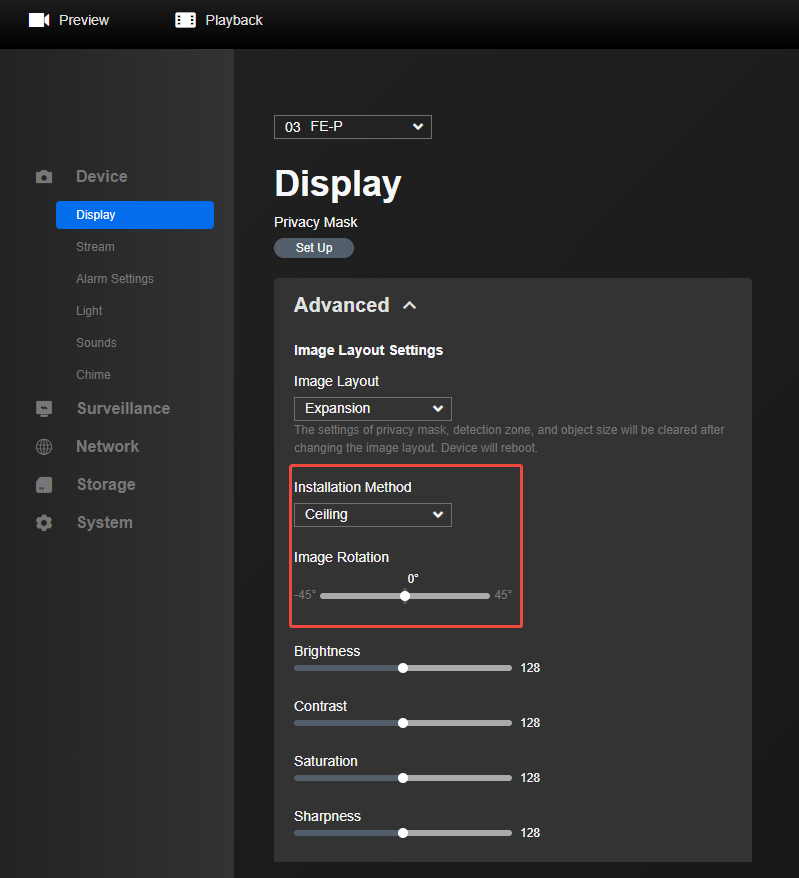

With Expansion mode selected, you can proceed to choose an installation position. You can also rotate the image to adjust its direction as needed.
-
Via Reolink NVR (new UI)
Step 1. Launch your Reolink NVR, and go to the live view page of FE-W/FE-P. Right-click to bring up the settings bar and click the grear icon to go to the settings menu page.

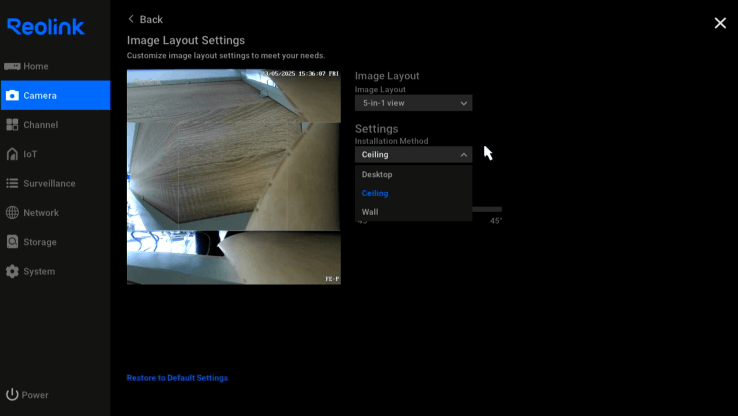

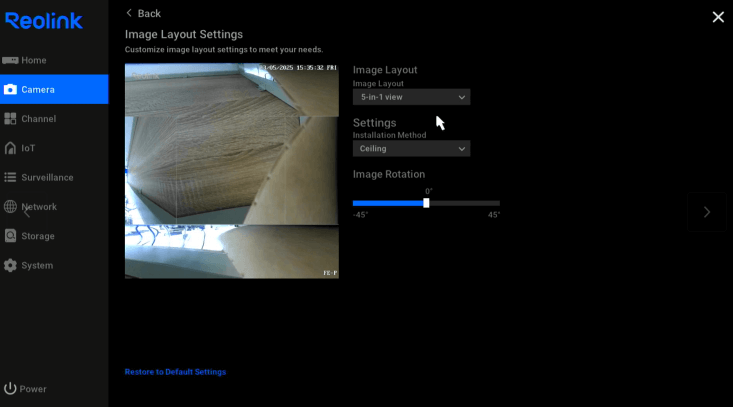

Step 2. Go to the Camera page, click the dropdown button at the top of the page to select FE-P. Then, click Display, and you will see the Image Layout Settings. Click on it.

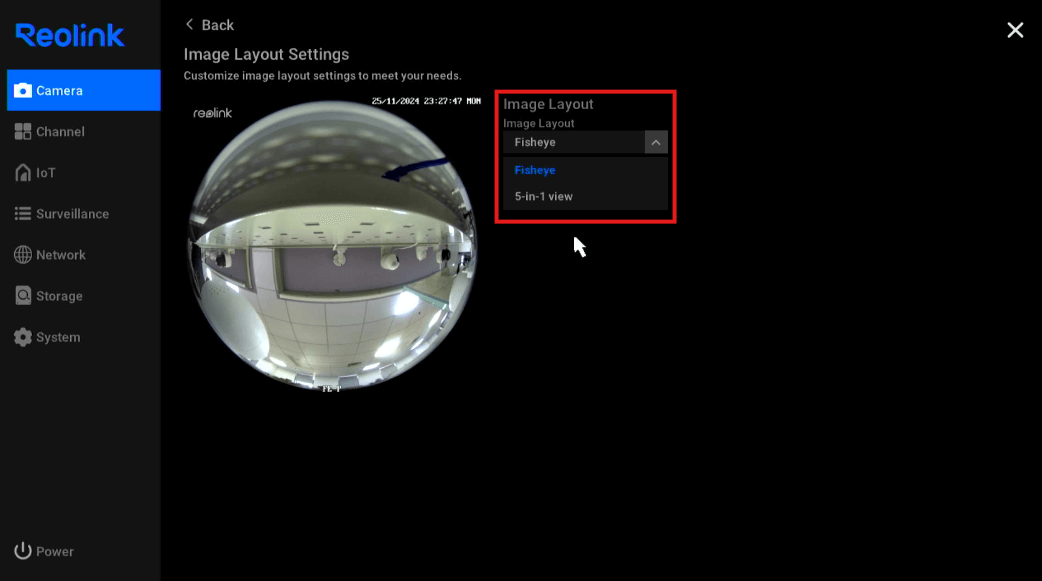

Step 3. Click the drop-down icon to choose between Fisheye (fisheye image) or 5-in-1 view (expanded image).
Selecting the 5-in-1 view, you can proceed to choose an installation position and rotate the image to adjust the image directions based on your needs.
By completing these steps, you can easily switch between fisheye and 5-in-1 views/expansion to better monitor your space. Make sure to choose the layout that best suits your requirements.
