Reolink FE-W and FE-P cameras support multiple display modes to adapt to different mounting positions, such as ceilings, walls, or desktops. Selecting the proper mode helps optimize the viewing experience. This guide will show you how to change the display mode via the Reolink App and Reolink Client.

Applies to: Reolink FE-W, Reolink FE-P.

Note:

1. Currently, the Reolink Web Browser and Reolink NVR do not support changing the display mode for FE-W/FE-P models.

2. You can only change the display mode when the camera's image layout is set as Fisheye. How to Change the Image Layout for Reolink FE-W/FE-P

Step-by-Step Instructions Change the Display Mode

  • Via Reolink App

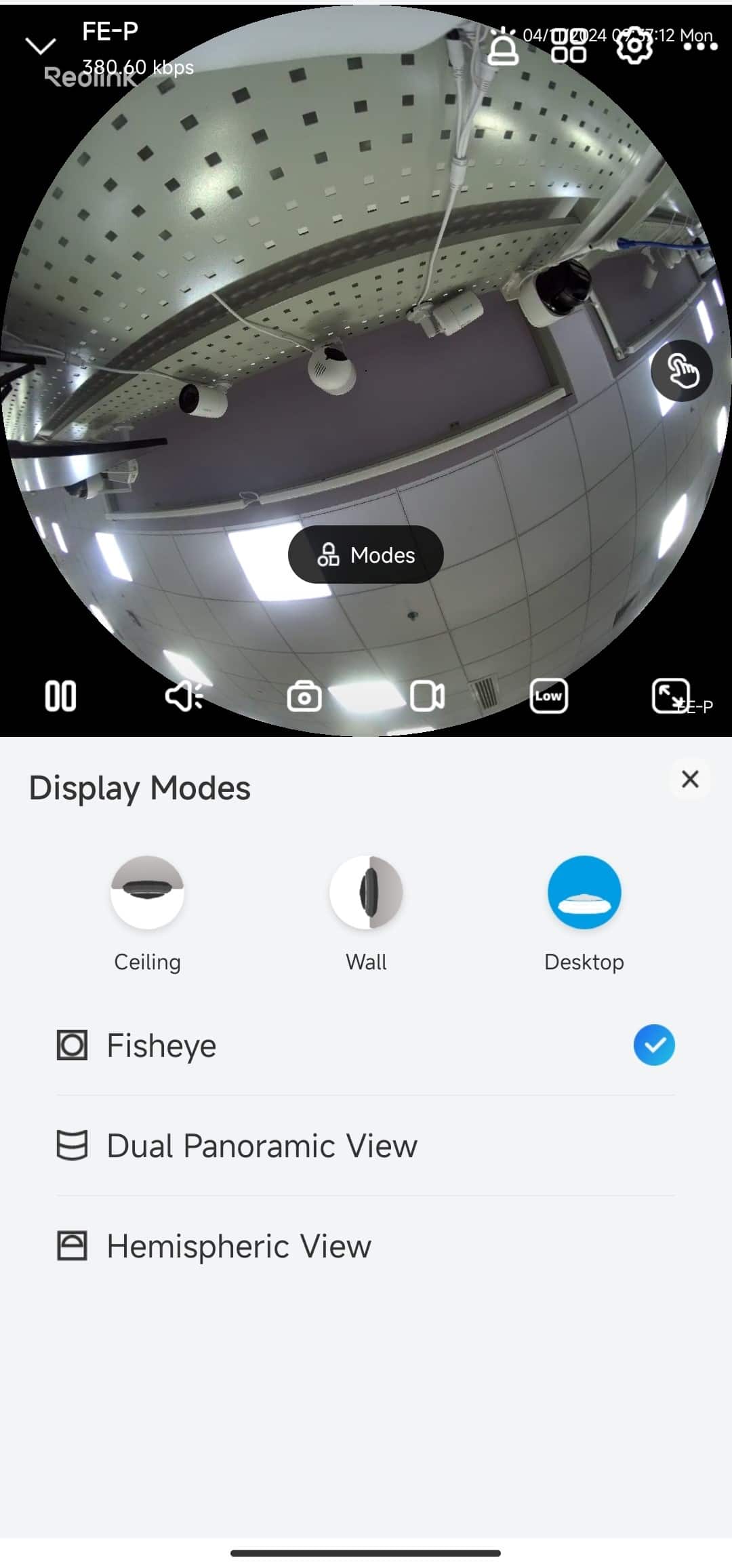

    Step 1. Launch the Reolink App and log in to the Reolink FE-W/FE-P camera. Go to the Live View page of the camera. Tap the Modes icon.

    FEP modes

    Step 2. Choose a display mode for the camera image according to different installation positions.

    If you install your camera on the ceiling, there are 4 display modes for you to choose from: Fisheye, Dual Panoramic View, Quad View, and Cylindrical View.

    FEP ceilling

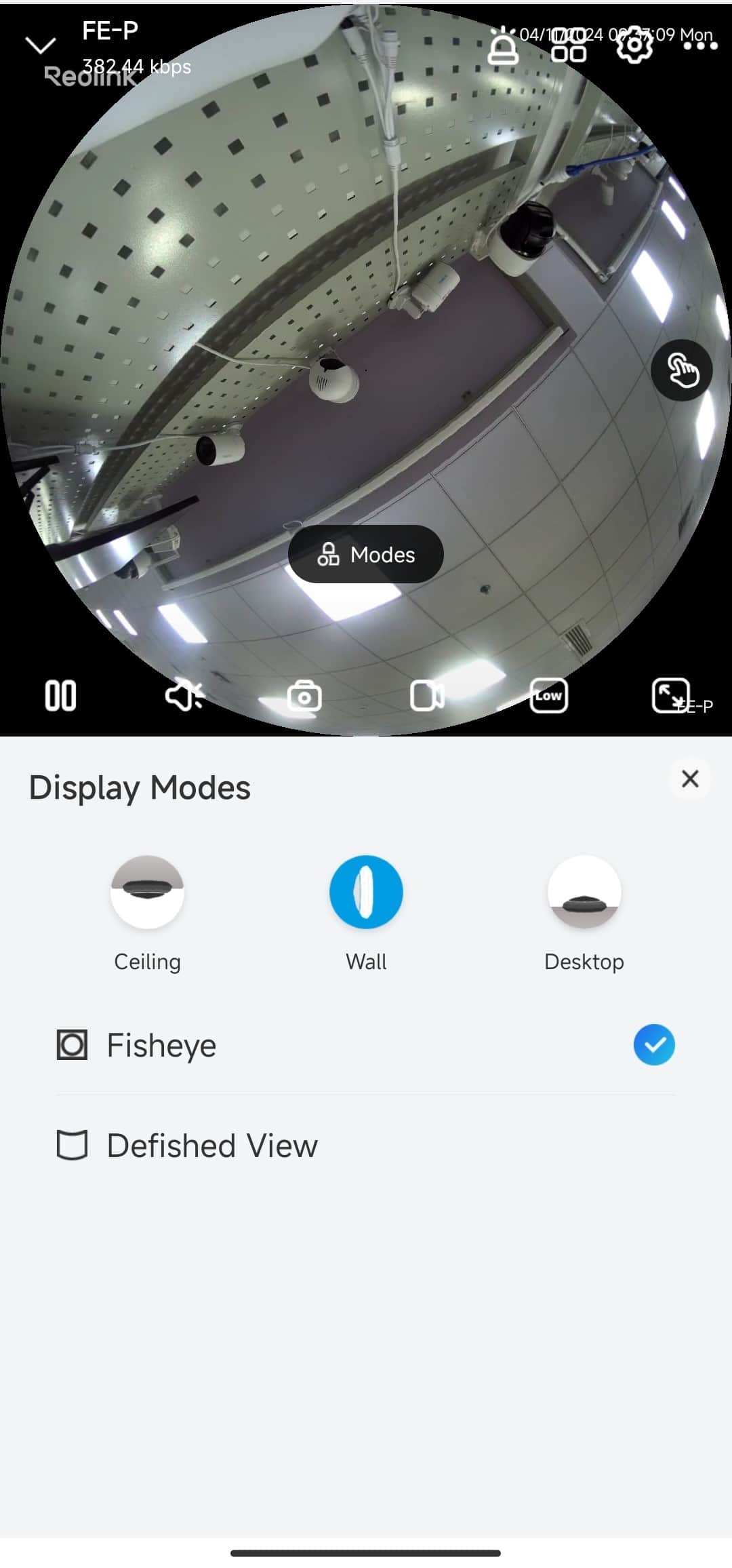

    If you install your camera on the wall, there are 2 display modes for you to choose from: Fisheye and Defished View.

    FEP wall

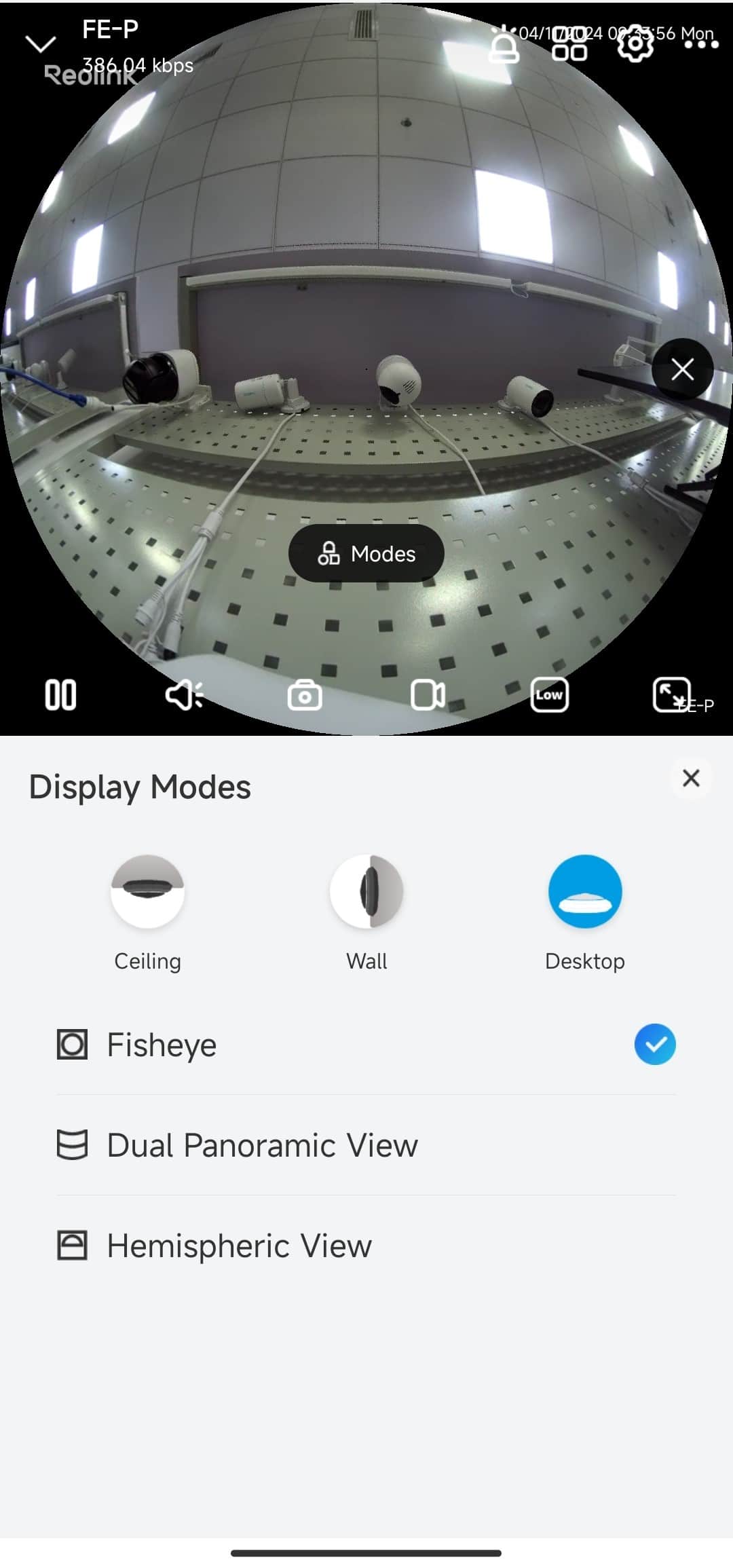

    If you install your camera on the desktop, there are 3 display modes for you to choose from: Fisheye, Dual Panoramic View, and Hemispheric View.

    FEP desktop

    Step 3. You can also rotate the image to adjust its orientation on the Live View page.

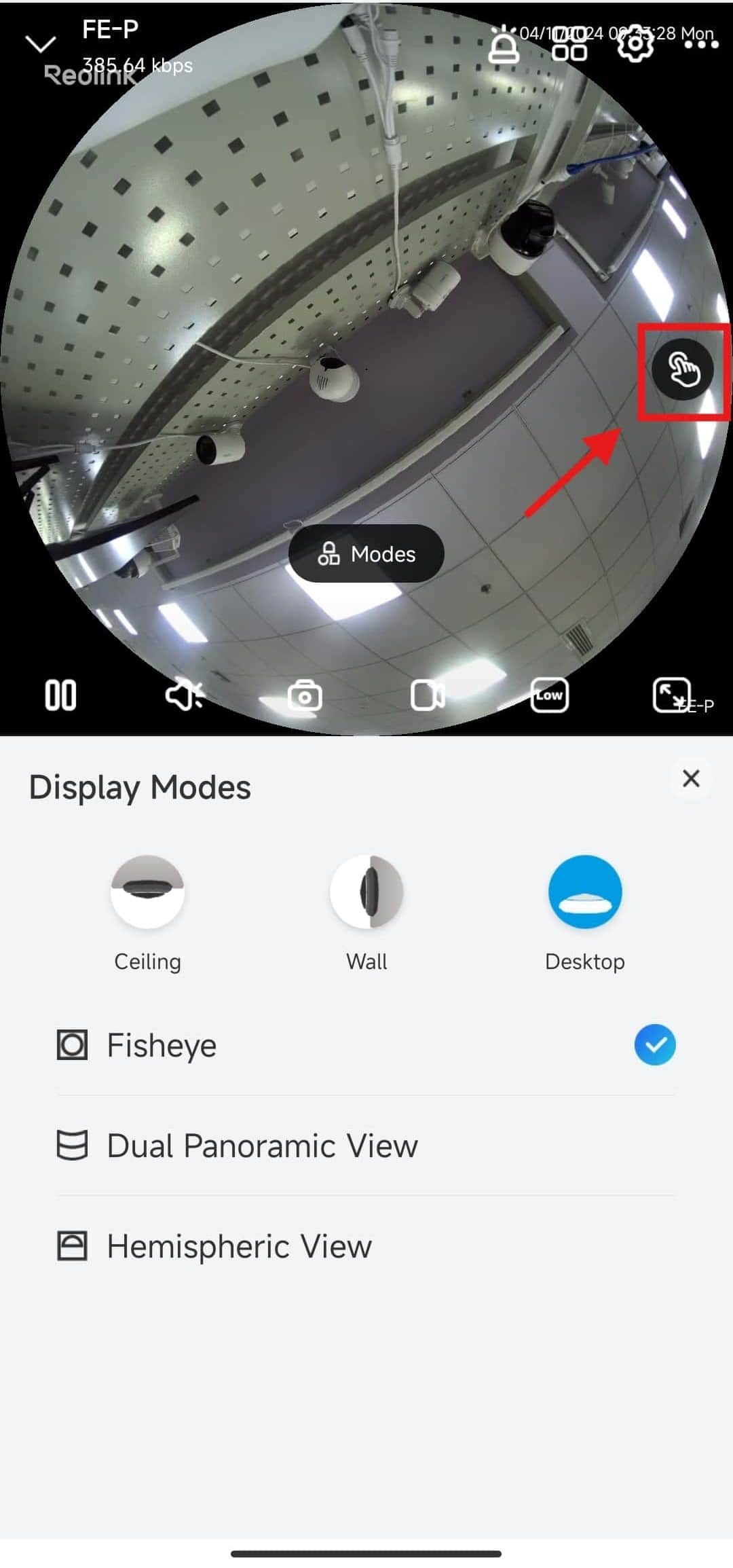

    Tap the touch icon, then swipe on the screen to rotate the image, or use the digital zoom function: use your finger to drag the screen to view the specific area, like the picture below.

    FEP touchFEP rotate

    digital zoom

  • Via Reolink Client

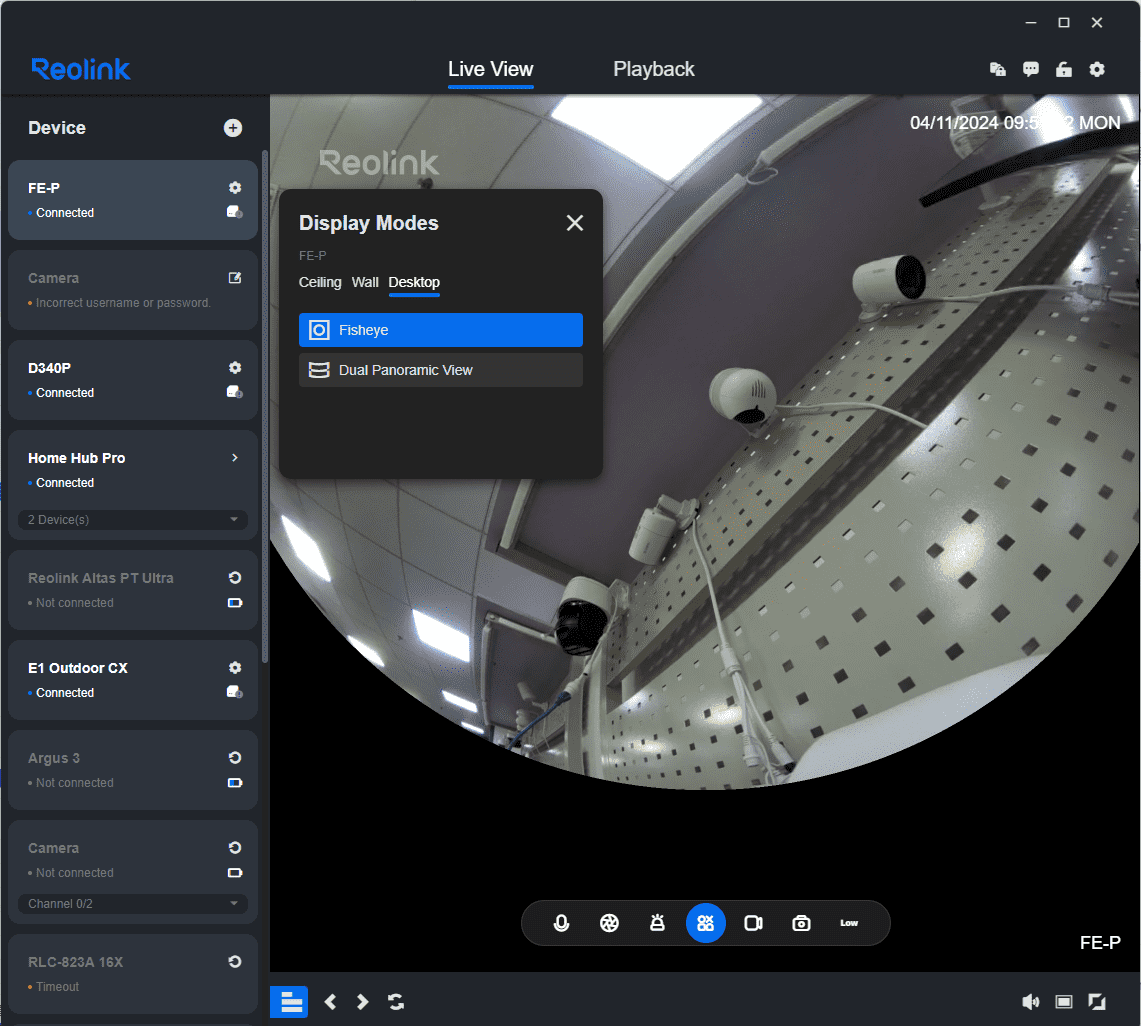

    Step 1. Launch the Reolink Client and log in to the Reolink FE-W/FE-P camera. Go to the Live View page of the camera. Click the Display Modes icon, and a window with different display mode options will pop up.

    Note: If you can not find this option on the Live View page, update the Reolink Client to the latest version. How to update Reolink Client?

    FEP display modes

    Step 2. Choose a display mode for the camera image according to different installation positions.

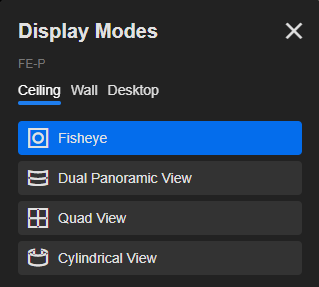

    If you install your camera on the ceiling, there are 4 display modes for you to choose from: Fisheye, Dual Panoramic View, Quad View, and Cylindrical View.

    FEP ceiling

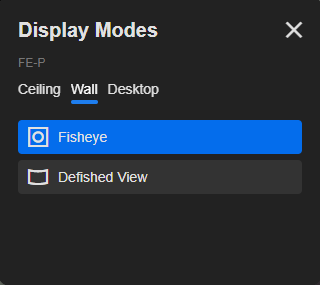

    If you install your camera on the wall, there are 2 display modes for you to choose from: Fisheye and Defished View.

    FEP wall

    If you install your camera on the desktop, there are 3 display modes for you to choose from: Fisheye, Dual Panoramic View, and Hemispheric View.

    FEP desktop

    Step 3. You can also rotate the image to adjust its orientation on the Live View page or use the digital zoom function of the camera.

    Adjust image orientation: Click directly on the image, hold, and drag to rotate it.

    Digital zoom: Scroll the mouse wheel to zoom in/out on the live view image.

    Note: Both features require the Display Modes window to remain open if the image layout is set to Fisheye.

    FEP touch

Choosing the right display mode ensures the best visual output for your specific installation. For any issues or additional support, feel free to click "Submit a Request" below to reach out to Reolink Support.
