If you mark a place, say, the porch as a preset point for your camera, you can control the camera to turn to that place simply and fast.
Applies to: RLC-423 series, E1 Zoom, E Series E340, E1 Outdoor, E Series E540, E1 Outdoor PoE, E Series E560P, E1 Outdoor Pro, E Series E560, E1 Outdoor CX, E Series E530X, RLC-523WA, RLC-823A, RLC-823A 16X, RLC-823S1, P840, RLC-823S2, P850, RLC-823S1W, W840, RLC-830A, P830, Reolink TrackMix WiFi, TrackMix Series W760, TrackMix PoE, TrackMix Wired LTE (Wired connection), RLC-81PA, P330P
This article shows you how to set up preset point(s) for Reolink cameras via a web browser. Follow the steps below to set it up.

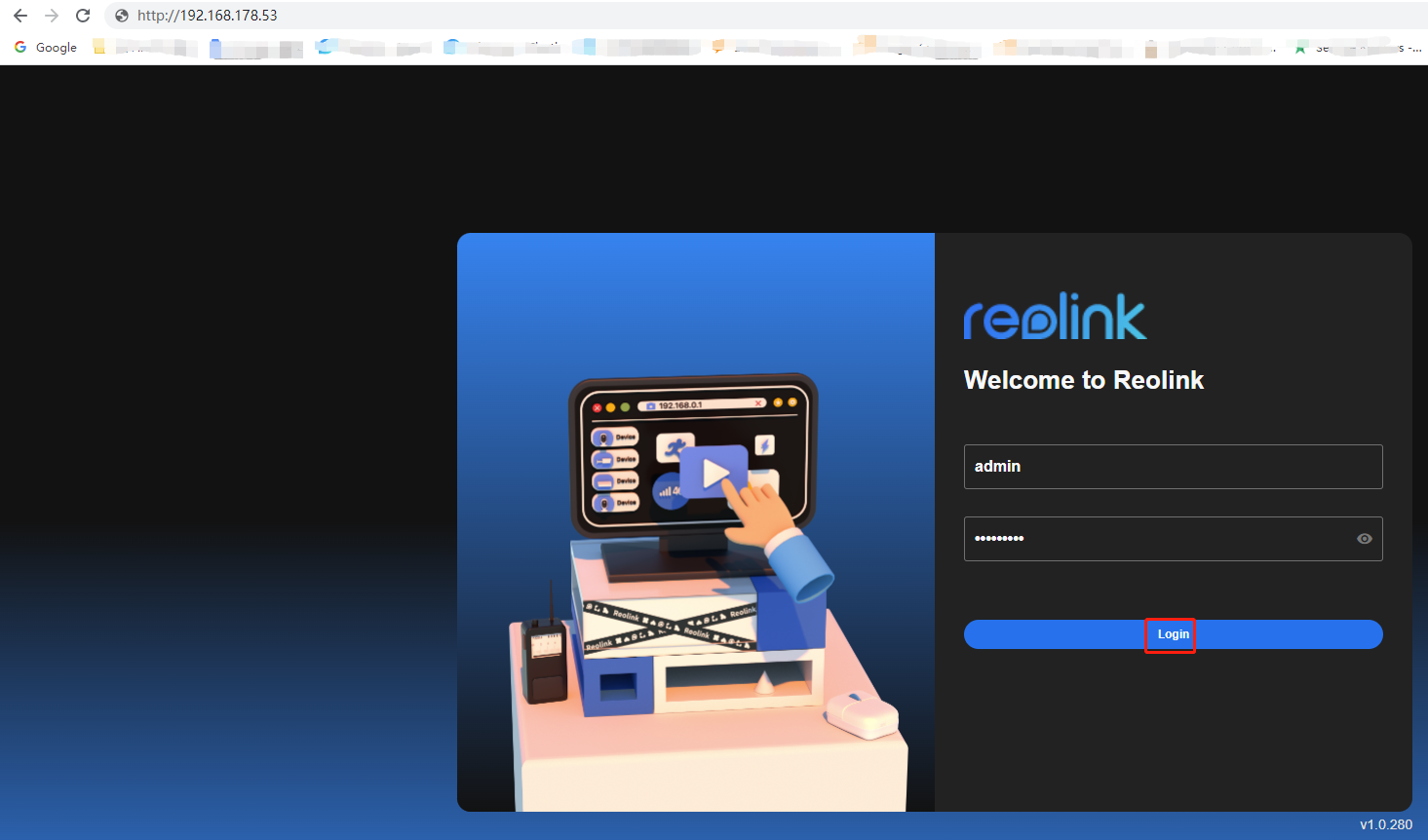

Step 1. Input the IP Address of your camera on a web browser and log in to your camera.
See how to find the IP address of your camera.
Note: Make sure your PC is connected to the same router as your camera.

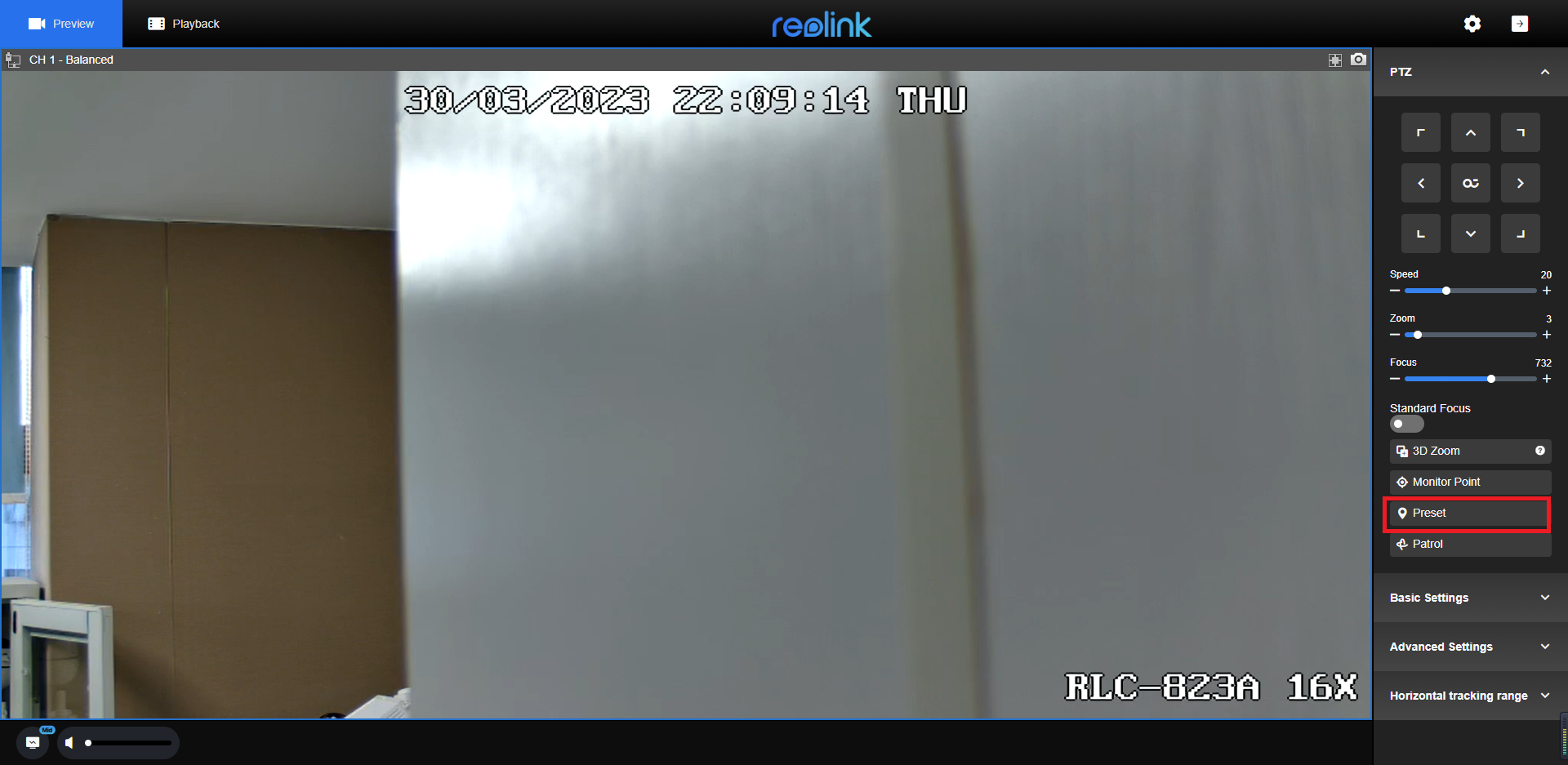

Step 2. Click the drop-down arrow to unfold the PTZ menu on the live-view page, and use the pan/tilt/zoom function to aim your camera's view at a specific area that you want to set as a preset. Then click the Preset.

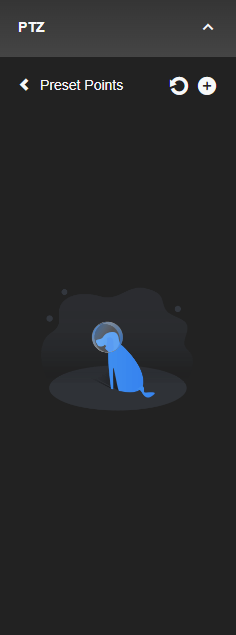

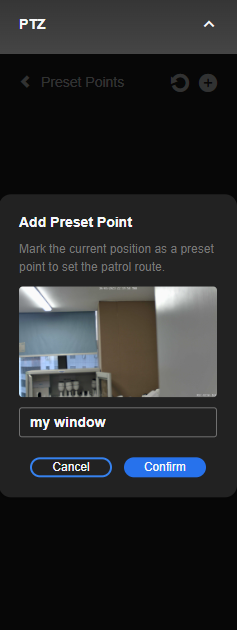

Step 3. Click the Add button to set the current camera viewpoint as a preset. Then you could type in the name of the preset. Then click Confirm.
Step 4. Aim the camera to other positions where you want to set as presets by repeating Step 2 and 3.

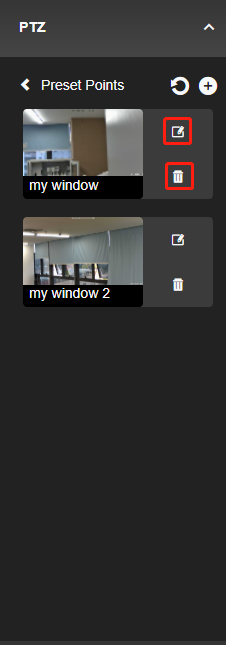

Step 5. The preset points you have added will be displayed as shown below. You can edit the existing preset or delete the preset.
Step 6. Click on the image of the preset point to make your camera turn to that position quickly.
