Introduction to the Working Modes and the Status LED of Battery-powered WiFi Cameras

This article will introduce the two different working modes of the Reolink Battery-powered WiFi cameras, as well as the meaning of different status LEDs.

Applies to: Argus series, Reolink Duo(Battey), Reolink Duo 2, Reolink TrackMix, Reolink Altas, Altas Series B630 and Reolink Altas PT Ultra.

Part 1. The Different Working Modes and States of the Status LED

There are two working modes of Reolink Battery-powered cameras:

• Standby Mode: The camera is in power-saving mode; there is no live view or motions detected.
• Working Mode: The camera is running at full capacity. It enters the working status when someone is accessing the camera via Reolink software or the PIR motion sensor detects a movement.

The status LED of the battery-powered WiFi cameras has two colors: Blue and Red. Blue means the WiFi connection of the camera is successful, while red means the WiFi connection failed.

The table below explains the state of the camera under different combinations of the status LED:

Part 2. The Location of the Status LED For Battery-powered WiFi Cameras

Click on the corresponding model/series below to view the status light location.

Note: The image is for reference only; specification may vary by model.

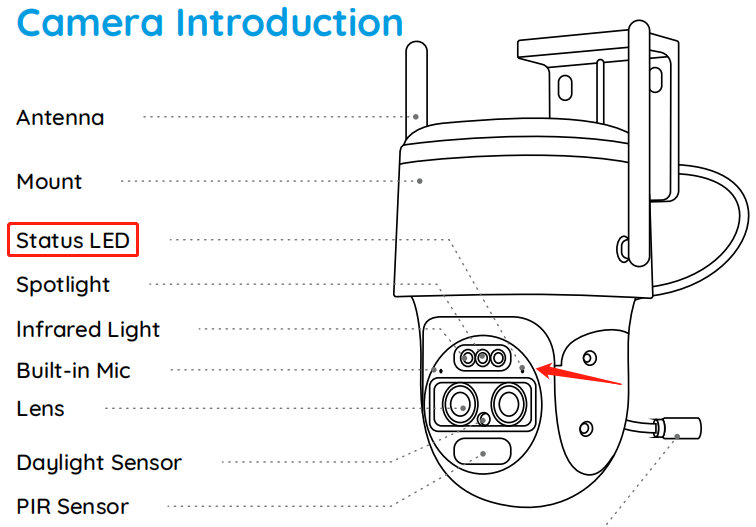

• Altas Series

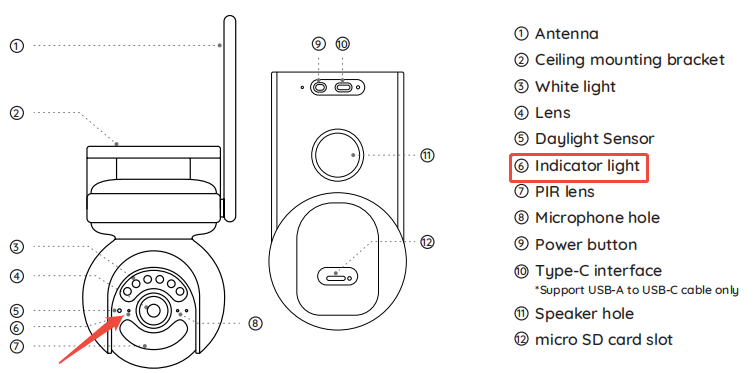

  Applies to: Reolink Altas PT Ultra

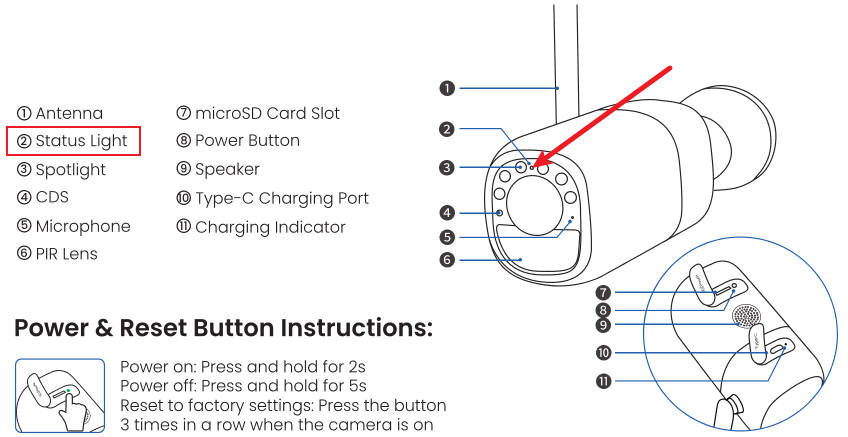

  Applies to: Reolink Altas

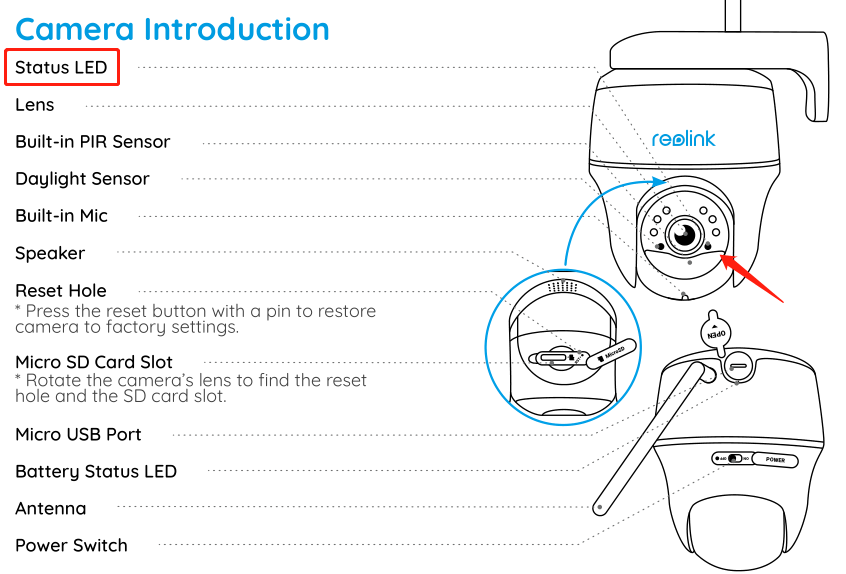

• Argus PT Series

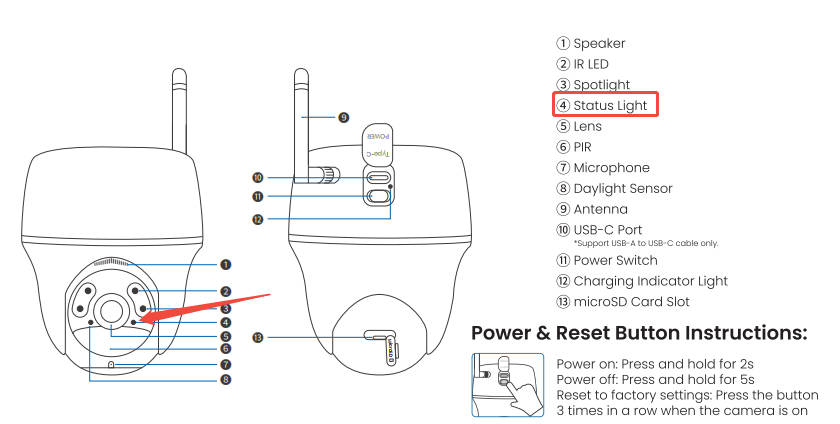

  Applies to: Argus PT Ultra, Argus PT Lite, Argus PT 2K, Argus PT.

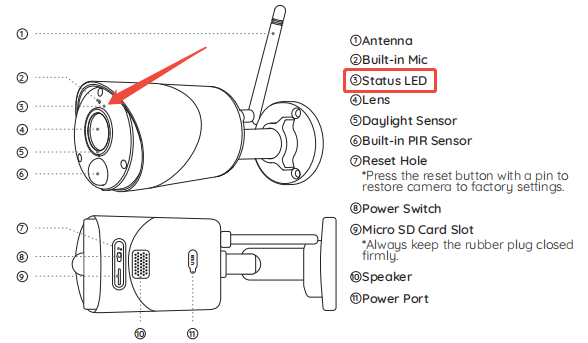

• Argus Eco Series

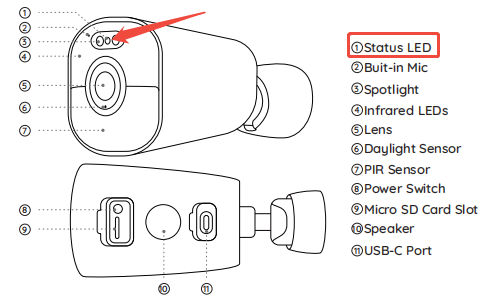

  Applies to: Argus Eco Ultra, Argus Eco Pro.



  Applies to: Argus Eco.

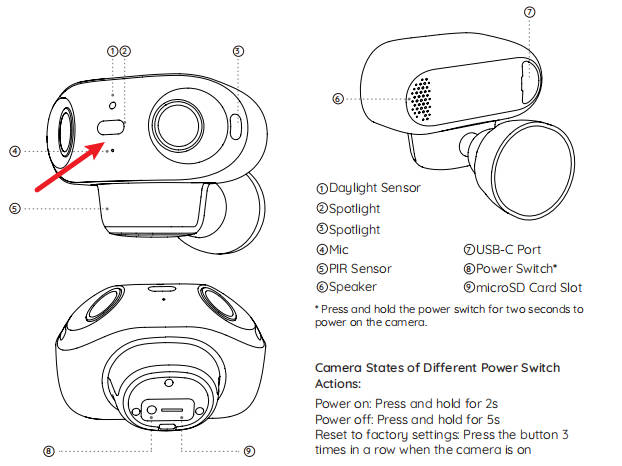

• Argus 4 Series

  Applies to: Argus 4, Argus 4 Pro.

  Status light is located between the Spotlight and the Mic.

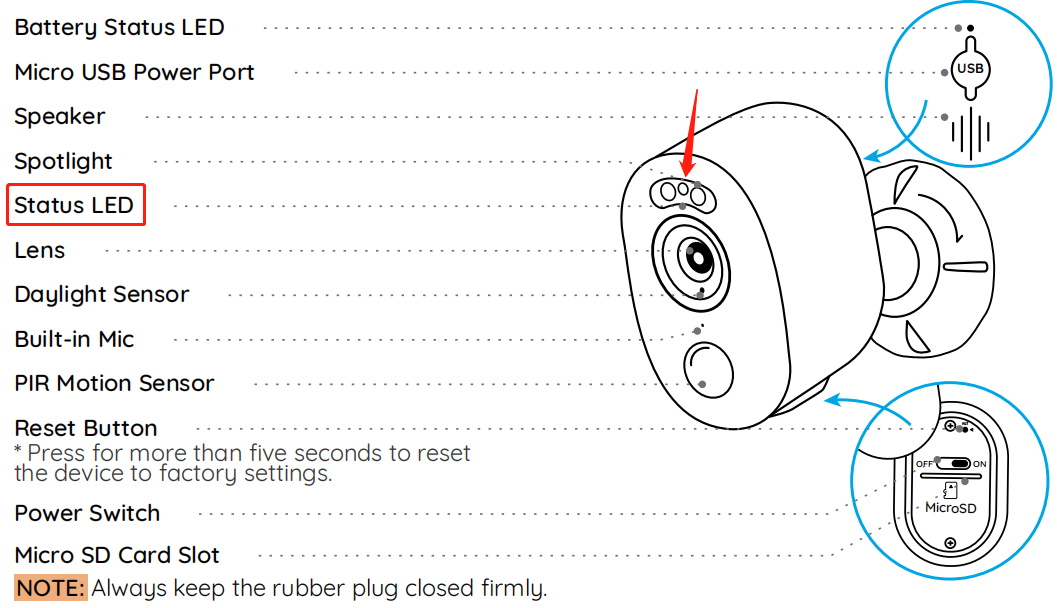

• Argus 3 Series

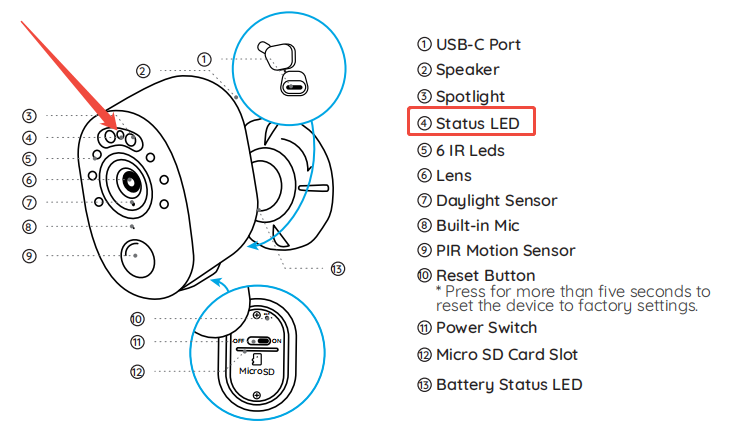

  Applies to: Argus 3 Ultra, Argus 3 Pro, Argus 3 2K, Argus 3E, Argus 3.

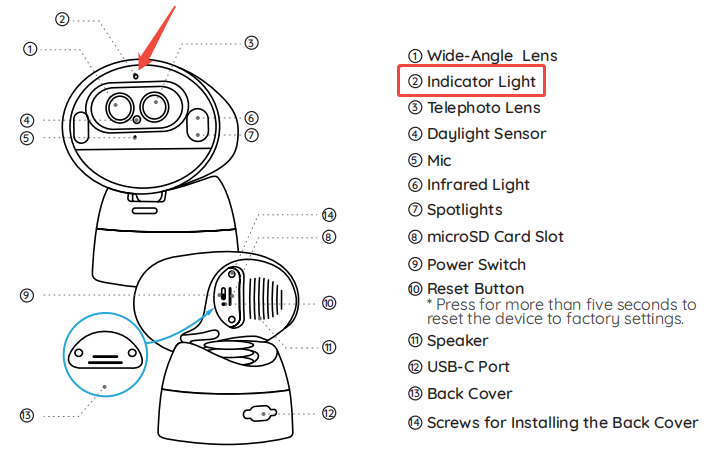

• Argus Track

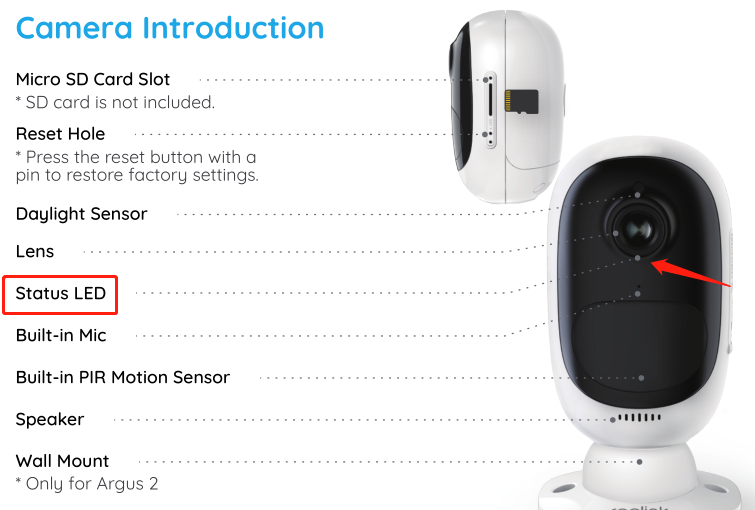

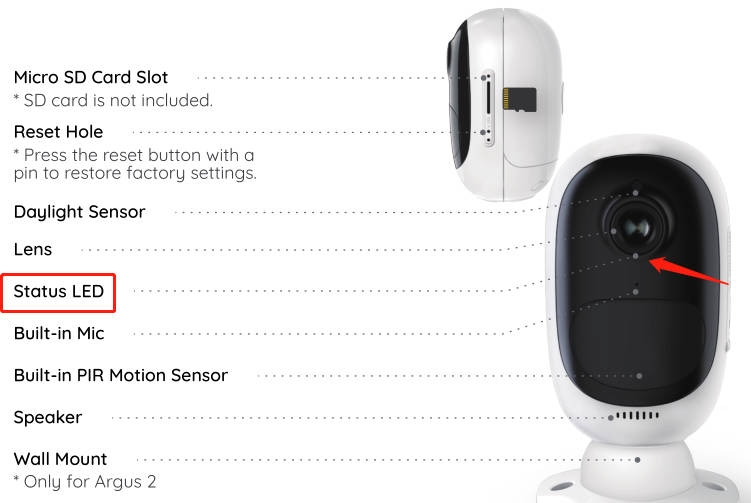

• Argus 2E/Argus 2/Argus Pro

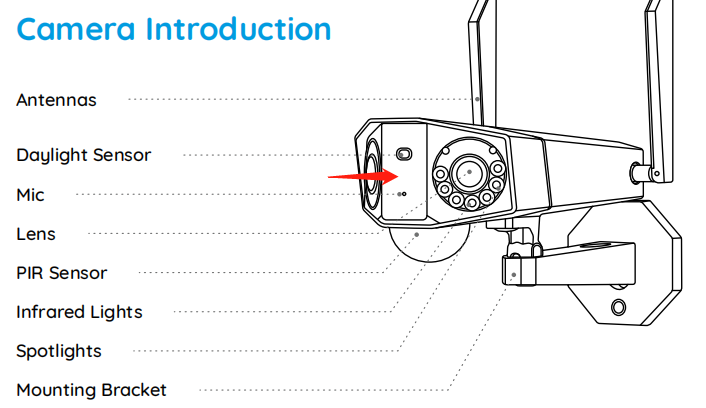

• Duo Series

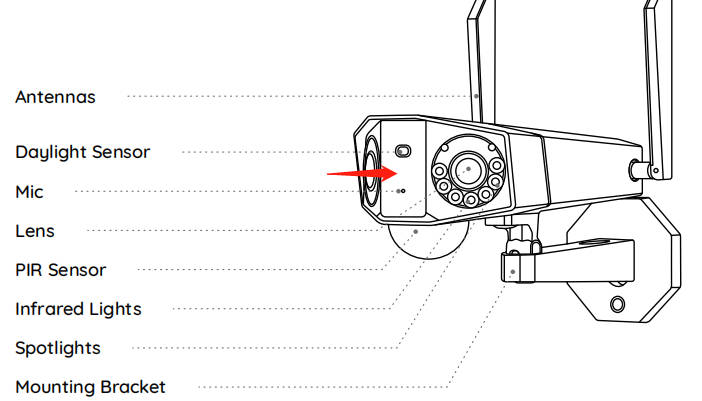

  Applies to: Duo, Duo 2.

  Status light is located between the Daylight sensor and the Mic.

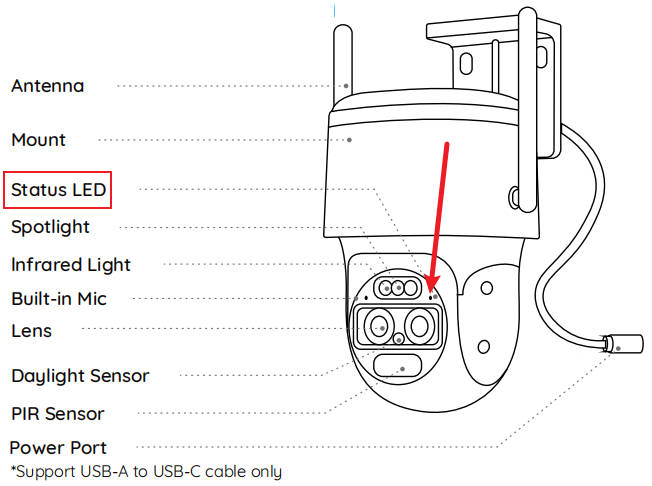

• TrackMix (Battery)



• Doorbell (Battery)

  Refer to: Understanding and Configuring the Reolink Video Doorbell (Battery) Status Lights

In conclusion, understanding the working modes and status LED indicators of your Reolink battery-powered cameras ensures optimal performance and easier troubleshooting.
