If your camera has been set to record 24/7 and record when motion/alarm events trigger the camera, you may need to guide on how to only playback those continuous recording clips which contain motion/alarm events. This article is here to help with it.
Applies to: All cameras that support SD card (except for battery-powered cameras).
Note: Before settings up, make sure you have installed Reolink App and Client on your phone or PC.
On Reolink App:

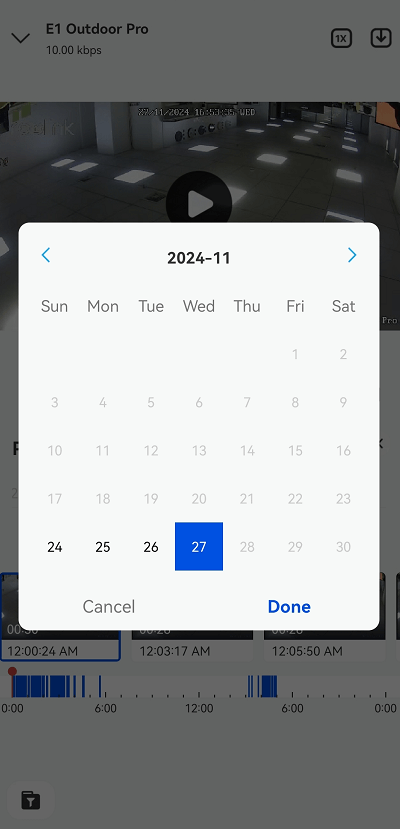

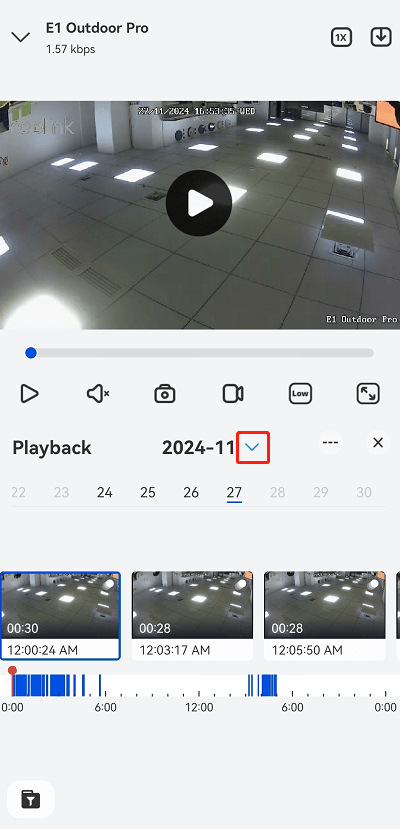

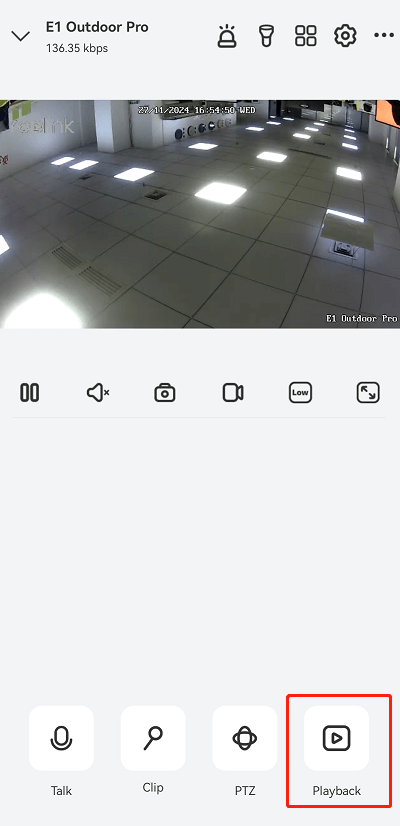

Step 1. Launch Reolink App, log in to your camera and preview your camera. Tap Playback button to enter the playback page. Then select a date (in black) with recordings and tap Done.
Step 2. View all the Timer (continuous) recordings.

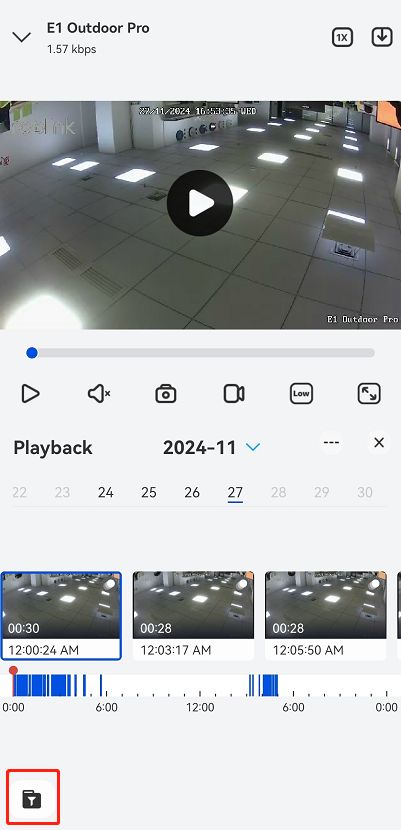

If the at the bottom left corner stays black as the picture shown below, it means all the continuous recordings (being cut at about 5 mins/clip) is presented now. You can view them as you want.
Step 3. Filter out motion/alarm-triggered recordings.

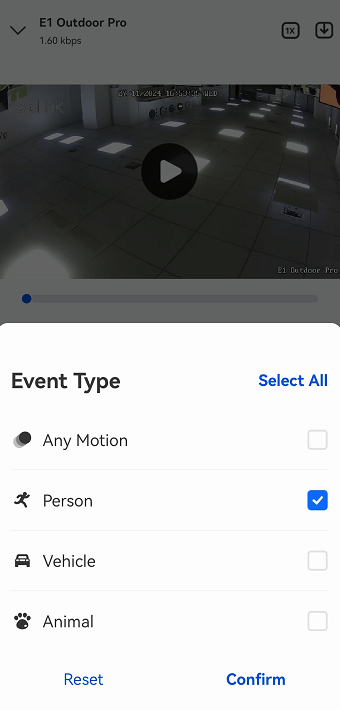

Tap the icon to unfold motion/alarm recording option. Then tap the corresponding motion/alarm icon (make it blue) to find out video clips containing that type of motion/alarm event.

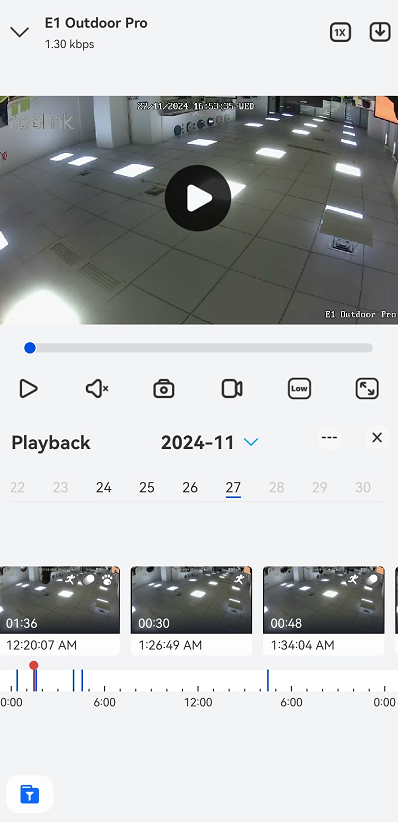

For example, in the picture below, the Person icon is blued, so all the recording clips containing person motion are displayed above the timeline. The same applies to Pet.

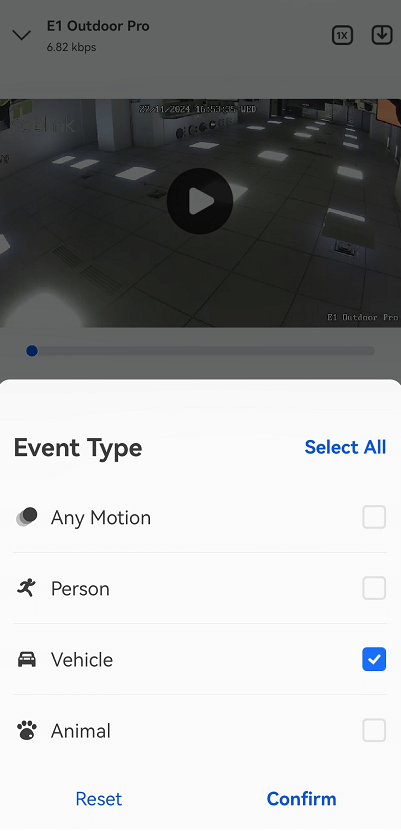

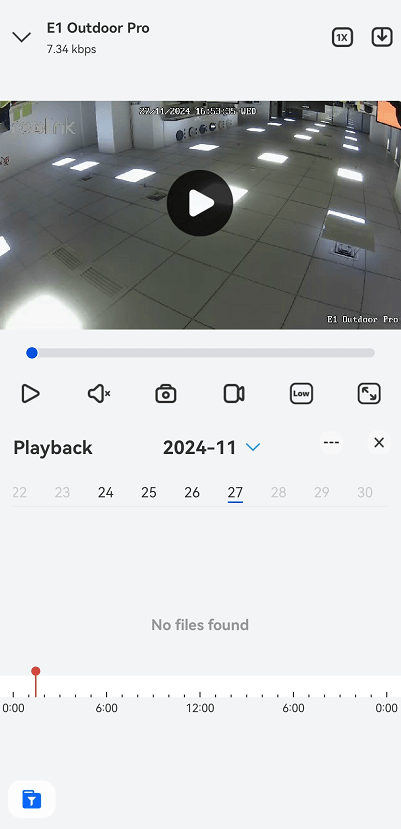

If you tap an icon (like the Car in the picture below) and there are no recordings found, it means there are no recordings containing this type of motion or alarm events.
On Reolink Client:

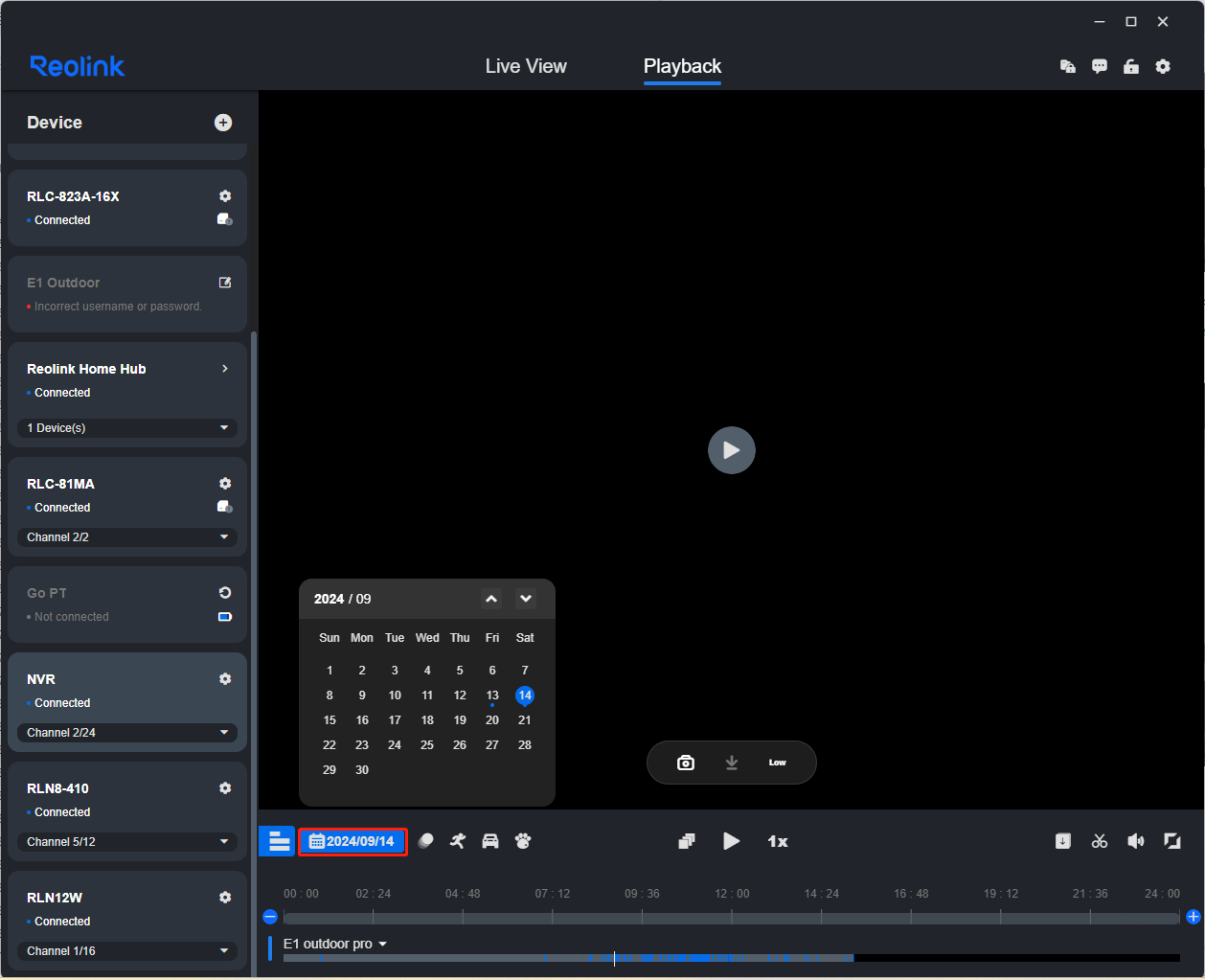

Step 1. Launch Reolink Client and log in to your camera. Enter the Playback page and select a date that has recordings (the date with a blue dot). Then click on that date.

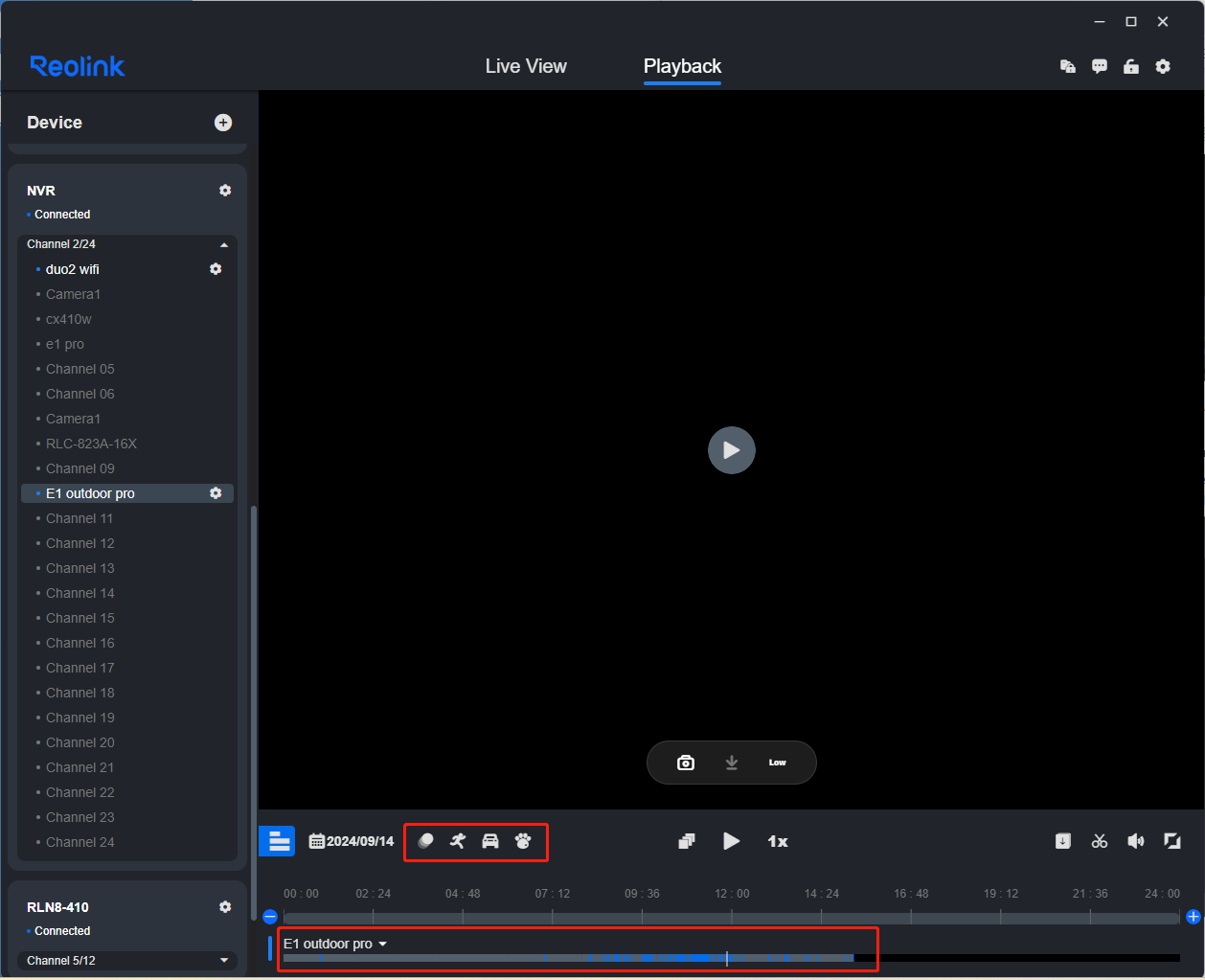

Step 2. Click the icon (turn it blue) beside the calendar option to view recording clips of that type.

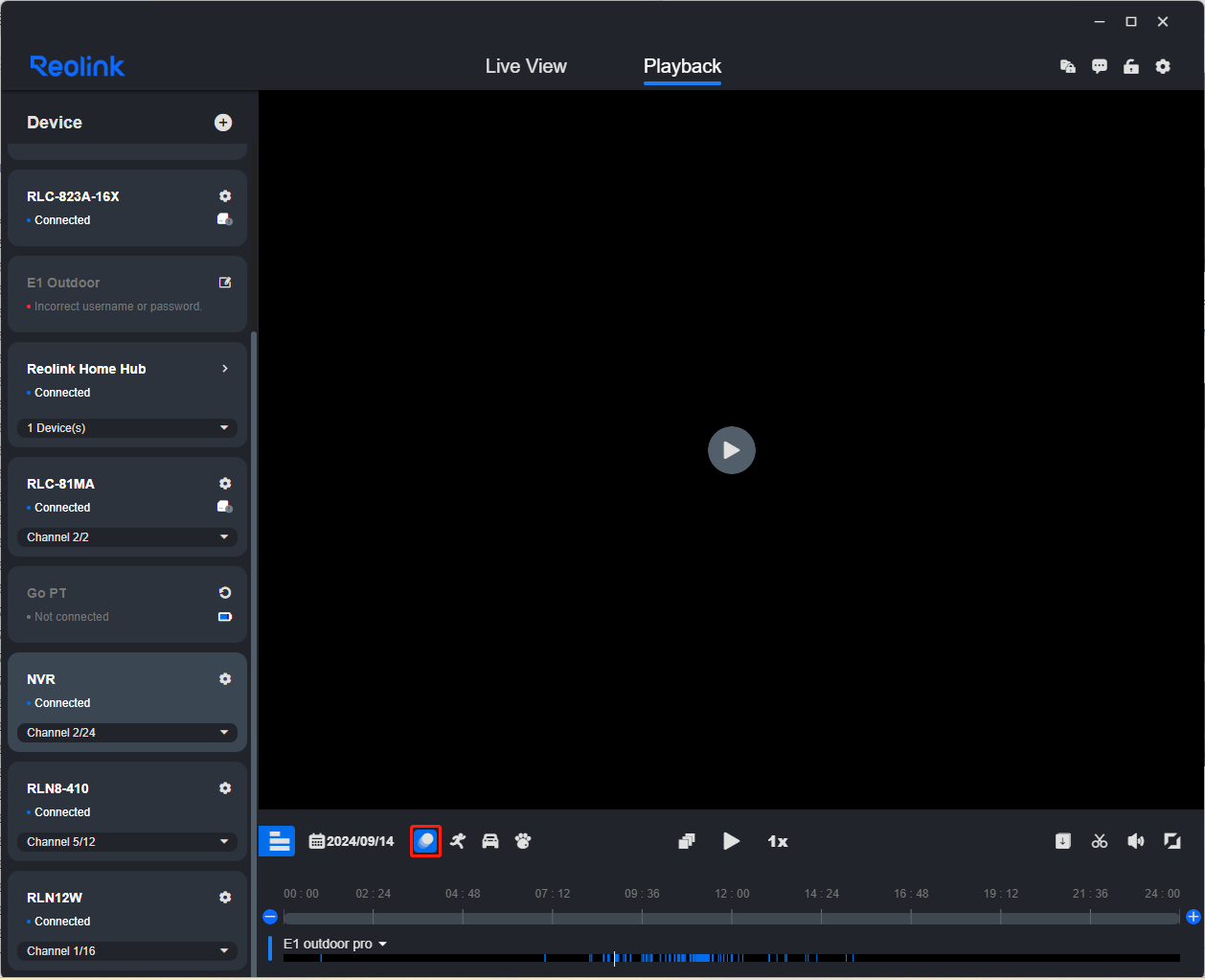

For example, in the picture above, click on the Moving Ball icon. Recordings triggered by any motions will be displayed below the timeline.
Note: These icons stand for any motion, person, vehicle, and animal. They may vary according to different camera models.
Note: When no filter buttons are ticked, the continuous recordings will be displayed as a gray bar. If any filter buttons are ticked, the continuous recordings will be hidden.
Step 3. Find out video clips with motion/alarm events.

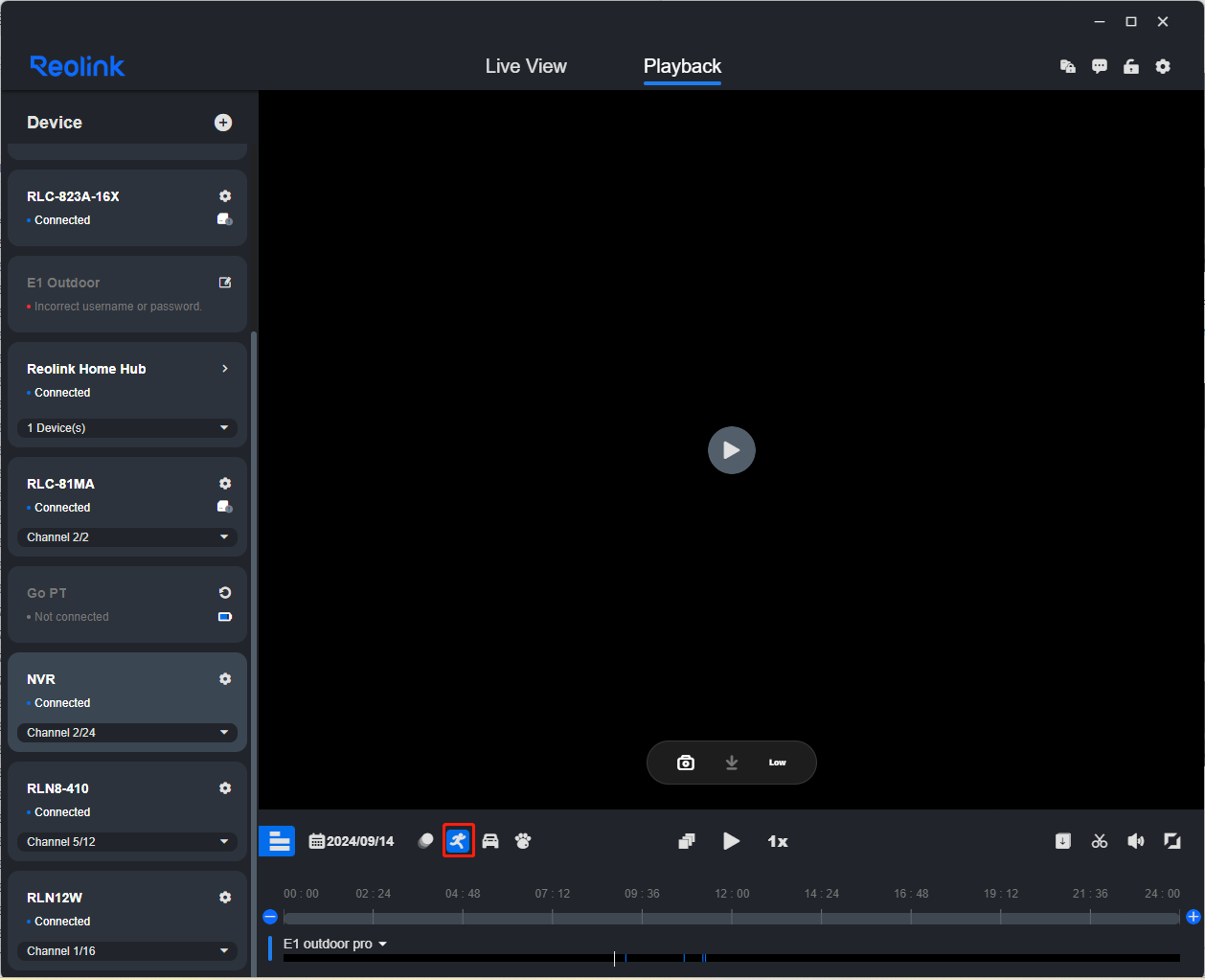

Click the corresponding icon to find the videos recorded with motion or alarm events. For example, if we click the Person icon, all the recordings triggered by the Person motion will be displayed.
The same applies to other types of alarms. If you click an icon, such as the car icon in the picture below, and there are no recordings presented, it means there are no recordings containing this type of motion or alarm events.
