Using the optical zoom function, you can enlarge the area your camera is aiming at without compromising the image quality.

Applies to: C2 Pro, E1 Zoom, E1 Outdoor, E1 Outdoor PoE, E1 Outdoor Pro, RLC-422-4MP, RLC-422-5MP, RLC-423 Series, RLC-511, RLC-522, RLC-811A, RLC-822A, RLC-823 Series (RLC-823A, RLC-823A 16X, RLC-823S1, RLC-823S2, RLC-823S1W), RLC-833A, RLC-842A, RLC-843A, RLC-422W, RLC-511W, RLC-511WA, RLC-523WA, RLC-542WA, RLC-843WA, TrackMix Series and Argus Track (with zoom only available on the telescope/tracking lens)

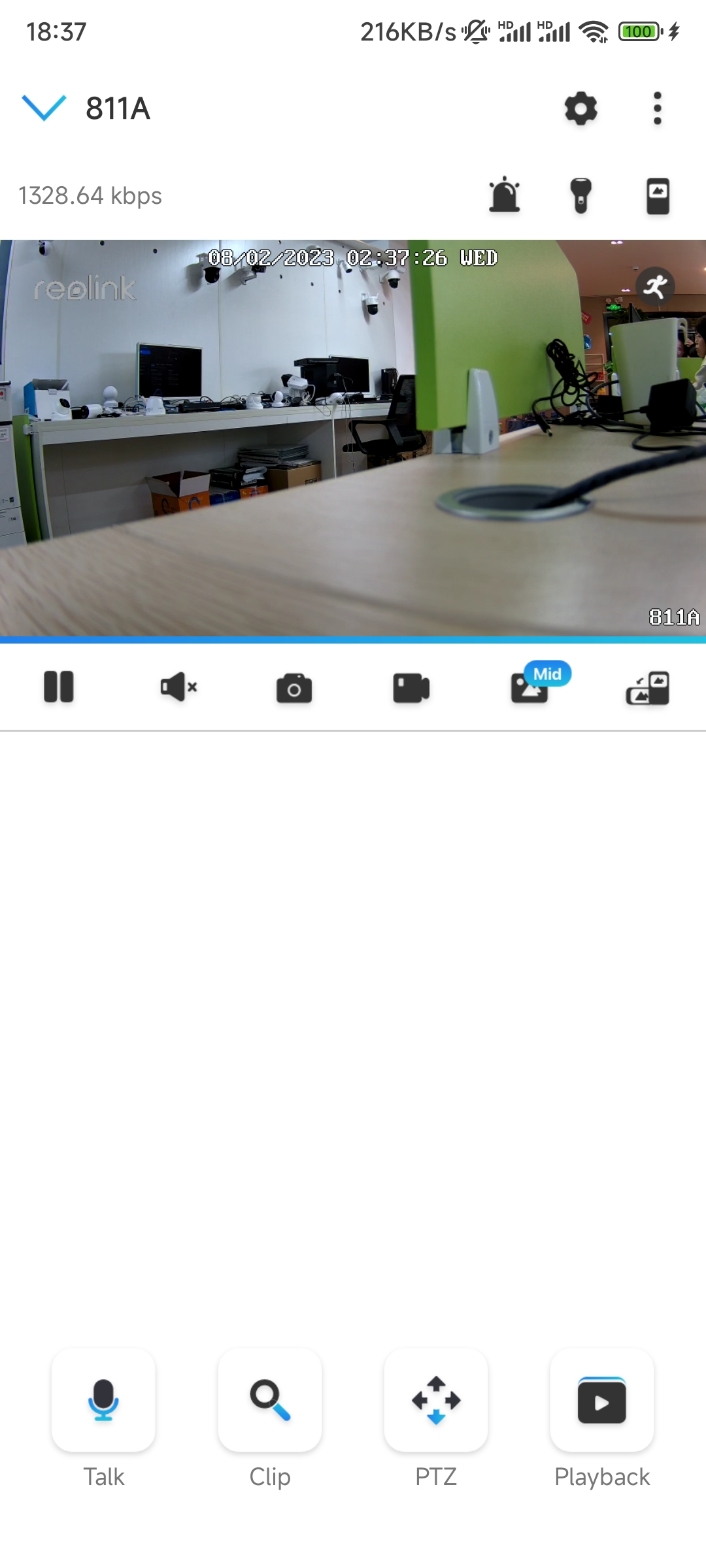

Step 1. Launch Reolink App and log in to your camera. Then enter the Live View page and tap the PTZ icon.

1._Live-view_page.jpg 2._PTZ_menu.jpg

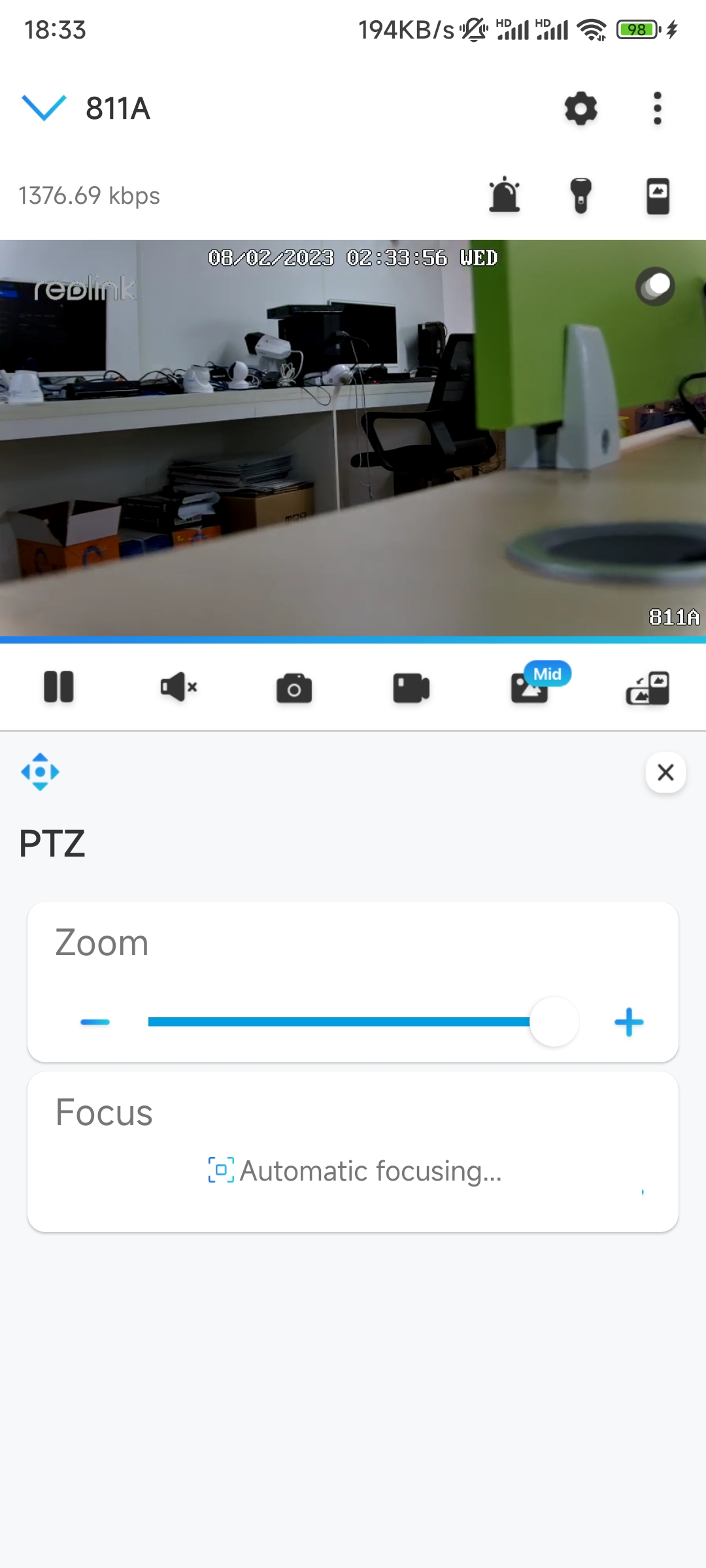

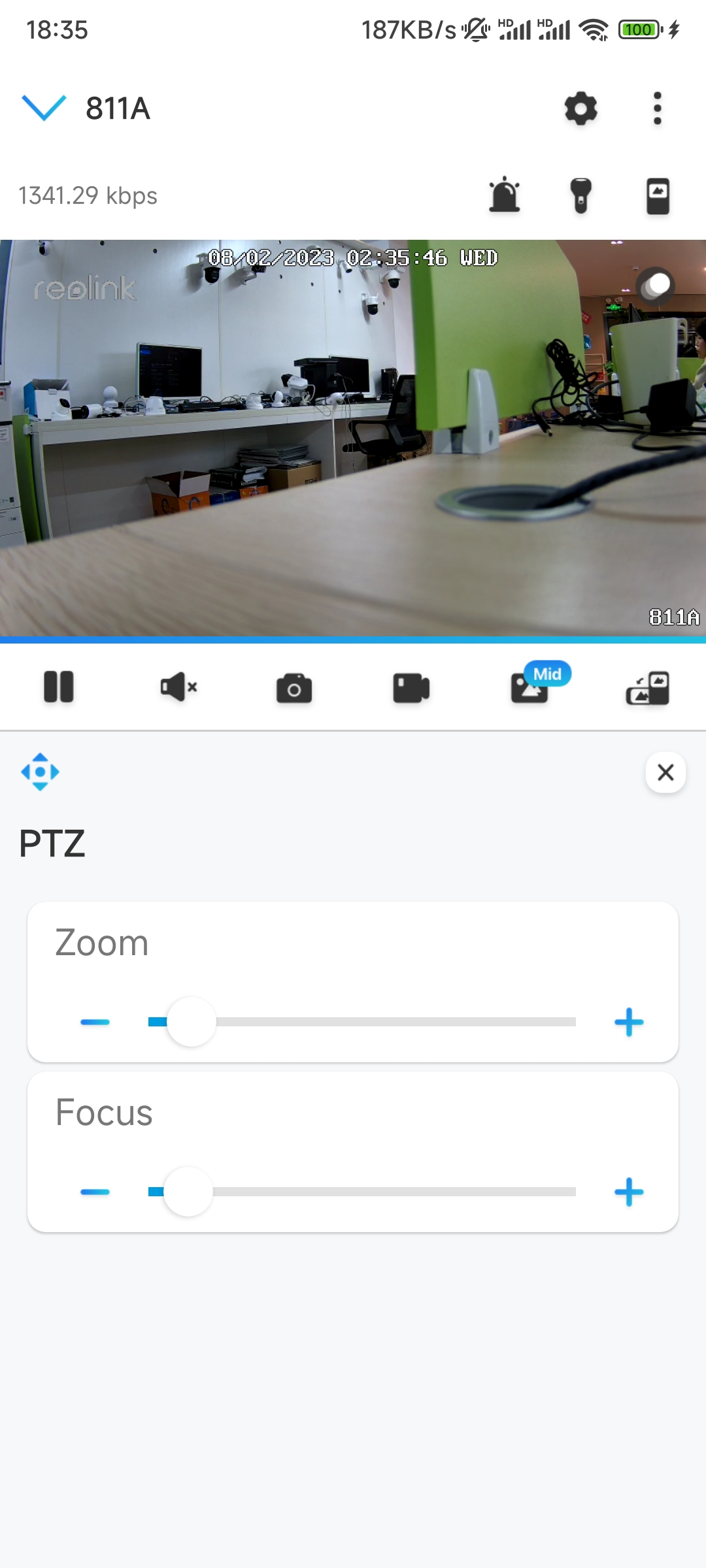

Step 2. Adjust the value of Zoom. You can tap "+"/"-" to zoom in/out, or you can slide the slider bar of Zoom to zoom in/out.

3._adjust_zoom_.jpg 4._zoom_in.jpg

Note: When you adjust the zoom, the camera will start focusing automatically to get a clear image. You can adjust the Focus value manually if the effect of automatic focus is unsatisfying to you.
