This is an easy guide on how to use Reolink PoE injector to power the Reolink PoE cameras.

Applies to: Reolink PoE cameras and Reolink PoE injector.

Note: Before using Reolink PoE injector to power PoE cameras, you need to prepare two Ethernet cables in advance.

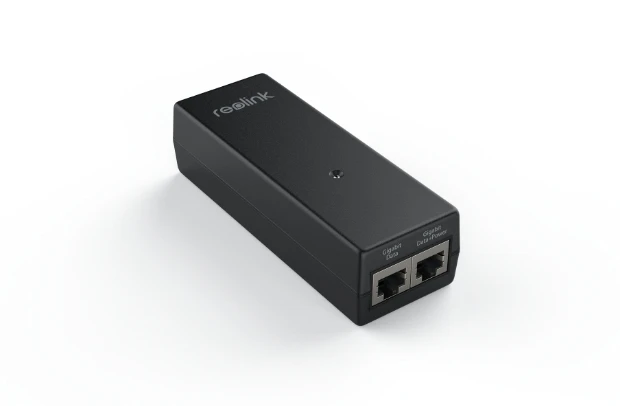

There are two ports on the PoE injector. Here is a picture:


Step 1. Plug one end of a network cable into the Gigabit Data port on the PoE injector, and plug the other end into the LAN port of your router.

Step 2. Plug one end of a network cable into the Gigabit Data+Power on the PoE injector, and plug the other end into the network port of the camera.

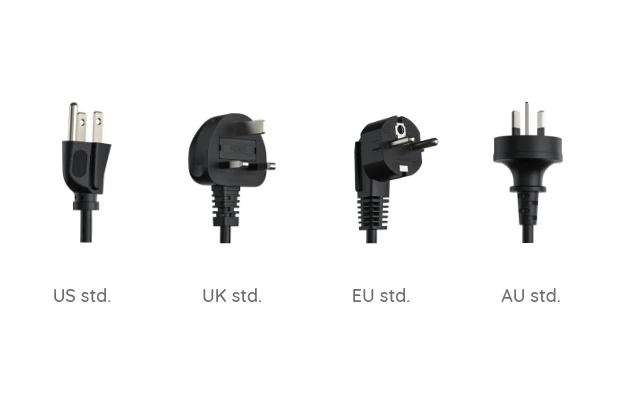

Step 3. Power the PoE injector by connecting the power plug of the PoE injector to a power outlet. There are four kinds of plugs to suit your needs.


Now you've successfully power the PoE camera with Reolink PoE injector.
