We are here to help you with installing the Reolink Duo series cameras. Read the article below and follow the guide step by step, you will soon find the problem solved.

Applies to: Reolink Duo (battery), Duo 4G, Duo WiFi, Duo PoE, Duo 2 WiFi, Duo 2 PoE, Duo 2 (battery) and Duo 2 LTE, Duo 3 PoE

Note: The following installation methods take the WiFi camera as an example and also apply to other Duo cameras. You may install the camera on the wall or on the ceiling. It's your choice.

1. Mount the Camera on the Wall

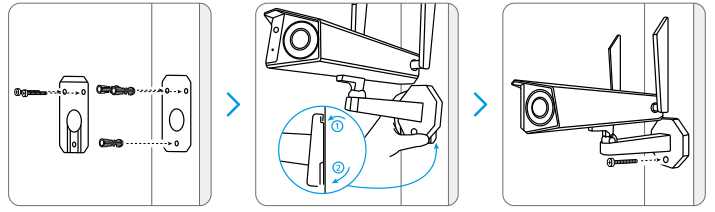

Step 1. Screw the camera onto the wall.

  • Drill holes in accordance with the mounting template.
  • Next, secure the mounting plate to the wall with the upper two screws and hang the camera on it.
  • Then fix the camera in position with the lower screw.


Note: Use the drywall anchors included in the package if needed.

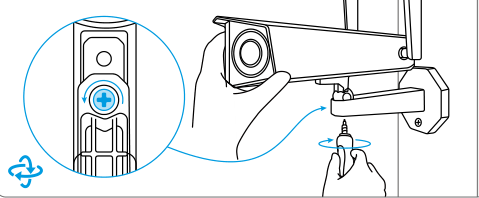

Step 2. Adjust the camera's view.

Loosen the adjustment screw on the security mount with the screwdriver (also included in the box) and turn the camera until you get the ideal view.

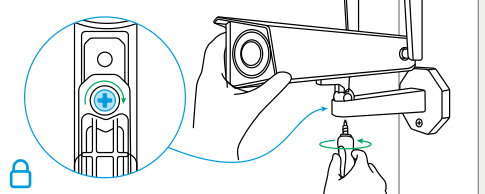

Step 3. Fix the camera firmly.

Tighten the adjustment screw to keep the camera still.


Done! You've successfully mounted your camera on the wall.

2. Mount the Camera on the ceiling

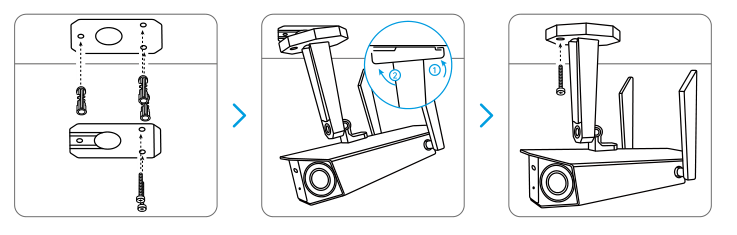

Step 1. Screw the camera onto the ceiling.

  • Drill holes in accordance with the mounting template.
  • Next, secure the mounting plate on the ceiling with the upper two screws and hang the camera on it.
  • Then fix the camera in position with the lower screw.


Step 2. Adjust the camera's view.

Loosen the adjustment screw on the security mount with the screwdriver (also included in the box) and turn the camera until you get the ideal view.

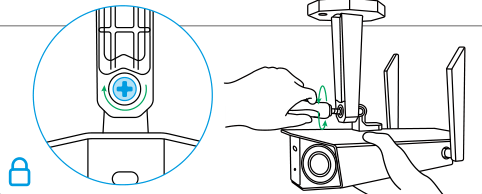

Step 3. Fix the camera firmly.

Tighten the adjustment screw to keep the camera still.


Finished! Now you may start using your camera.
