Flipping the image on Reolink cameras can be essential for various installation setups and monitoring needs. Here's a guide on how to achieve this functionality effortlessly.

Applies to: All Reolink cameras except Argus 4, Argus 4 pro, Duo series, Reolink TrackMix (battery), Reolink TrackMix LTE and Reolink TrackMix LTE Plus

Note: Different models have different adaptability to software. For example, some models do not support web access or connection to NVR. Please use the appropriate software to flip the image.

  • Reolink App

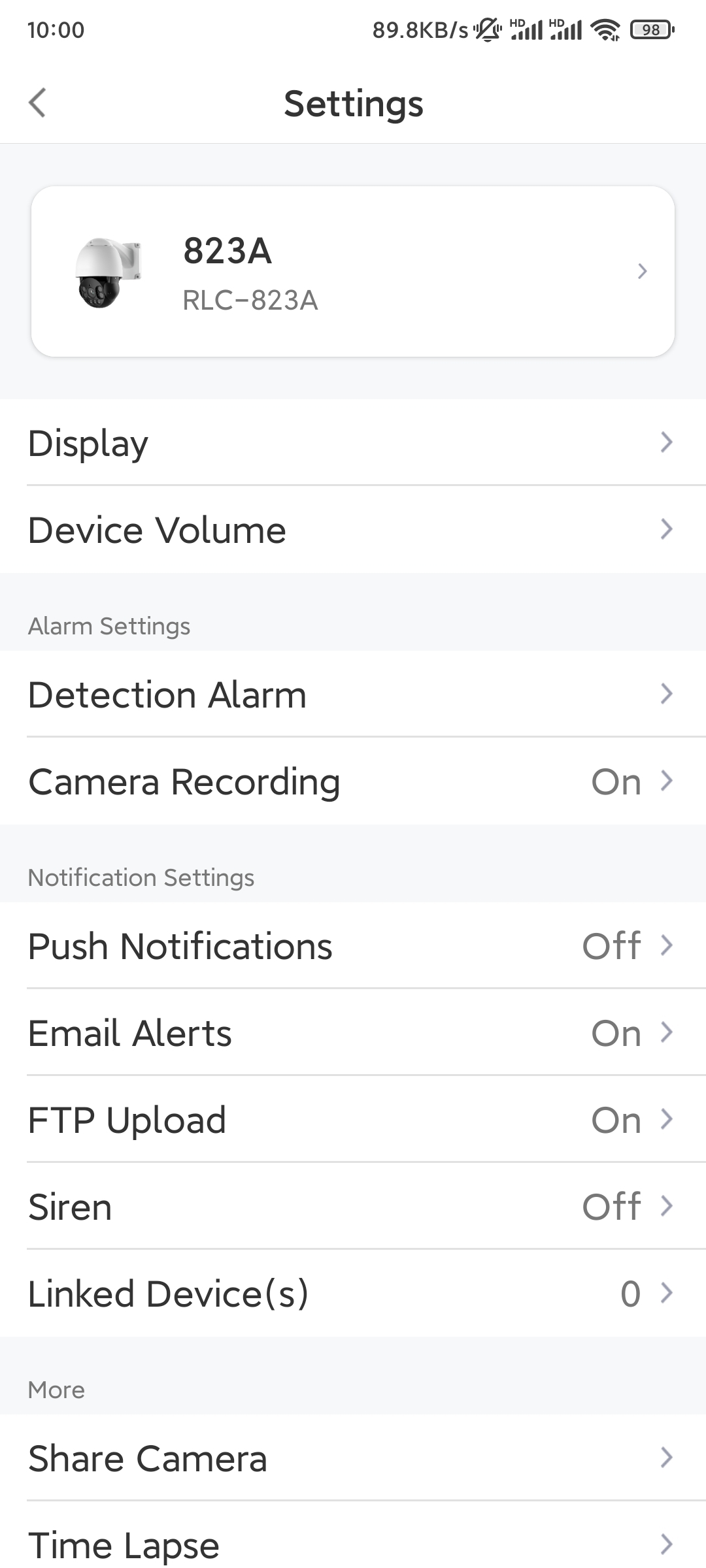

    Step 1. Launch Reolink App, go to Settings > Display of the camera.

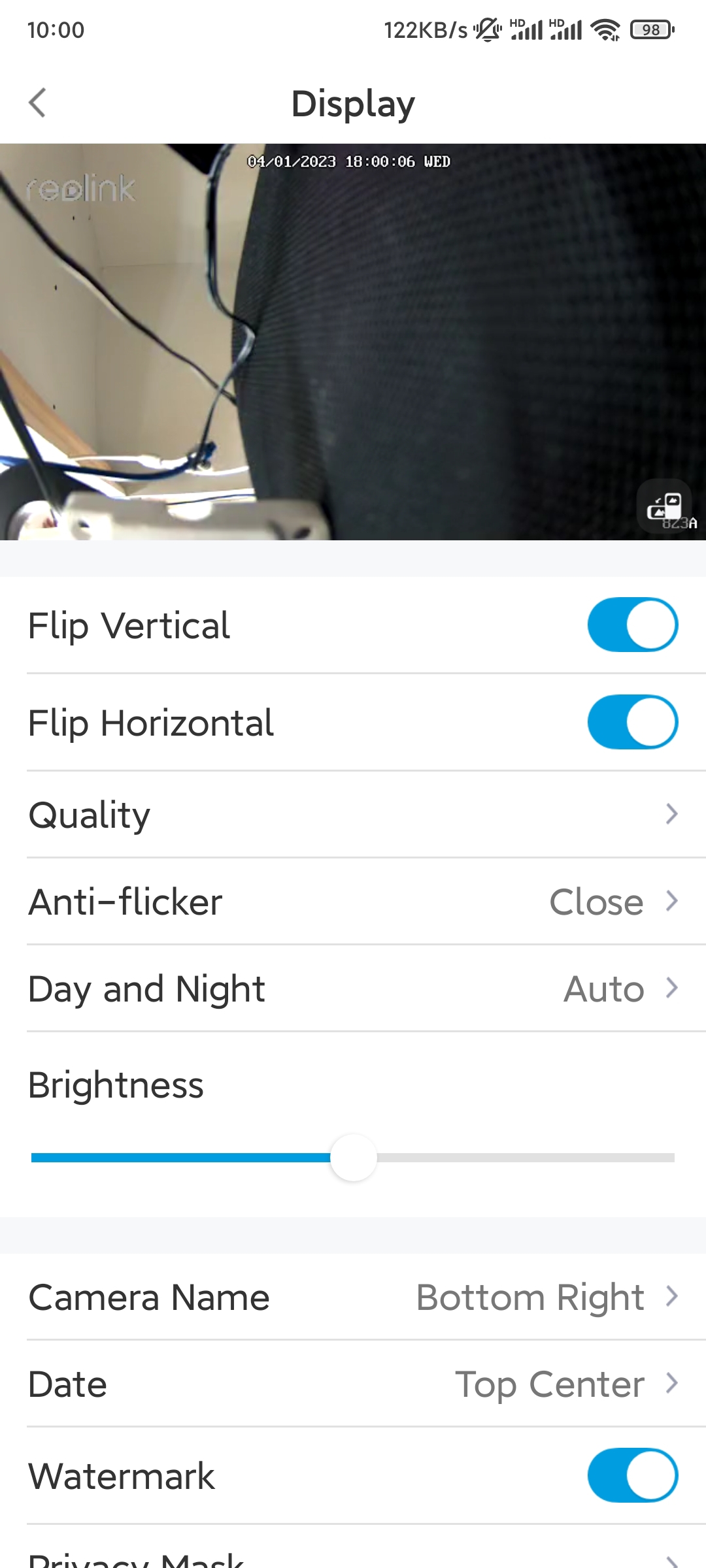

    Step 2. Enter the Display page. Switch on Flip Vertical to flip the image vertically by 180 degrees. Switch on Flip Horizontal to mirror the image.




  • Reolink Client

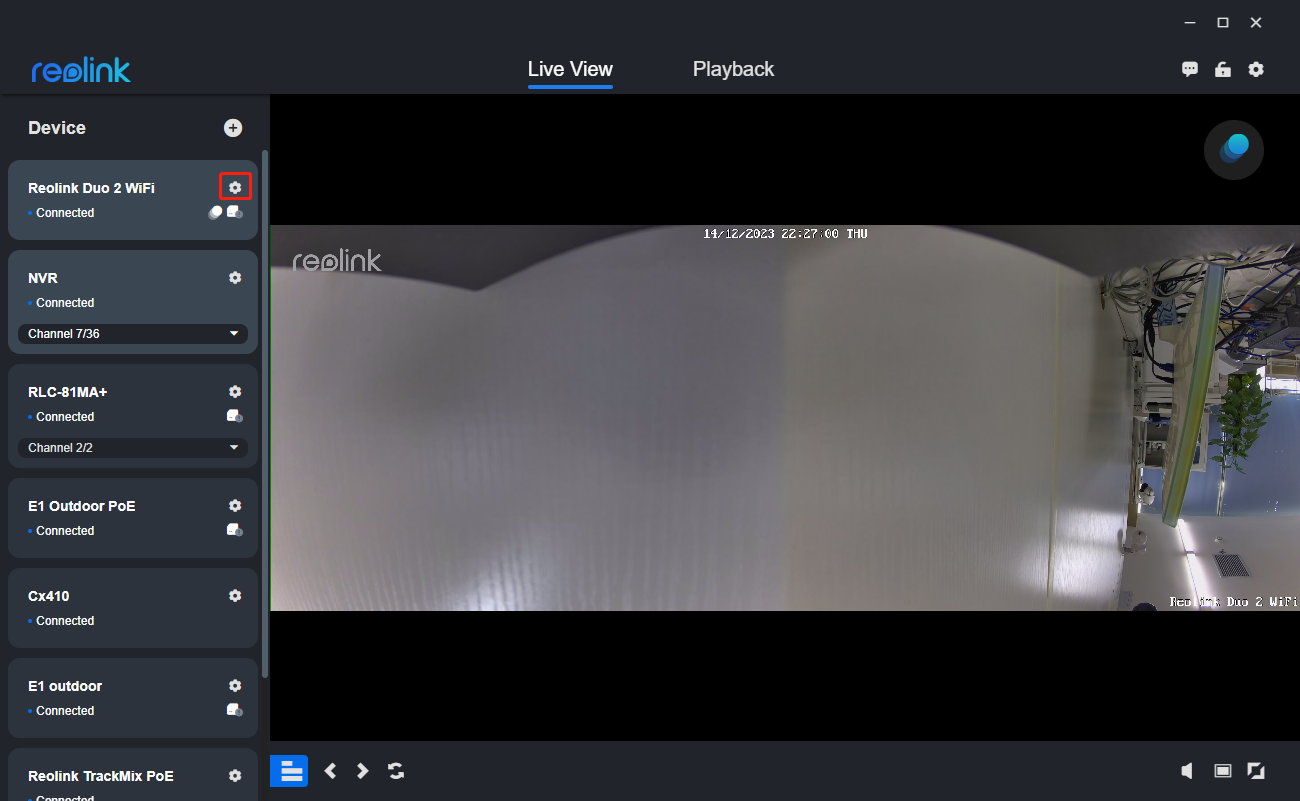

    Step 1. Launch the Reolink Client and log in to your camera, then click the Settings gear icon of your camera.

    camera settings.png

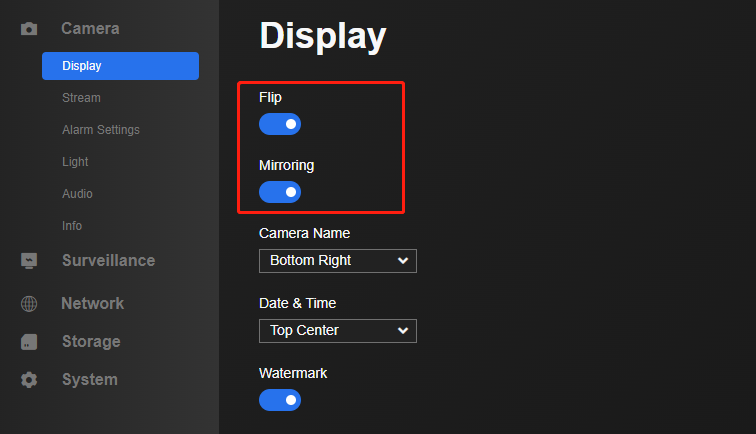

    Step 2. Go to Camera > Display to enter the Display settings page.

    Turn on the Flip to turn the image upside down.

    Switch on Mirroring to flip the image horizontally.

    display settings.png

  • Reolink Web Browser

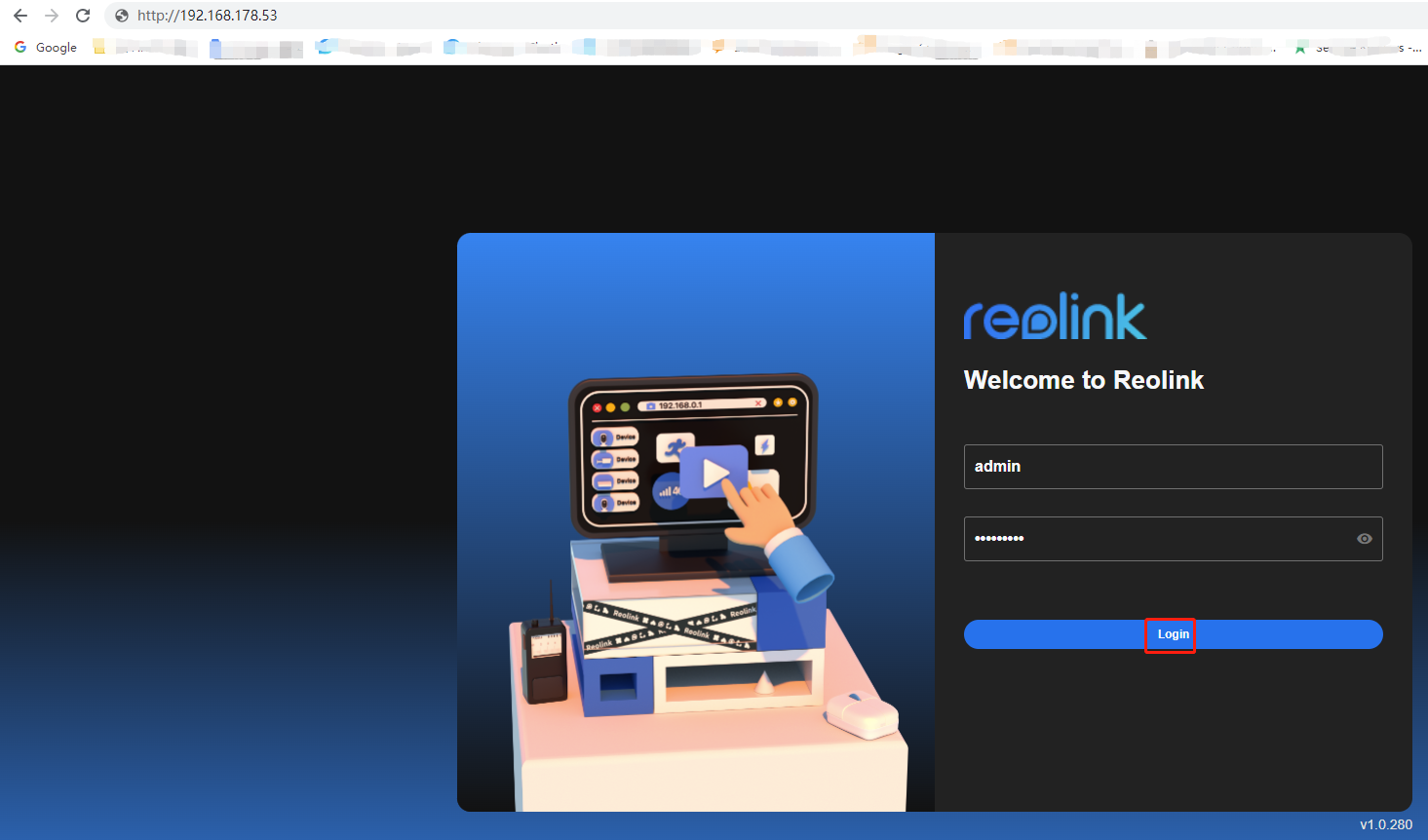

    Step 1. Input the IP Address of your camera on a web browser and log in to your camera: How to Access Reolink Cameras/NVRs Locally via Web Browsers


    Step 2. Click the Device Settings gear icon in the top right corner, go to Camera > Display.


    Switch on Flip to flip the image vertically. Switch on Mirroring to flip the image horizontally.


  • Reolink NVR (New UI)

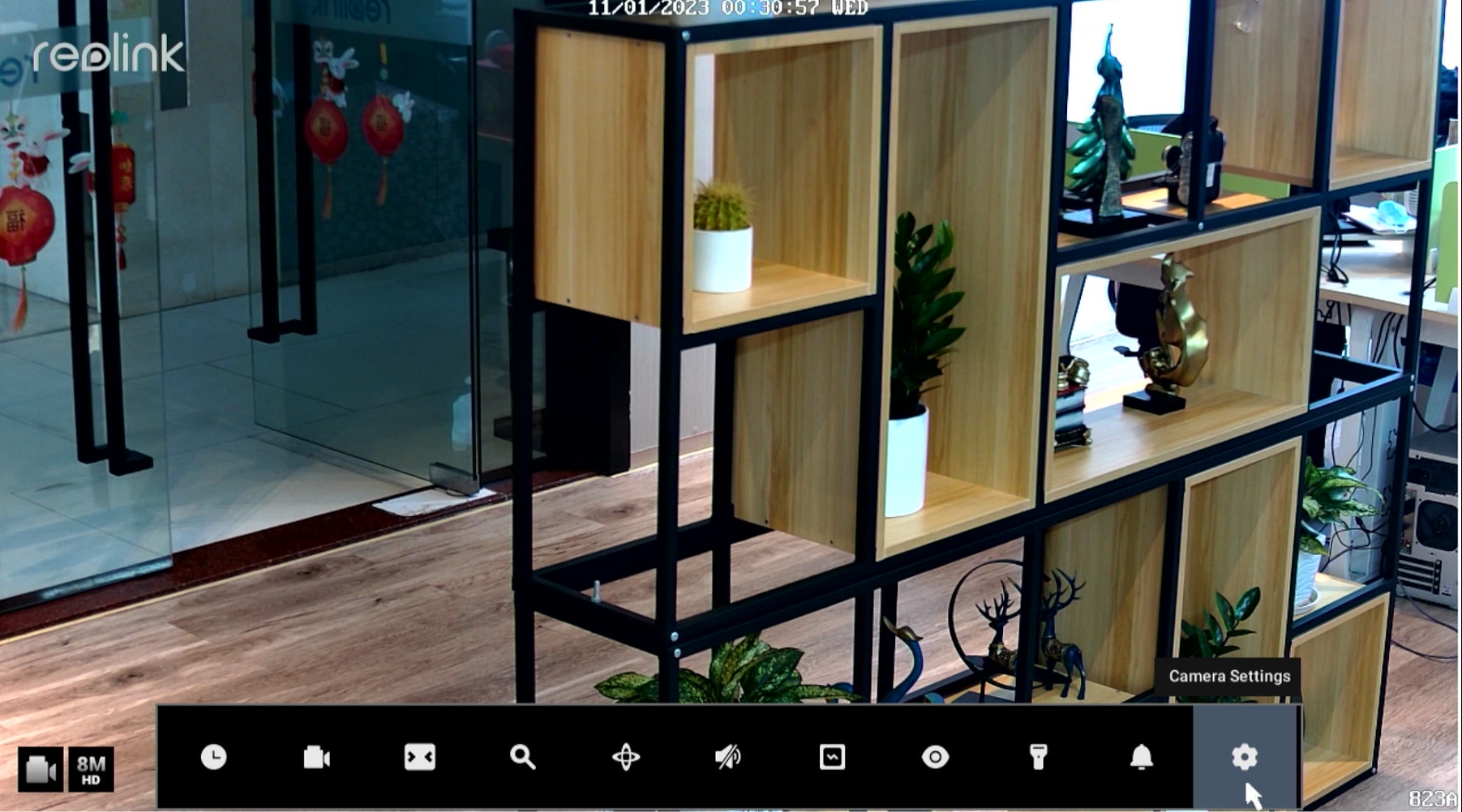

    Step 1. Enter the live-view page of your camera on the NVR monitor, left-click the live view to pop up the toolbar, and click Camera Settings.

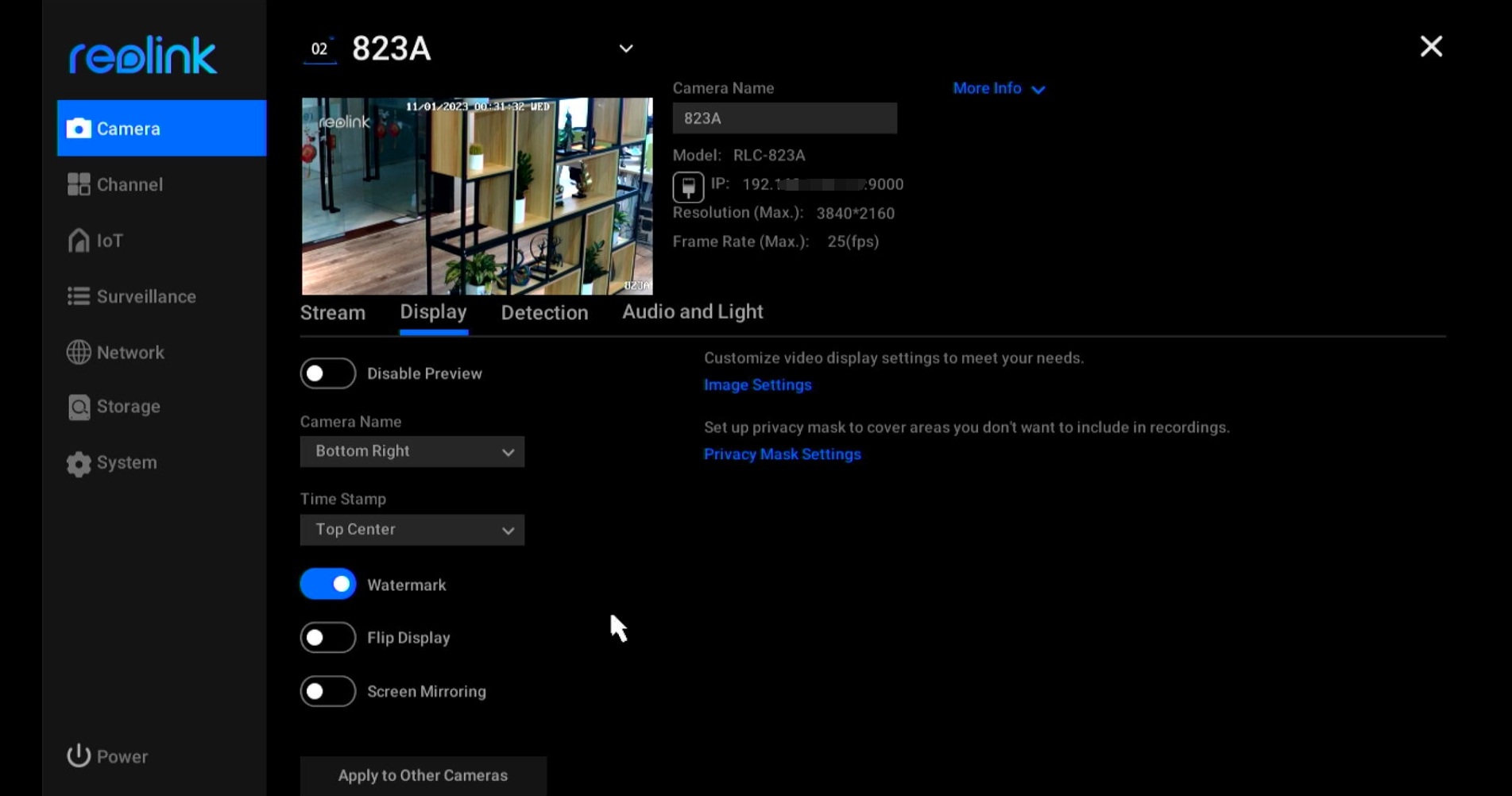

    Step 2. Then go to Camera > Display. You can turn on Flip Display to flip the image vertically, and Screen Mirroring to flip the image horizontally.


  • Reolink NVR (old UI)

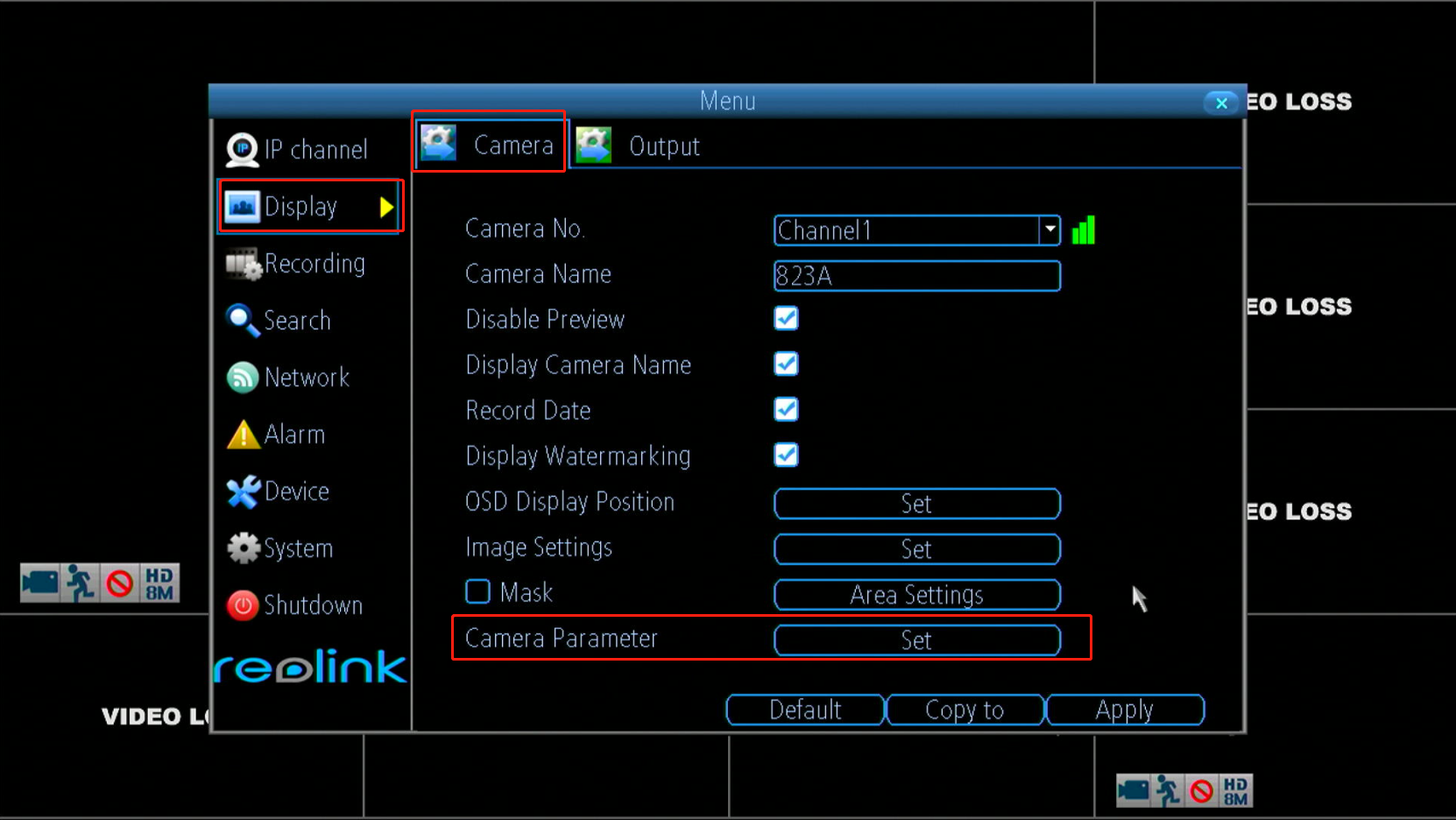

    Step 1. Go to Menu > Display > Camera Parameter, then click Set.

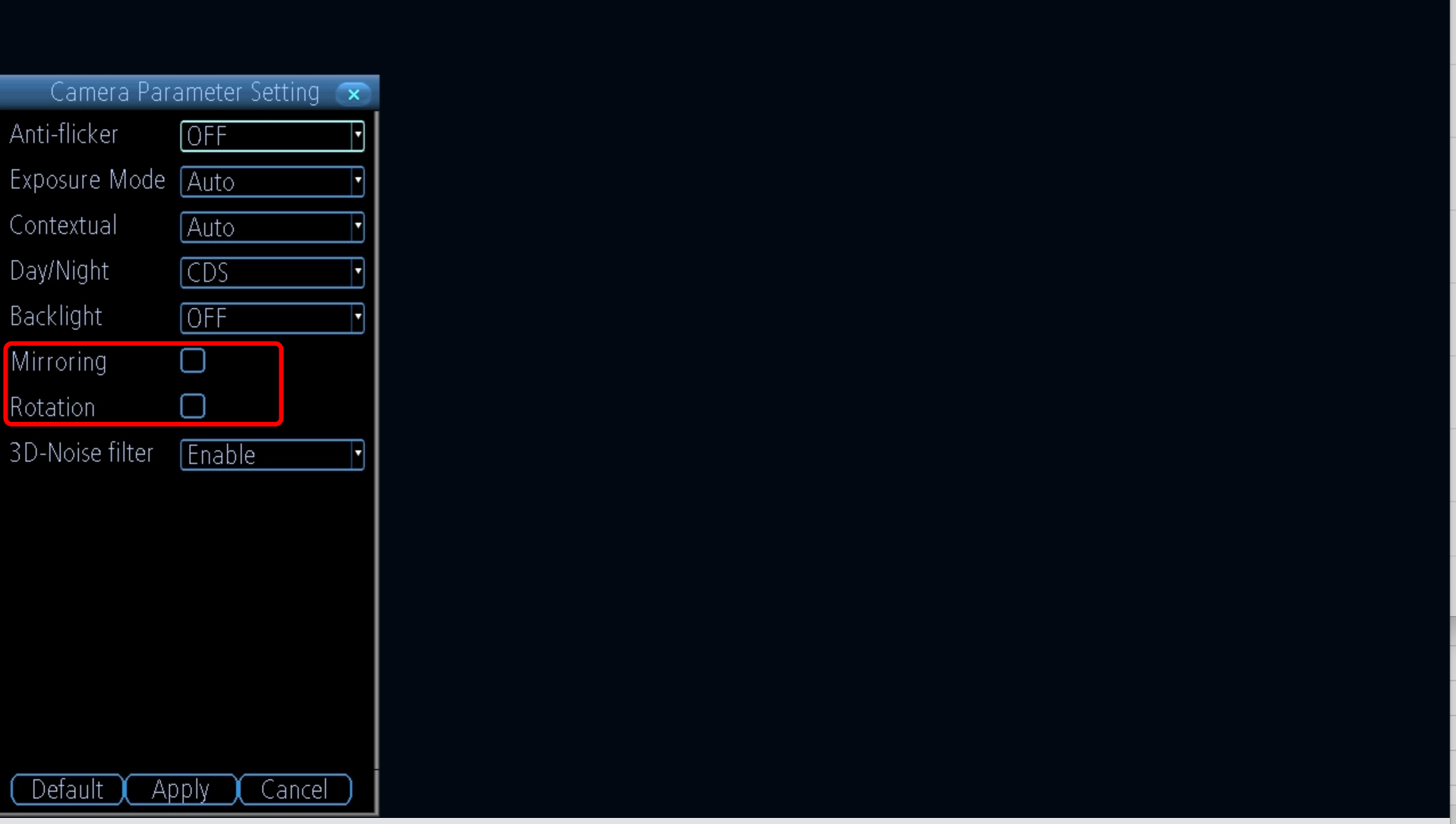

    Step 2. You can check Rotation or Mirroring to rotate or mirror the image.
