How to Live View Multiple Cameras

Viewing multiple cameras simultaneously allows you to monitor different locations at the same time, enhancing your overall security. In the following sections, we will guide you through the steps to live view multiple Reolink cameras on one screen, ensuring you make the most of your surveillance system.

Applies to: All Reolink devices.

Step-by-Step Guide to Live View Multiple Cameras

Note: When viewing multiple cameras at the same time, the cameras will be displayed automatically under Fluent mode.

Via Reolink App

Method 1

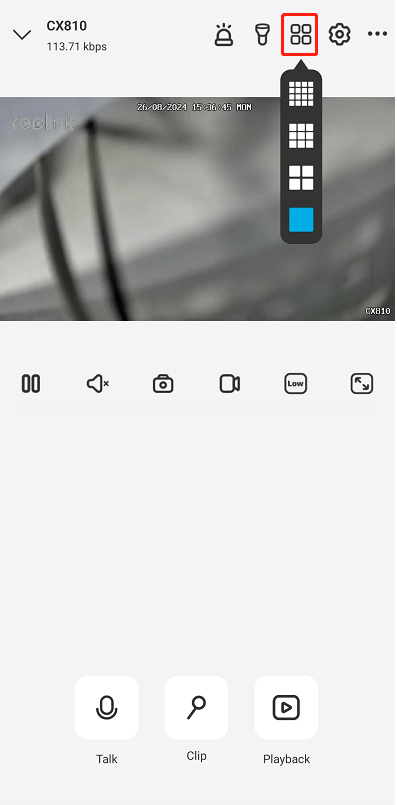

Step 1. Launch Reolink App and enter the live-view page of one of your cameras. Then tap the icon to choose a multiple-panel screen. For example, tap the 16-panel option:

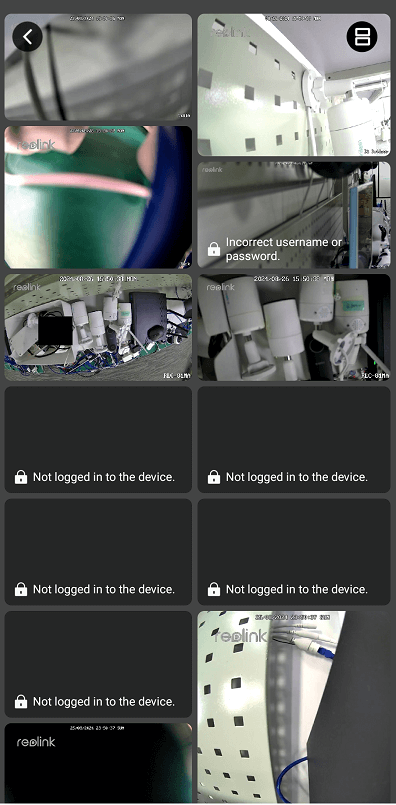

Done! You can view up to 16 streams on one screen. If you choose 4-panel but have 5 cameras, swipe left on the screen to view the 5th camera.

Method 2

You can use immersive preview mode on Reolink App to view multiple cameras.

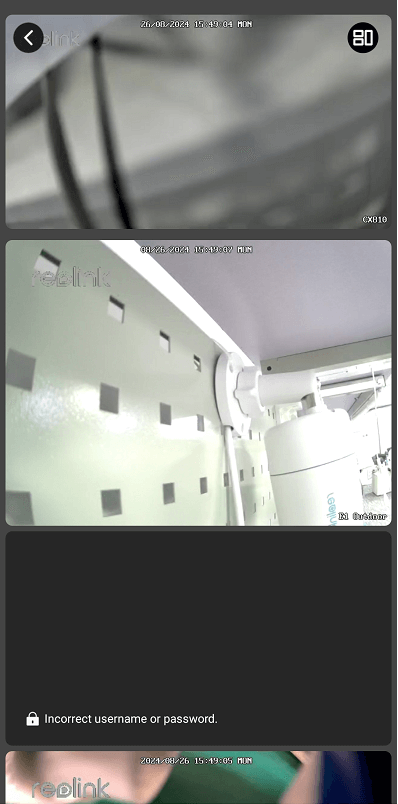

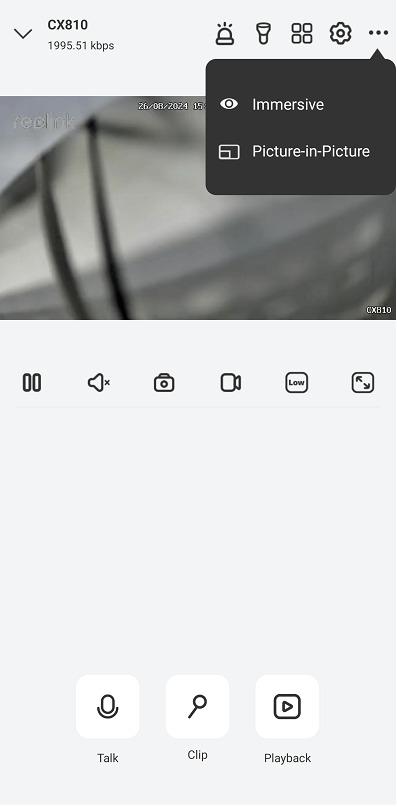

Step 1. Tap the three-dot icon to choose Immersive mode. Then swipe down on the screen to view multiple cameras.

Step 2. Tap the upper right corner to switch the viewing mode, allowing you to preview cameras in either single-column or double-column layouts.
Via Reolink Client

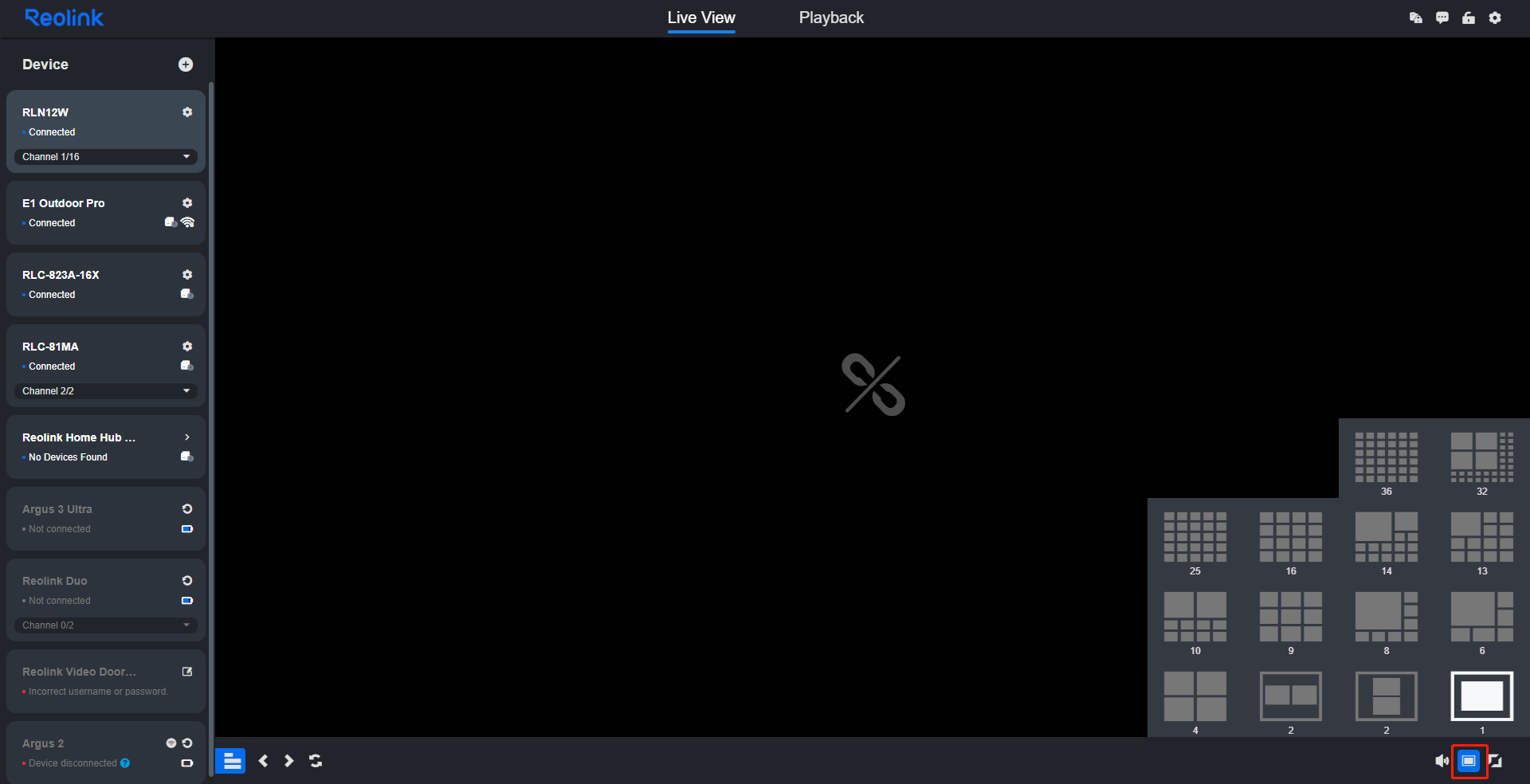

Step 1. Launch Reolink Client, connect the cameras, and click the Split button on the buttom of the Live View Page to choose the multiple screen mode (up to 36 panels).

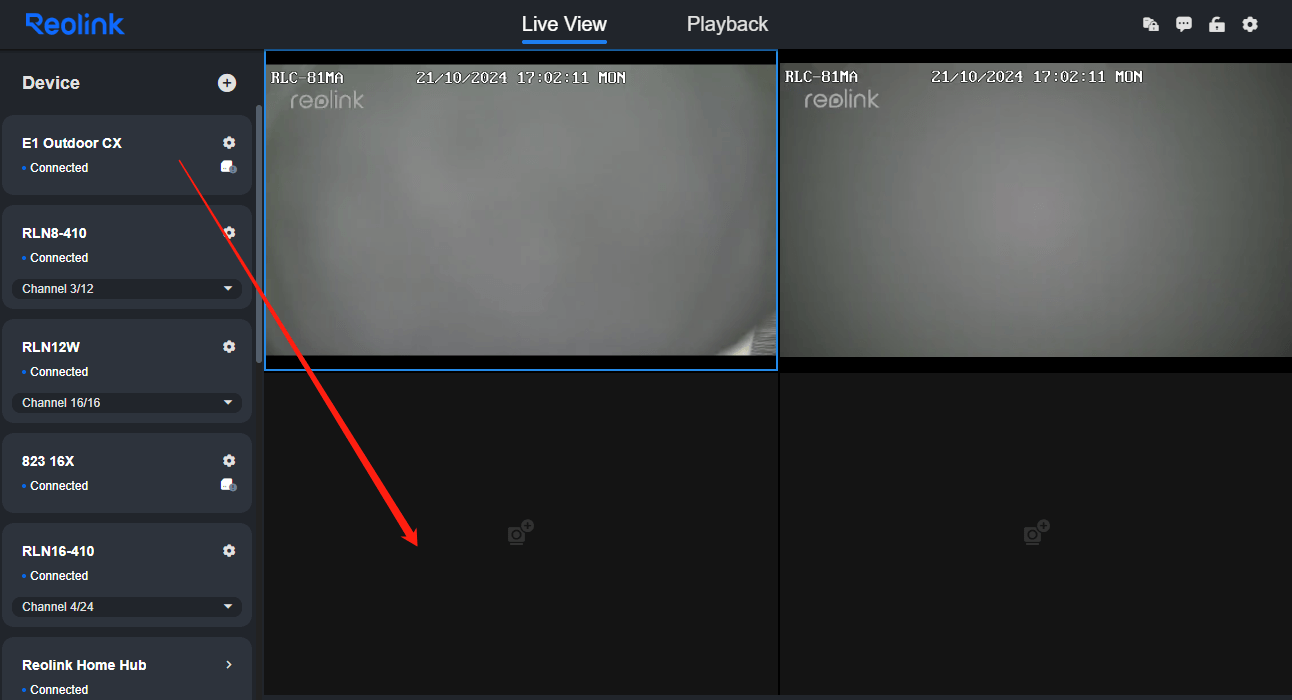

Step 2. Drag the cameras you want to view to the corresponding place.

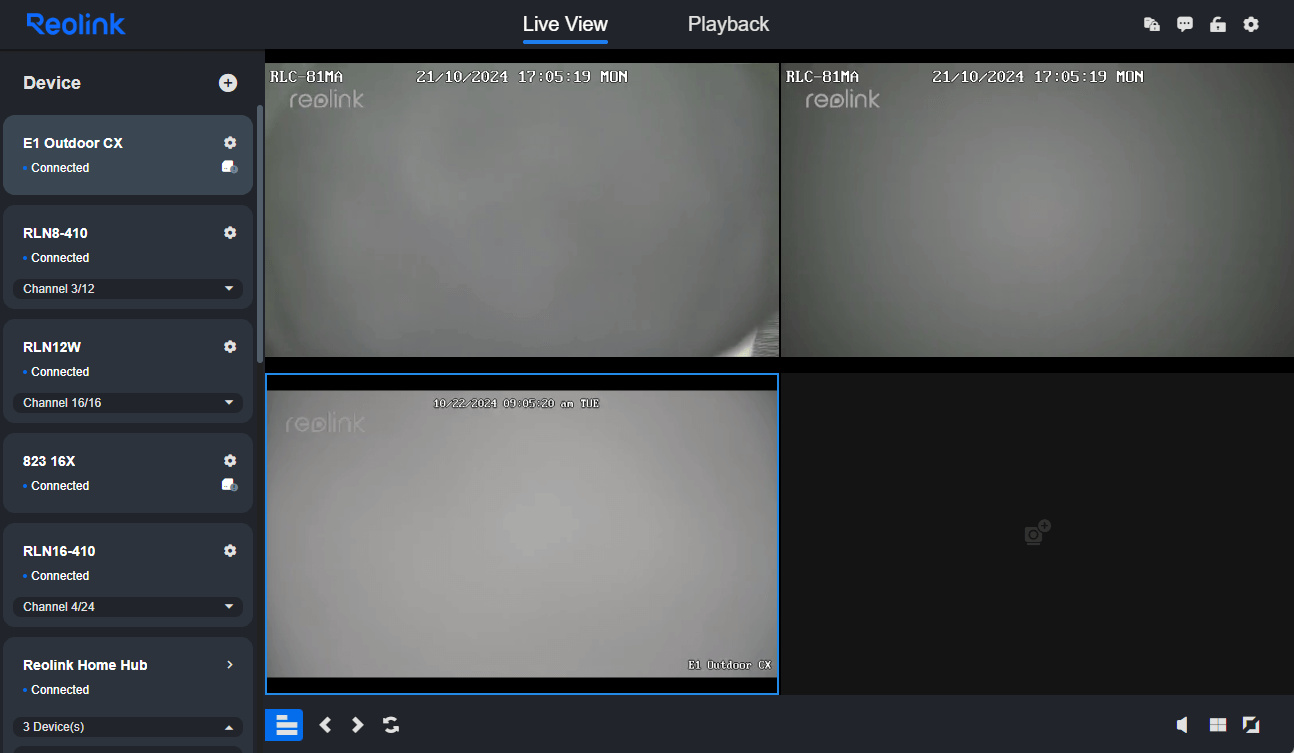

Step 3. Then you can live view multiple cameras on one screen. You can also click the left and right arrows at the bottom to flip through and view cameras not displayed on the current page.
Via Reolink NVR (new UI)

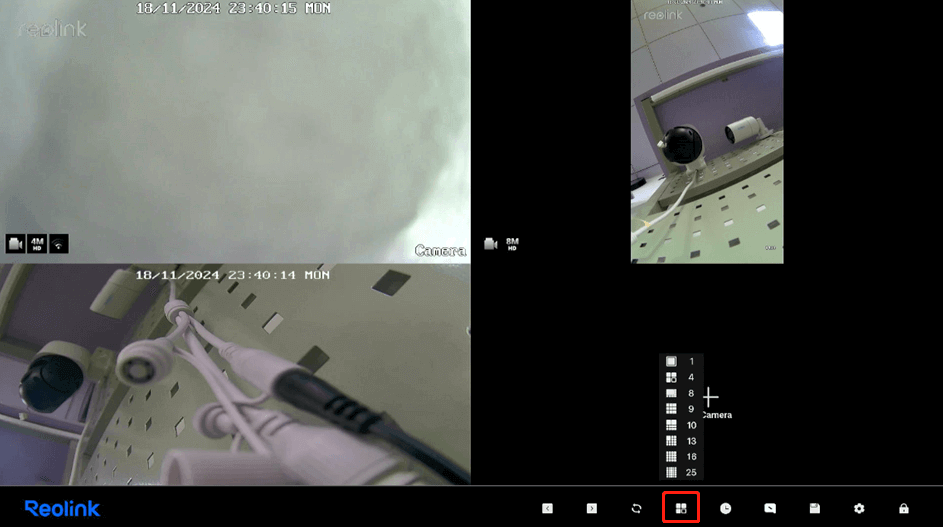

Select the Display Mode icon on the preview page and choose the type multi-screen as you want.

To arrange the display order of the camera on Reolink NVR, please refer to How to Arrange the Display Order of Cameras on Reolink NVR (New UI)
Via Reolink Home Hub Pro

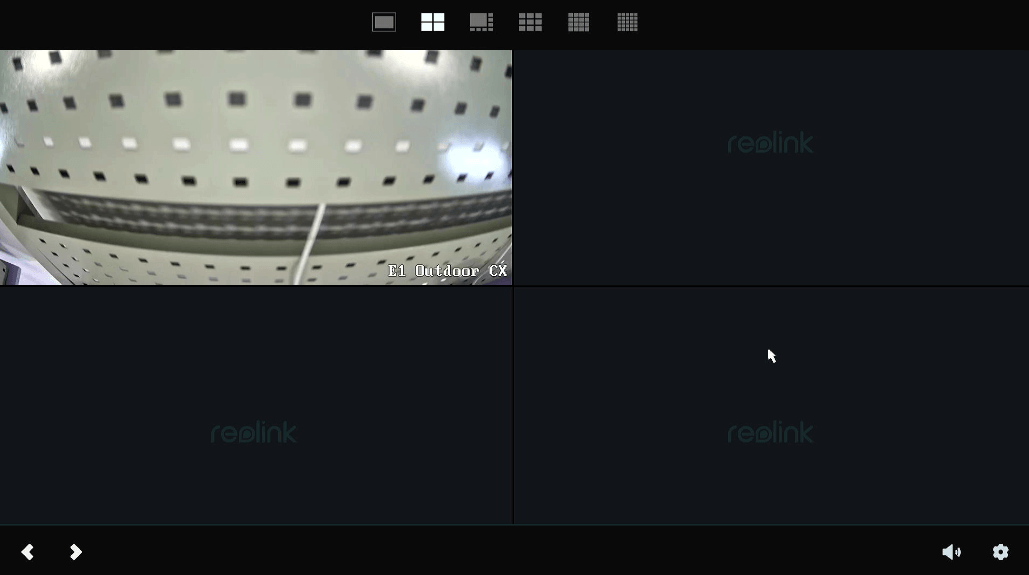

Access your Reolink Home Hub Pro via a monitor with an HDMI cable, click the Display Mode icon at the top of the page to switch to multi-screen mode, and then view multiple cameras live.
