RLN36
Specs

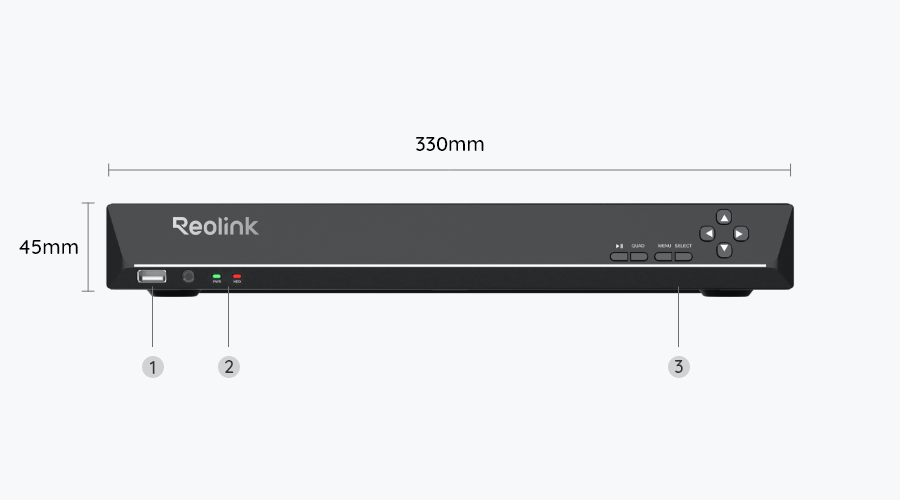

1
USB Port
2
Power/HDD LED
3
Control Panel

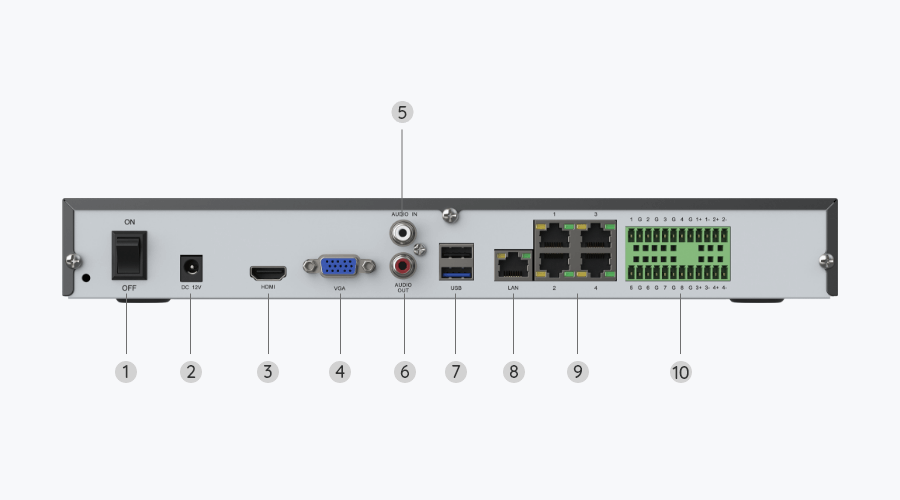

1
Power Switch
2
Power Input
3
HDMI
4
VGA
5
Audio In
6
Audio Out
7
USB Ports
8
LAN Port
9
Ethernet Port
10
Alarm In/Out
Hardware
Hardware
N5MB01
External Interfaces
Video Out
1 HDMI, 1 VGA
Audio Ports
1 audio-in channel, RCA; 1 audio-out channel, RCA
USB Ports
Front panel: 1 x USB 2.0; back panel: 1 x USB 2.0, 1x USB 3.0
Ethernet Ports
• 4 x RJ-45, 10/100/1000 Mbps self-adaptive (for IP cameras)
• 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)
• No PoE Port
Alarm
In: 8 channels; Out: 4 channels
Video
IP Camera Input
Supports up to 36 channels of IPC access; each channel up to 16MP input
Video Output
• HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
• VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
Audio
Two-Way Audio
Built-in audio in & out ports
Audio In
Via cameras with mic; via built-in 1 channel
Audio Out
Via bulit-in 1 channel
Recording
Video Compression
H.265, H.264
Live View / Playback Resolution
7680x2160, 4608x1728, 4512x2512, 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p
(supports only 1-channel playback if you view it in 8MP or higher resolution.)
Synchronous Playback
1-4 channels
Supported Modes
Person/vehicle event recording; motion-triggered recording; 24/7 recording
Storage
Internal HDD
3 SATA ports for 3 HDDs (optional)
External HDD
No
Max. Capacity
48TB (max. 16TB HDD for each SATA)
Network
Network Protocols
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
Browsers Supported
Edge, Firefox, Chrome, Safari
OS Supported
PC: Windows, Mac OS; smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts);
up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
Power Supply
DC 12V/5.4A
Power Consumption
<10W（without HDD）
Working Environment
Temperature: -10°C to +45°C (14°F~113°F);
Humidity: 10% to 90%
Dimensions
330 x 48 x 310mm
Weight
2.26kg (without HDD)
Warranty
Limited Warranty
2-year limited warranty. For support, visit
https://support.reolink.com/hc/en-us/
The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
