RLC-511W

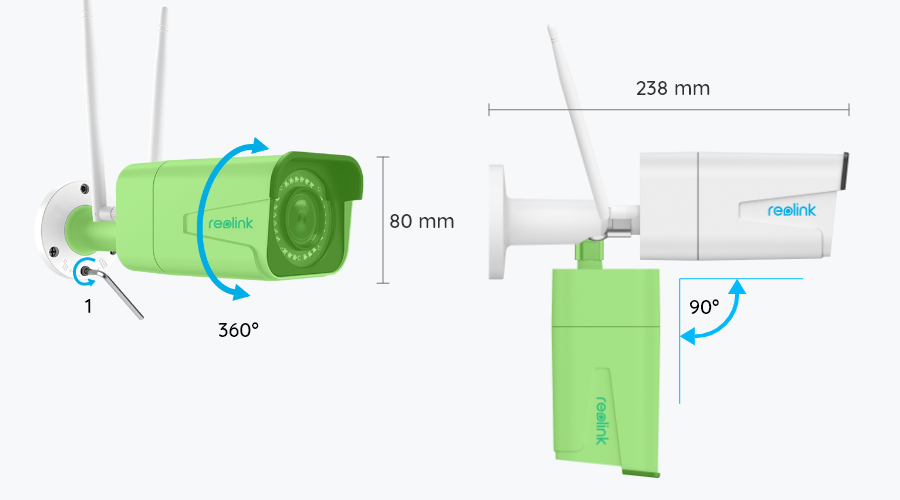

1. Loosen the screw (counterclockwise) with the wrench and adjust the camera in any direction.
2. After adjustment, tighten the screw to fix the camera.

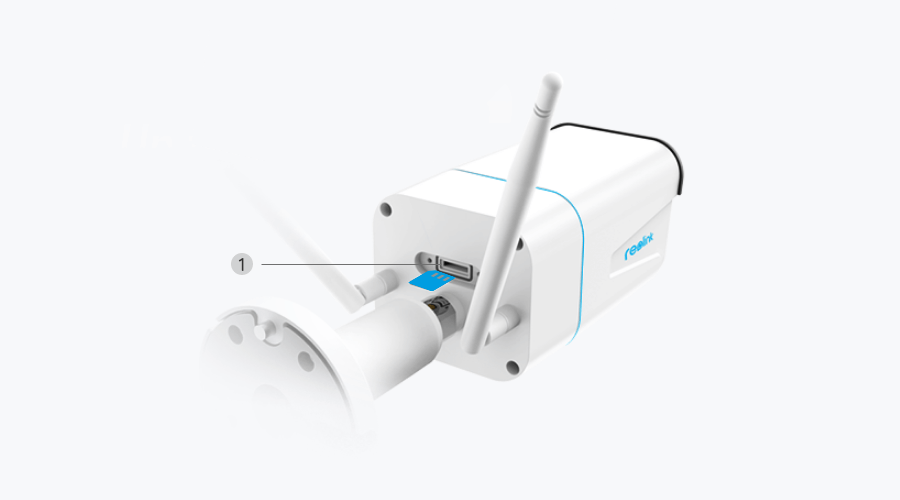

1 Micro SD Card Slot

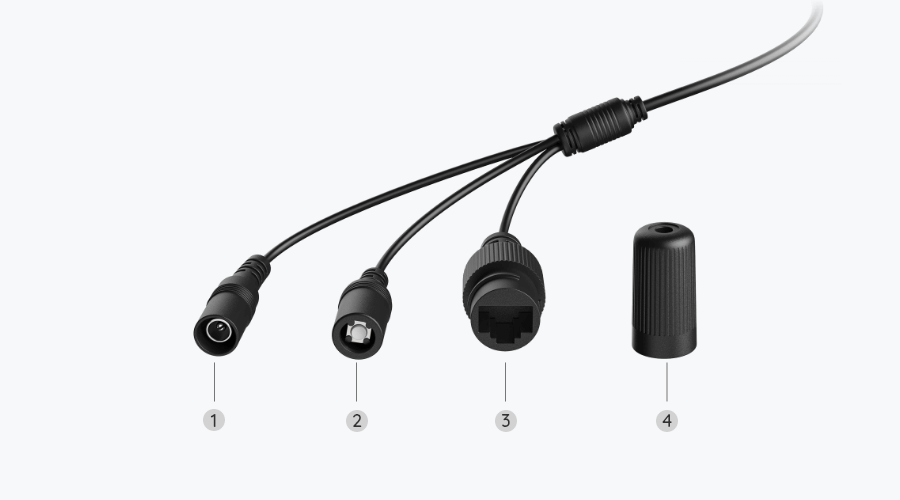

1 Power

2 Reset Button

3 Network

4 Waterproof Lid

Camera

Image Sensor

1/2.7" CMOS Sensor

Effective Pixels

2560x1920 (5.0 Megapixels)

Lens

f=2.7-12 mm Auto-Focus, F=1.6

Optical Zoom

Angle of View

Horizontal: 31° ~ 90°, Vertical: 24° ~ 67°

Day/Night Mode

Auto Switchover

Min. Illumination

0 Lux (With IR Illuminator)

IR Distance

30 Meters (100ft) (LED: 24pcs/14mil/850nm)

Noise Reduction

3D DNR

Video

Compression

H.264

Resolution

Mainstream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Substream: 640x480

Bitrate

Mainstream: 1024Kbps ~ 8192Kbps, Substream: 64Kbps ~ 512Kbps

Maximal Frame Rate

30fps

Audio

Interface

Built-in Microphone

Network

Interface

One 10M/100Mbps; RJ45

Network Protocol

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Wi-Fi

Wireless Standard

IEEE 802.11a/b/g/n

Operating Frequency

2.4GHz/5GHz

Wireless Security

WPA-PSK/WPA2-PSK

General

Storage

microSD card slot (Max.128GB)

Power Supply

DC12V

Power Consumption

<12W

Working Environment

-10℃~+55℃ (14°F~131°F), 10%~90%

Ingress Protection

IP66

Dimensions

80 x 72 x 238mm

Weight

750g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
