RLC-410/RLC-520

Product Introduction

Product Name: RLC-410

Product Type: PoE IP Cameras & NVRs

Specs

1 Mount

2 Metal Aluminum Case

3 18 IR LEDs

4 High Definition Lens (f=4.0mm)

5 Daylight Sensor

1. Unscrew it (counterclockwise) to loosen the bracket and adjust the camera in any direction.
2. After adjustment, twist it back to fix the camera.

1 Micro SD Card Slot

1 Power

2 Reset Button

3 Network

4 Waterproof Lid

Camera

Image Sensor

1/2.7" CMOS Sensor

Effective Pixels

2560x1920 (5.0 Megapixels)

Lens

f=4.0mm F=2.0

Angle of View

Horizontal: 80°, Vertical: 58°

Day/Night Mode

Auto Switchover

Min. Illumination

0 Lux (With IR Illuminator)

IR Distance

30 Meters (100ft) (LED: 18pcs/14mil/850nm)

Backlight Compensation

Support

Noise Reduction

3D DNR

Video

Compression

H.264

Resolution

Main Stream: 2560x1920, 2560x1440, 2048x1536, 2304x1296; Sub Stream: 640x480

Bitrate

Main Stream: 1024Kbps ~ 8192Kbps, Sub Stream: 64Kbps ~ 512Kbps

Frame Rate

Main Stream@30fps, Sub Stream@7fps

Audio

Interface

Built-in Microphone

Network

Interface

One 10M/100Mbps RJ45

Network Protocol

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smart Phone: iOS, Android

Max. User Access

20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Storage

microSD card slot (Max.128GB)

General

Power Supply

DC12V & PoE (IEEE 802.3af)

Power Consumption

<10W

Working Environment

-10℃~+55℃(14°F~131°F), 10%~90%

Ingress Protection

IP66

Dimensions

Φ67 x 186mm

Weight

350g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.

Unboxing Video

Helpful？

Yes

No

Thanks for your feedback!

Product Introduction

Product Name: RLC-520

Product Type: PoE IP Cameras & NVRs

Specs

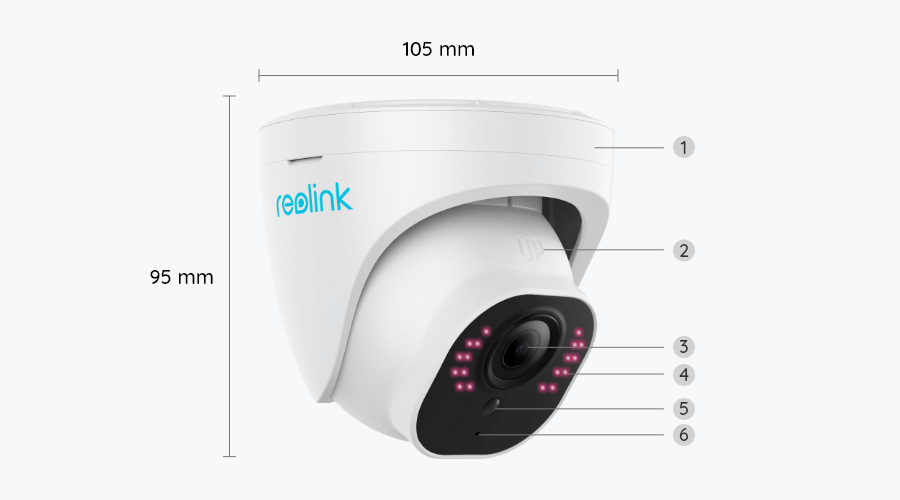

1 Mount

2 Metal Aluminum Case

3 High Definition Lens (f=4.0mm)

4 18 IR LEDs

5 Daylight Sensor

6 Built-In Mic

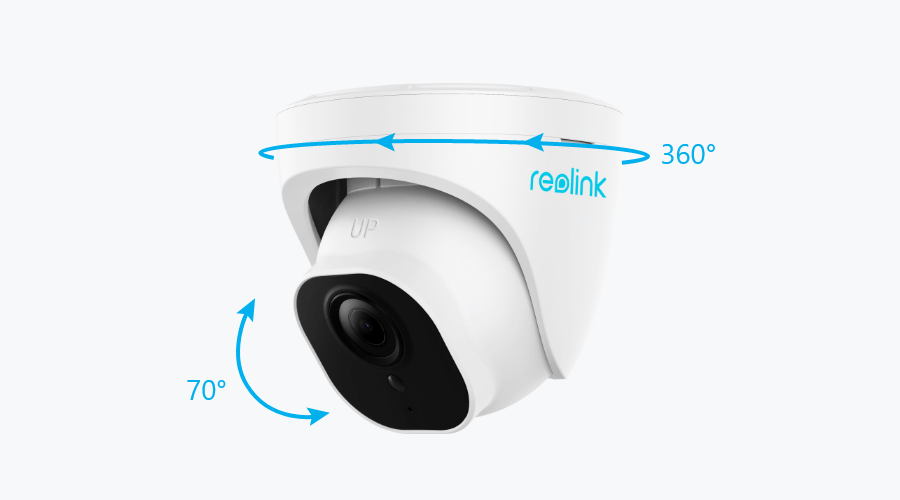

Only Manual Rotation

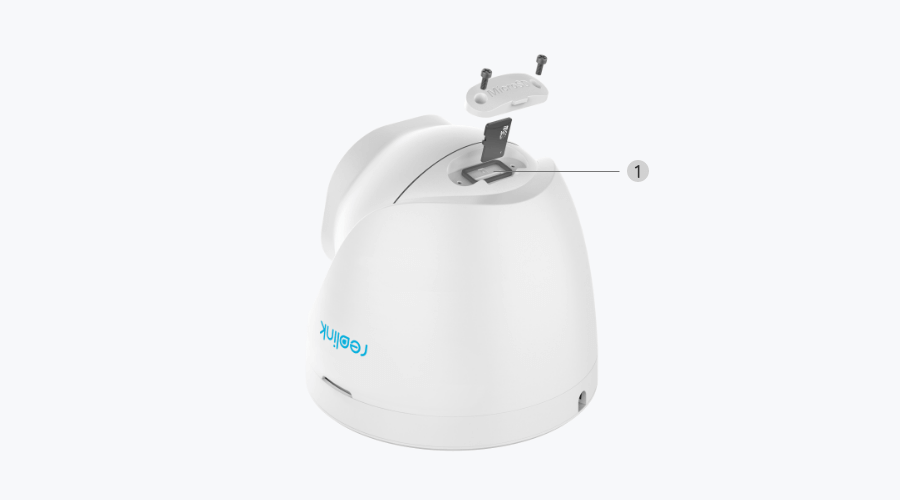

1. Micro SD Card Slot
Tip: Rotate the lens to find the micro SD card slot on the bottom.

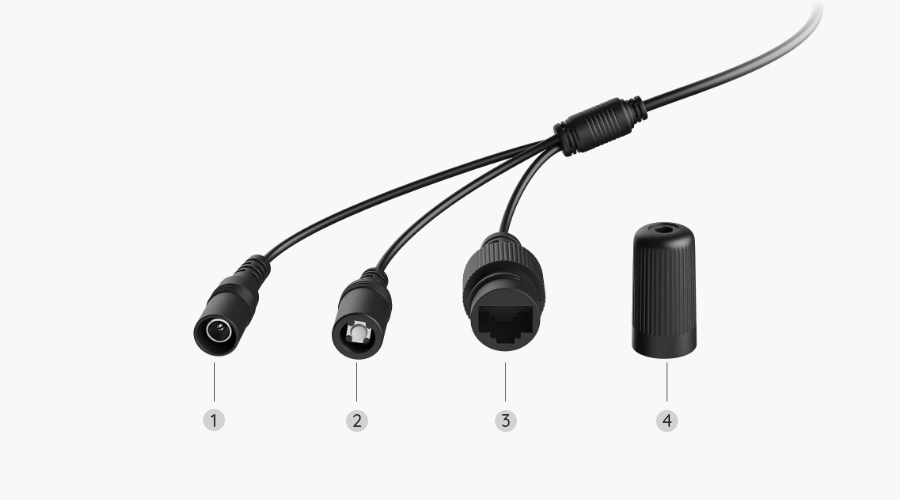

1 Power

2 Reset Button

3 Network

4 Waterproof Lid

Video & Audio

Image Sensor

1/2.7" CMOS Sensor

Video Resolution

2560x1920 (5.0 Megapixels) at 30 frames/sec

Lens

f=4.0mm fixed; F=2.0, with IR-cut filter

Video Compression

H.264

Field of View

• Horizontal: 80°
• Vertical: 58°

Day & Night

Auto-switching with IR-cut filter

Night Vision

30 meters (100ft) (LED: 18pcs/14mil/850nm)

Audio

Audio recording

Power

PoE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <8W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

microSD card slot (Max. 128GB)

Audio

Built-in microphone

Software Features

Frame Rate

• Mainstream: 2fps - 30fps (default: 30fps)
• Substream: 4fps - 15fps (default: 7fps)

Code Rate

• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 160Kbps)

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection

Record Mode

Motion-triggered recording; scheduled recording

Protocol & Standard

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Working Environment

Temperature

Operating temperature: -10°C - +55°C (14°F - 131°F)

Humidity

Operating humidity: 10% - 90%

Weatherproof

IP66

Size & Weight

Dimensions

Φ105*93mm

Weight

385g

Warranty

Limited Warranty

2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/

The above data are provided by internal laboratories, and are obtained under specific test conditions. Actual use may vary due to settings, use conditions and environmental factors.
