This is an intuitive tutorial that can help you learn how to install the weatherproof cap for your camera.

Applies to: All Reolink cameras with an RJ45 Ethernet port

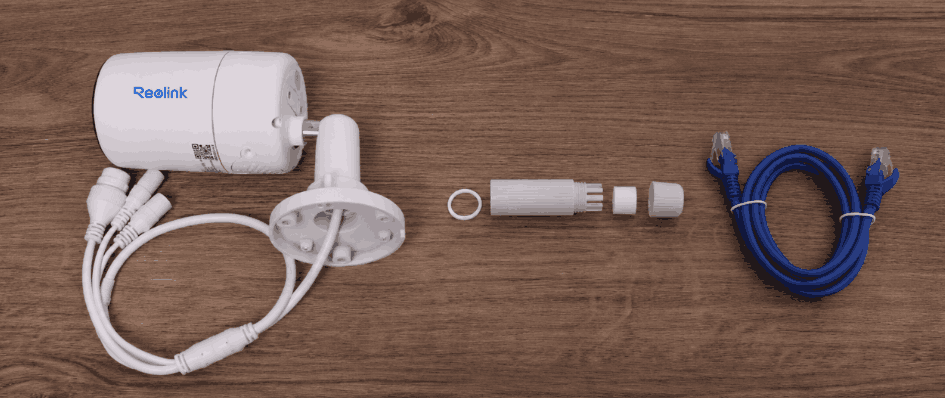

Step 1. Separate all the parts of the weatherproof cap

Separate all the parts

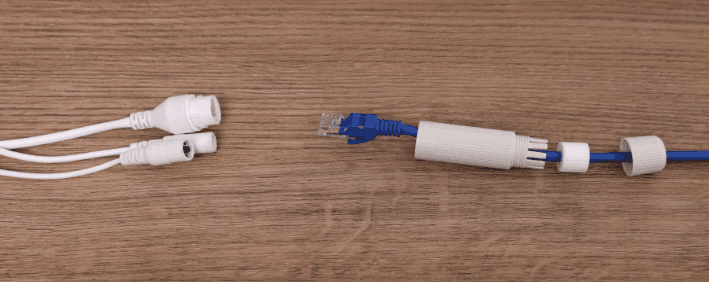

Step 2. Thread the Ethernet cable through the weatherproof cap.

Step 2.

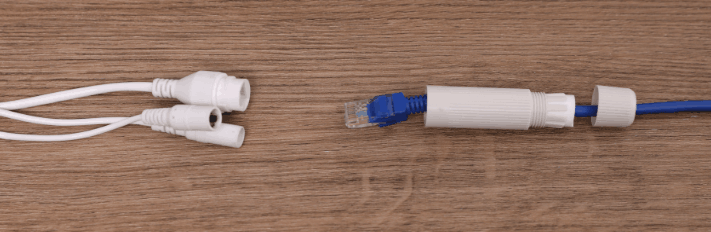

Step 3. Push the Rubber ring to the main body.

Step 3.

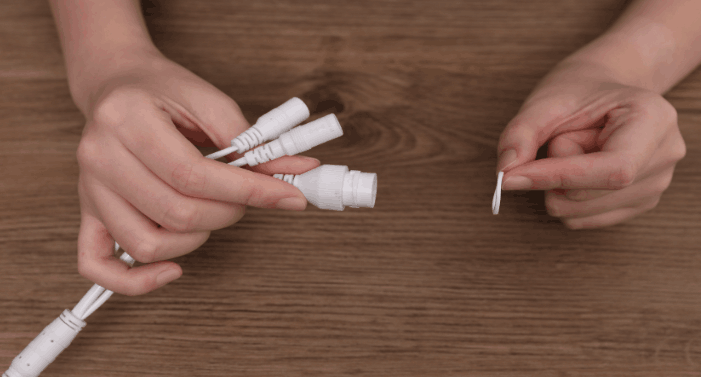

Step 4. Install the white rubber band on the RJ45 connector.

Step 3.

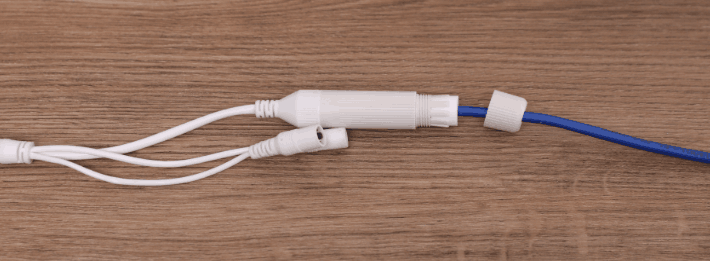

Step 5. Plug the Ethernet cable into the RJ45 connector.

Step 5.

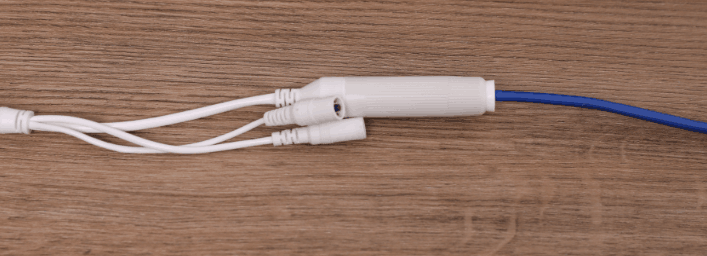

Step 6. Combine all parts. Done!

Step 6.
