If you want to connect the camera via a web browser, or if you want to stream the live view of the camera using RTSP, ONVIF, or other kinds of protocol, refer to the below guides to configure the corresponding ports for the camera.

Applies to: All Reolink products except battery-powered cameras

Table of Content

1. Important Notice of Reolink Ports Settings

2. Configure Reolink Ports Settings

Important Notice of Reolink Ports Settings

1. Reolink port settings are not available for Reolink battery-powered cameras.

2. The range of the port number is 1~65535.

3. If you fail to see this page, you may reboot the camera and the router, and try again.

4. Please note that E1/Lumus does not support HTTP/HTTPS/RMTP/RSTP/ONVIF ports, E1 Pro does not support RMTP port.

5. For the cameras which can support Smart Person/Vehicle/Pet detection, you can check/uncheck the RTMP, HTTP, HTTPS, RTSP, and ONVIF ports. For the other cameras, they do not have a port switch button. If the camera fails to connect with 3rd party software, please ensure that the corresponding ports are checked.

6. For cameras added to Reolink NVR and Reolink Home Hub, access the settings interface of Reolink NVR and Reolink Home Hub to open the ports, instead of camera's settings interface.

7. Regarding the function of different ports, you can refer to this article: Which Ports Should I Forward on Router for Remote Connection

Configure Reolink Ports Settings

The following content collects the port settings of each software end. Click the corresponding software end to expand the specific instructions.

  • Reolink App

    Please upgrade your Reolink App to 4.59 version.

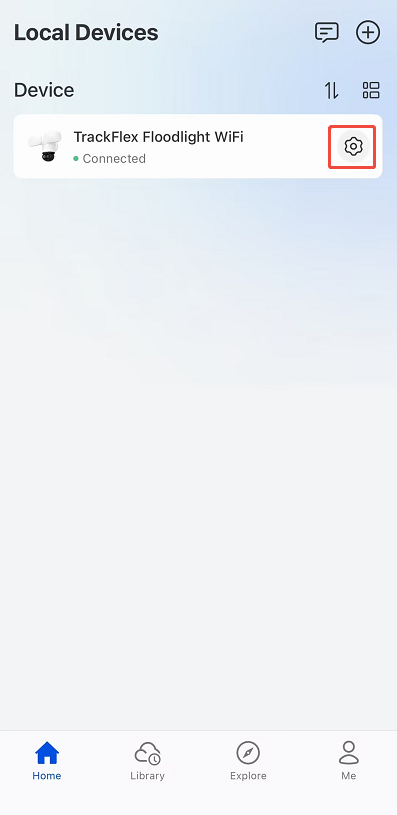

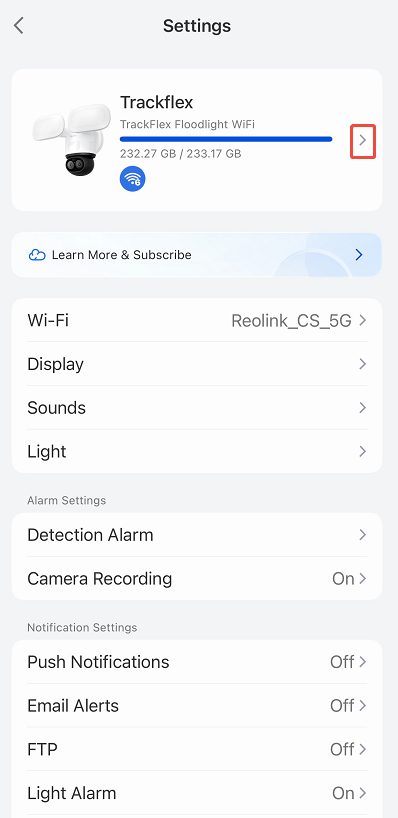

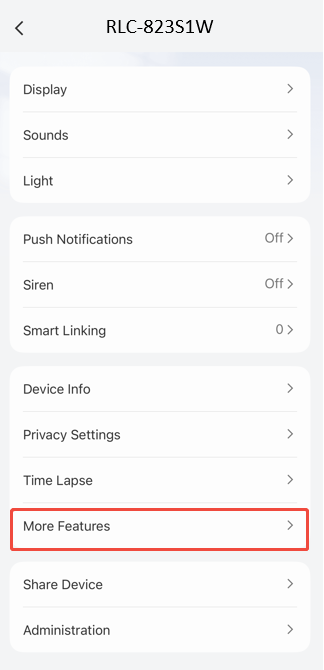

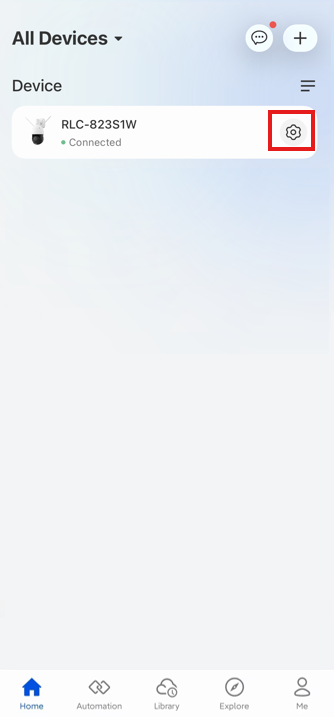

    Step 1. Tap gear icon.png at the top to device's settings, tap the arrow at the top device model box.

    camera settings   Network Information

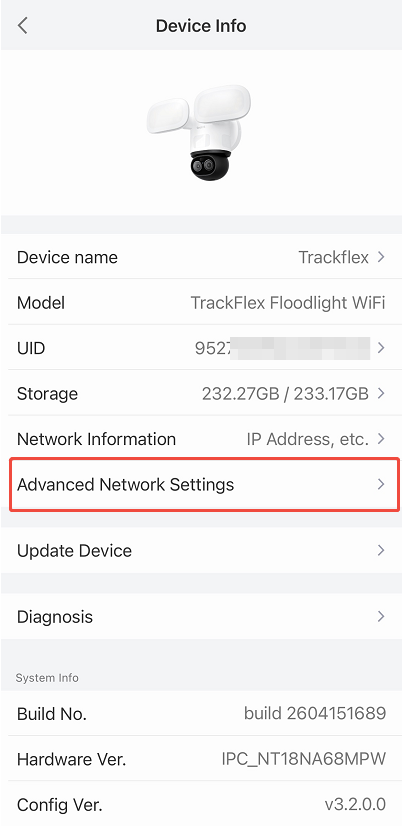

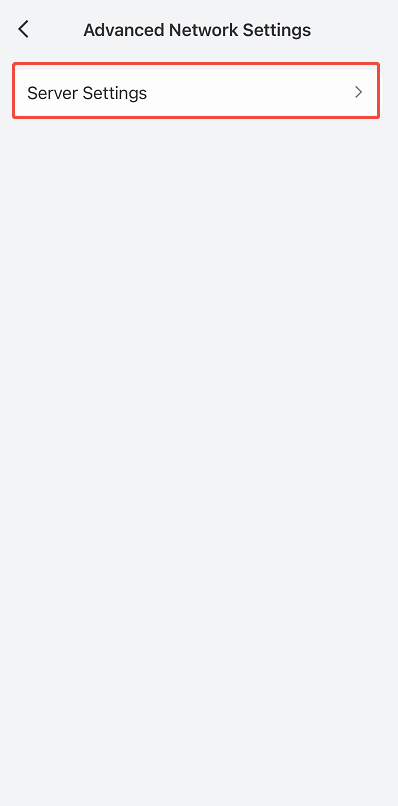

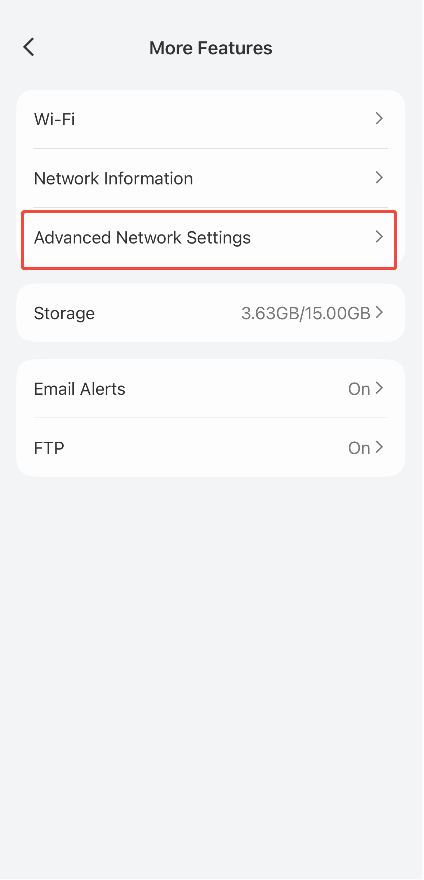

    Step 2. Tap Advanced Network Settings > Server Settings.

    advanced network settings server settings

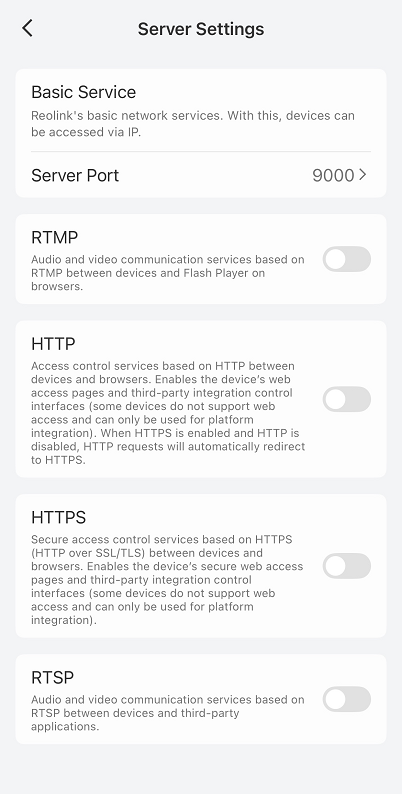

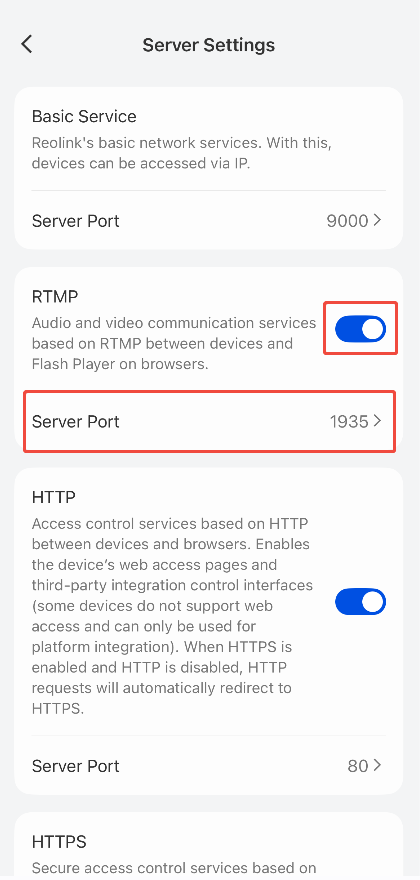

    Step 3. Enable the corresponding port and you can configure the port value if needed.

    http port

  • Reolink Client

    Here are two videos for your reference:

    Please upgrade your Reolink Client to the latest version.

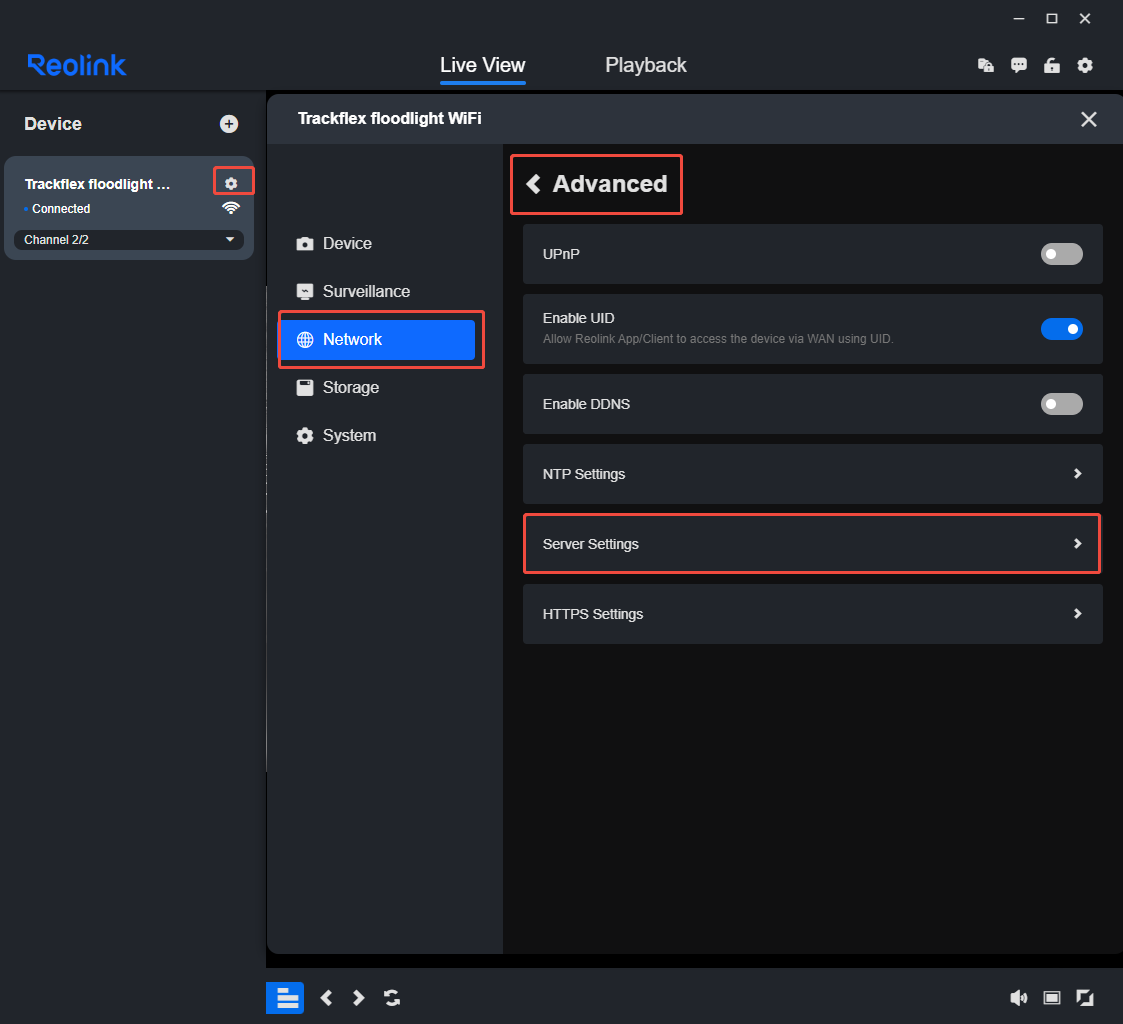

    Step 1. Launch the Reolink client, go to Device Settings > Network > Advanced > Server Settings.

    client advanced

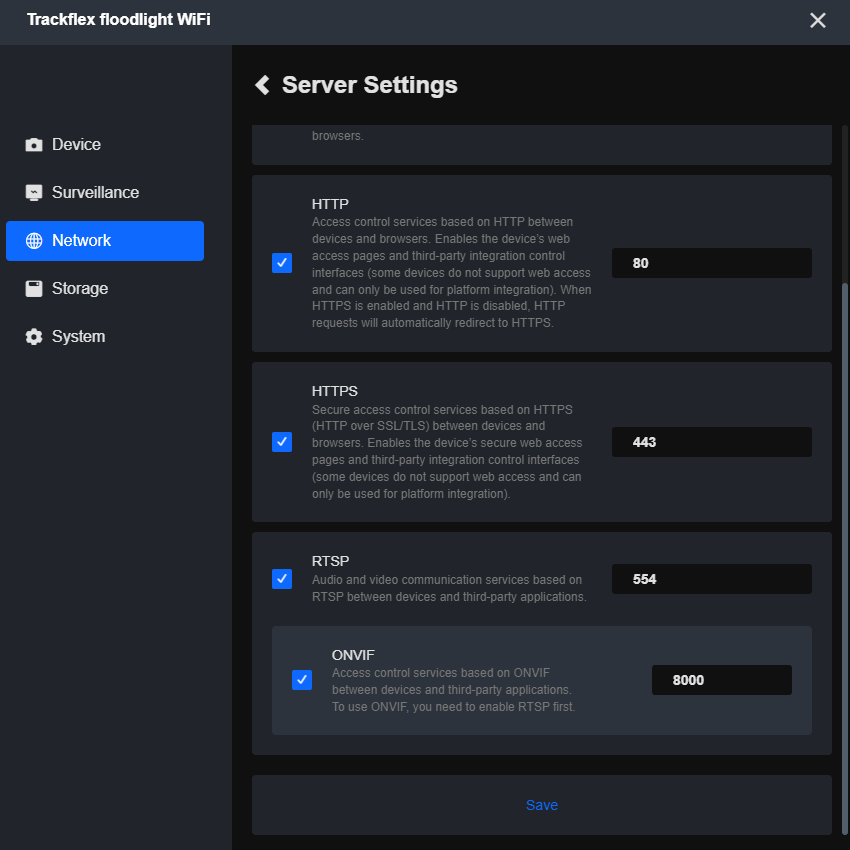

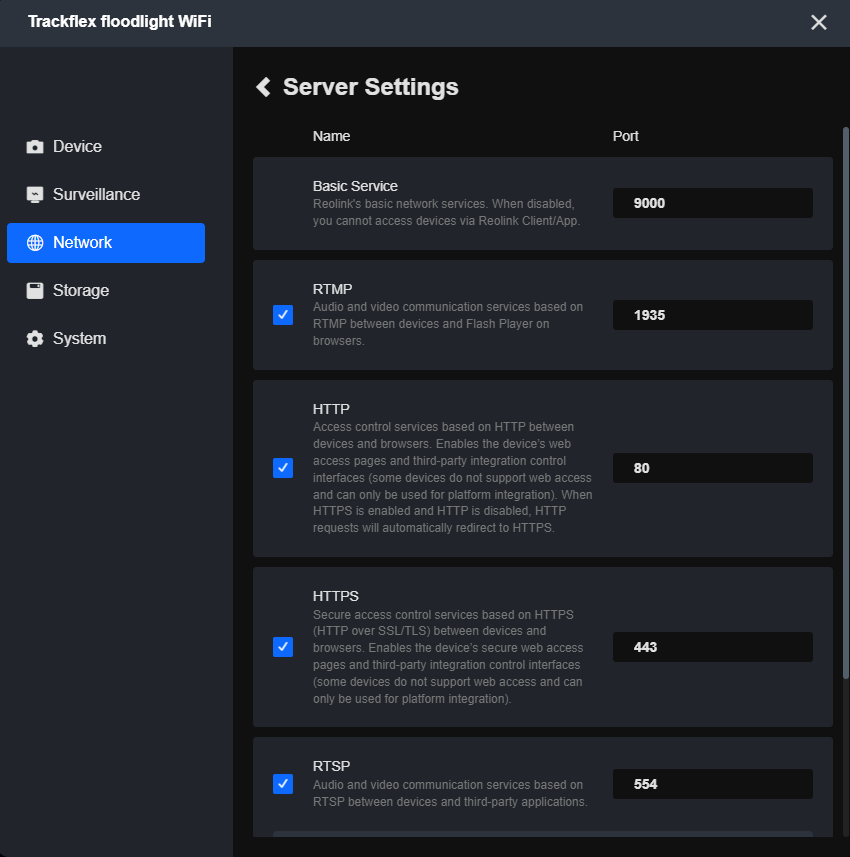

    Step 2. All the values of all ports will show up. If you change it, please click Save and remember it.

    client server settings

    client device RTSP

  • Reolink Web browser

    Here is a video for your reference:

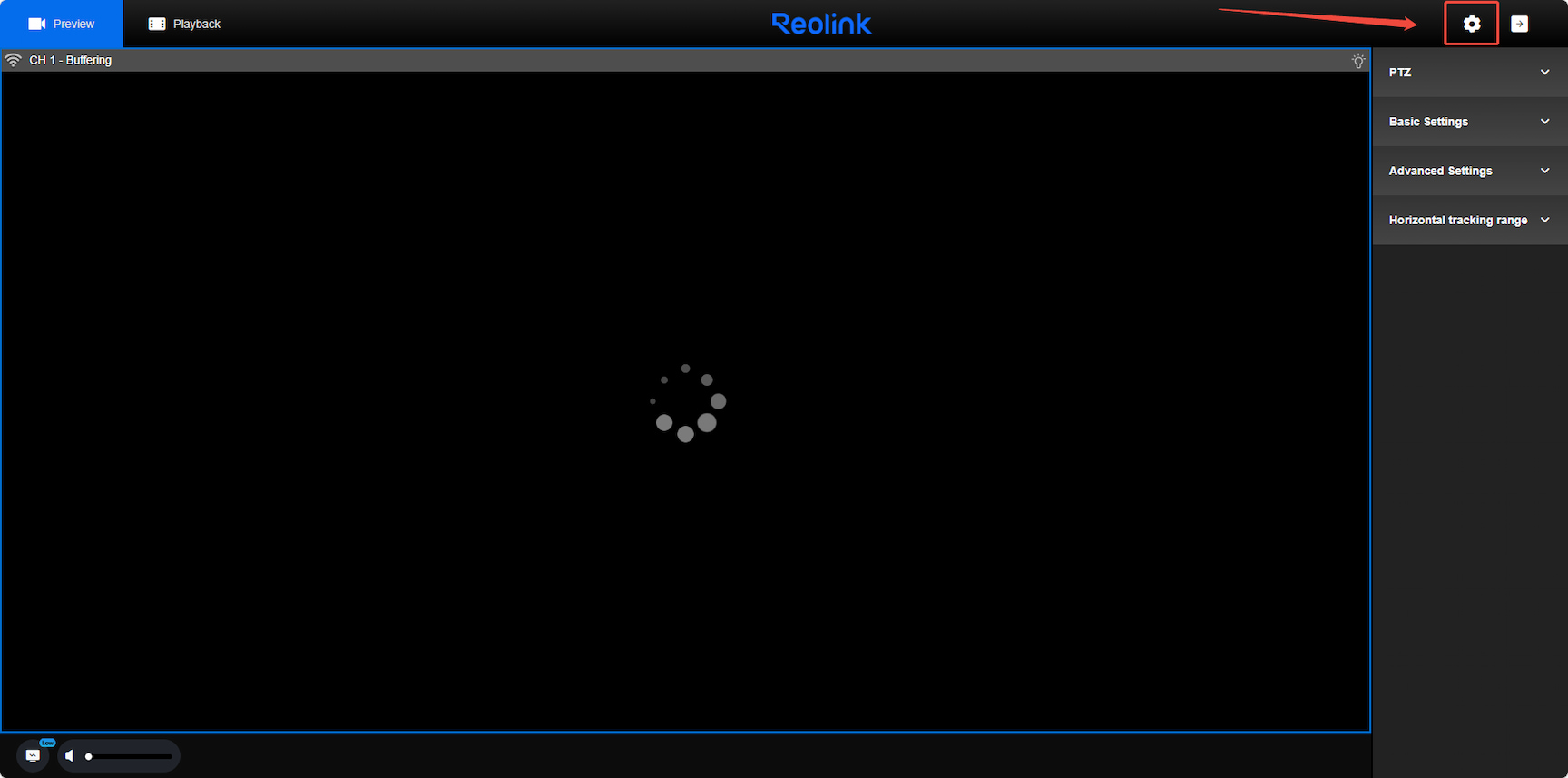

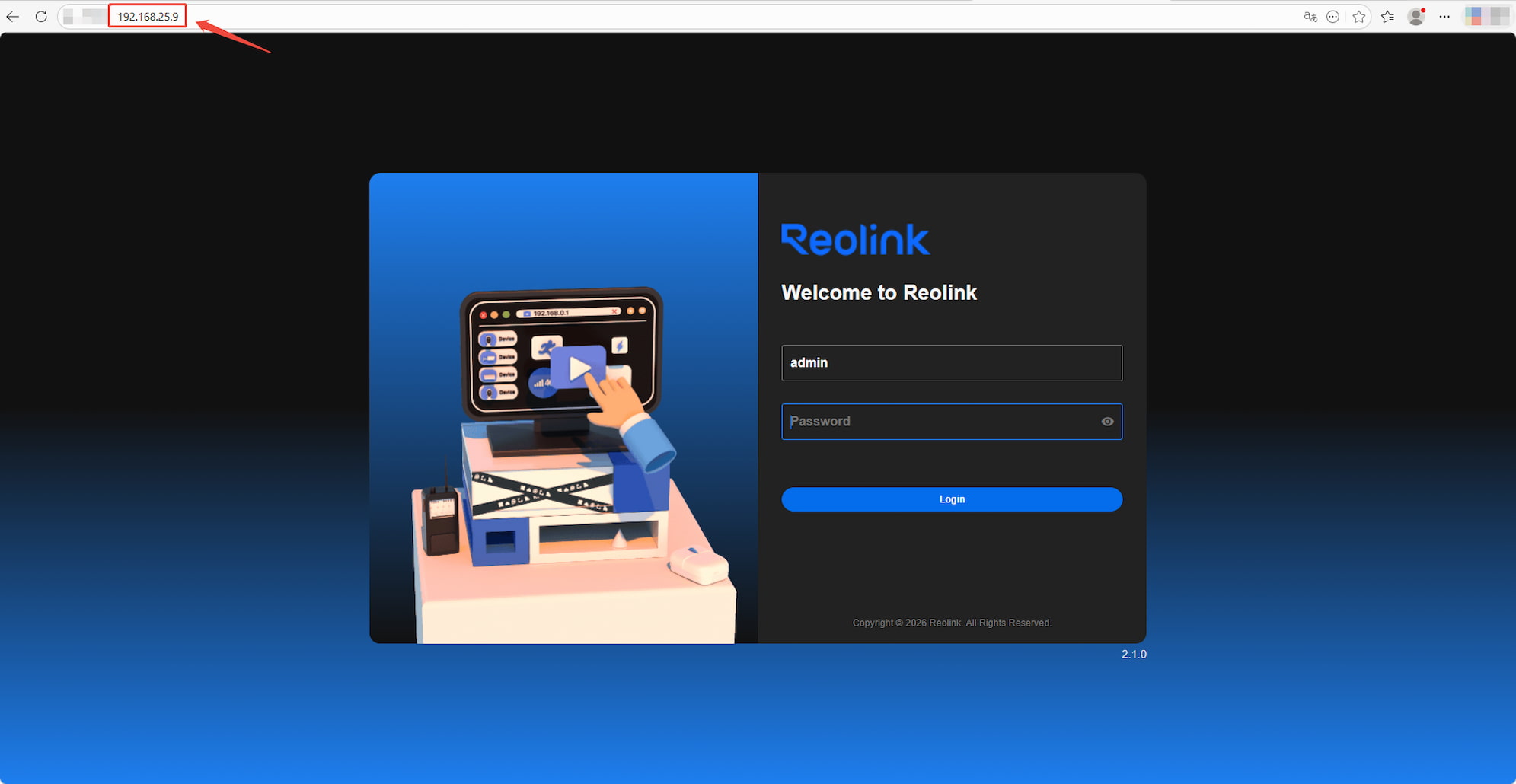

    Step 1. Log in to your device via a web browser. Click the gear icon on the top right to get to the device settings page.

    web log in

    web settings

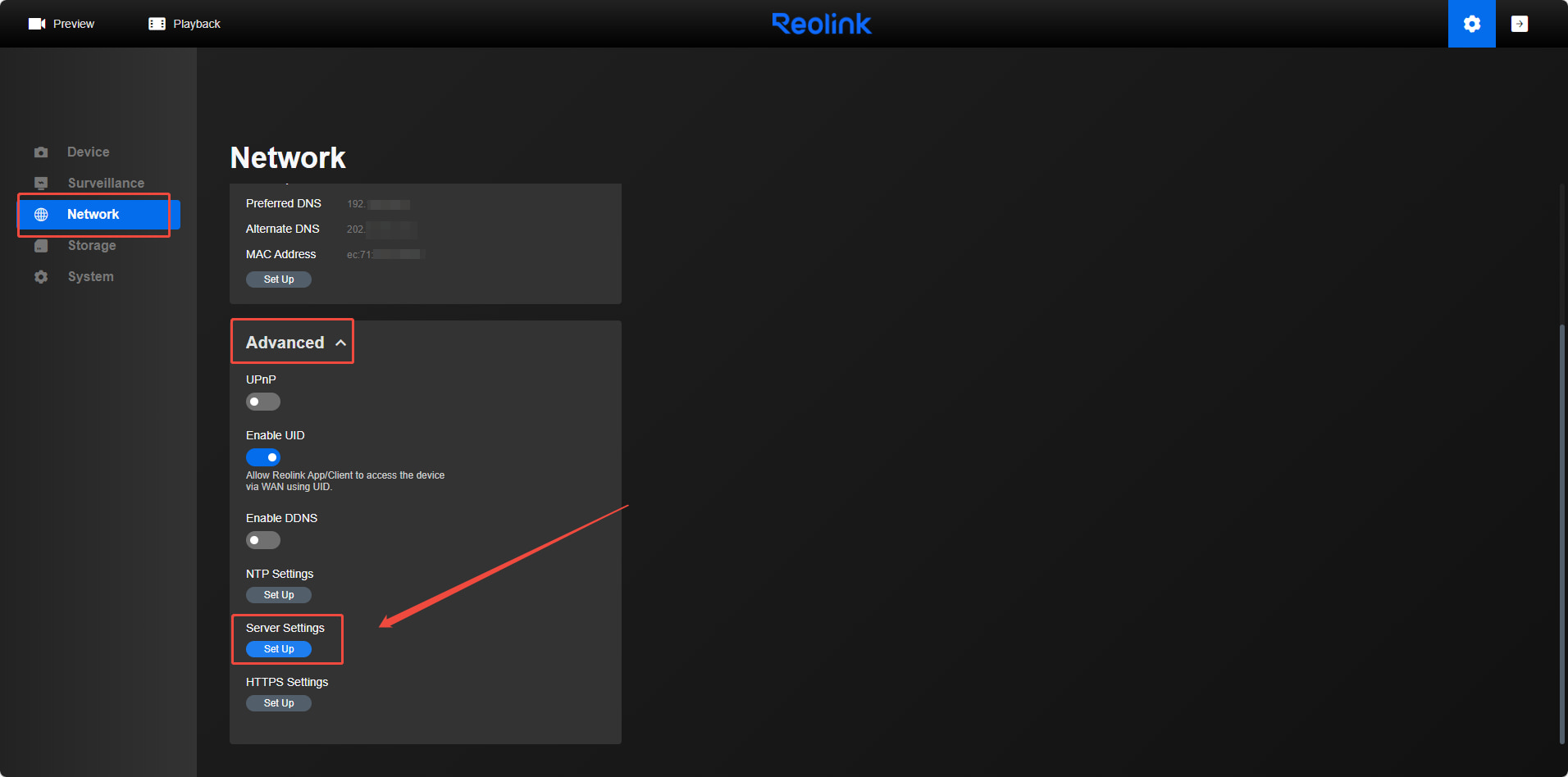

    Step 2. Click Network > Advanced > Server Settings > Set Up.

    web network

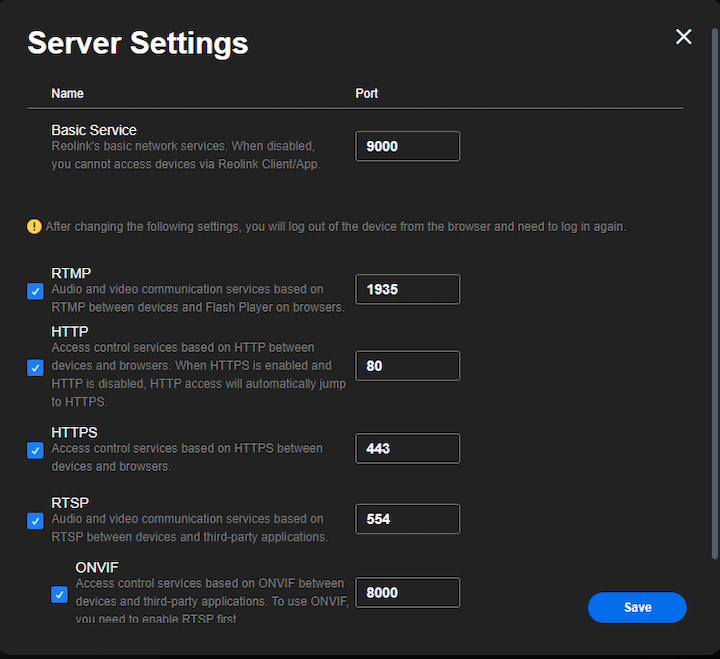

    Step 3. The values of all the ports will show up.

    For some of the models, the RTMP, HTTP, RTSP, and ONVIF ports are disabled by default. Enable them first before you configure the port values.

    web server settings

  • Reolink NVR (new UI)

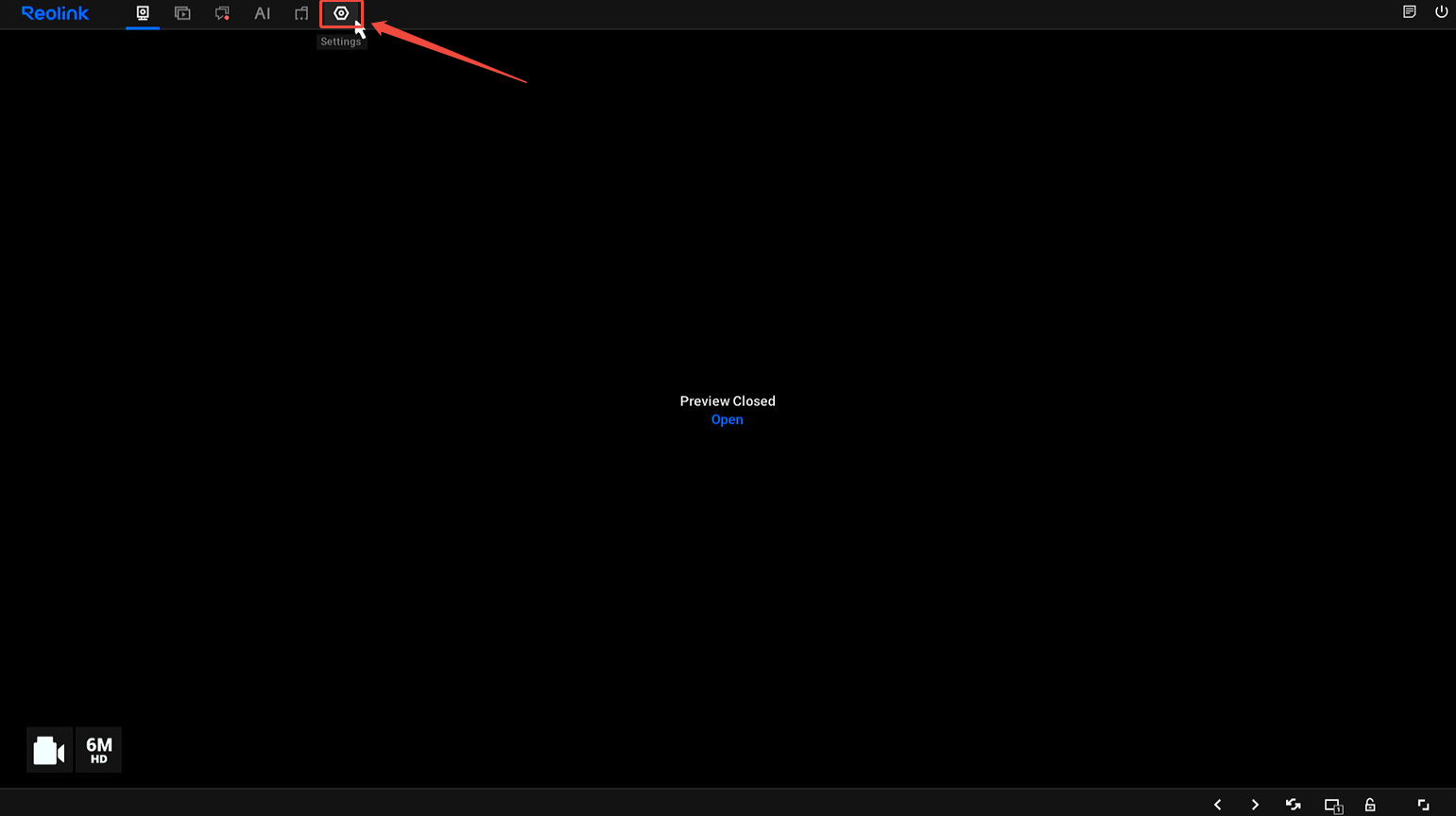

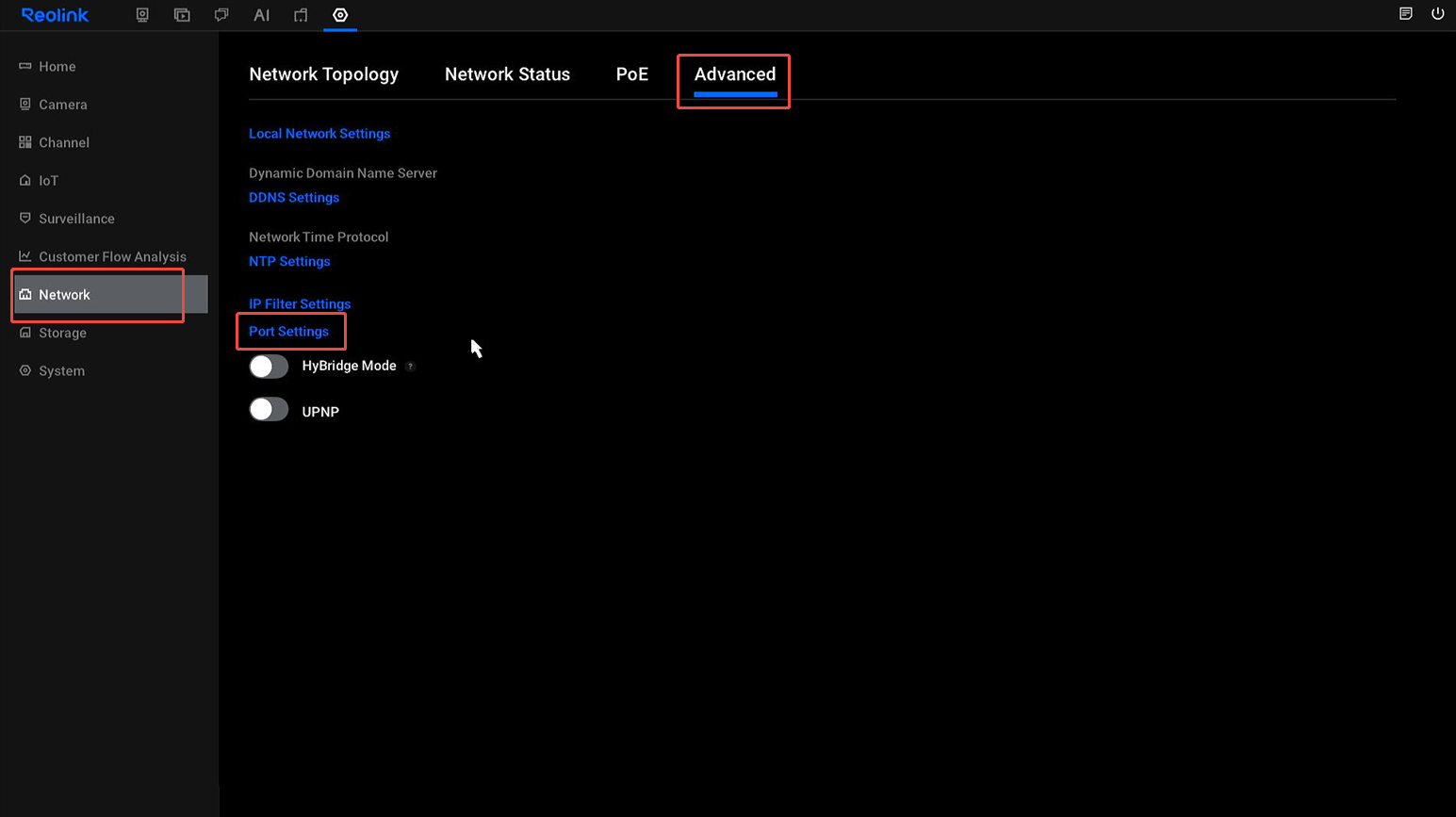

    Launch NVR, go to Settings > Network > Advanced, then click Port Settings.

    nvr settings

    nvr network

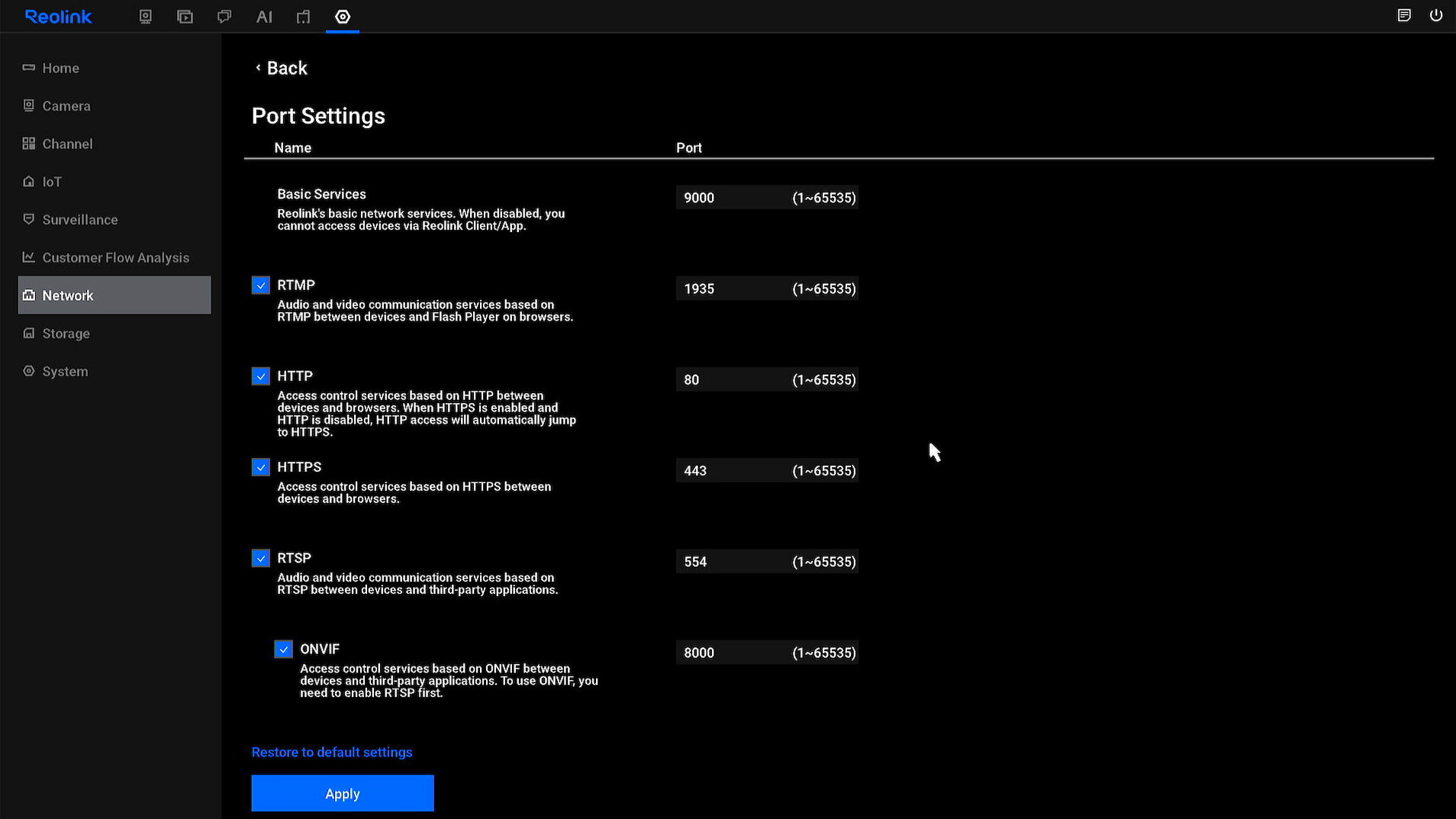

    The value of all ports will show up. And you can set up the ports as you want.

    nvr port settings

  • Reolink NVR (Old UI)

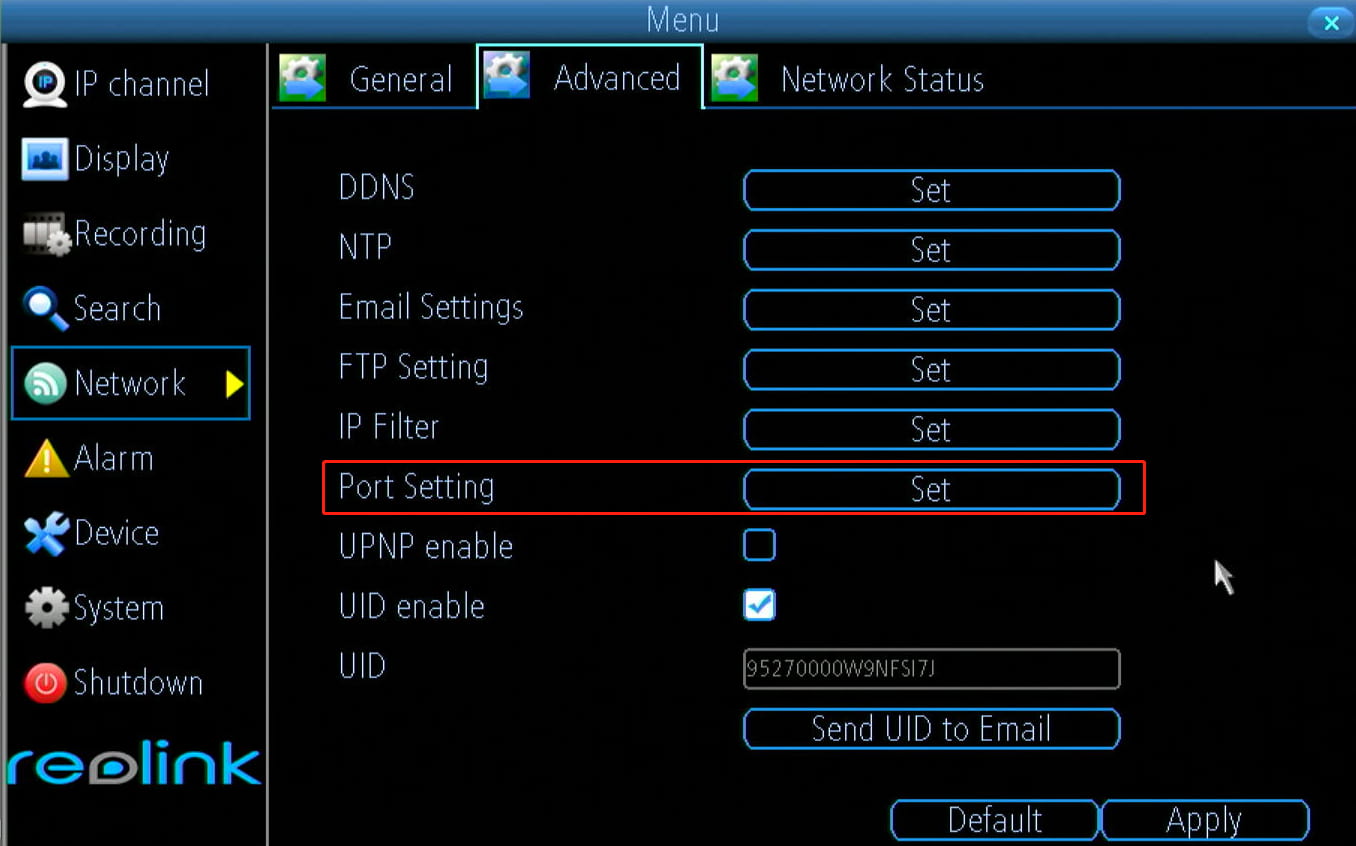

    Launch PoE NVR, go to Network > Advanced, then click Set next to Port Settings.

    POE-main-menu

    port settings

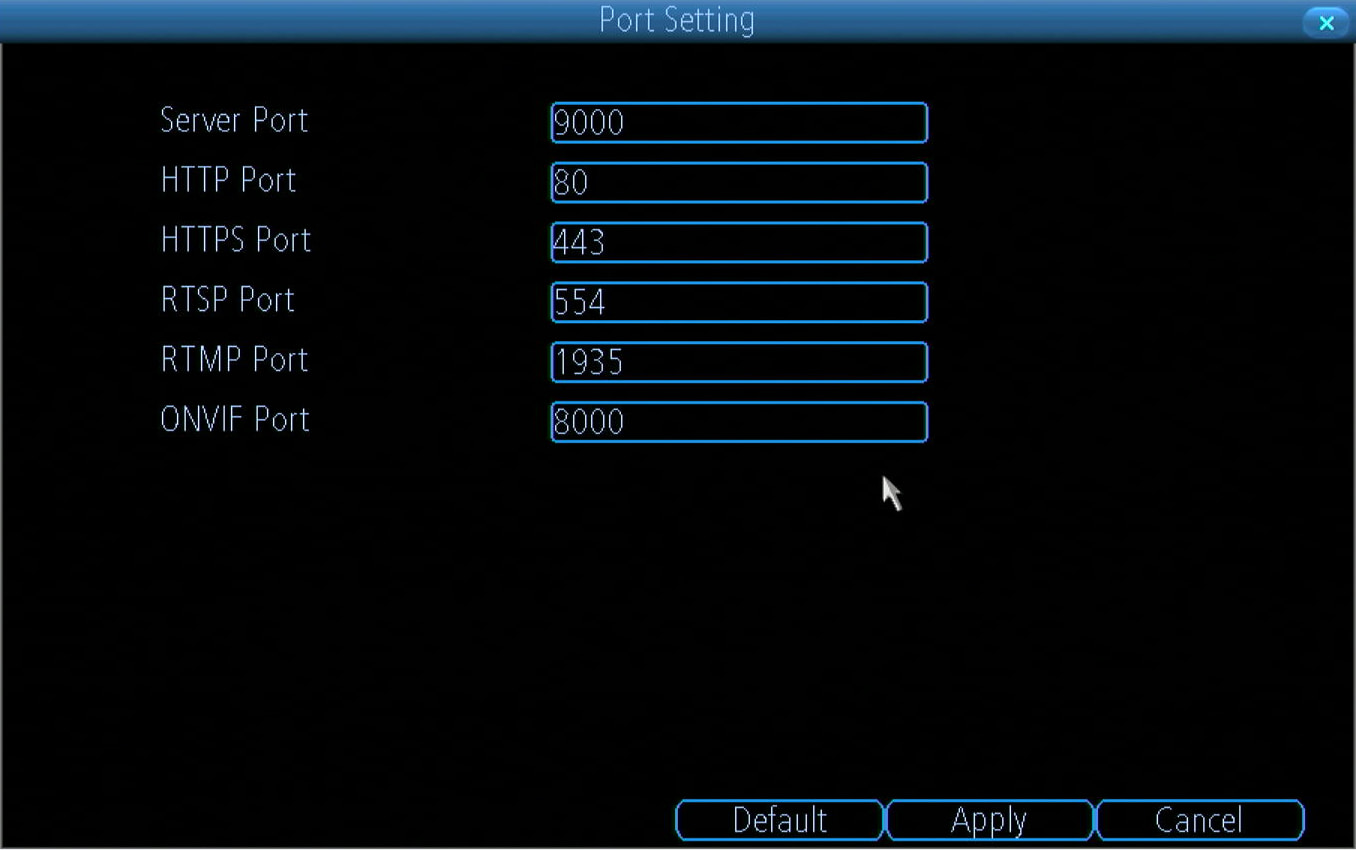

    The value of all ports will show up. You can set up the ports as you want.

    port settings
