This article will show you how to set up the DHCP/Static IP and other network settings on the Network General page.

Applies to: All Reolink devices except battery-powered ones.

Note:

1. There are two options under Network Access, one is Static and the other is DHCP. If you choose DHCP mode, the Router/NVR will automatically assign an IP address for the camera. If you choose Static mode, you need to set an IP address of the same network segment by yourself.

2. The Network Access is set as DHCP by default, and you can change it to Static if you want to assign a static IP address for your Reolink device.

  • Via Reolink App

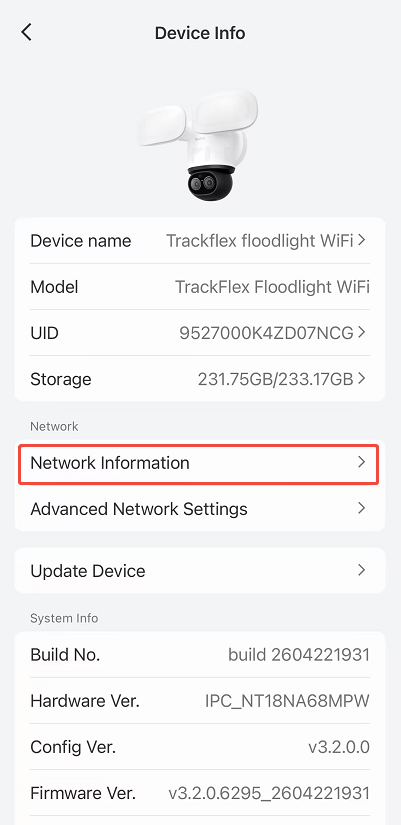

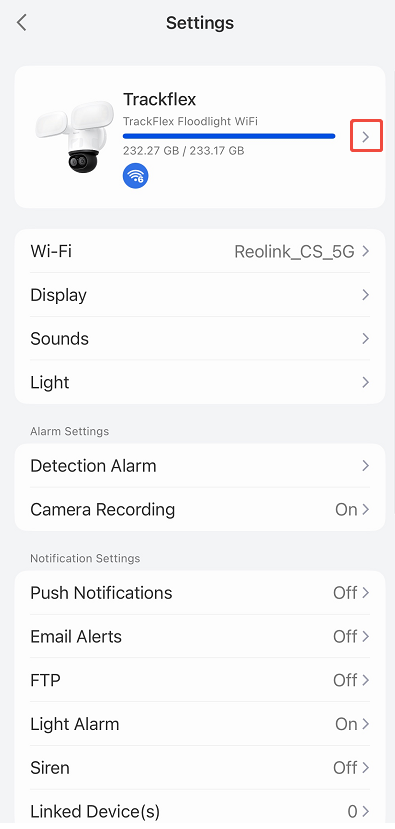

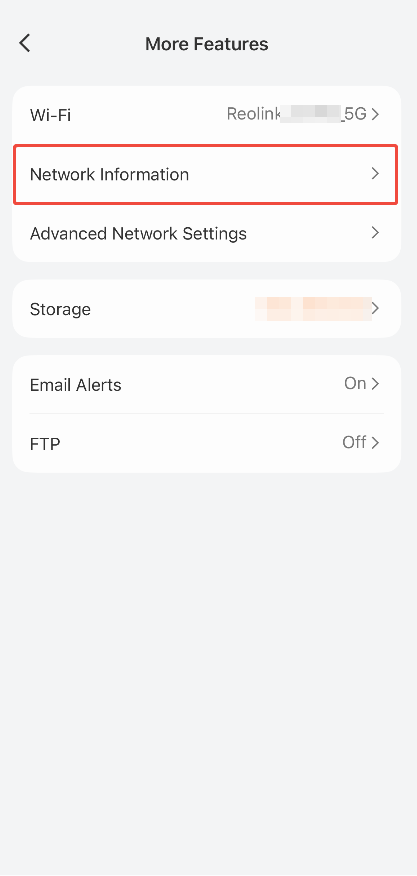

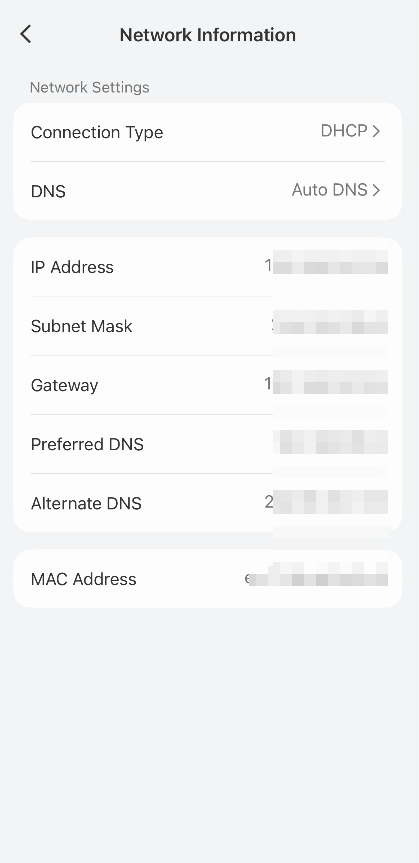

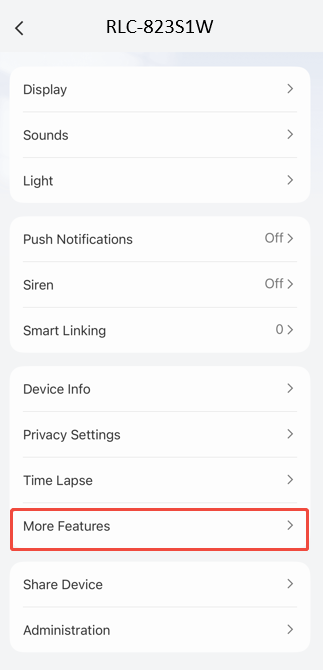

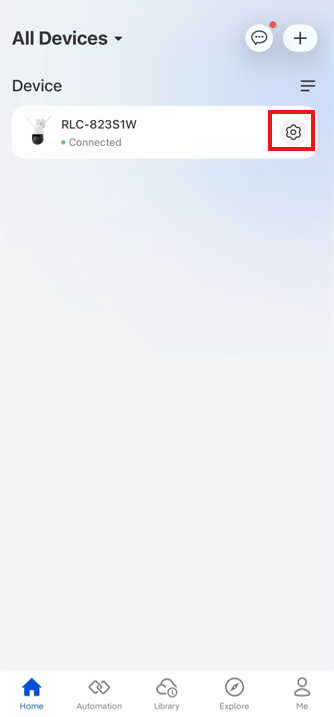

    Step 1. Log in to your device via the Reolink App, then go to Device Settings > Device Info > Network Information page. For Reolink products, the default connection type is DHCP. The IP address is assigned automatically, which could not be changed manually.

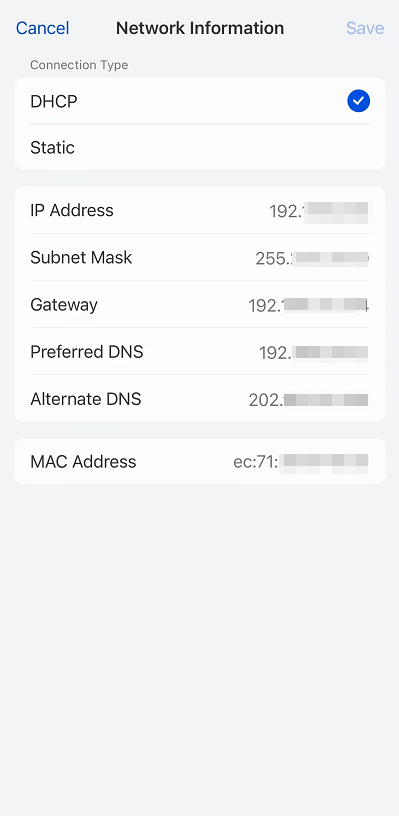

    device info  app Network Info  check the app network information

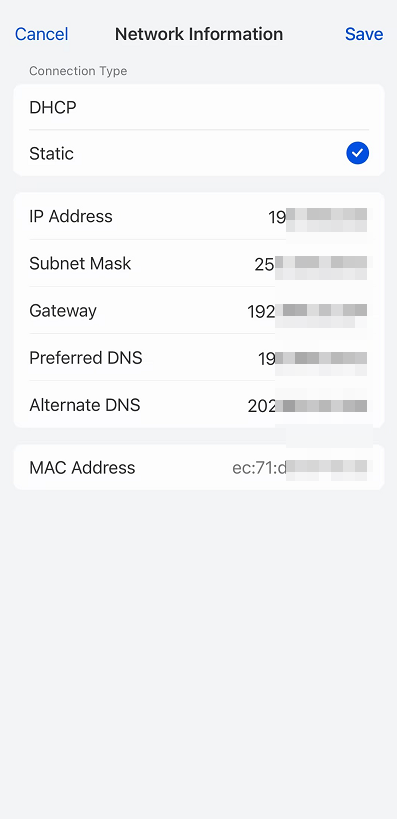

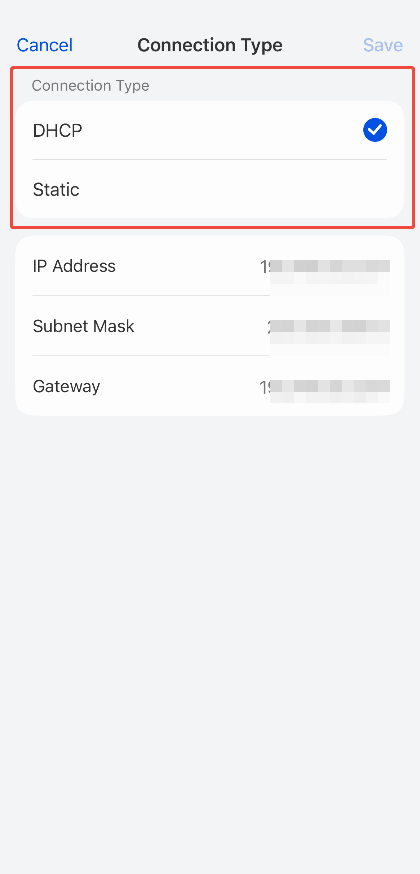

    Step 2. If you need to configure a static IP address for your Reolink device, tap Static. Then you can manually type in the IP Address, Subnet Mask, and Gateway you want to configure for your camera. After entering all the information, please tap Save to save your settings.

    static

  • Via Reolink Client

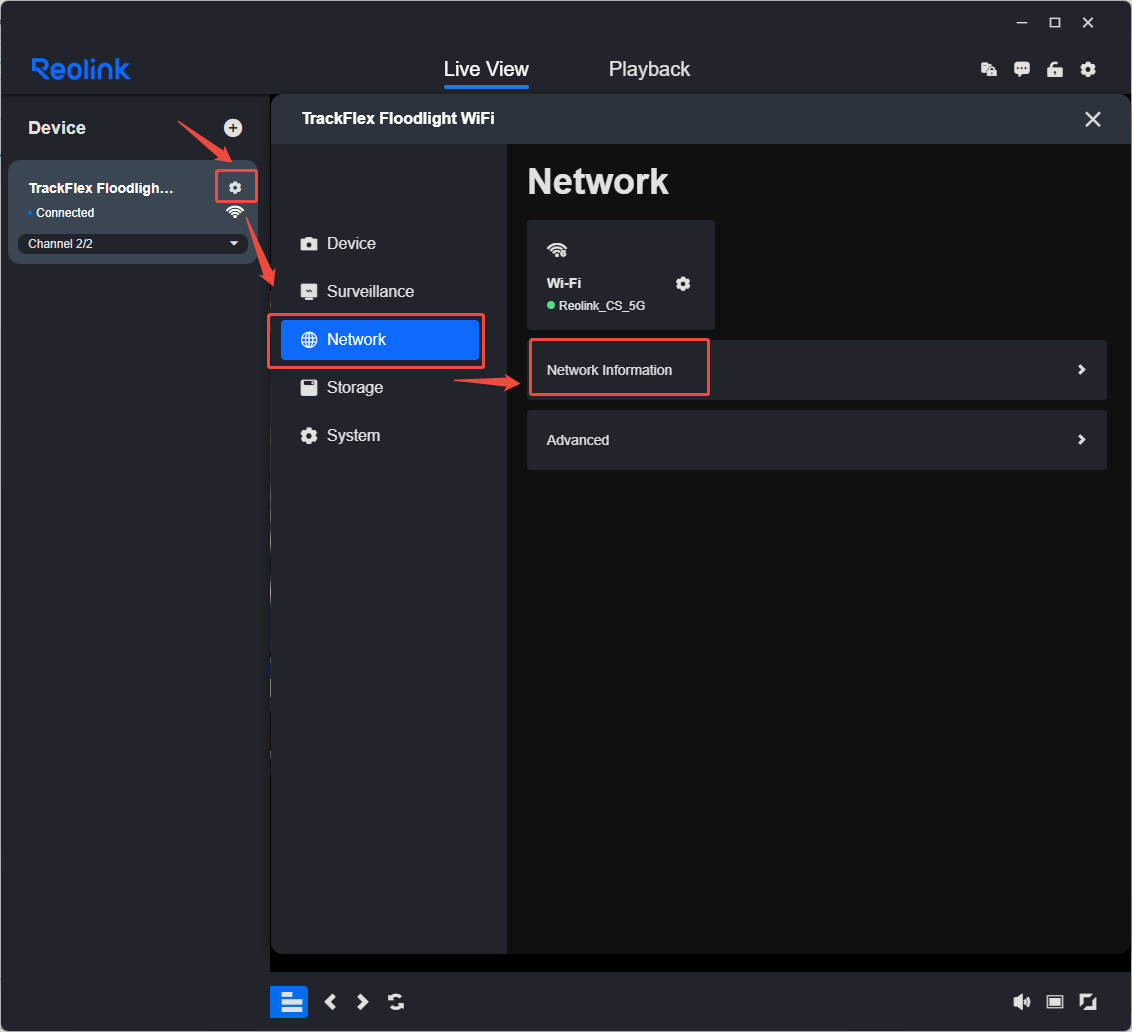

    Step 1. Launch Reolink Client and log in to your Reolink device. Click the Device Settings icon, then go to Network > Network Information page.

    client network info

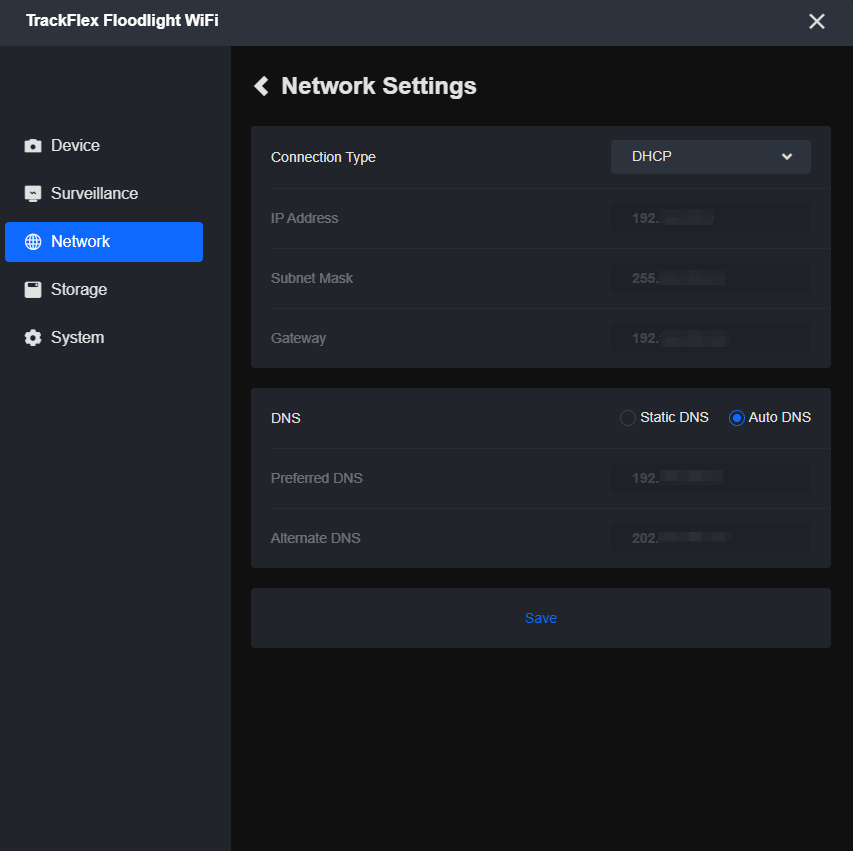

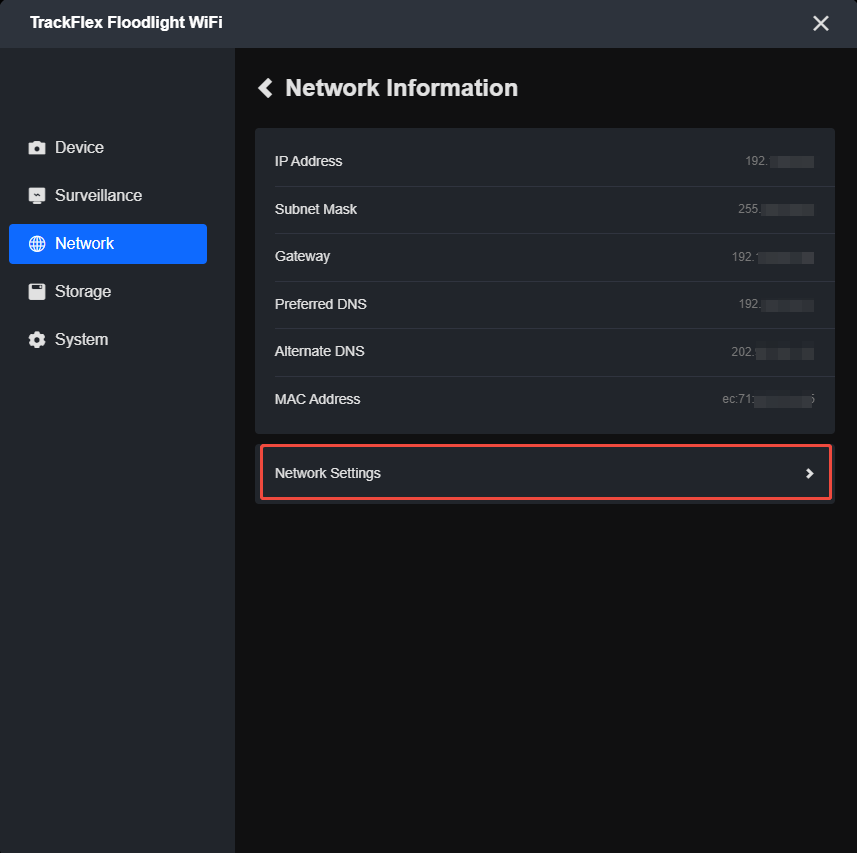

    Step 2. Click and enter Network Settings page.

    client network settings

    For Reolink products, the default connection type is DHCP. The IP address is assigned automatically, which could not be changed manually.

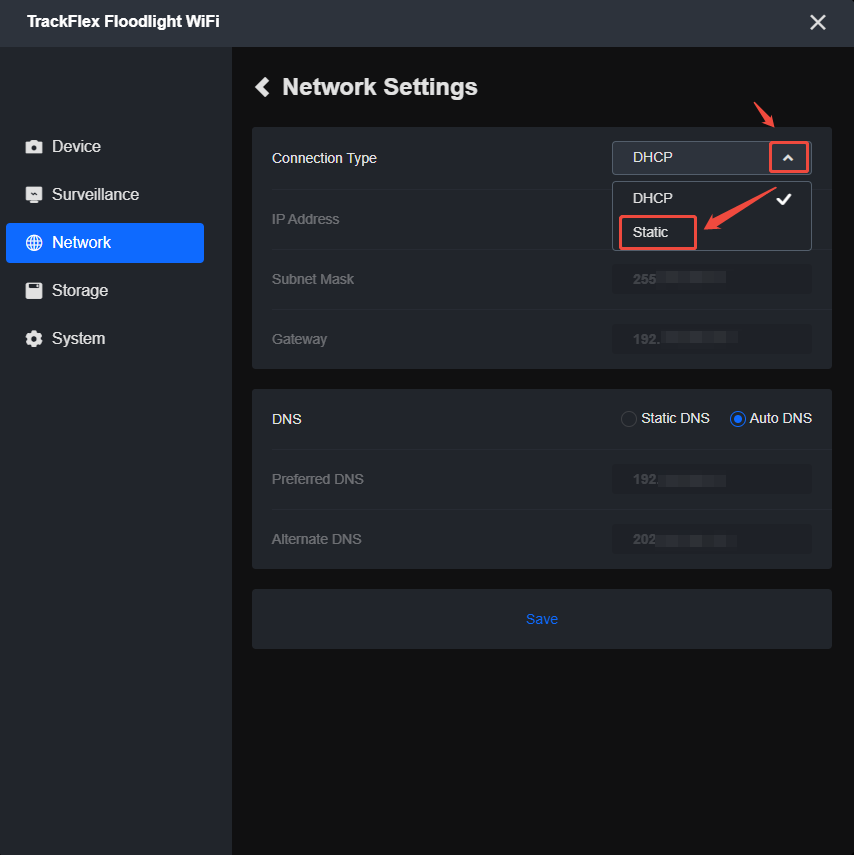

    Step 3. If you need to configure a static IP address for your Reolink device, click the drop-down menu of Connection Type, and tick Static. Now you may manually type in the IP Address, Subnet Mask, and Gateway you want to configure for your camera. After entering all the information, please click Save to save your settings.

    client network Static

  • Via Reolink Web browser

    Applies to: All Reolink devices (except battery-powered ones, Reolink E1, E1 Pro, Reolink Lumus)

    There are two versions of the Reolink web browser, please follow the one you need.

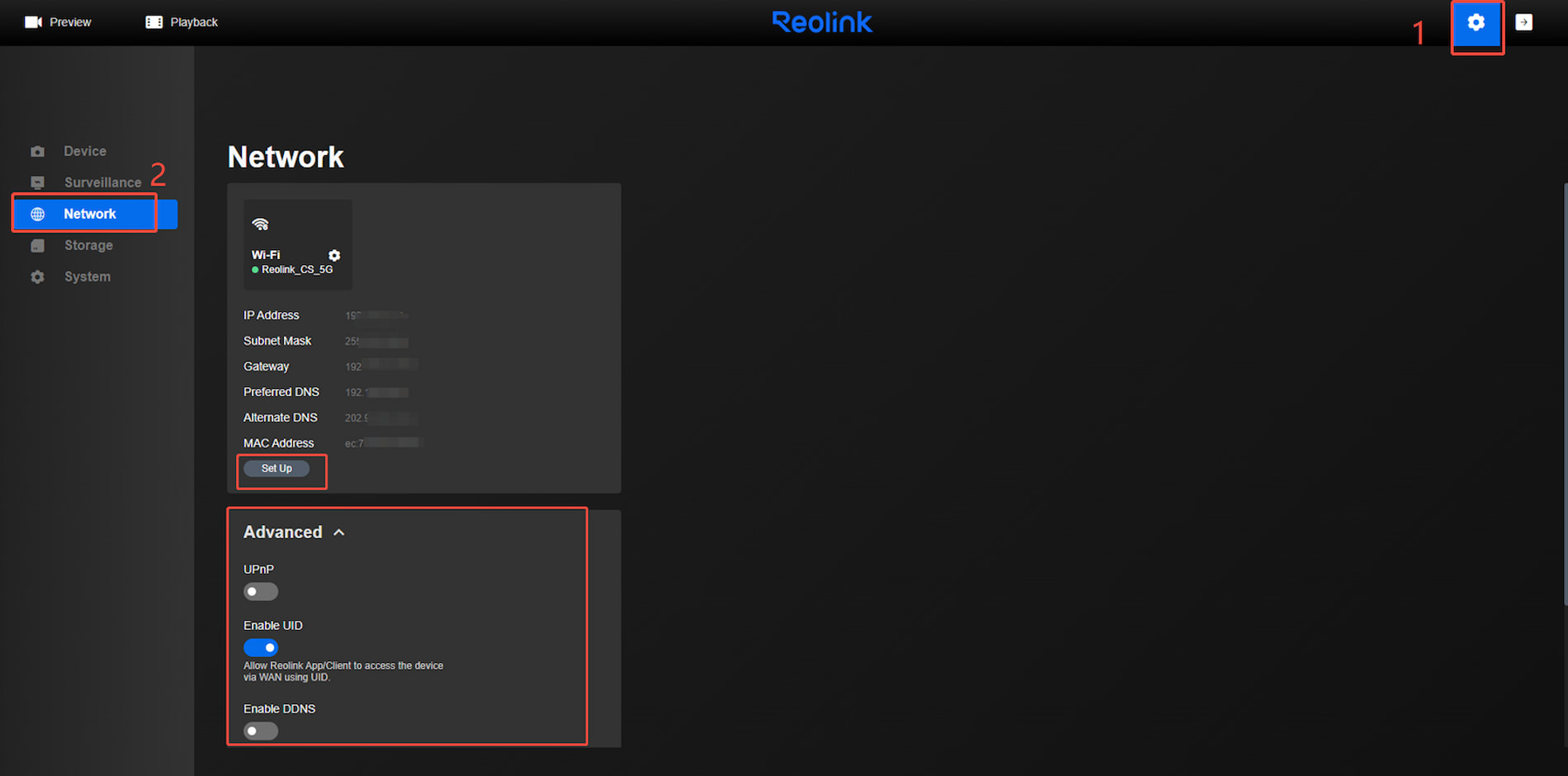

    Step 1. For new UI, log into your Reolink device via the web browser, then go to Device Settings > Network > Set up page.

    web network set up

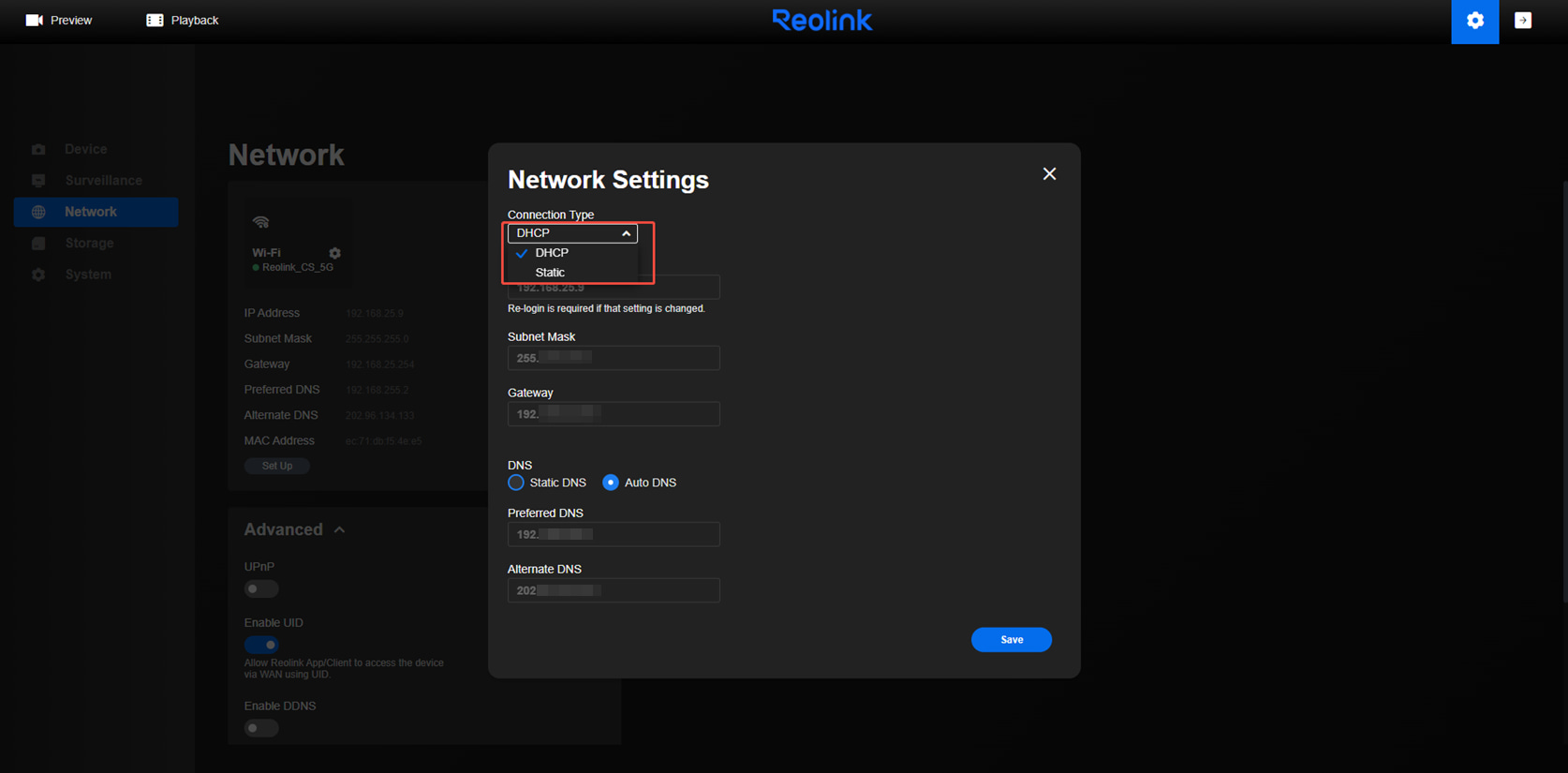

    Step 2. Expand the menu to choose a network access type for your cameras/NVRs, then click Save button to save your settings.

    web server settings

  • Via Reolink NVR (New UI)

    Applies to: RLN8-410 (N7MB01 / NVR_NNT3NA78P), RLN16-410 (N6MB01 / NVR_NNT4NA716P), NVS8 (N7MB01 / NVR_NNT3NA78P), NVS16 (N6MB01 / NVR_NNT4NA716P), RLN12W, RLN36, RP-PN8, RP-PN16

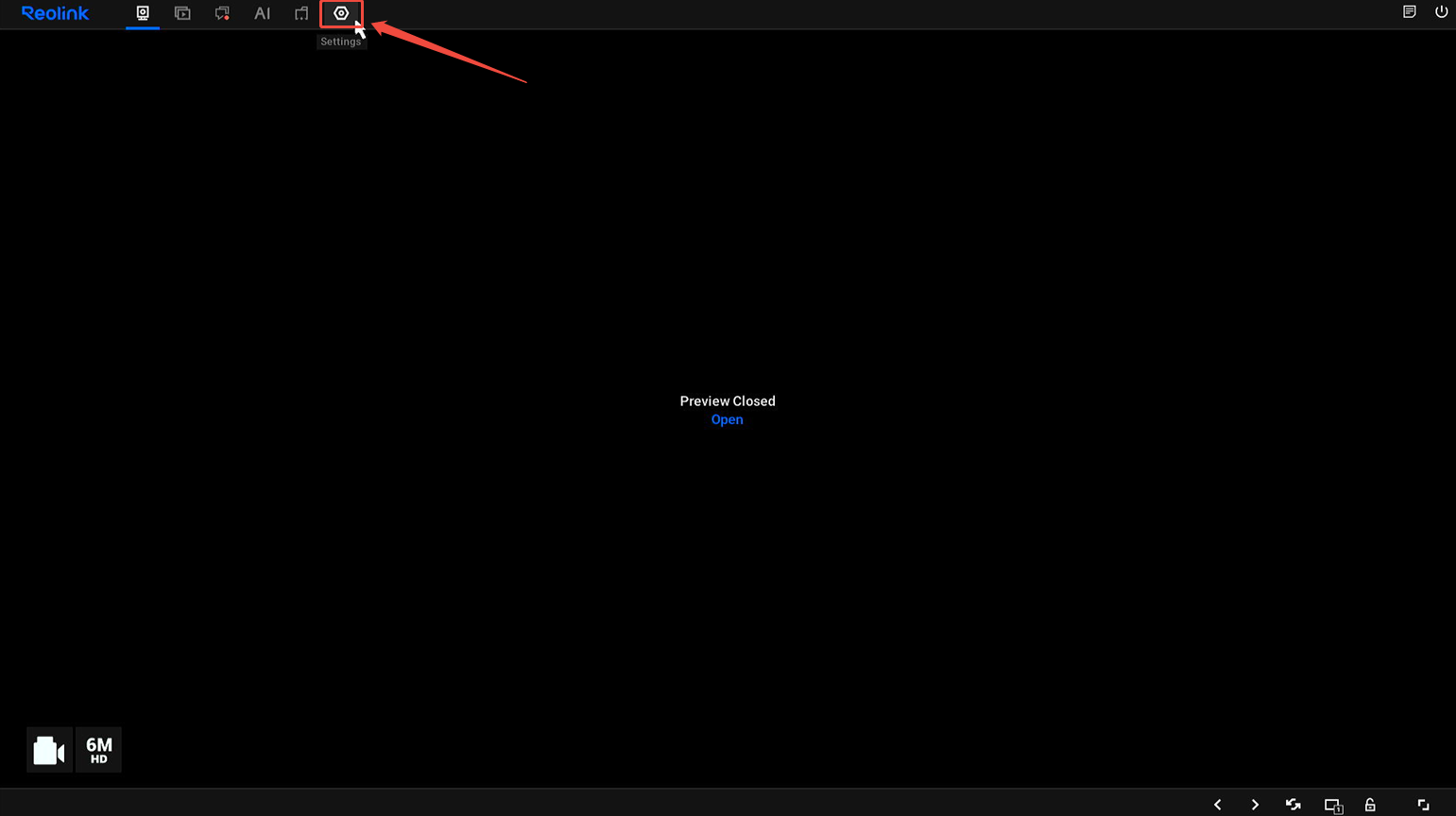

    Step 1. Right-click on the live view page and click the gear icon to go to Settings Menu page.

    nvr settings

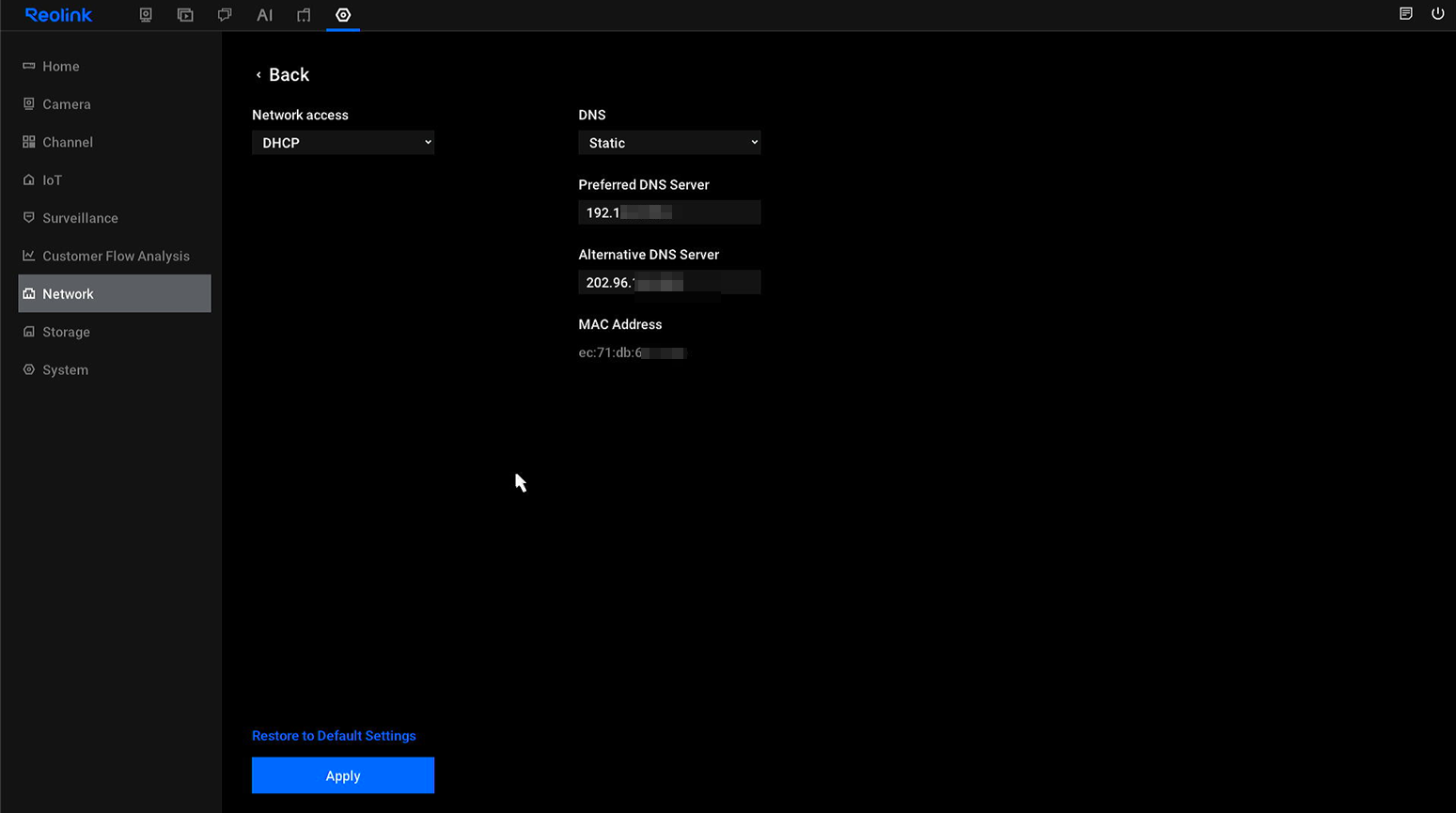

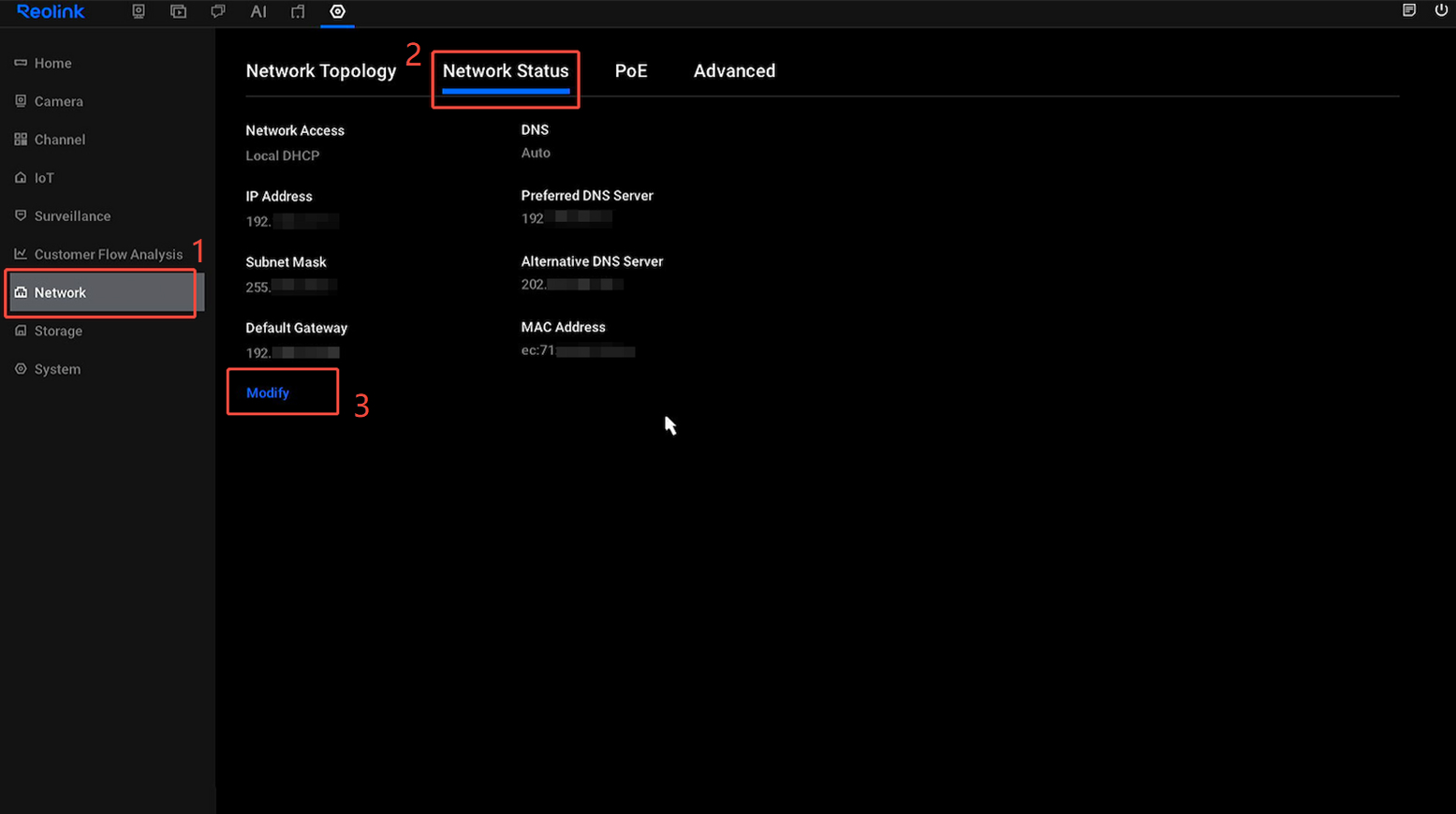

    Step 2. Go to Network > Network Status page. Click Modify at the middle of the page.

    Note: The default network access for Reolink NVR is DHCP. You don't need to change it if you want to set up a DHCP IP address for the NVR.

    NVR Modify

    DHCP

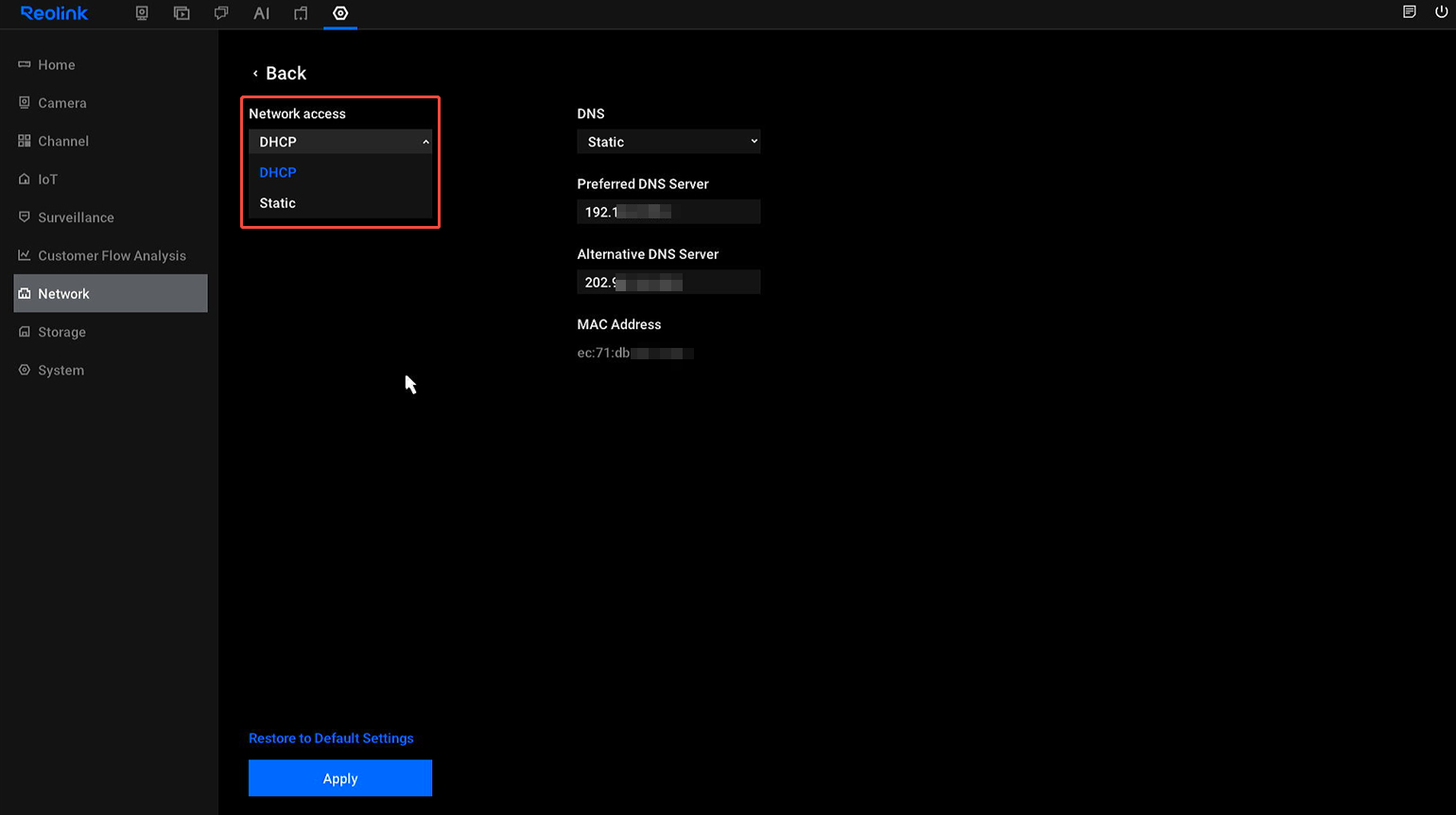

    Step 3. Click the drop-down arrow of Network access and you can change fom DHCP to Static if you want.

    DHCP to Static

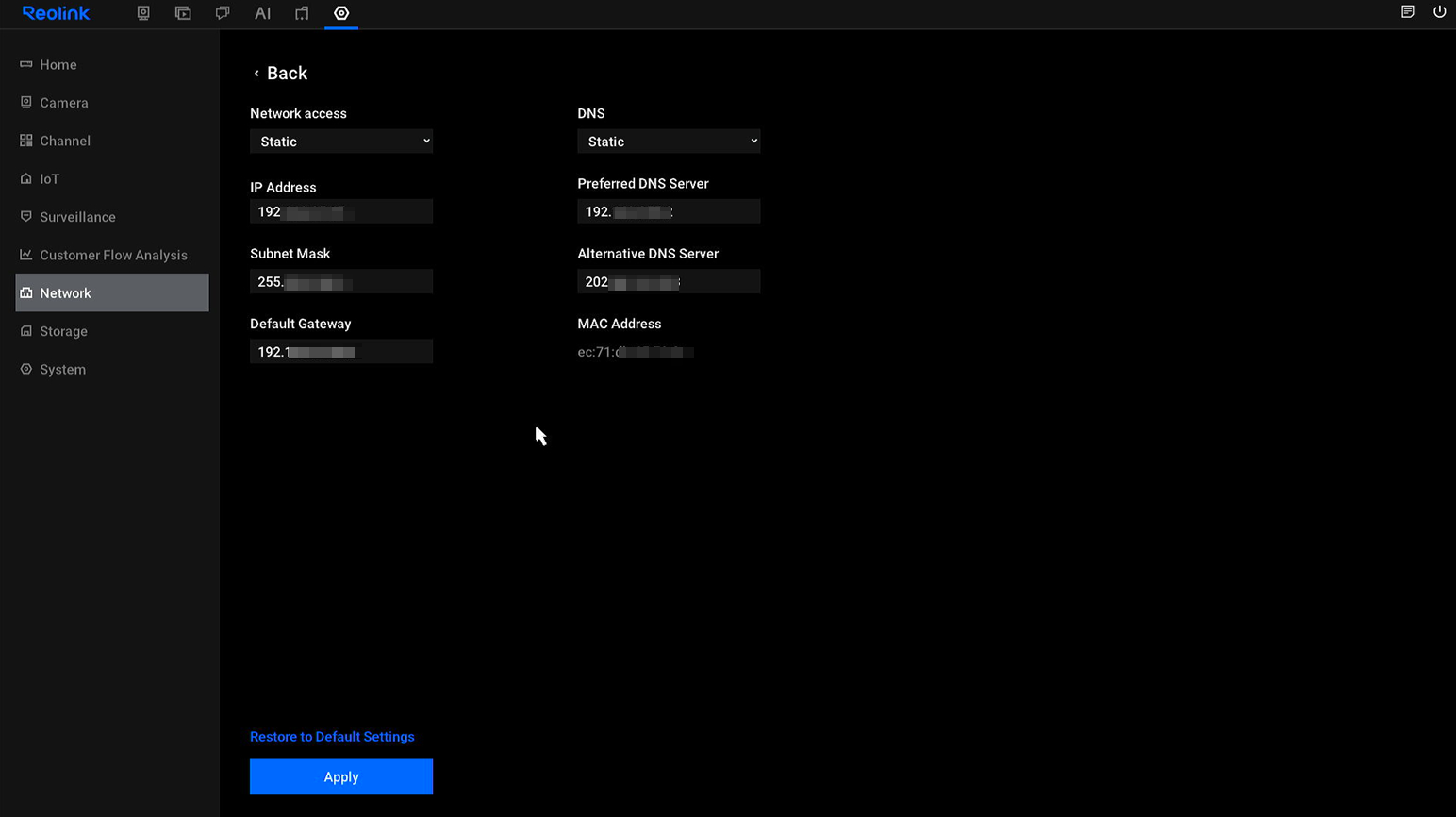

    Static

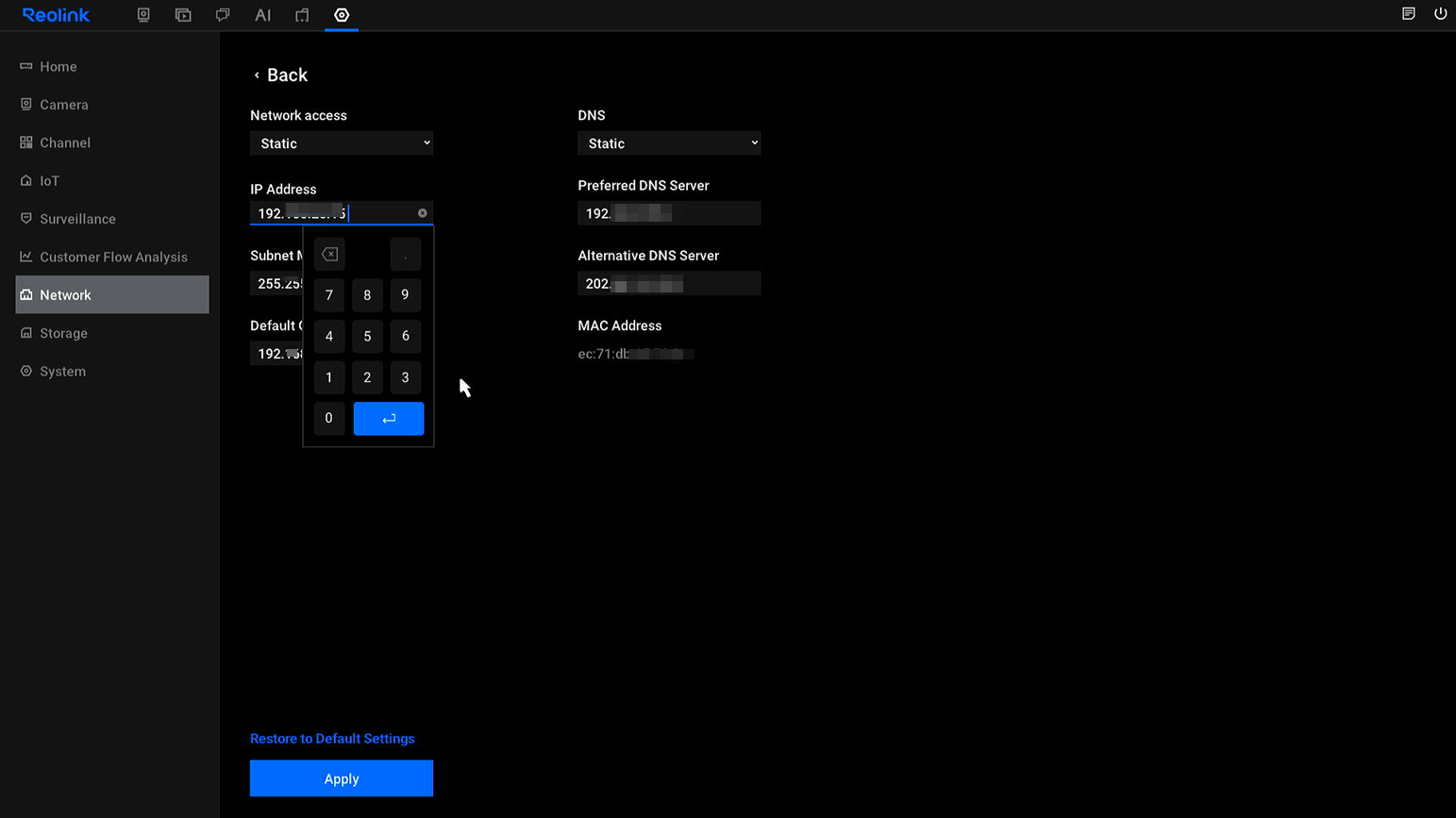

    Step 4. Input all the information needed for setting up static IP address, including the IP address, Subnet Mask, and Default Gateway. Then click Apply to save the settings. And you have change your network access from DHCP to static.

    input IP

  • Via Reolink NVR (Old UI)

    Applied to: RLN4-410 (hardware version H3MB17), RLN8-410 (hardware version H3MB02), RLN8-410-E, RLN16-410 (hardware version H3MB02/H3MB06)

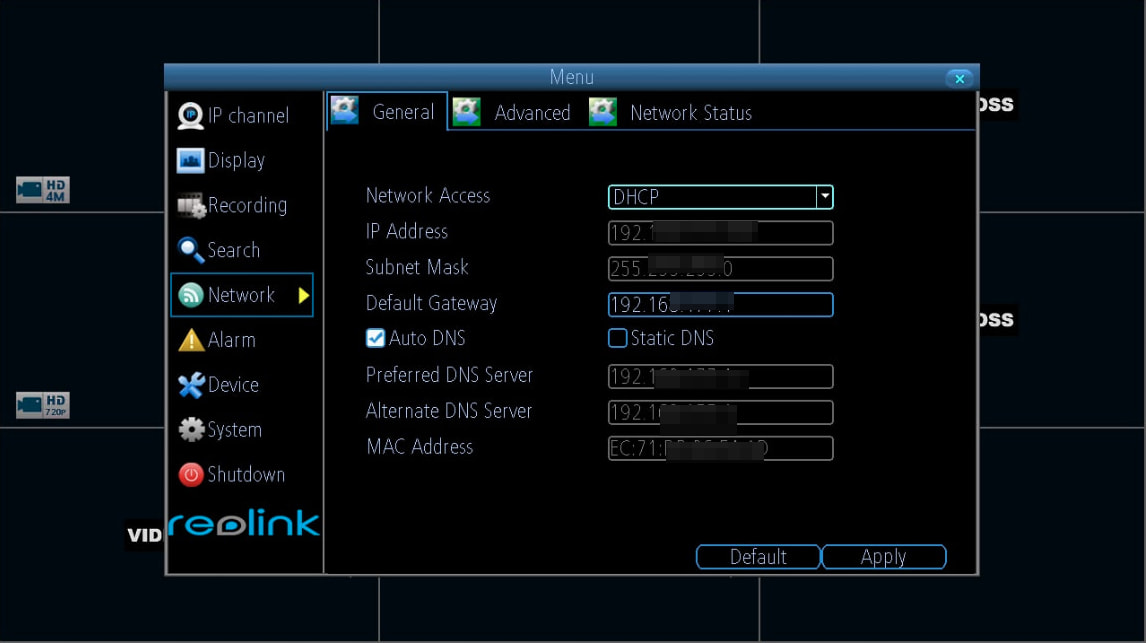

    Log into your Reolink PoE NVR on the monitor, and then go to Menu > Network > General.

    POE main menu

    DHCP old UI

    And then you can set up the network's general settings here. There are 2 options under Network Access:  Static, DHCP.

If you need from help, please contact Support.
