Smart Linking is a feature available on the Reolink Home Hub that gives you greater flexibility in managing your Reolink camera system. By linking your cameras together, Smart Linking helps create a more integrated and efficient security experience, making it easier to automate and coordinate your home surveillance setup.

Applies to: Reolink Home Hub Pro, Hub P1 and Reolink Home Hub, Hub 1

What is Smart Linking

Smart Linking provides a new way to enhance the cameras connected to the Reolink Home Hub by enabling automation. It works as follows: when Device A meets a specific condition, Device B will automatically perform a predefined action. For example, you can set up a rule so that when Camera A detects a person, Camera B starts recording, or when Camera A detects motion, Camera B triggers the siren. This feature gives you more flexibility to customize your security system, offering a more convenient and personalized experience.

In addition, for users of Reolink Video Doorbells and Chimes, you can also link doorbells with the Chime.

Note: Camera-to-camera linking is currently supported only on the Reolink Home Hub Pro and Hub P1.

How to Configure Smart Linking

Currently, Smart Linking can only be configured in the Reolink App.

  • With Reolink Camera

    Step 1. Access the Smart Linking Page

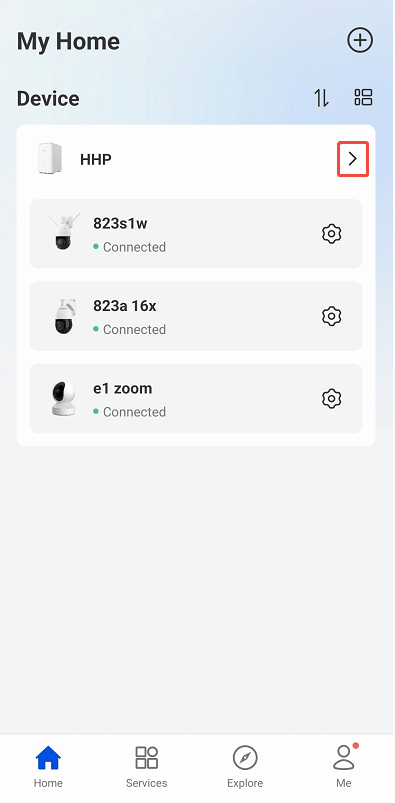

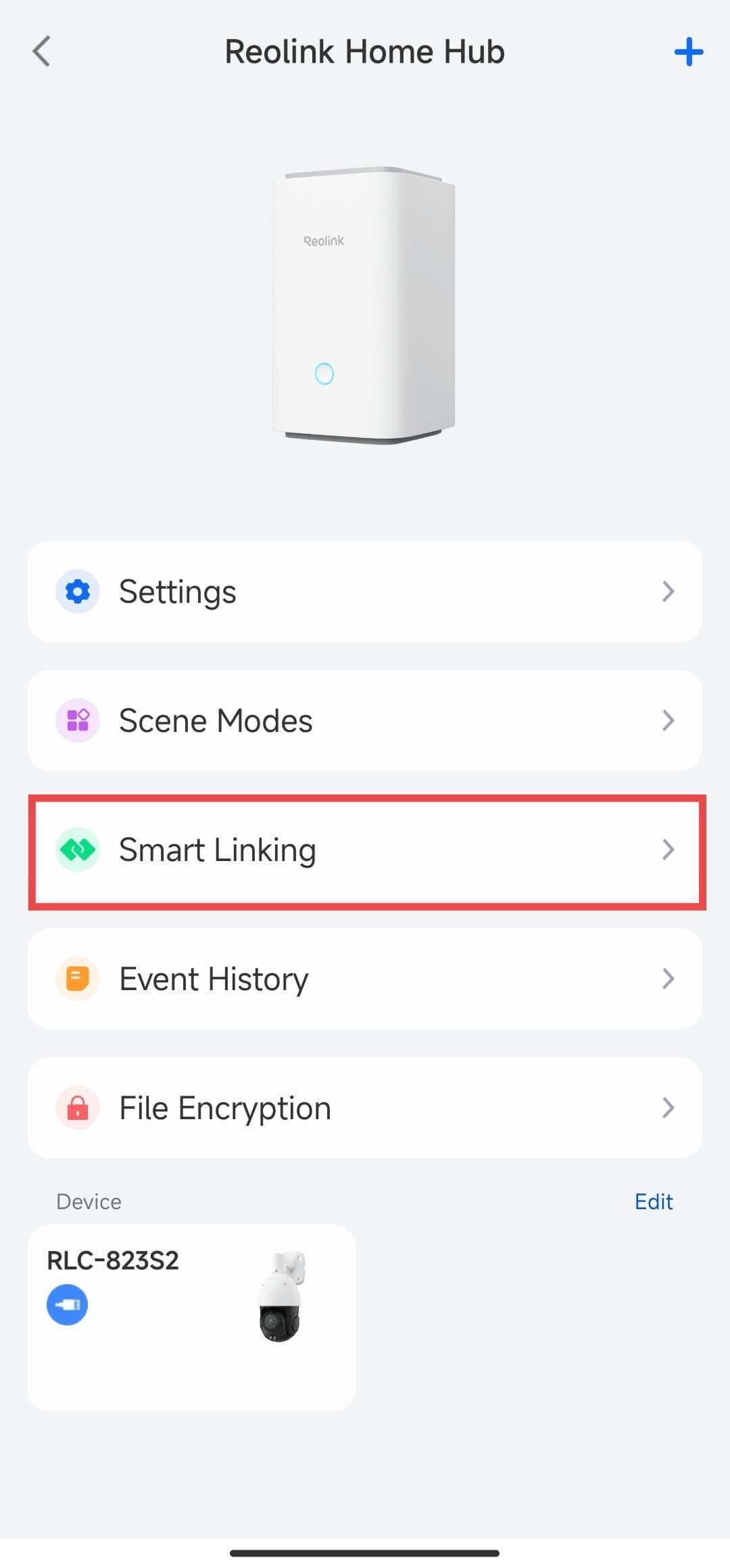

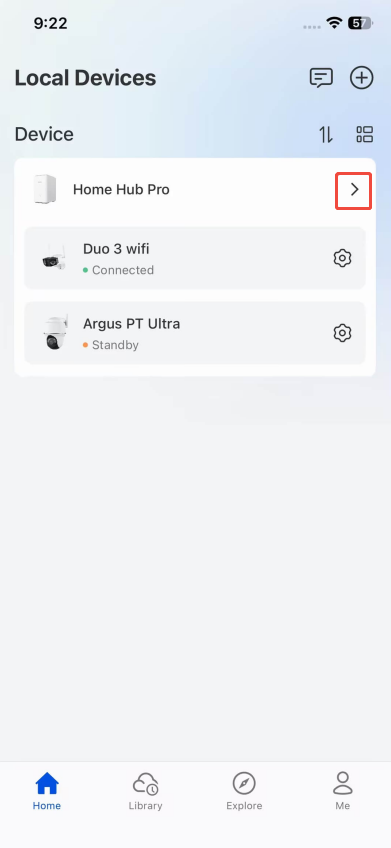

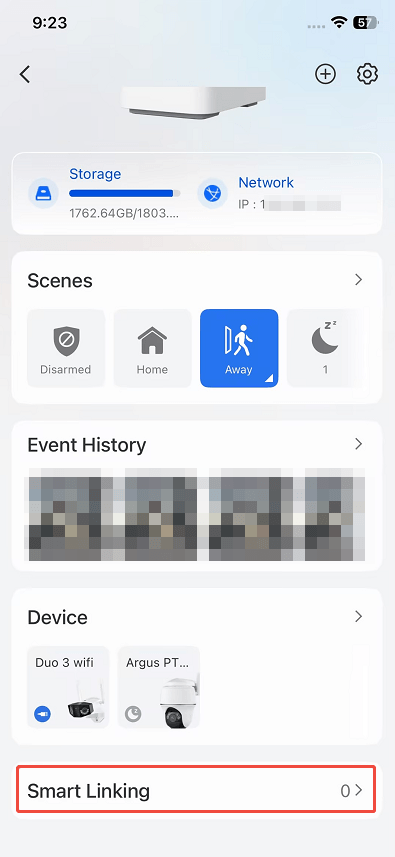

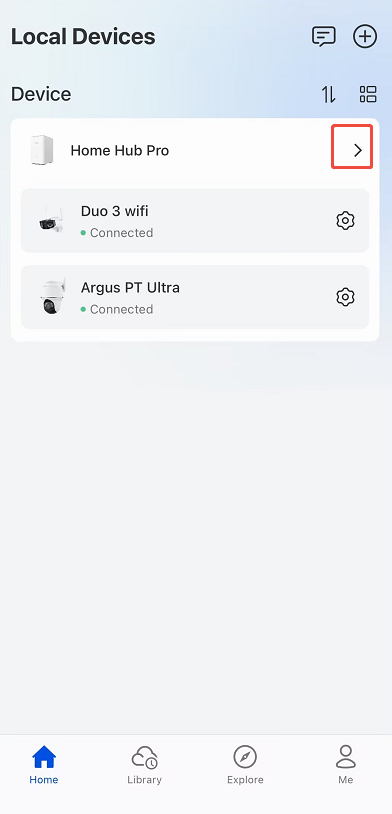

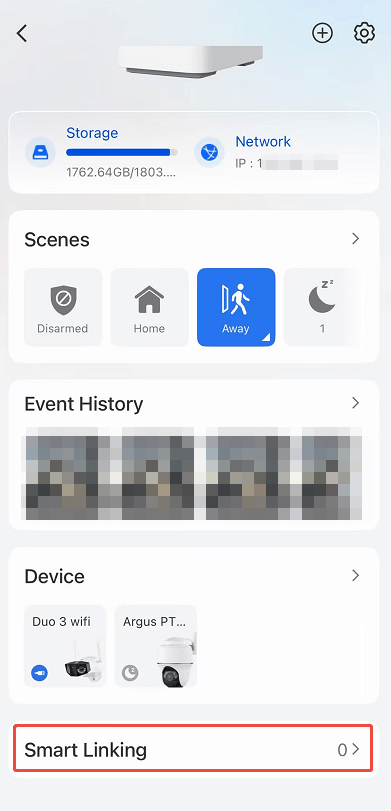

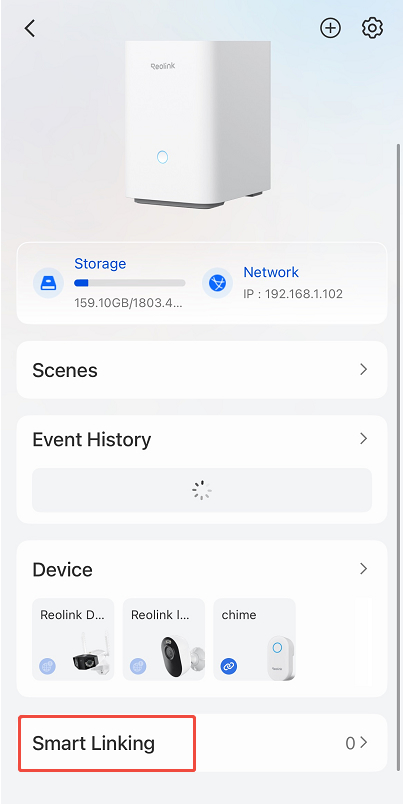

    Locate your Reolink Home Hub, tap arrow and go to Smart Linking configuration page.

    device list  smart linking

    Step 2. Start to create a new automation

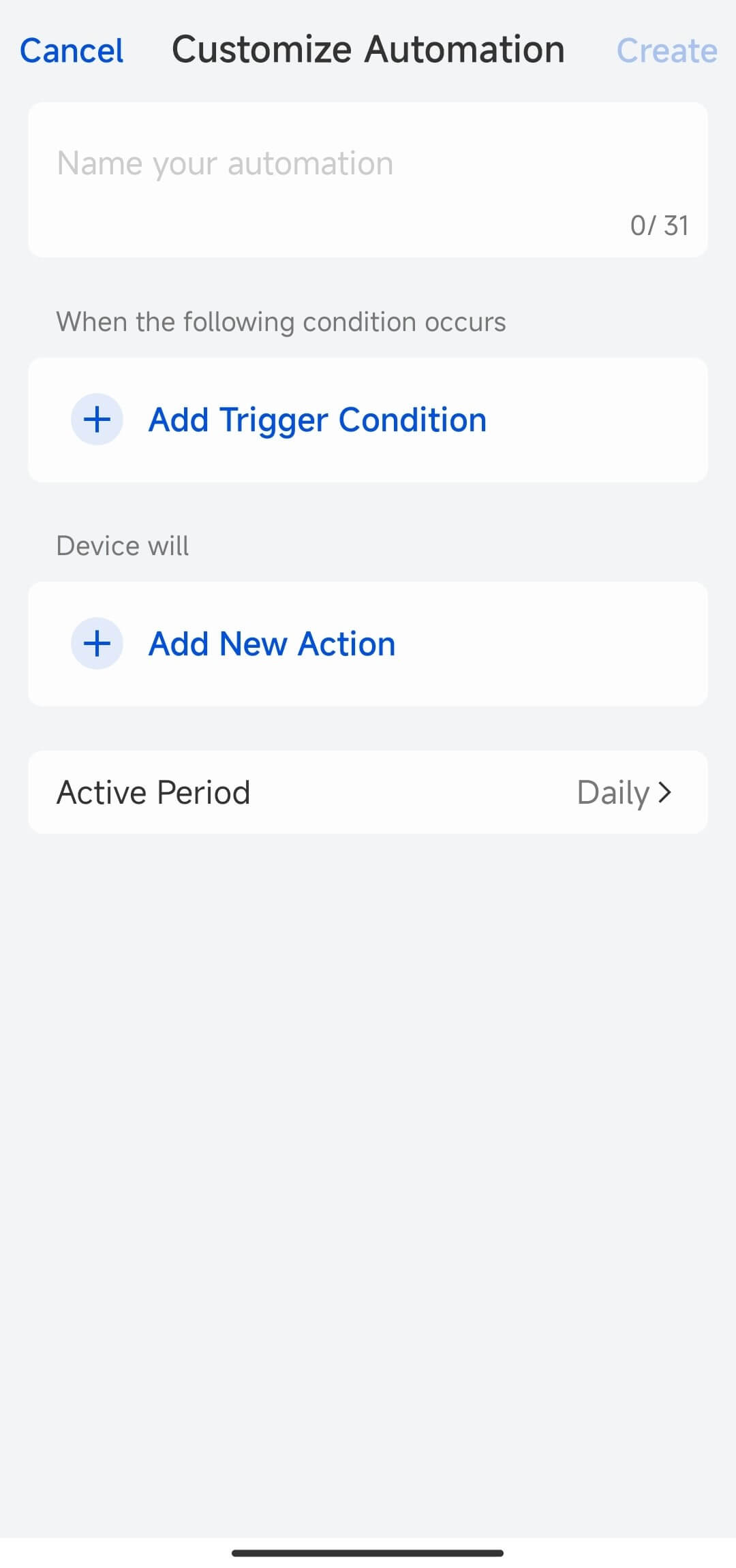

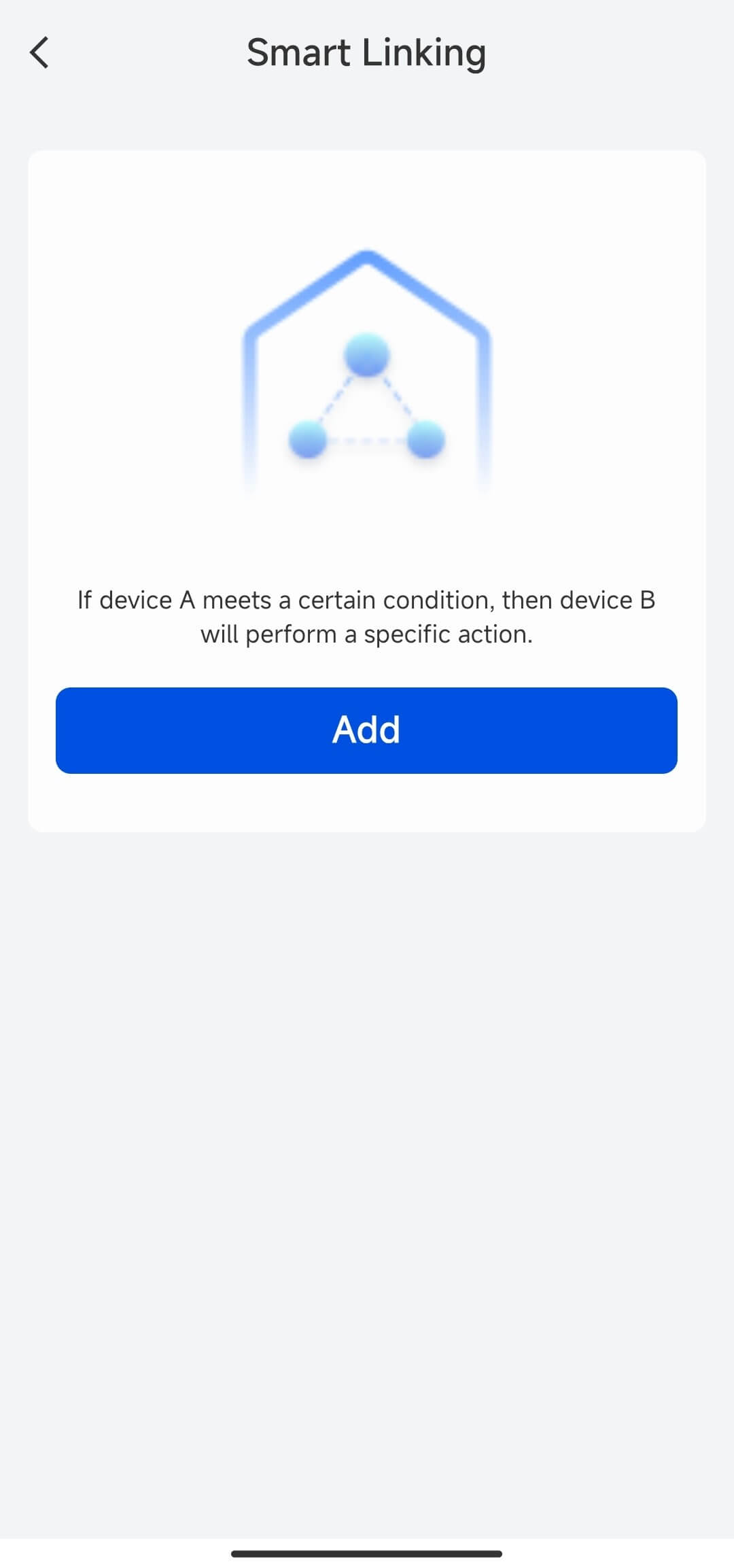

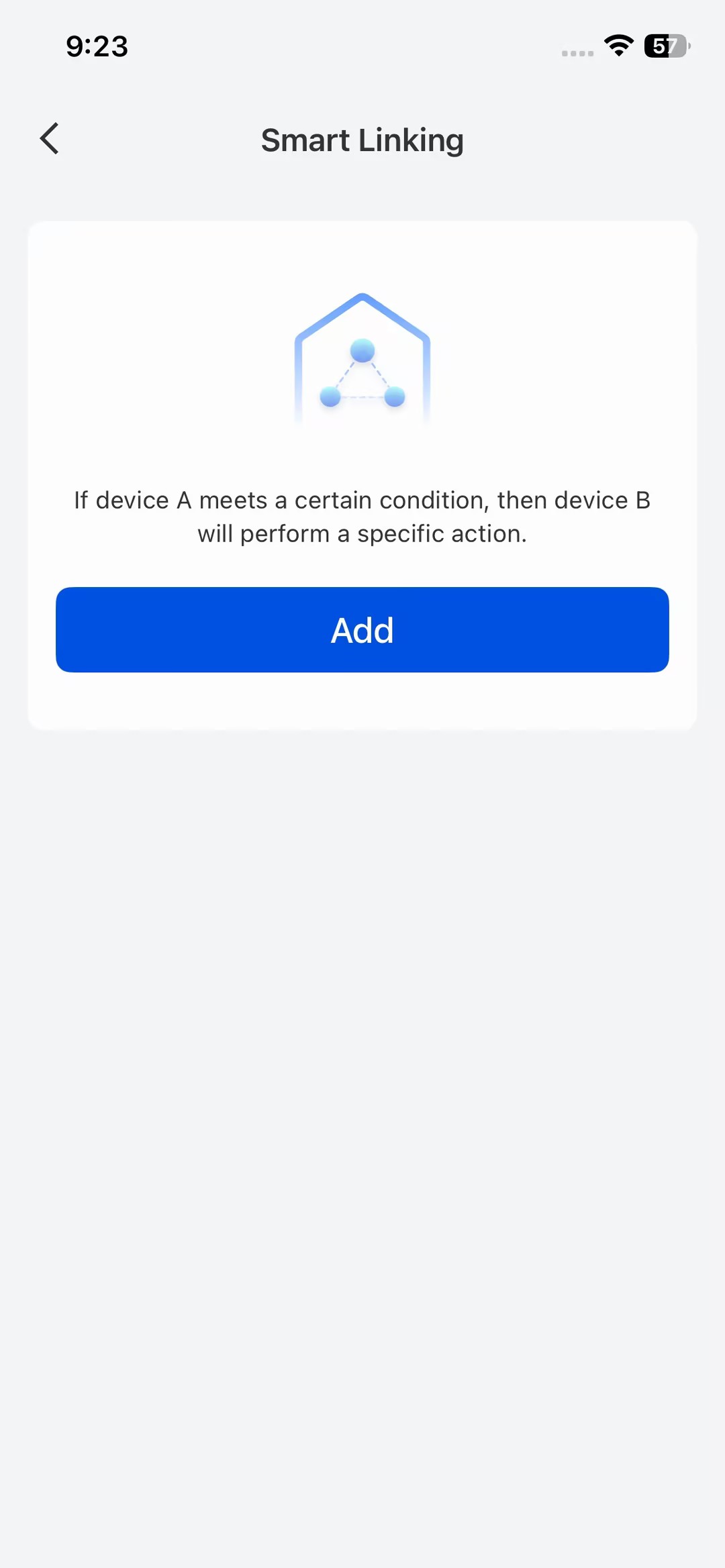

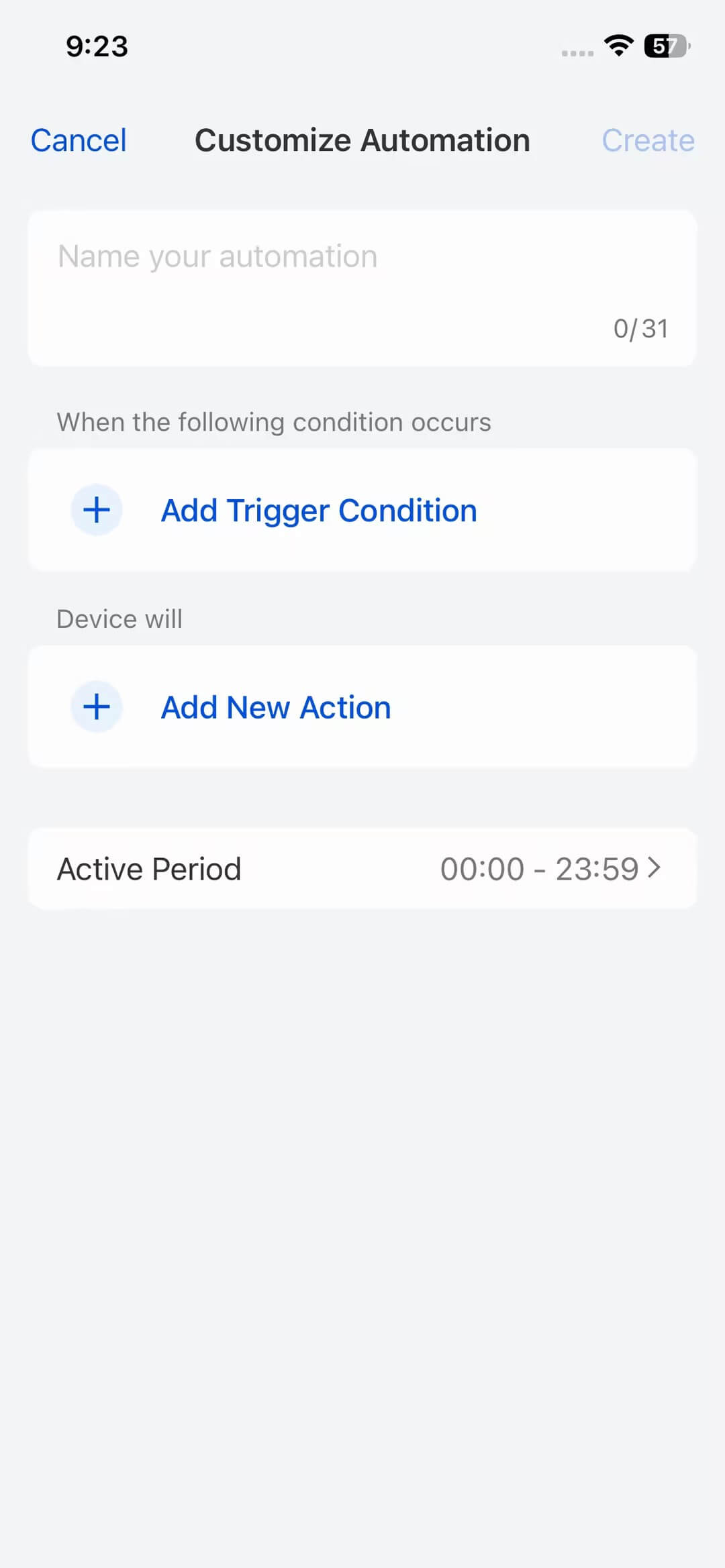

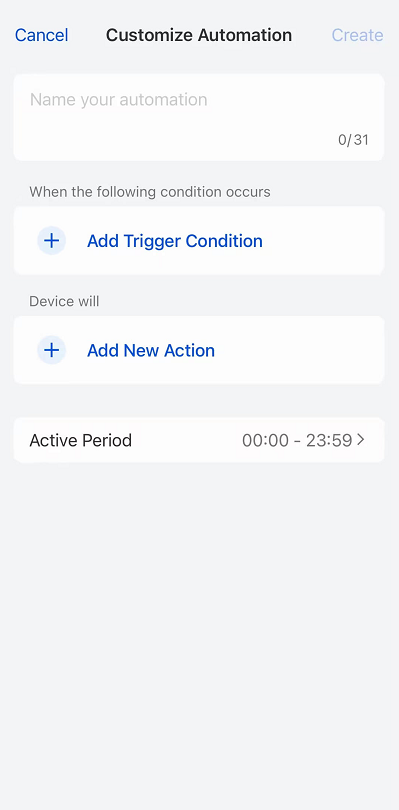

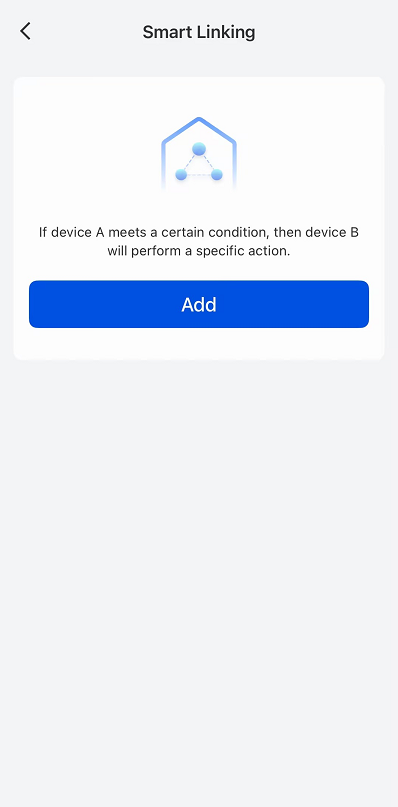

    Tap Add to customize automation, then name your automation.

    Add  customize

    Step 3. Add Trigger Condition

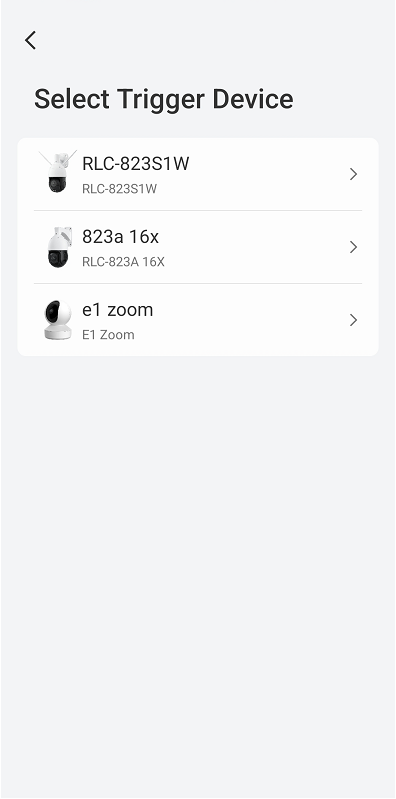

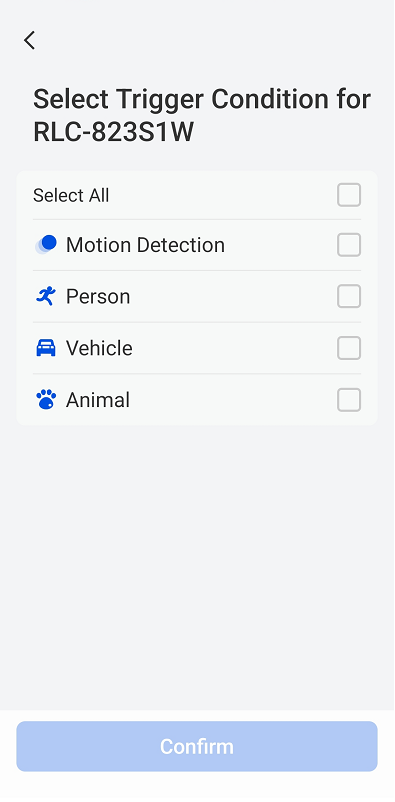

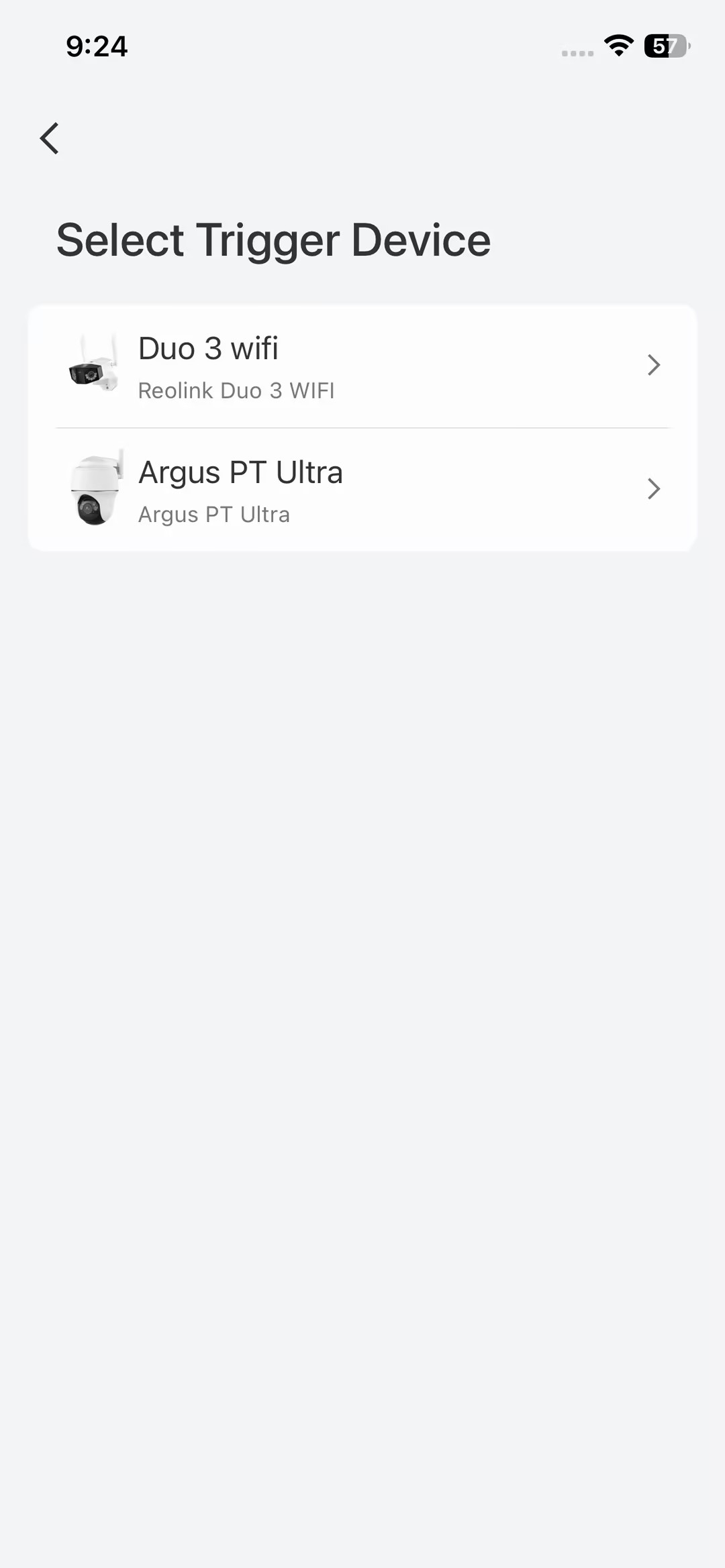

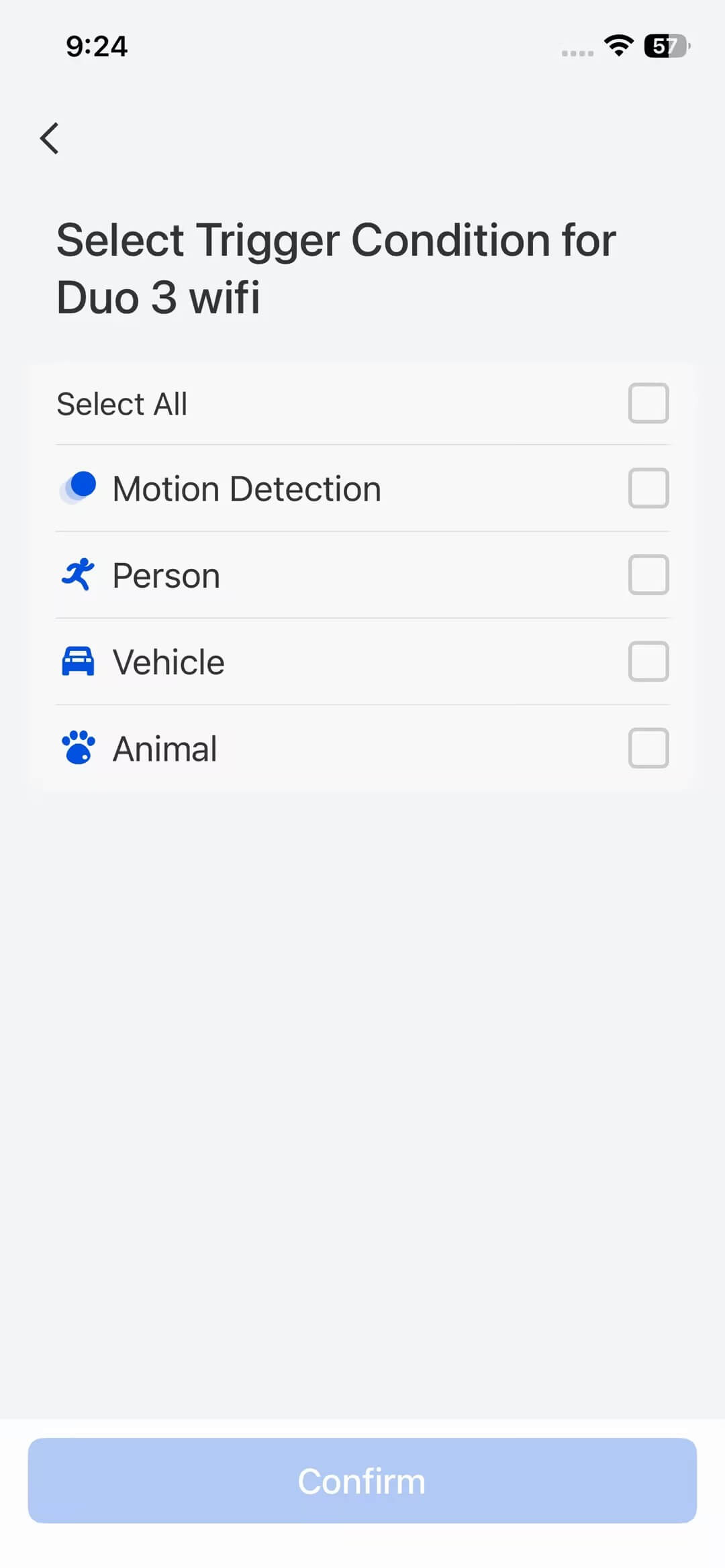

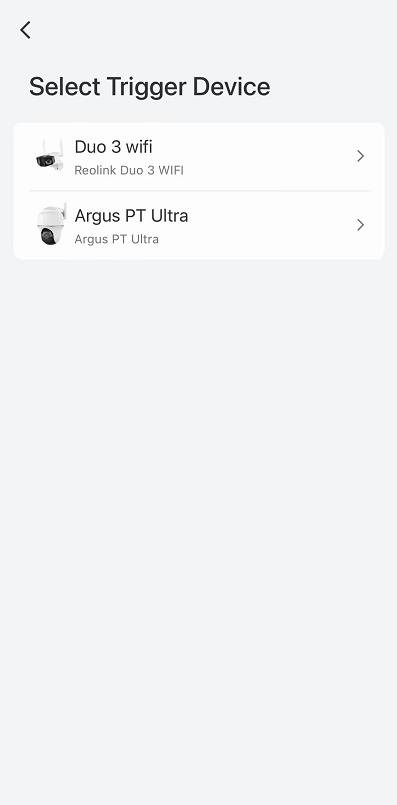

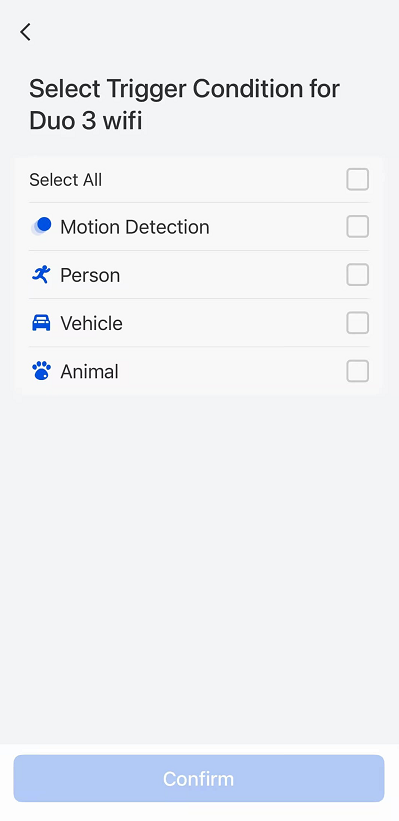

    Select the camera you want to detect an alarm, then choose the corresponding detection type. For example, here we use the Duo 3 WIFI as a sample camera.
    select trigger device  select trigger condition for duo 3 wifi

    Step 4. Add New Action

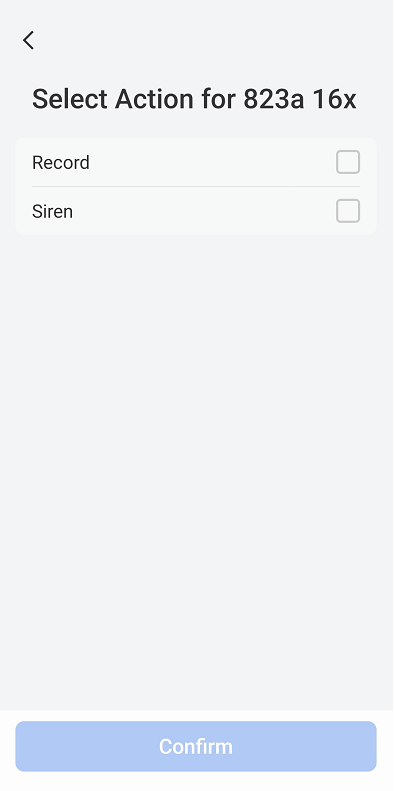

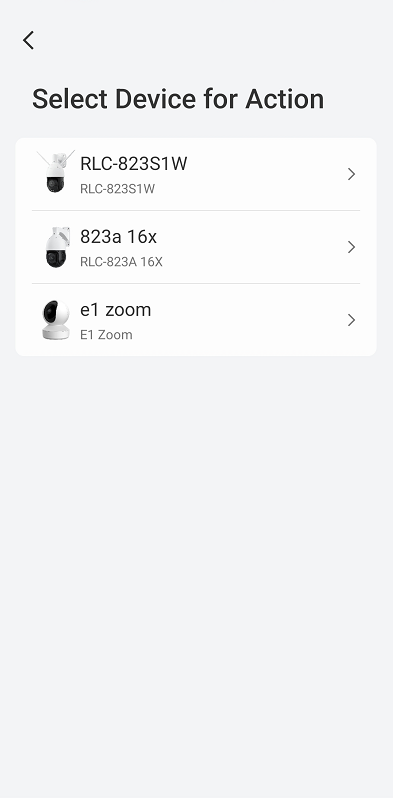

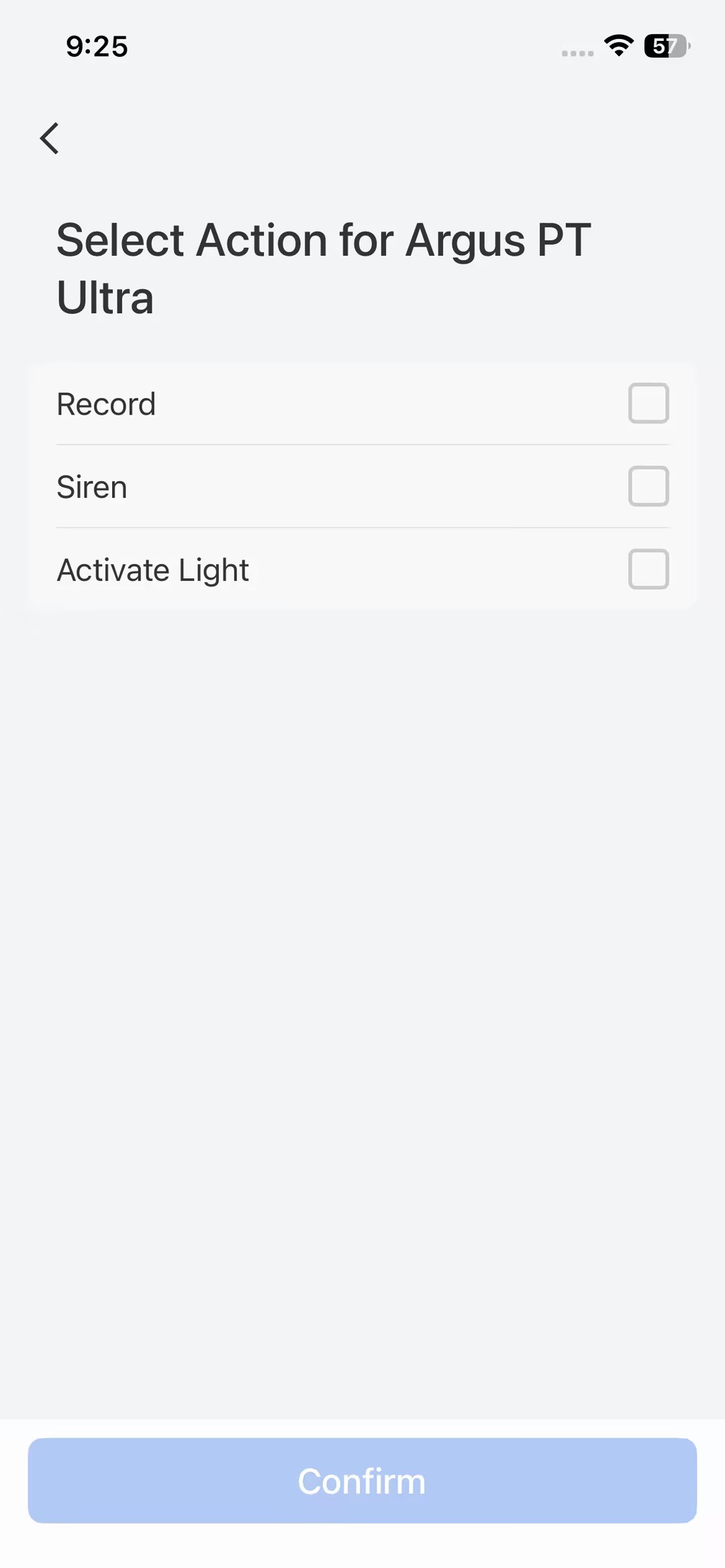

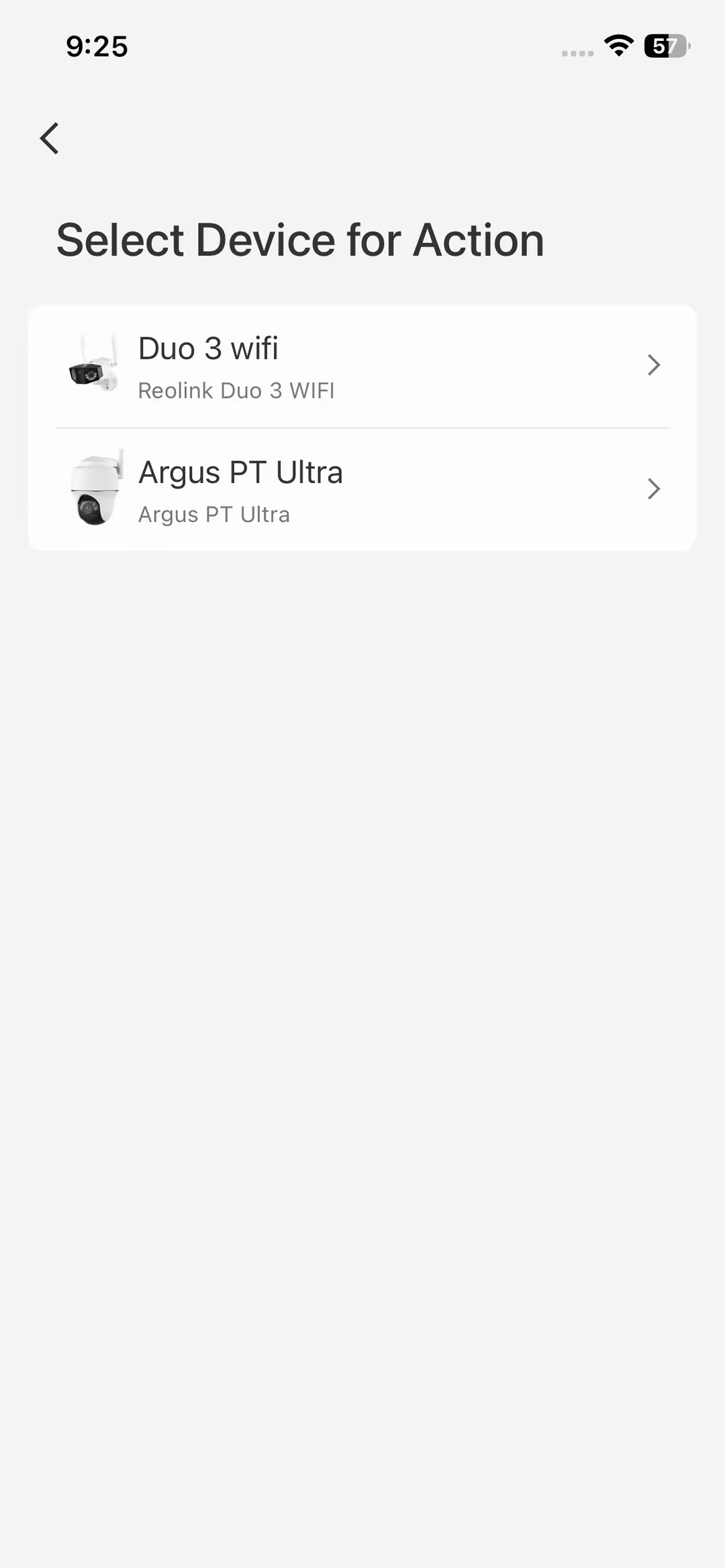

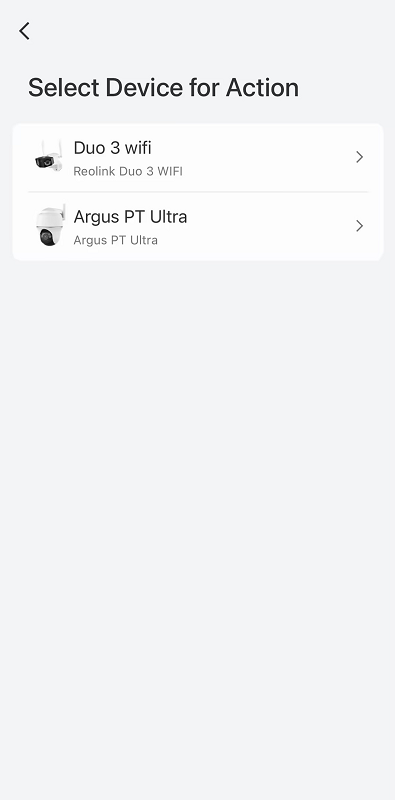

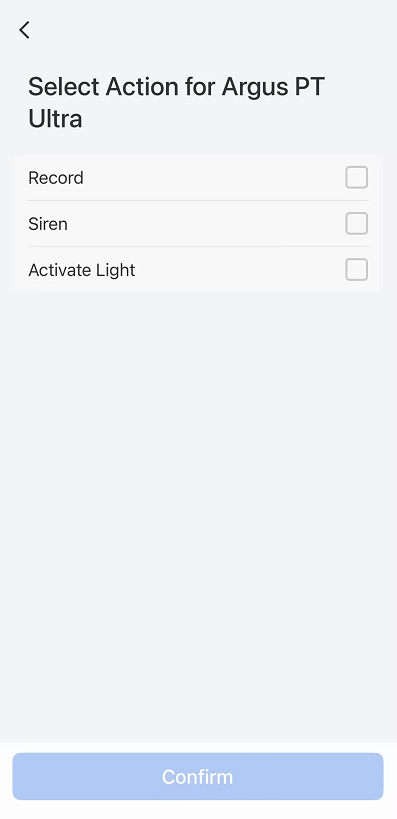

    Select the camera you want to link and the action to perform. For example, here we use Argus PT Ultra as a sample camera.

    select device for action  select action for argus pt ultra

    Note: The trigger condition and action options vary from the camera models.

    Step 5. Set an Active Period

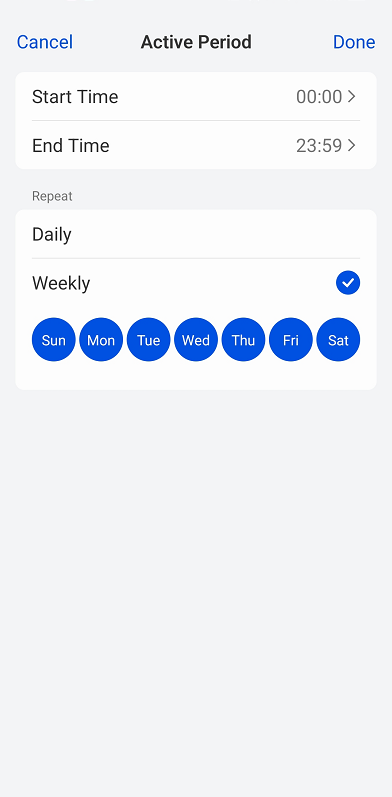

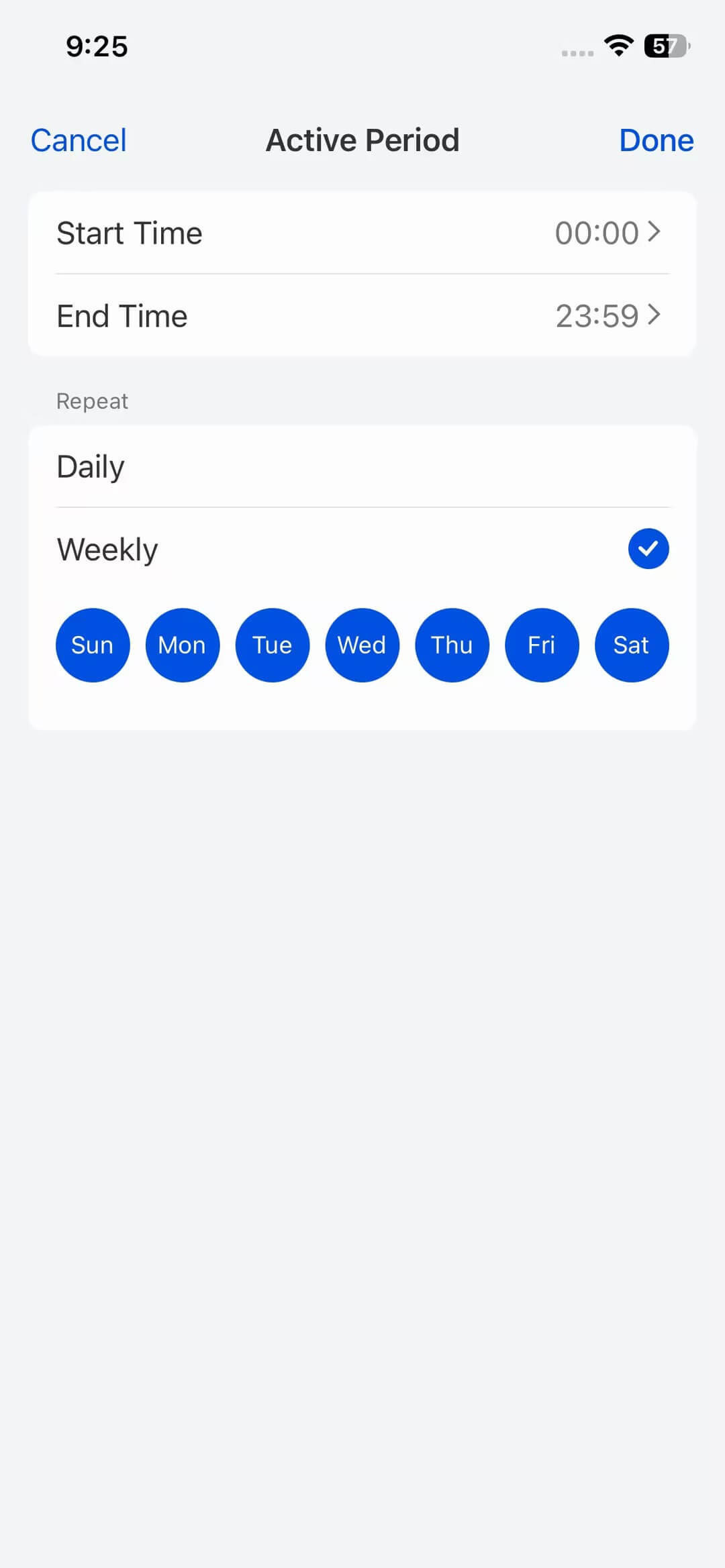

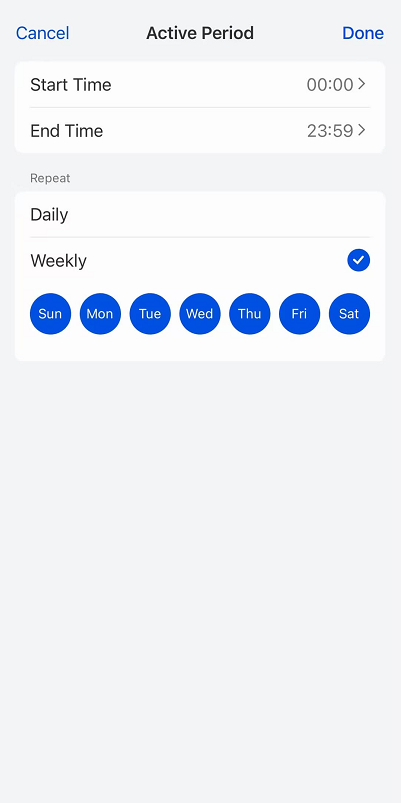

    Configure the time period during which the automation will be active. You can choose to repeat every day or on specific days of the week. When finished, tap Done.

    active period

    Step 6. Complete the linking

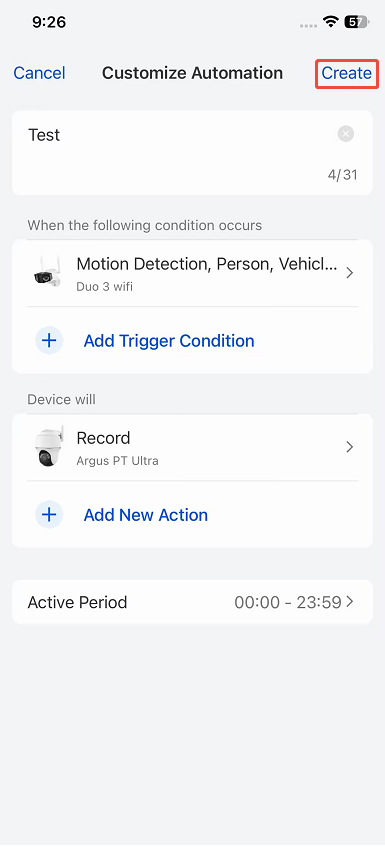

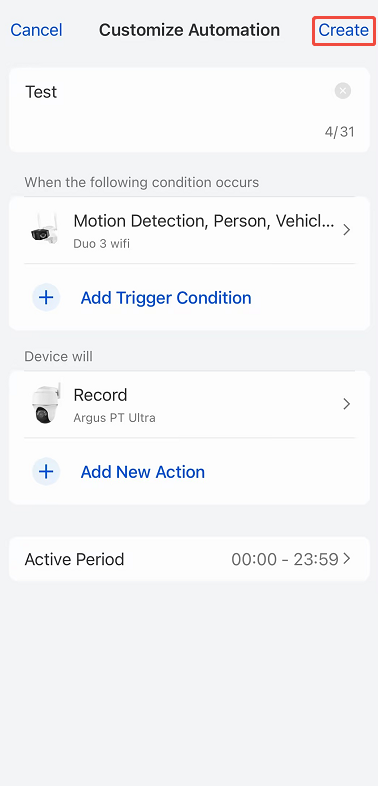

    Tap Create to apply your configuration. As shown in the image, this example represents an automation where the Duo 3 WIFI camera, when detecting motion, people or vehicles, will trigger the Argus PT Ultra camera’s record.

    create

    Additional configuration:

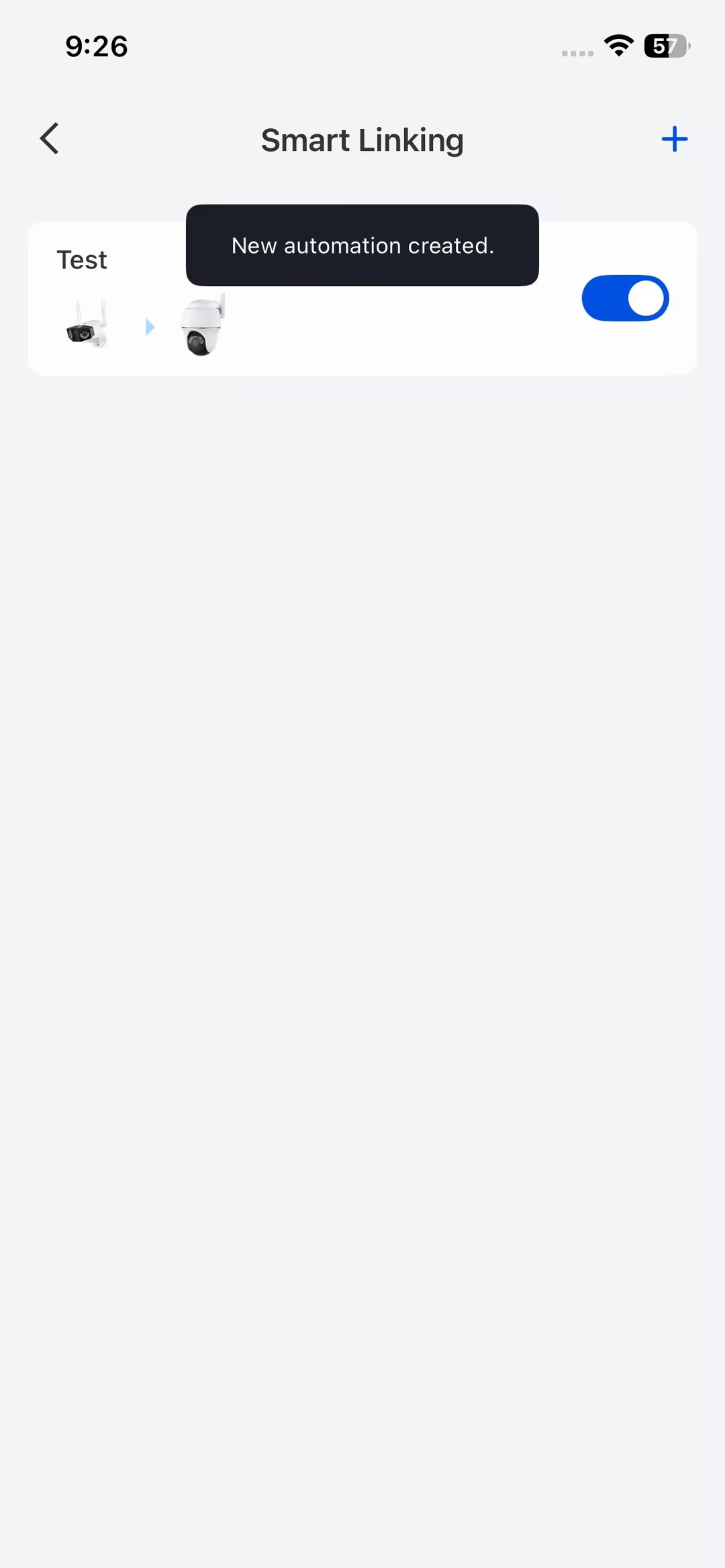

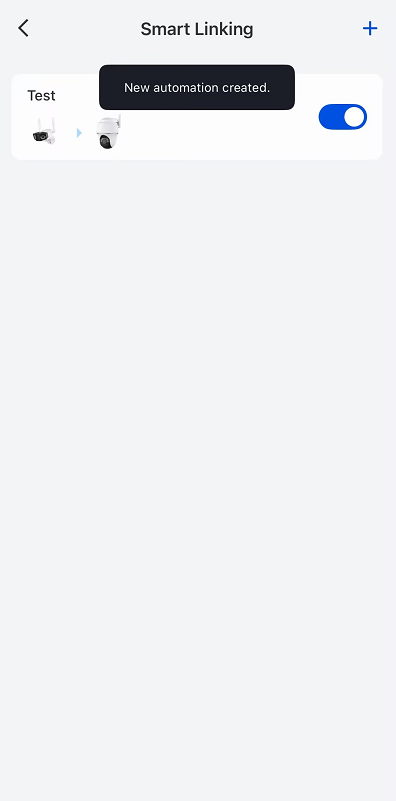

    • To add more automation, tap the + icon in the top right corner and repeat the setup steps.

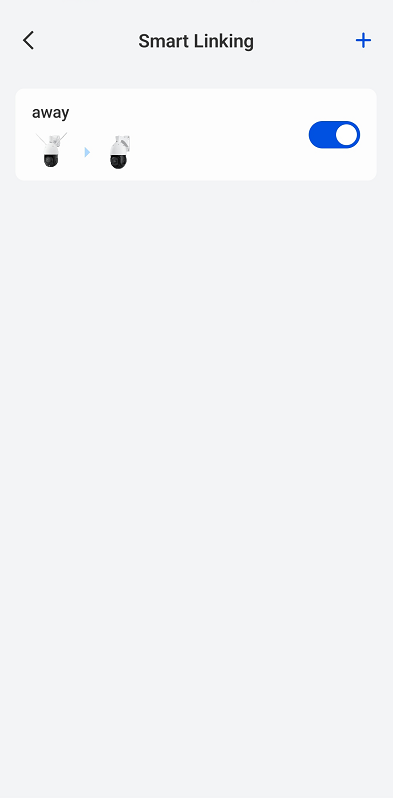

    • To disable automation, toggle the switch off.

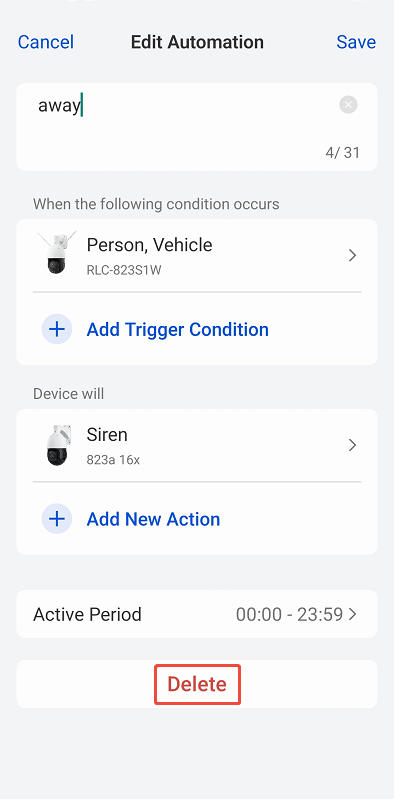

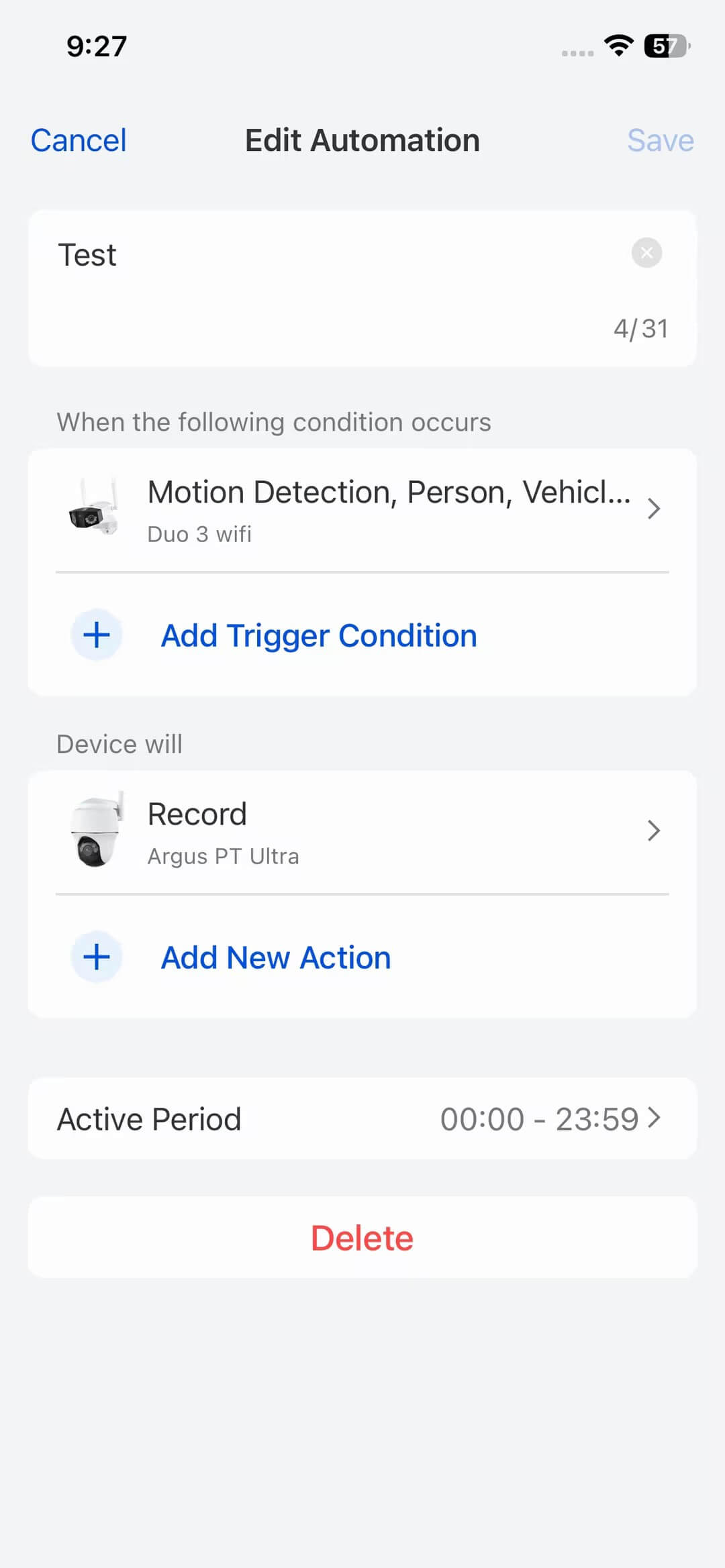

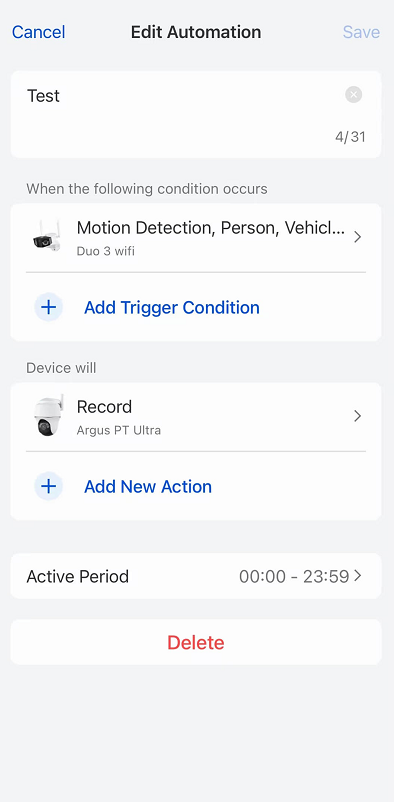

    • To edit or delete automation, tap the automation to enter the editing page, then tap Delete at the bottom.

    Test  Delete

  • With Reolink Chime

    Applies to: Reolink Home Hub, Reolink Home Hub Pro, Chime V2.

    Note: Chime V1 is not supported.

    To pair Reolink Chime with a Doorbell, you will need to add the Chime as a separate device to the Reolink Home Hub. Then, use the Smart Linking feature to link the Chime to the Doorbell.

    Step 1. Add Reolink Chime to Home Hub

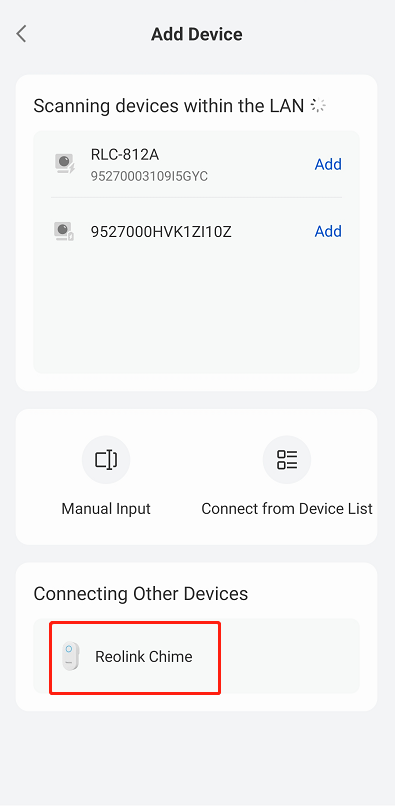

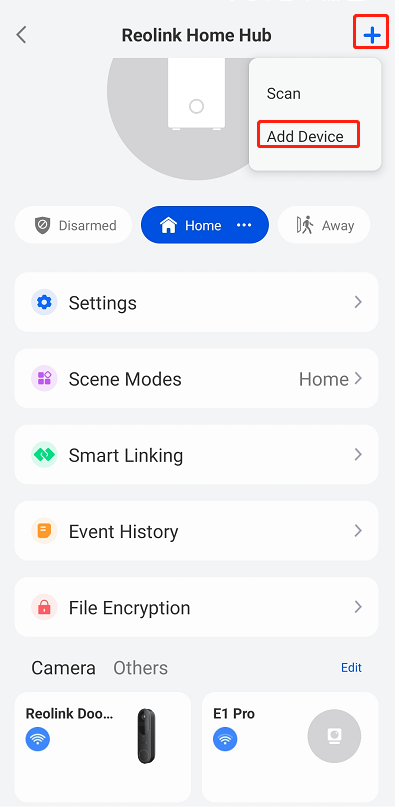

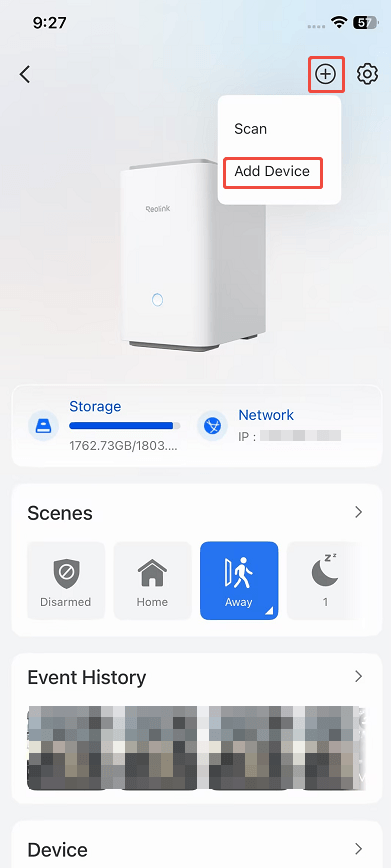

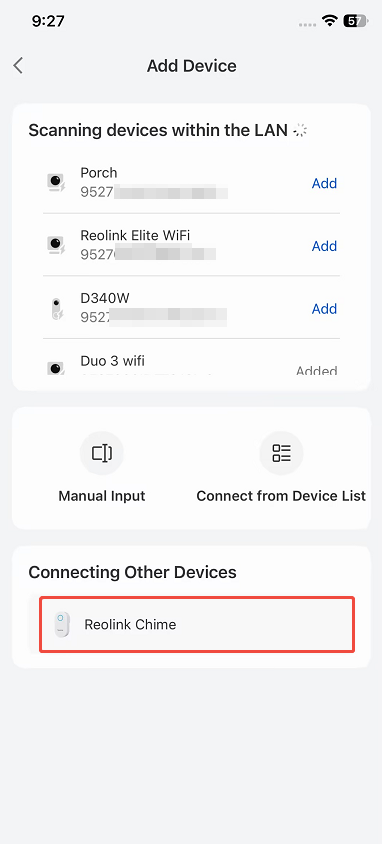

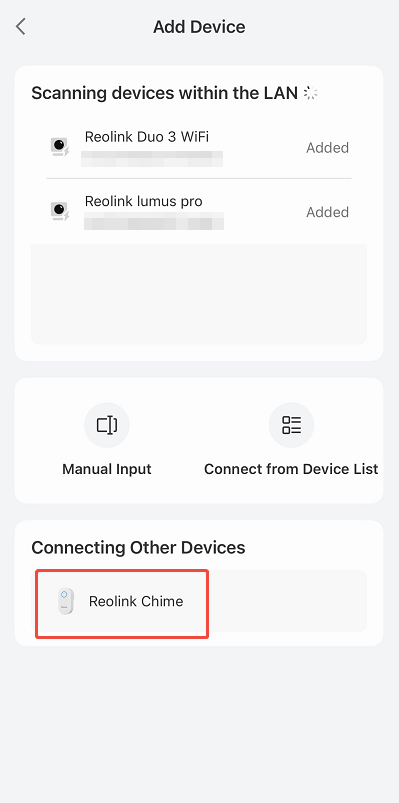

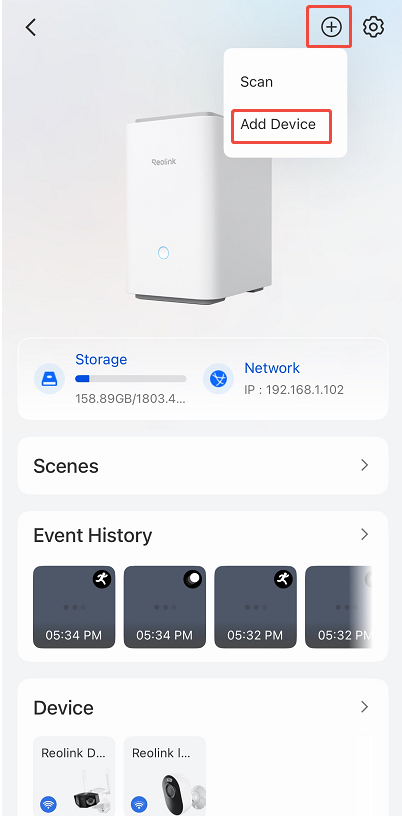

    Tap + icon > Add Device. Tap Reolink Chime in the bottom, then start pairing the chime with Home Hub.

    Add device  Chime

    Step 2. Pair Chime with Home Hub

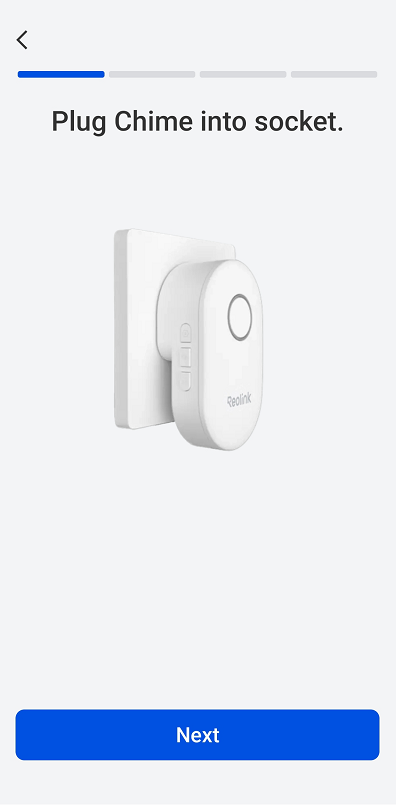

    1. Plug the Chime into the socket.

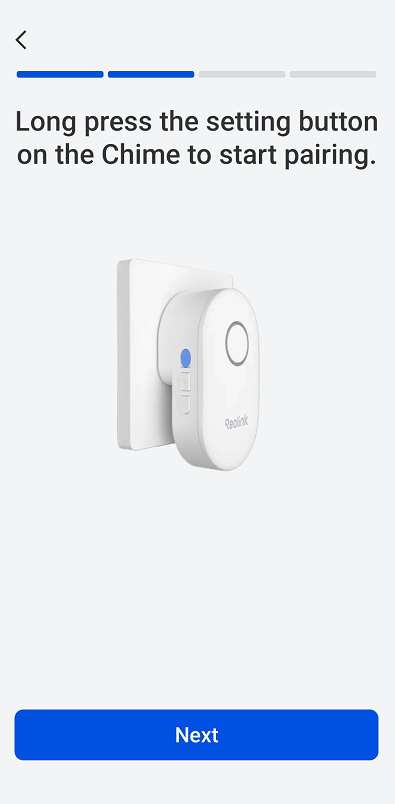

    2. Long press the setting button (the topmost button on the side of the chime) on the Chime.

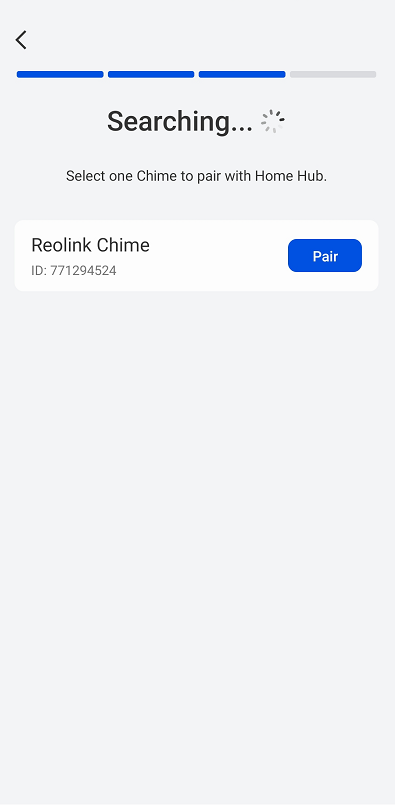

    3. Start searching for the Chime. When the Chime is detected, tap Pair.

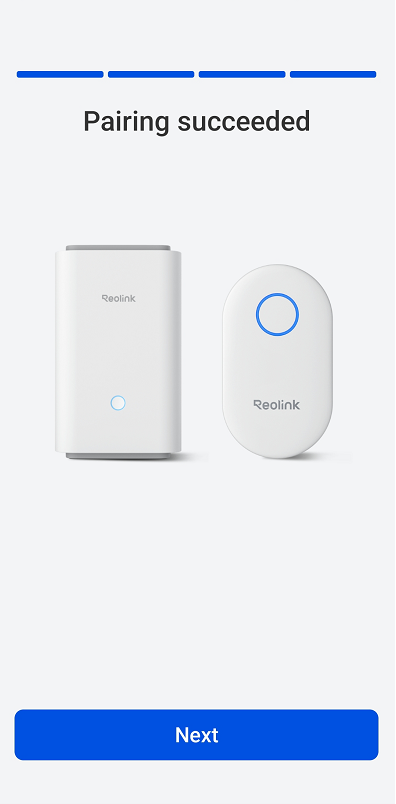

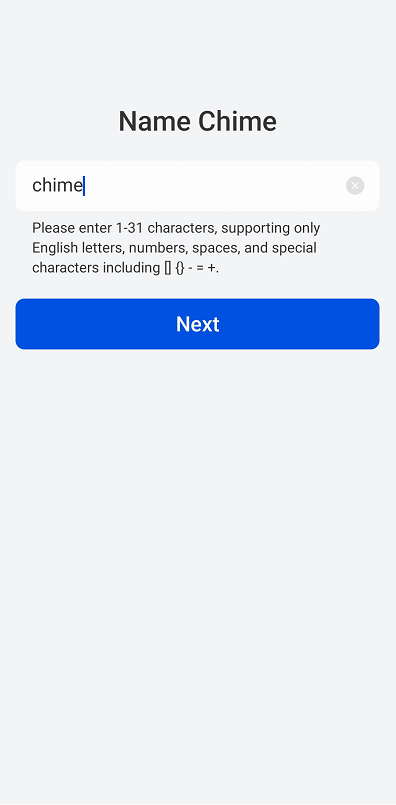

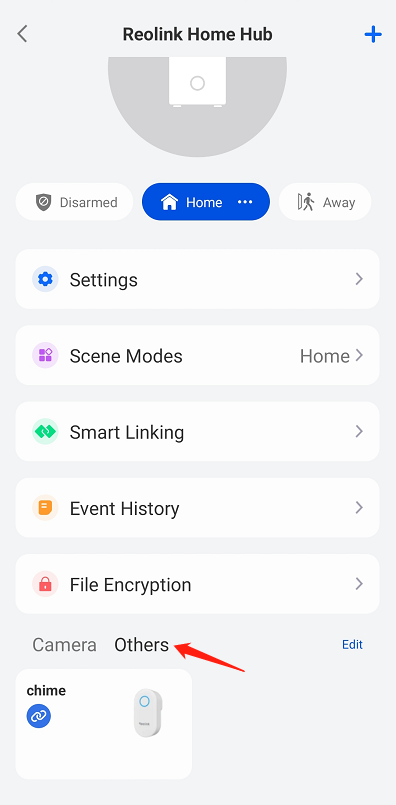

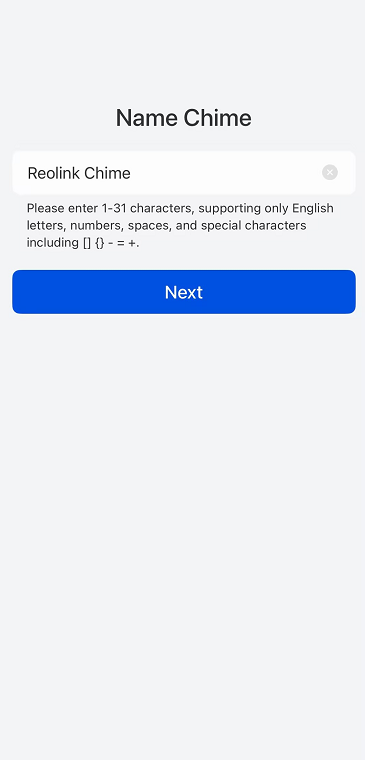

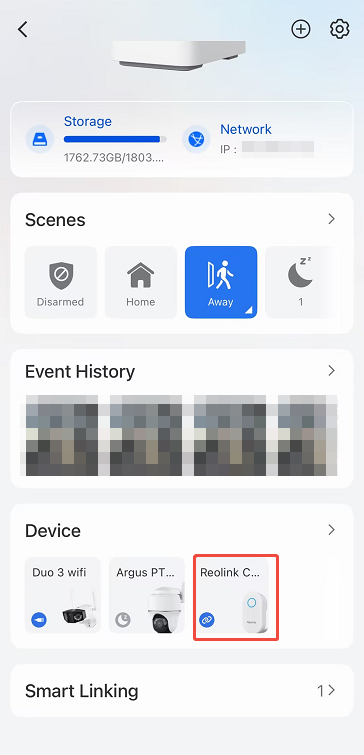

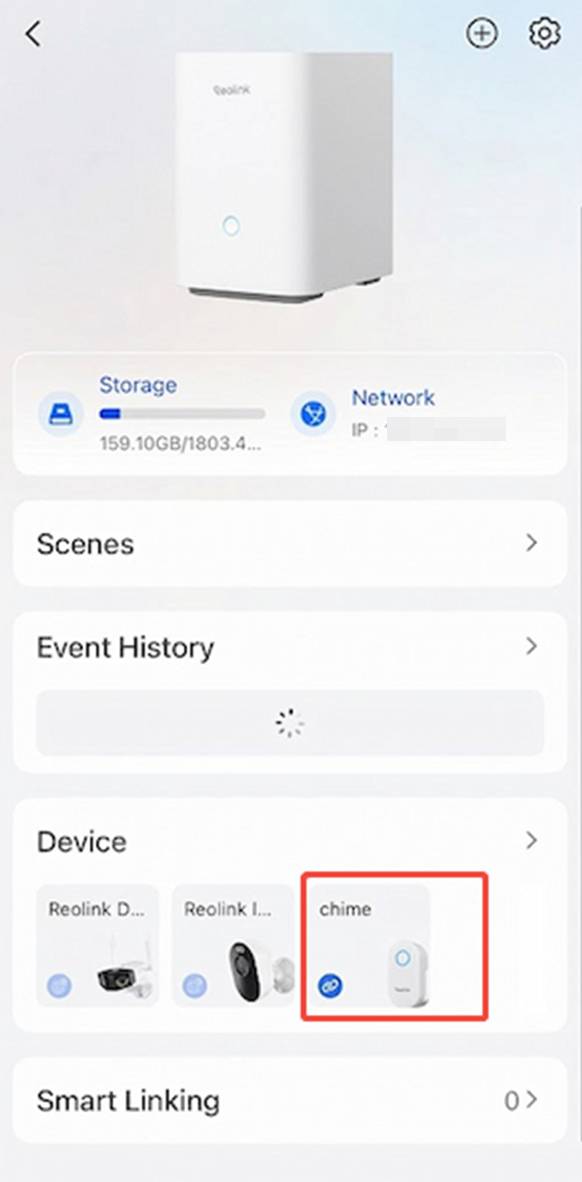

    4. When seeing “Pairing succeeded”, tap Next to name the Chime and you will see chime under the "Device" of the Home Hub.

    plug chime into socket  long pressSearching  paing succeededName chime  device chime

    Step 3. Link the Chime to the Doorbell

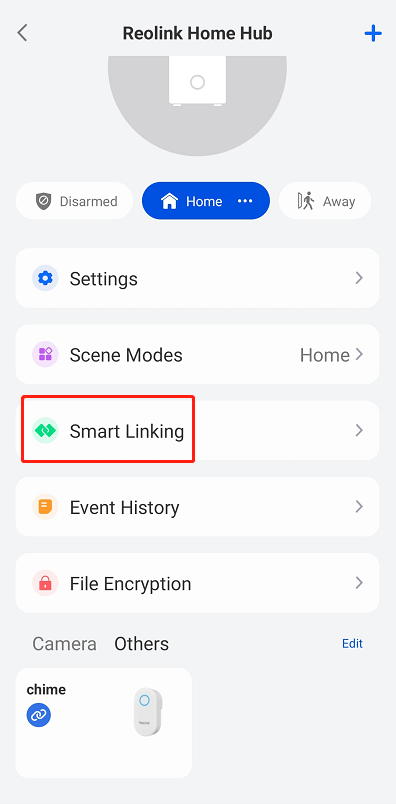

    1. Tap Smart Linking.

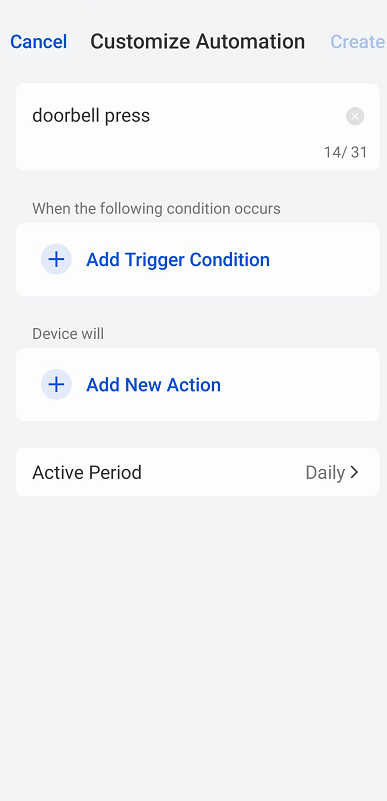

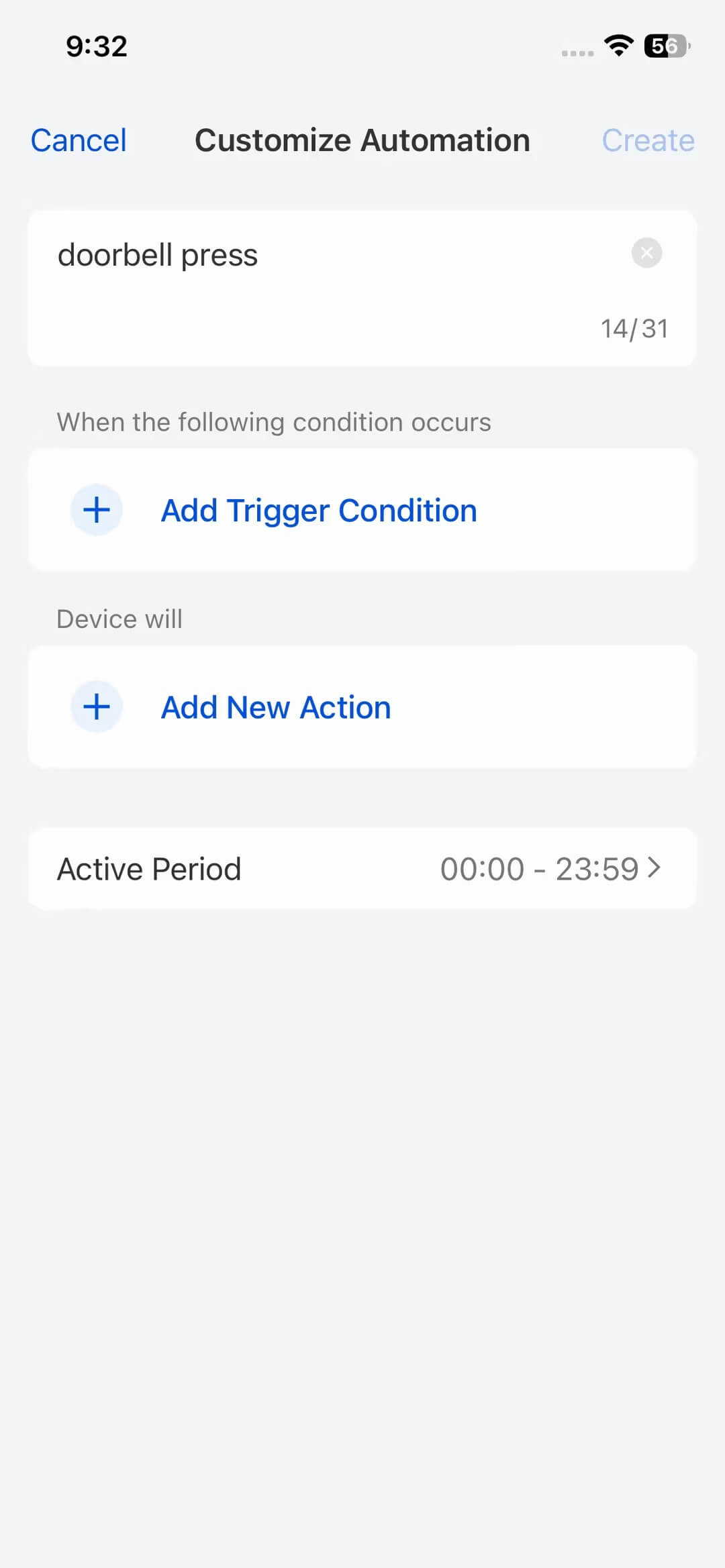

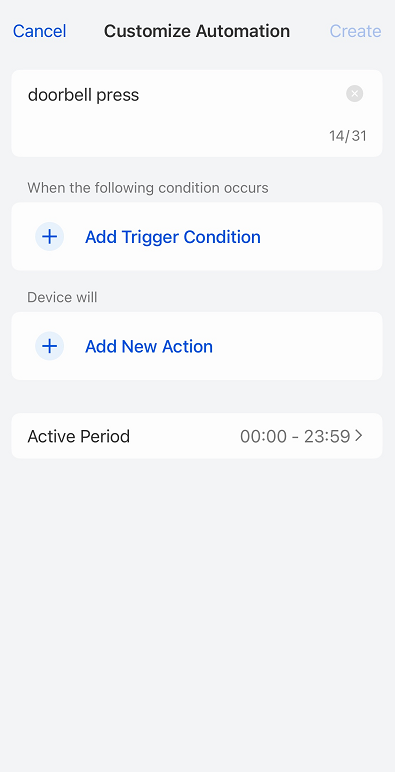

    2. Customize the automation name, trigger condition, action, and active period.
    3. Trigger Condition: Defines the specific event or situation that initiates the automation. If you want the doorbell press to trigger the chime to ring, select Ring.
    4. Action: Specifies what the camera should do when the trigger condition is met. Select the sound effect for the chime to play.
    5. Active Period: Determines the time range during which the automation is enabled. You can customize a time period based on your needs or set specific days of the week for the chime to ring.

    smart linking chime  doorbell press

    Step 4. Complete the Linking

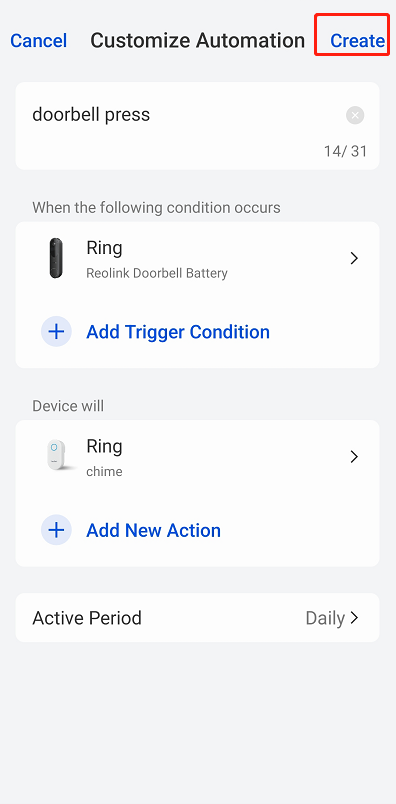

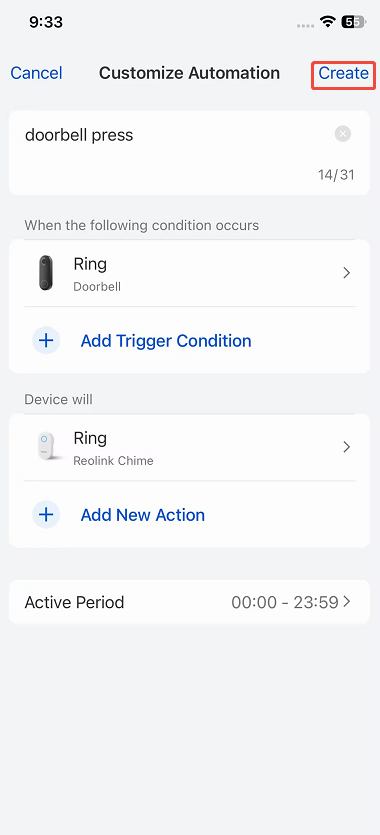

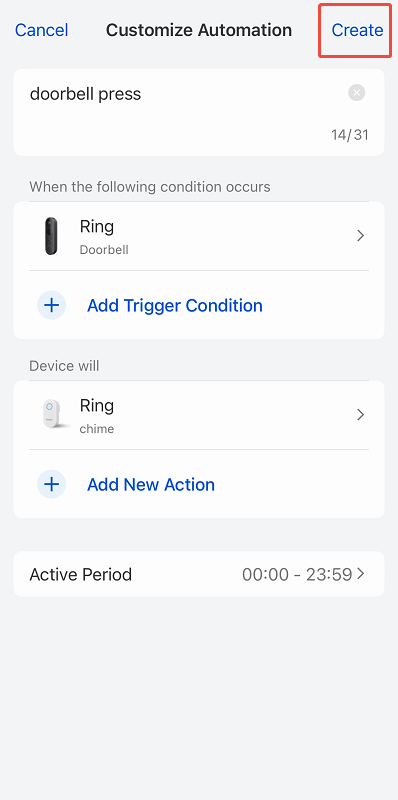

    1. Tap Create to finish linking the Chime and Doorbell.

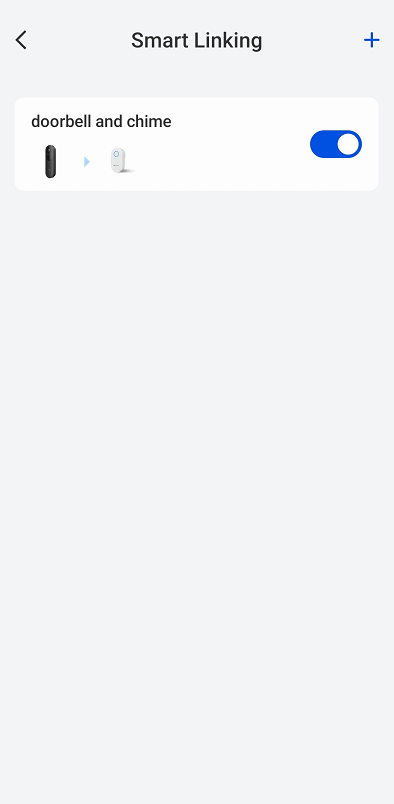

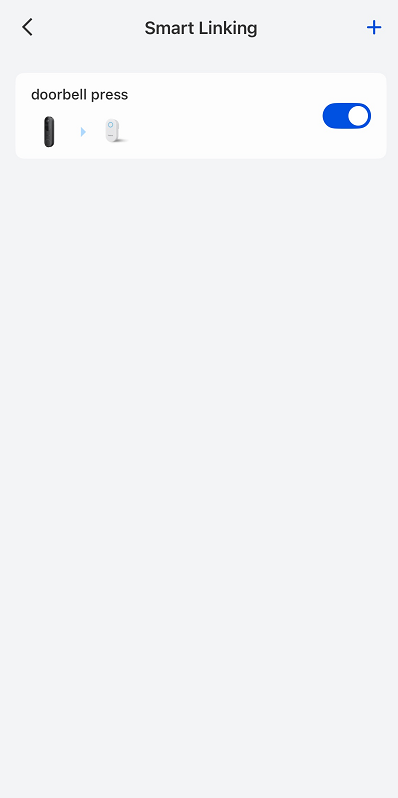

    2. You can enable or disable the toggle to turn this automation on or off.

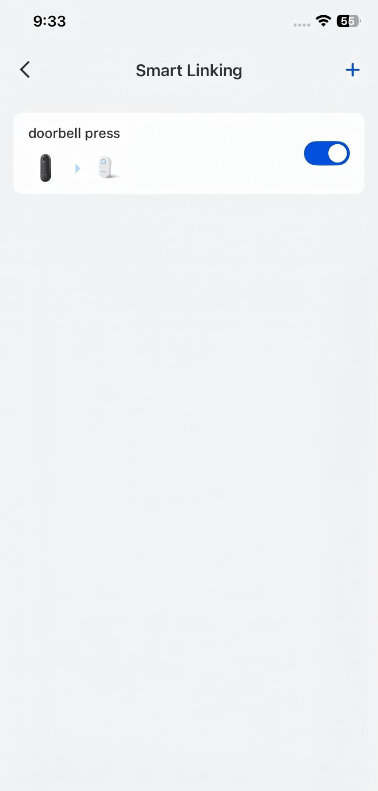

    Doorbell press create  doorbell press

If you have any questions, click “Submit a request” below to contact the Reolink Support Team.
