Learning more about the meaning of the charging LED will help you understand the charging mode of the camera.
Applies to: All Reolink Battery-powered cameras except Video doorbell (battery) and cameras with integrated status LED.
Most Models

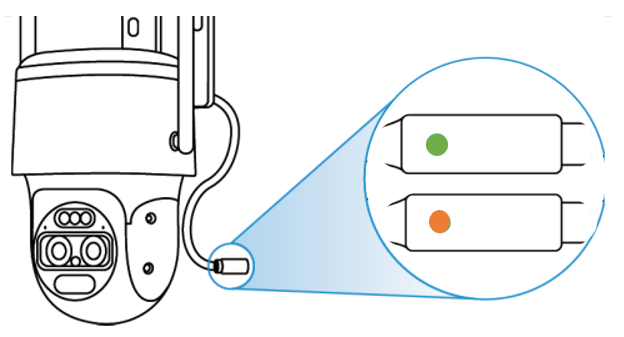

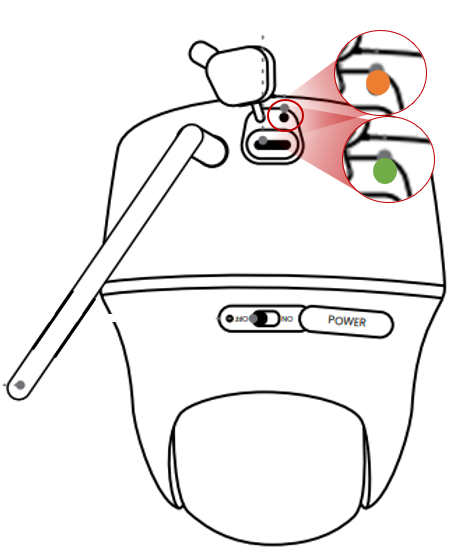

Location of the charging LED: Near the charging port (on the camera body or on the cable, depending on your camera model).
| Charging LED Color | Charging Status |
| Charging | |
| Fully charged | |
| Charging with low current | |
| Off | Not charging |

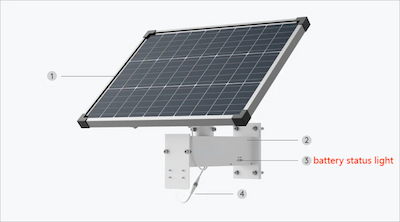

Trackmix LTE Plus
Location of the charging LED: On the mounting bracket
| Charging LED Color | Charging Status |
| Off | Not charging |
| Green light blinking | Charging |
| Red or green light solid on | Not charging |
| Red and green light solid on | Charging with low current or not charging |
Trackmix LTE Plus 2

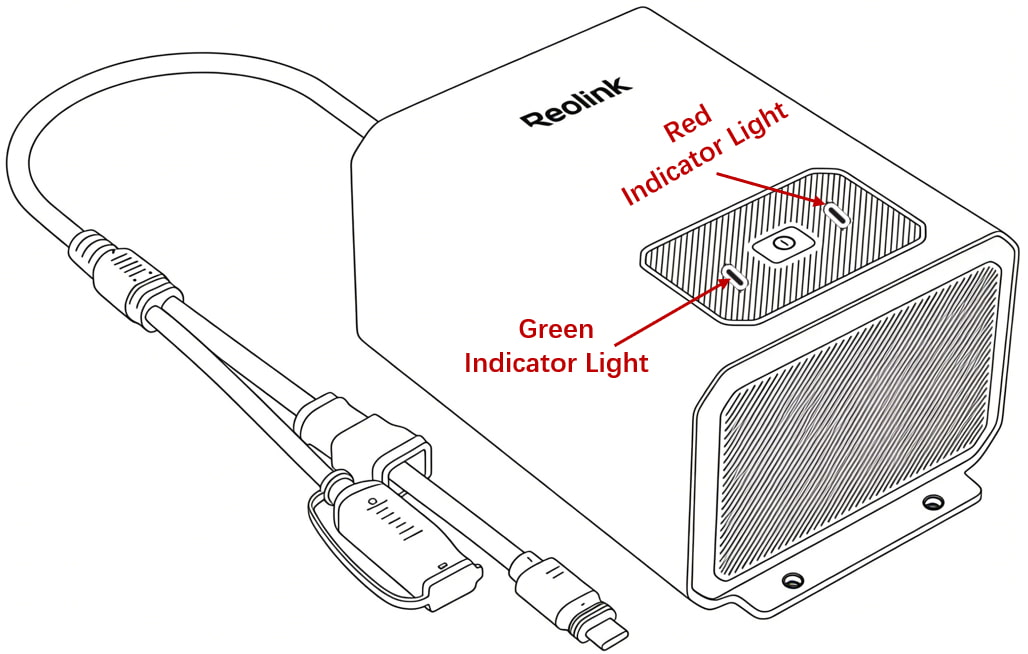

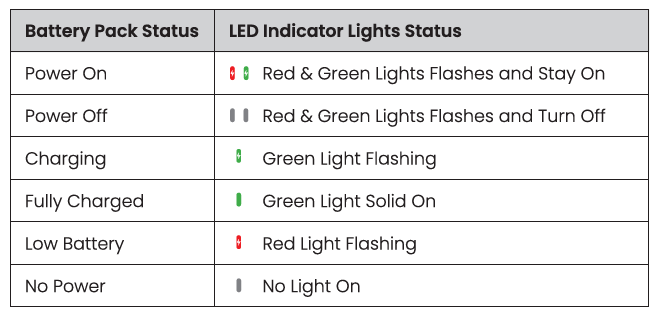

Location of the charging LED: On the Battery Pack
