Discover how to effortlessly set up your Reolink Home Hub Series with our step-by-step guide. Whether you've just unboxed your Reolink Home Hub Pro, Reolink Home Hub Mini, or the Reolink Home Hub, this comprehensive guide will walk you through the initial setup process using both the Reolink App and Reolink Client software.

Applies to: Reolink Home Hub Pro, Hub P1, Reolink Home Hub, Hub 1, Reolink Home Hub Mini

Step-by-Step Instructions

Preparation Before Initial Setup

Step 1. Power on your Home Hub and connect it to your home router using the Ethernet cable provided. Here are connection diagrams:

  • For Reolink Home Hub
    Home Hub diagram

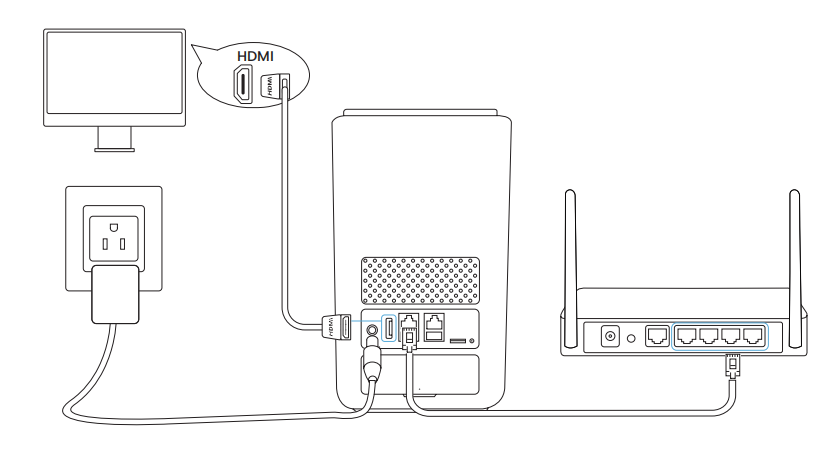

  • For Home Hub Pro
    Home Hub pro diagram

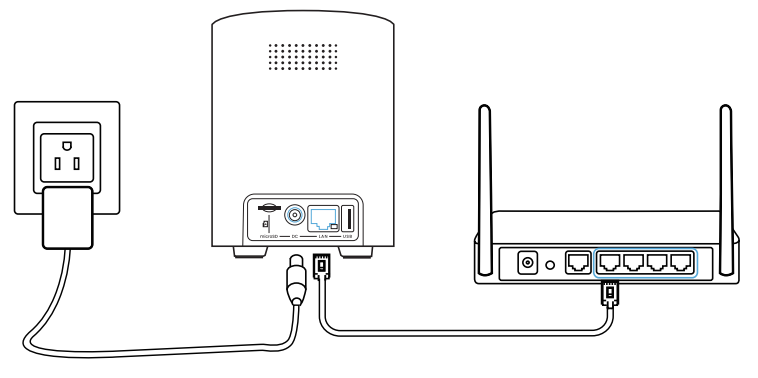

  • For Home Hub Mini
    Home Hub mini diagram

Step 2. Connect your phone/PC to the same router that the Home Hub is connected to.

Step 3. Download Reolink Client in the Download Center or scan the QR code to download and install the latest version of the Reolink App.
QR code

  • Via Reolink App

    Step 1. Add the device

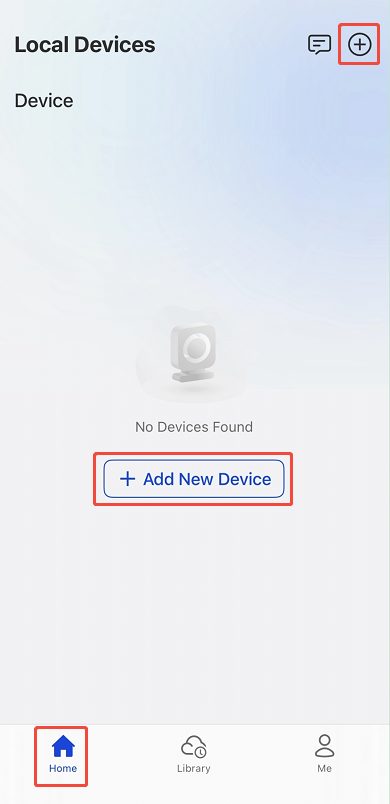

    1. Tap Add New Device or tap the “+” icon in the top-right corner to start the setup.

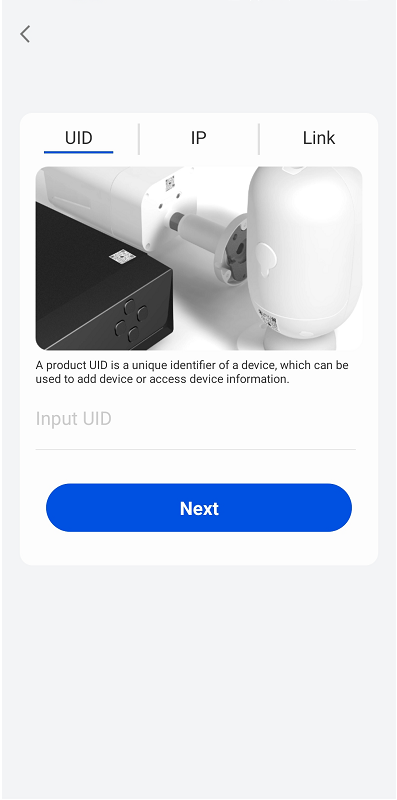

    2. Scan the QR code on your Reolink Home Hub. Alternatively, tap Manual Input to manually enter the UID (a 16-character code starting with “9527” located under the QR code). Then tap Next.

    Add New Device

    scan hub QR code  enter UID

    👉️ If you are using a Home Hub Mini, complete the additional activation steps below. If you are using a Home Hub or Home Hub Pro, skip to Step 2.

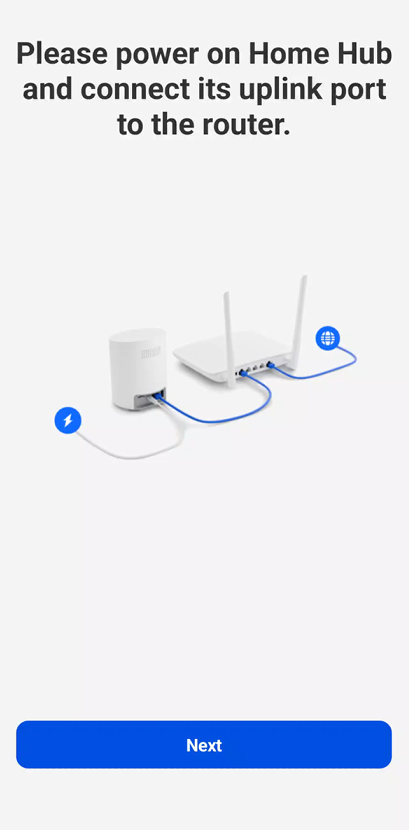

    1. The App will prompt you to power on and connect the Hub to the network, as shown in the image below. Once confirmed, tap Next to continue.

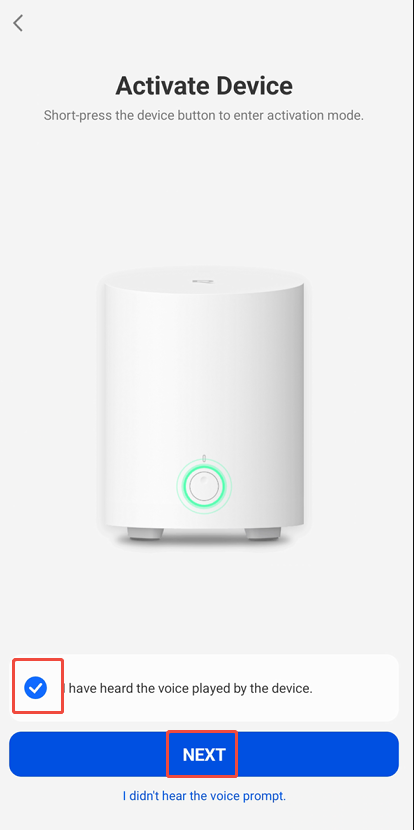

    2. Short-press the Hub Mini button to activate it. When you hear the 'Welcome to Reolink' from the device, tick the voice confirmation, then tap Next to continue.

    power on and connect the Hub Activate device

    Step 2. Initialize the Home Hub

    When you see the Device Initialization page, it means the Home Hub has successfully connected to the network.

    home hub initialization

    1. Create a login password for the Home Hub, then tap Next.
    Note: The default username is admin and cannot be changed.

    2. Assign a name to your Home Hub.

    create username and password for hub  name home hub

    Step 3. Finish Initialization

    Upon seeing "Initialization Finished," you'll be introduced to File Encryption and Event History features. Explore or skip to configure later.

    home hub initialization finish

  • Via Reolink Client

    Step 1. Add Device

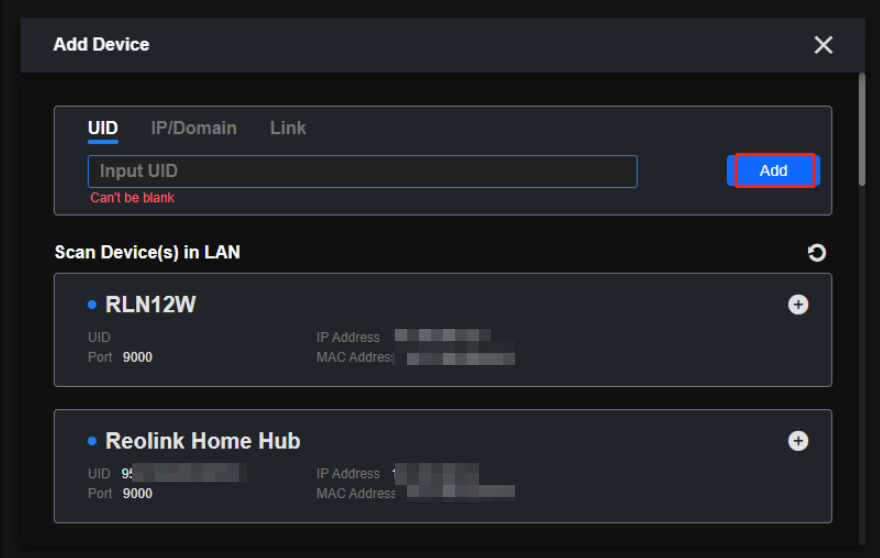

    1. Open Reolink Client and click Add Device in the upper left corner.

    2. Choose to add your Home Hub via UID/IP address or through LAN.

    device add

    👉️ If you are using a Home Hub Mini, complete the additional activation steps below. If you are using a Home Hub or Home Hub Pro, skip to Step 3.

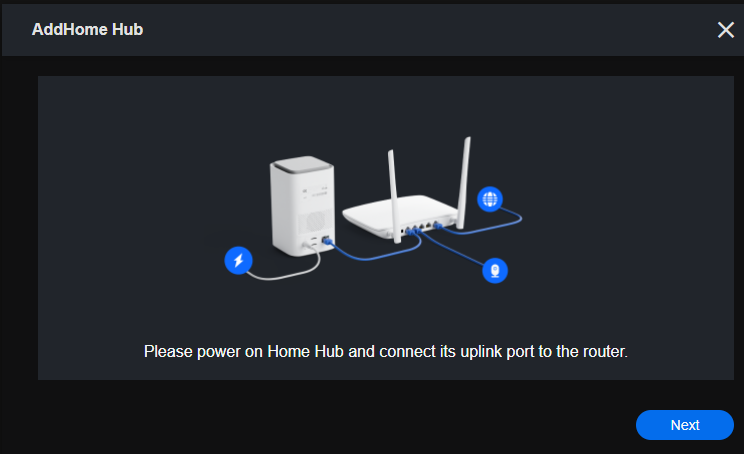

    1. The Client will prompt you to power on and connect the Hub to the network, as shown in the image below. Once confirmed, click Next to continue.

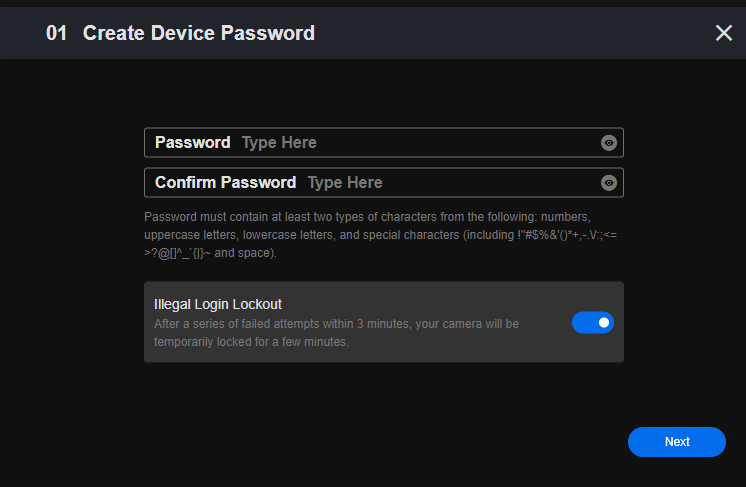

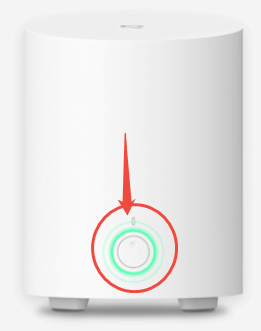

    2. Before you create a device password, please short-press the device button to activate it. After you hear the 'Welcome to Reolink' from the device, input the device password, then click Next to continue.

    hub mini button
    create a device password

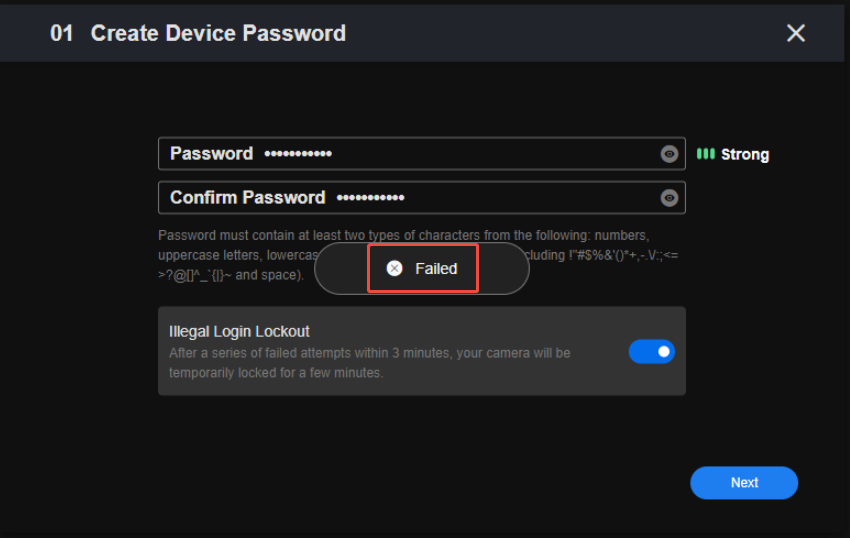

    Note: If you do not press the Hub Mini before this step, a “Failed” error may appear when you click Next. In this case, short-press the Hub Mini's button before this step, then click Next again to proceed to the next step.

    a “Failed” error

    Step 3. Set Password (Skip for Home Hub Mini)

    Set a secure password for your Home Hub. Click Next to continue.

    create device password new client

    Step 4. Name Your Hub

    Set a name for your Home Hub. Click Next.

    name home hub new client

    Step 5. Complete the Setup

    Done! Click Finish to finalize the setup. Then you'll be introduced to File Encryption and Event History features. Click Next to start using Home Hub.

    initialization finished

After successfully adding the Hub, the LED indicator should remain solid blue. If the LED indicator is red, it may indicate that the Hub has not successfully connected to the network or that the storage medium has not been installed. Refer to Understanding the Reolink Status LED Indicators of the Home Hub for further information or troubleshooting.

Now the initialization is finished, and you can add the cameras to your Home Hub, referring to How to Add Reolink Camera to Home Hub Series. By following these steps, you can ensure a successful Reolink Home Hub setup. You're well-equipped to monitor your home with precision and peace of mind.

If you have any questions, click “Submit a request” below to contact the Reolink Support Team.
