This article will introduce the meaning of the status light on your video doorbell PoE / Wi-Fi / Battery camera and how to configure the status light for Reolink Doorbell cameras via Reolink App.

Applies to: All Reolink Video Doorbell Series

Meanings of Status LED

When Reolink Video Doorbell is only connected to power, the doorbell status light is white.

When the doorbell is connected to both power and the network, the doorbell status light is blue.

Please check the network connection if the doorbell status light is white.

Doorbell Status Light Guide

Status Light State Meaning
White-Solid-(Short).gif White Solid (Short)
When the video doorbell is powered and starting up, the status light will be solid white for a short time until the video doorbell starts up successfully.
White-Solid.gif White Solid
The doorbell status light can be set to solid white 24/7 or only at night via Reolink App.
White-Clockwise-Spinning.gif White Clockwise Spinning
The doorbell button is pushed while the network is disconnected.
White-Blinking.gif White Blinking
The doorbell is started up but not connected to the network.
White-Breathing.gif White Breathing
The video doorbell detects a person or motion while the network is disconnected.
Blue-Clockwise-Spinning.gif Blue Clockwise Spinning
The doorbell button is pushed.
Blue-Solid.gif Blue Solid
The 2-way audio function is being used.
Blue-Blinking.gif Blue Blinking
Upgrading firmware.
Blue-Breathing.gif Blue Breathing
he video doorbell detects a person or motion.



Configuring Status LED via Reolink Software

There are several options for the Status LED.

Reolink App

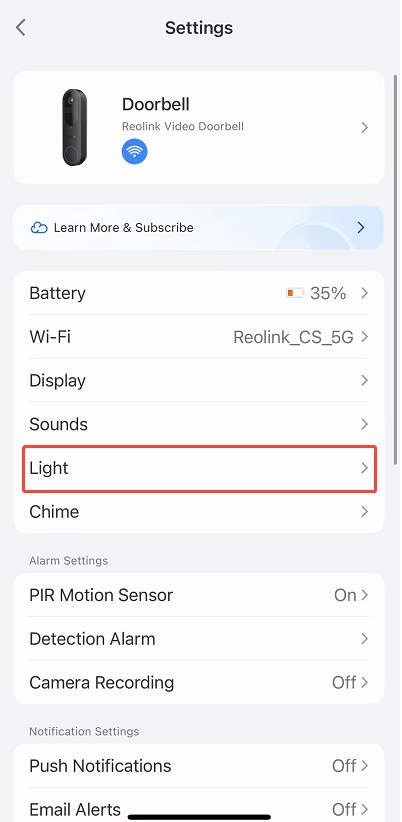

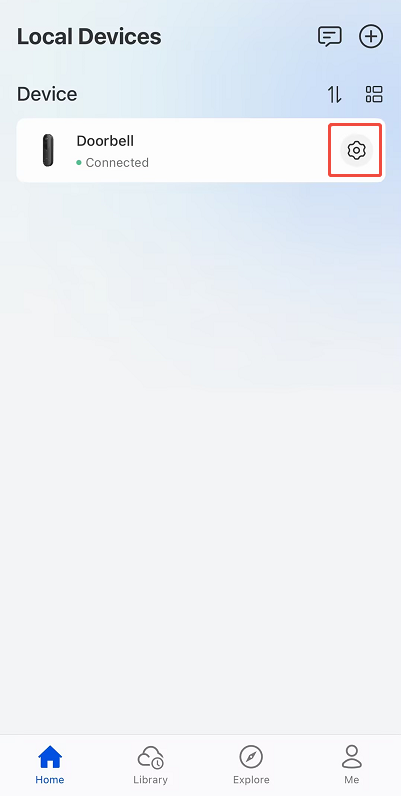

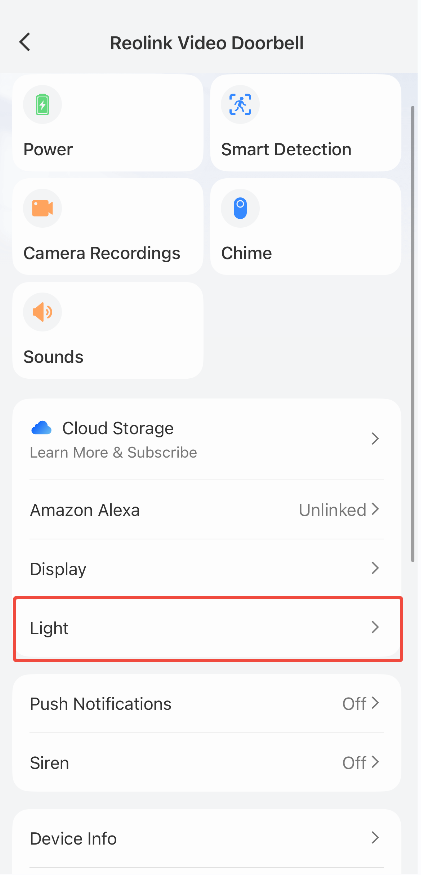

Step 1. Login to your camera on the Reolink App and go to the Camera Settings > Light.

doorbell settings  doorbell light

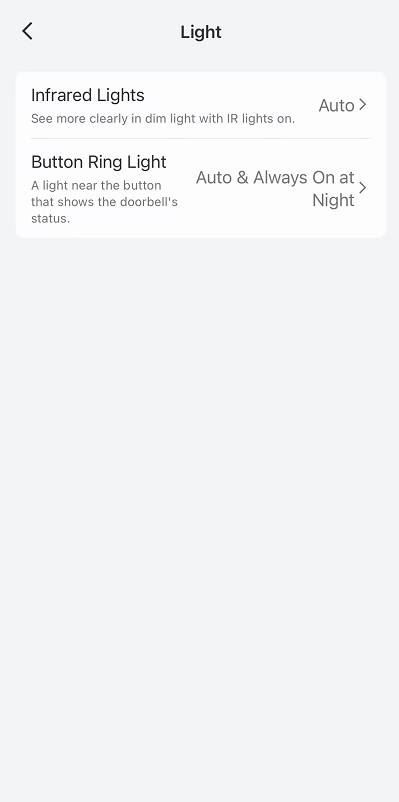

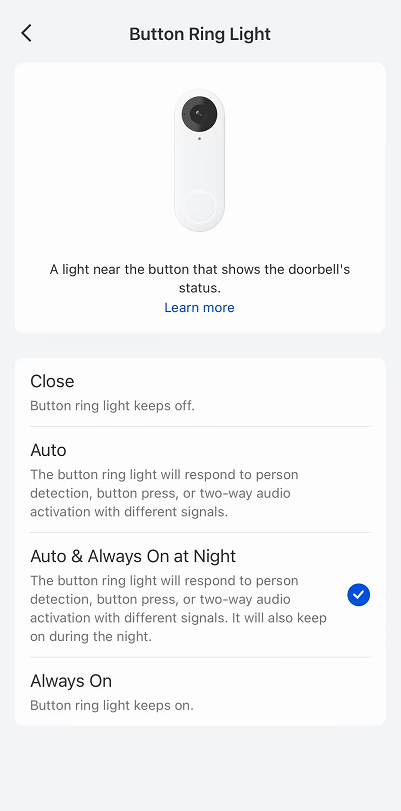

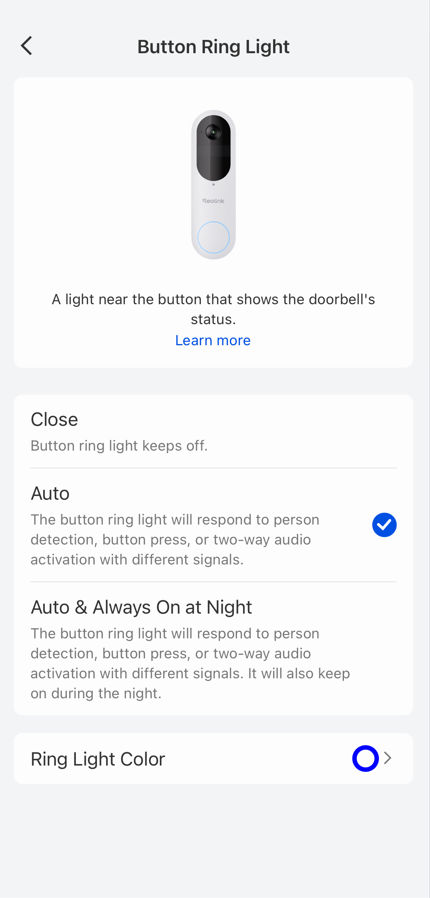

Step 2. Go to Button Ring light and select the mode that you want. And customize the Ring Light Color if your camera supports this feature.

doorbell light page  doorbell button ring light

Button Ring light  Ring light color
Note: Available settings may vary by camera model. Please refer to the options displayed in your camera's software.

  • Close: Button ring light will keep off on smart detection, button press, and two-way talk.
  • Auto: Button ring light will light up on smart detection, button press, and two-way talk.
  • Auto & Always On at Night: Button ring light will light up 24/7 on smart detection, button press, and two-way talk, and stays on at night.
  • Always on: Button ring light will stay on 24/7. In cases of smart detection, button press, and two-way talk, the status will change accordingly.

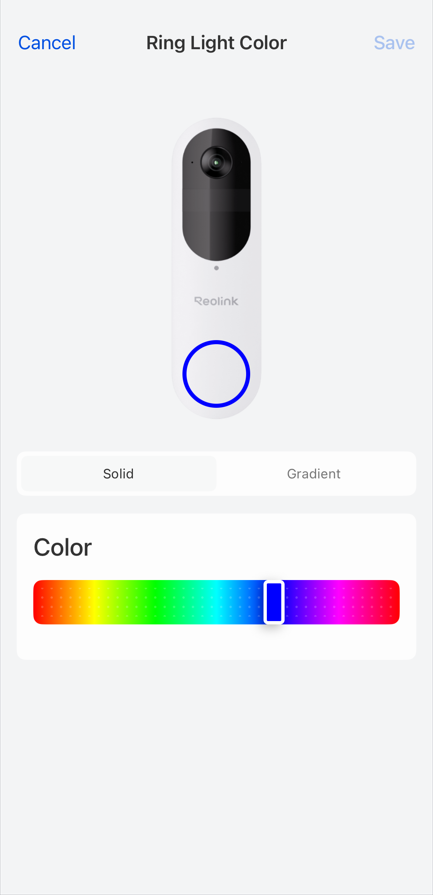

  • Ring Light Color: Customize the Button Ring Light by selecting either Solid or Gradient, and choose your preferred color.
